AiM - AiM Shift Light Module

• Customizable RPM shift lights with 10 RGB LEDs for precise vehicle monitoring and alerts.
• Compatible with AiM CAN systems including EVO4S, EVO5, MXL2, MXG, MXP, MXS, and more.
• Advanced features such as predictive lap timing, gear-dependent lighting, and configurable flashing or solid alerts.

Shift Light Module
Your shift lights where you wish

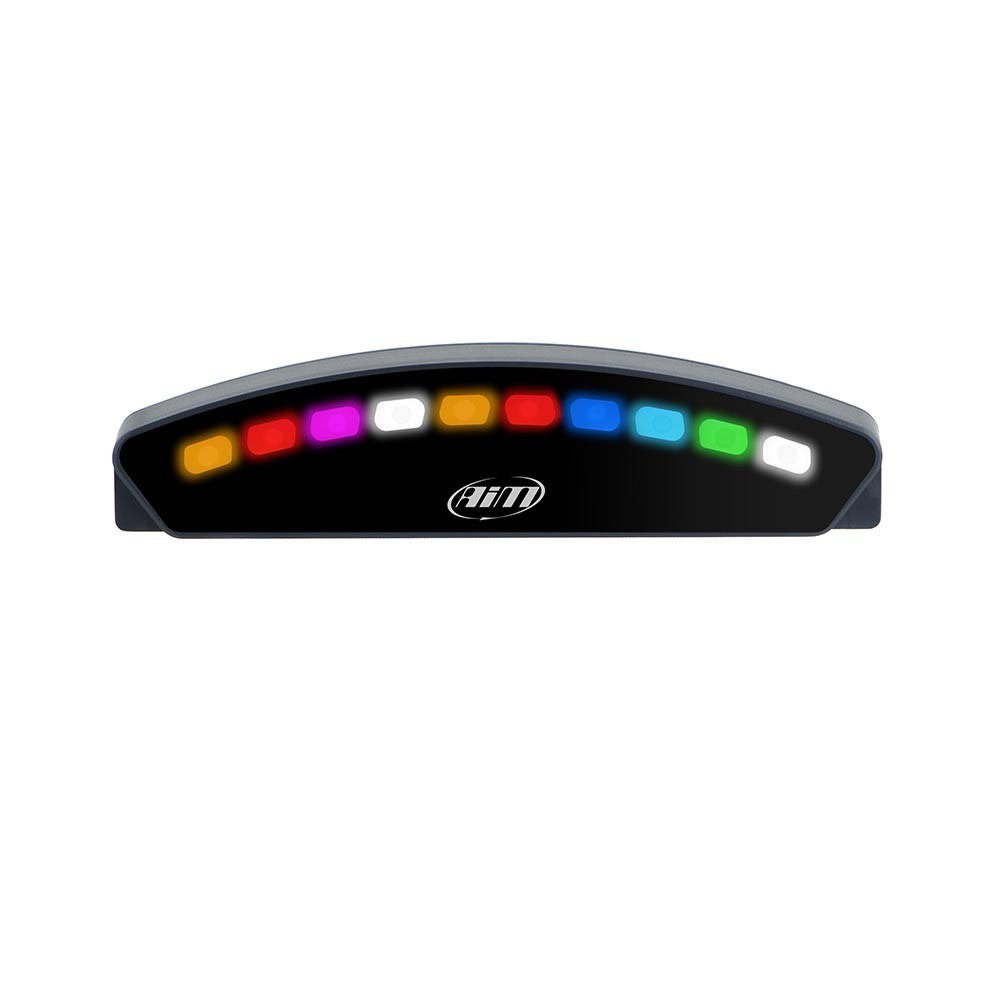

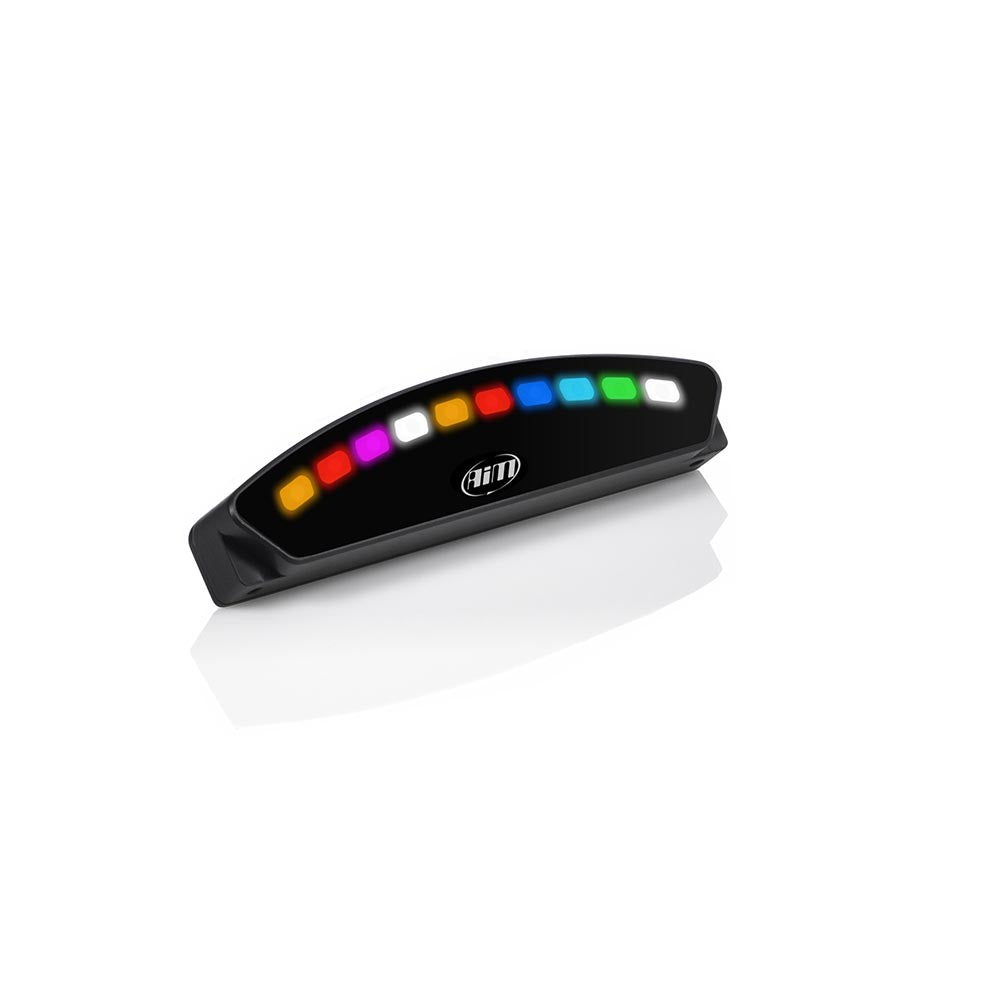

The Shift Light Module is a compact array of ten RGB LEDs which help monitoring RPM thresholds, alerts and other indicators.
It can be helpful when you have a logger but not a dash, or even in case your dash is positioned where you can't easily see its shift lights.

Versatile Configuration
With the Race Studio 3 software you can easily set the LED color and the RPM value that turns each LED on/off, also in dependance upon the gear number. It is fully customisable: users can select a solid alarm or flashing one - and its flashing frequency - choose to have a warning message, and also set the alarm priorities.

You can set the Shift Lights Module as a Predictive Lap Timer as well:
The LEDs bar will turn green if you are improving your chrono
compared to the best one of the session or instead they will turn
red if you are getting worse.

The Shift Light Module is CAN compatible with the following AiM systems:

• EVO4S
• EVO5
• MXL2
• MXG
• MXG 1.2
• MXG 1.2 Strada
• MXP
• MXP Strada
• MXS
• MXS 1.2
• MXS 1.2 Strada

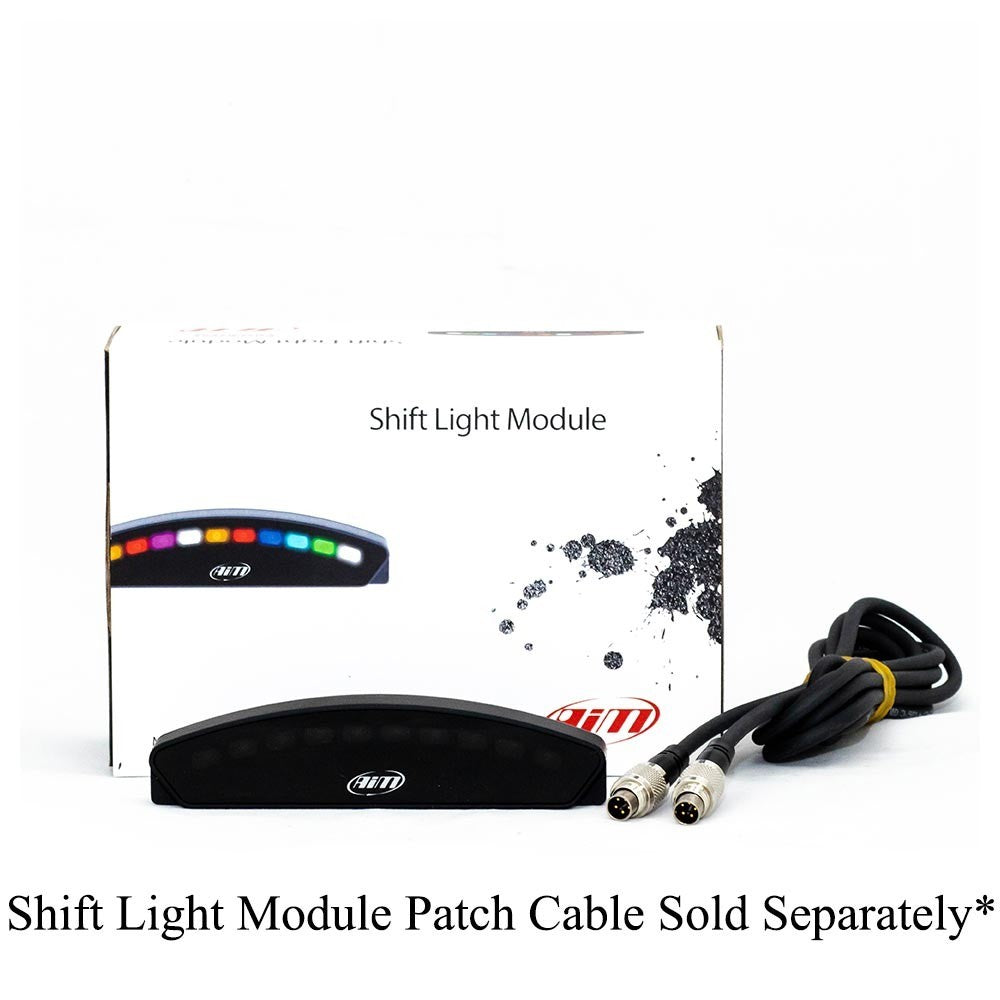

The Shift Light Module does not come with any wiring, be sure to pick up a Shift Light Module Patch Cable.
