Toyota HF2A/HF2AV Transfer Case Adapter kit - BMW 8HP AWD

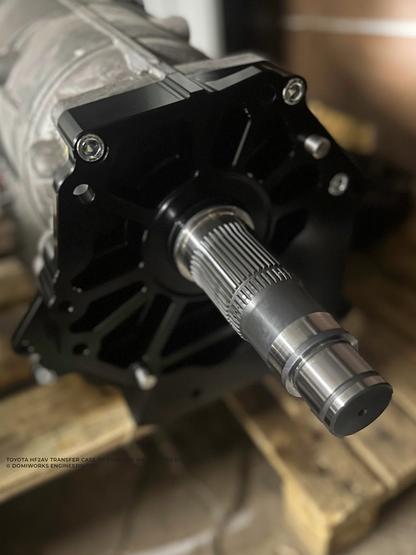

Adapter kit to adapter the Toyota HF2A/HF2AV Transfer case to a BMW 8HP AWD Transmission. Fits all F- and G-series AWD transmissions.

This kit is compatible with the Transfer Case HF2A/HF2AV from Land Cruiser 80-series 1990-1998. The 100-series has the same bolt pattern flange but a different input axle/gear.

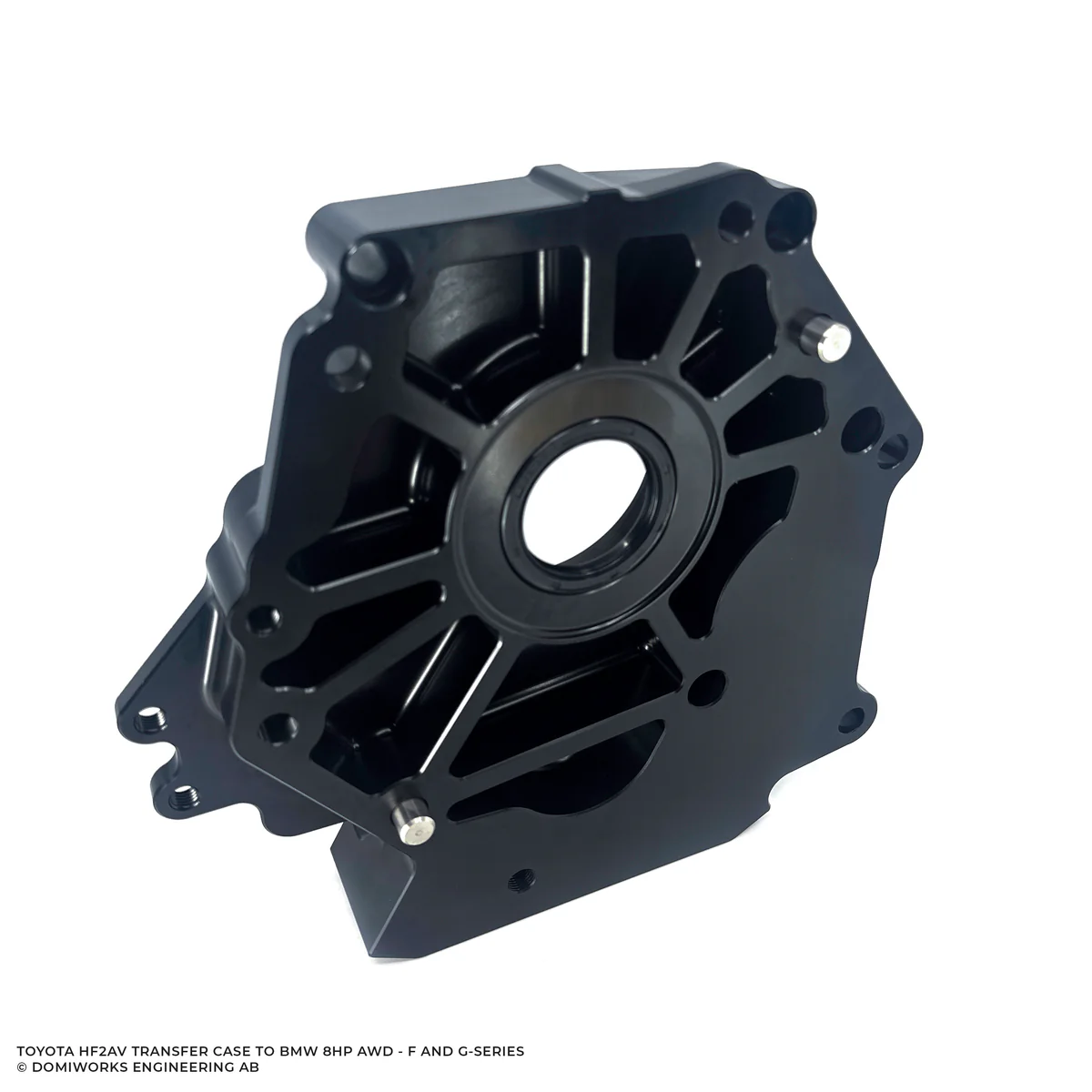

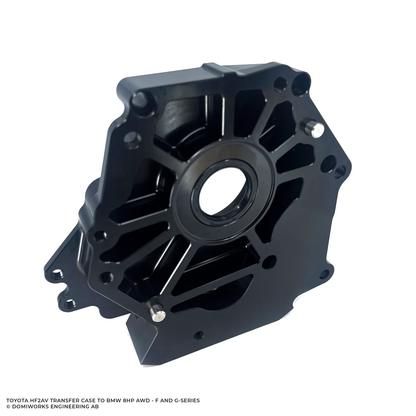

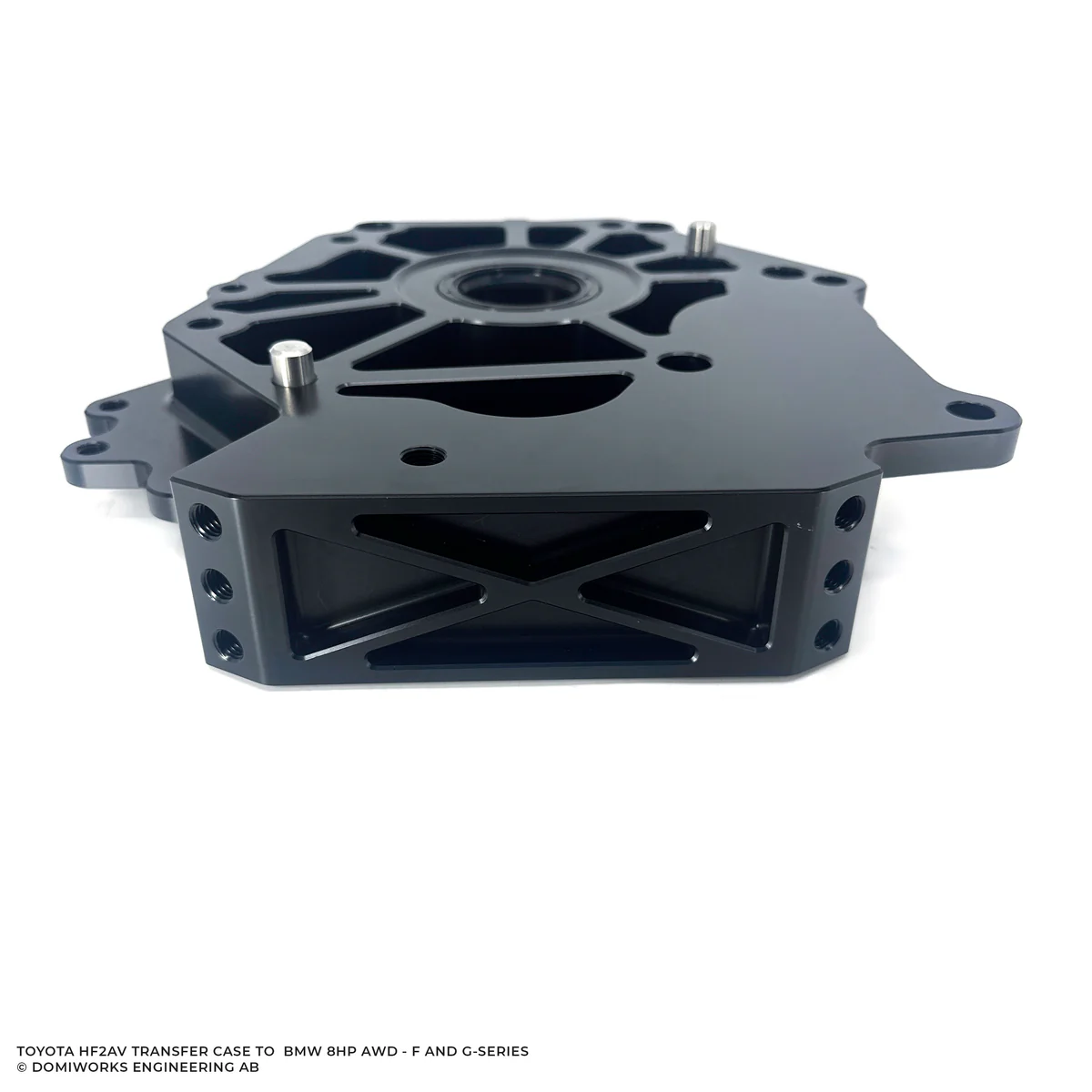

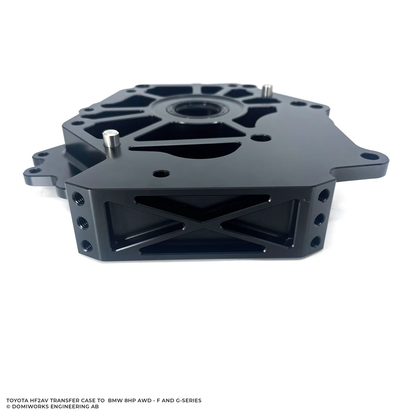

Transfer case only measures 37mm which makes it the thinnest adapter on the market. Integrated mount to use the original transmission cushion, this needs a slight modification of adding another hole and clear one side to remove interference with the transfer case. Made out of high grade aluminum and anodized black. Laserengraved text and logo for a premium feel and experience.

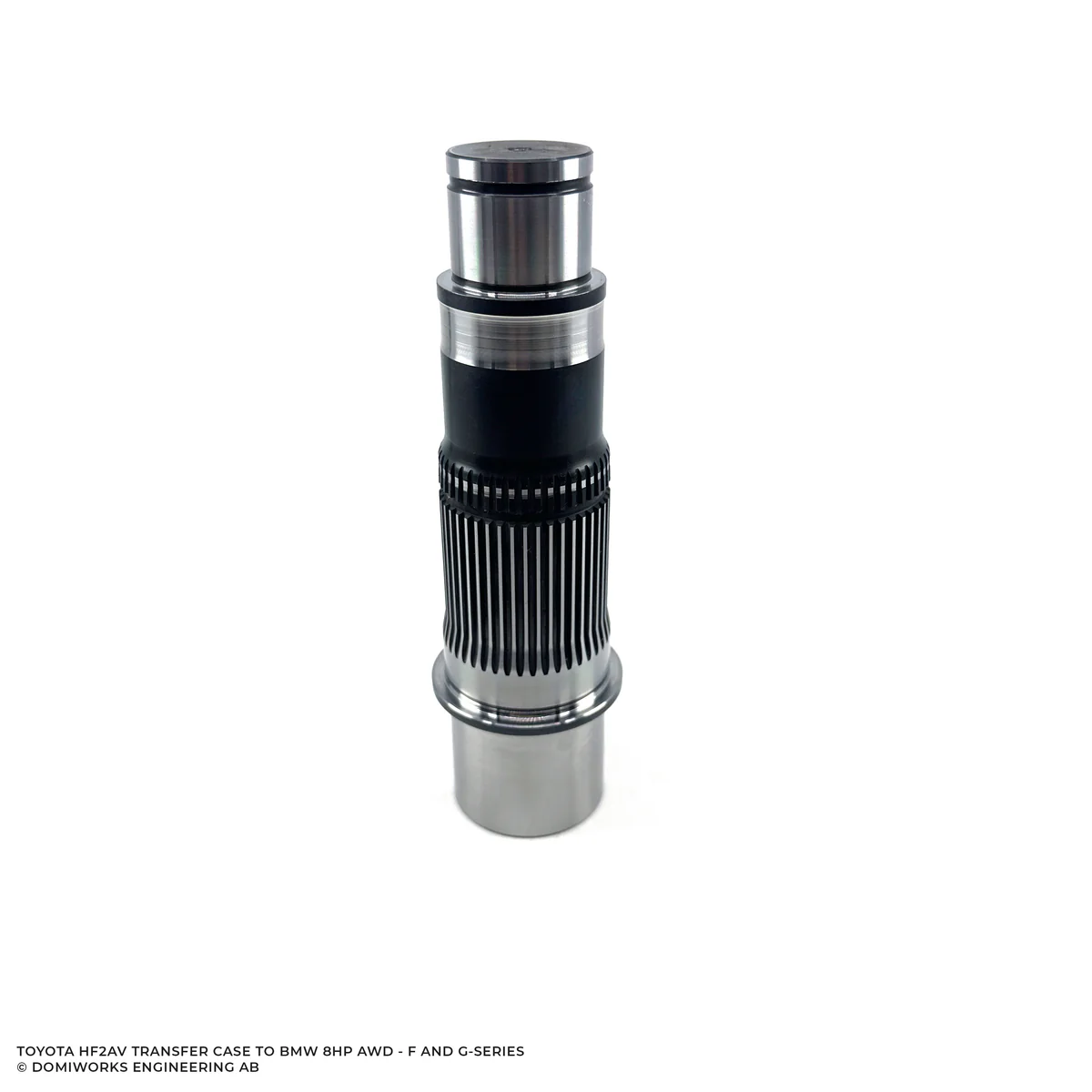

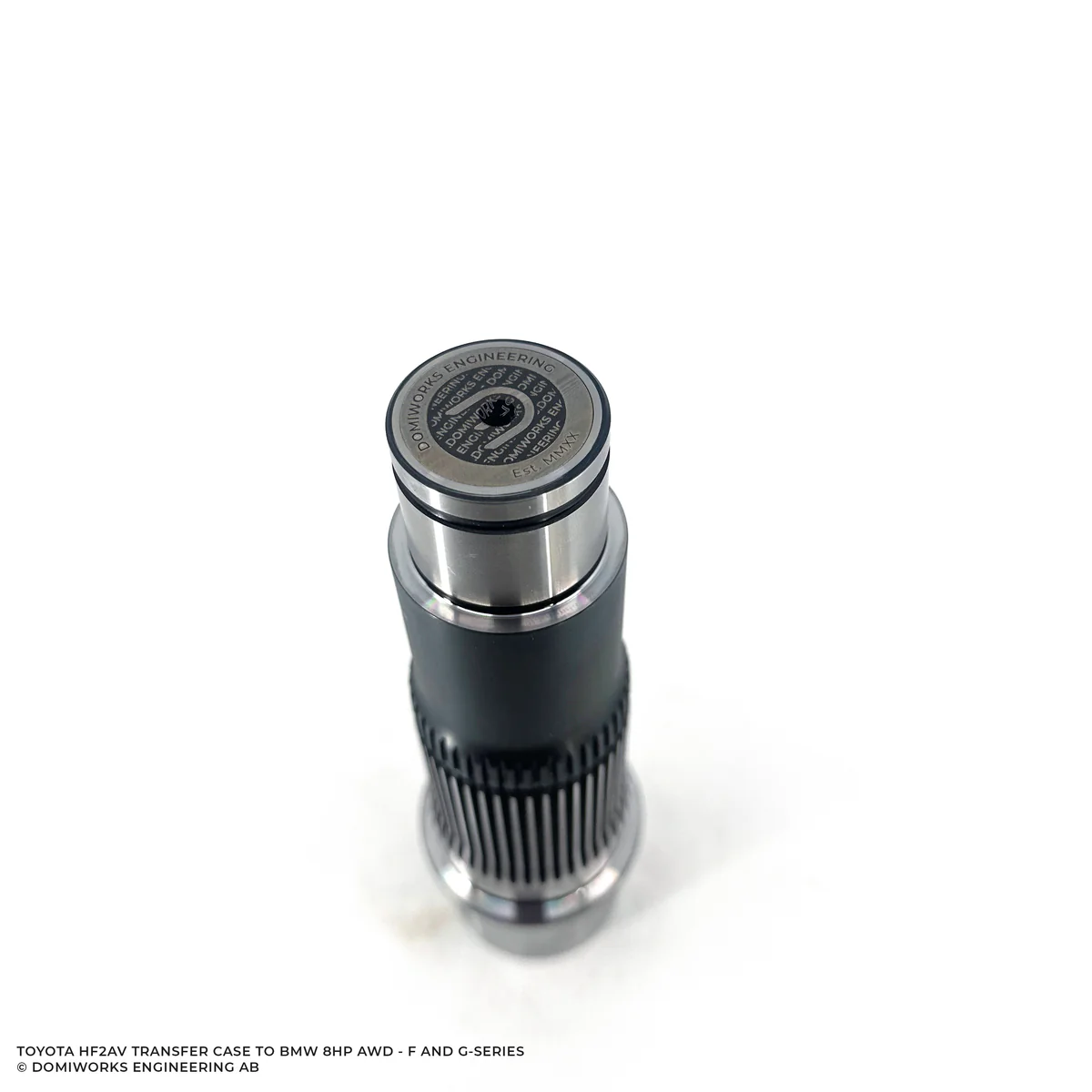

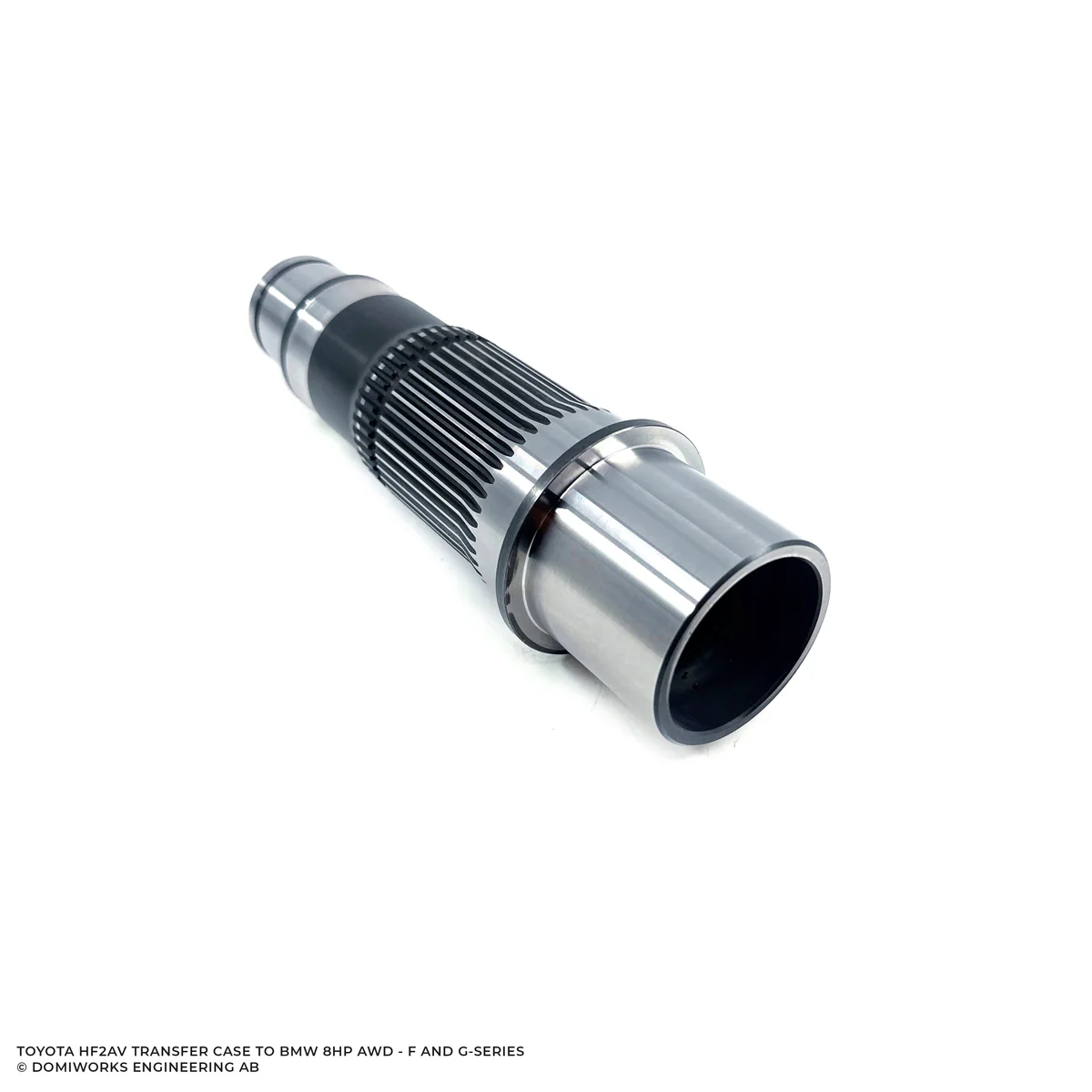

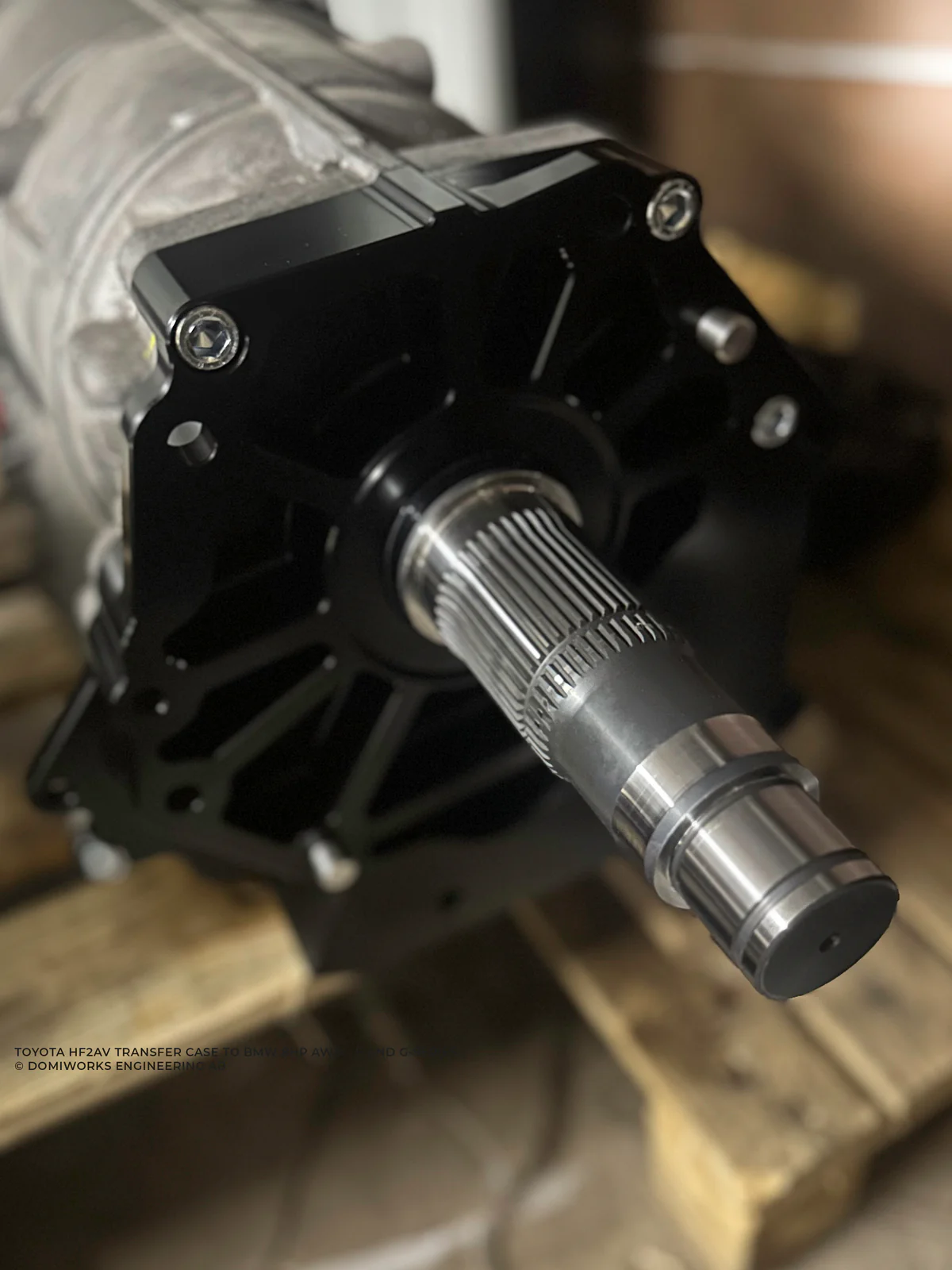

Kit also includes a new replacement input axle for the HF2A/HF2AV Transfer case which adopts the 8HP AWD transmission output axle spline. Made out of Orvar Supreme and heat treated for for increased torque capability and durability.

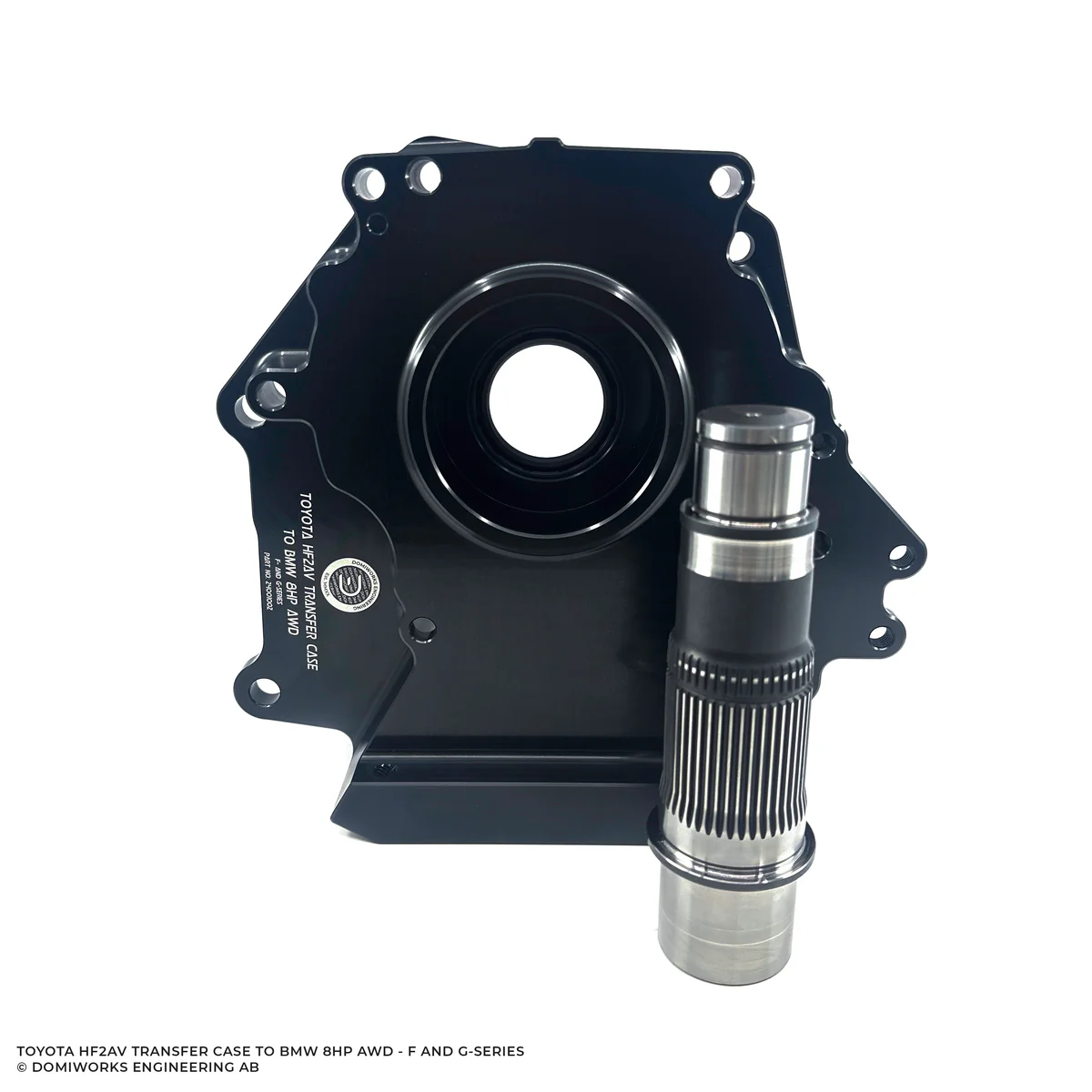

HF2AV Transfer Case Kit for BMW 8HP AWD includes:

- Aluminium transfer case adapter
- Replacement input axle for HF2A/HF2AV transfer case made out of Orvar Supreme
- Bolt and other accessories necessary to mount

Crossmember or cushion not included.

Note! If not in stock leadtime can be longer due to the complex input shaft manufacturing
