Adapter kit Volvo "White" T5 T6 - BMW M50 S50 M52 S52 M54 ZF-5 5-speed - 240mm / 9.45"

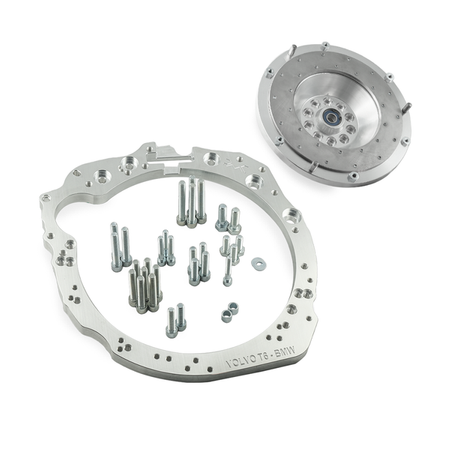

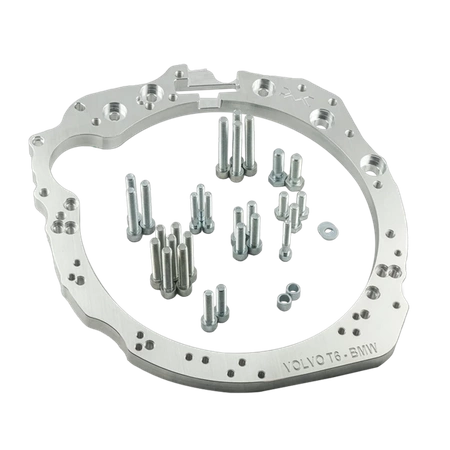

Aluminum clutch kit enabling the connection (swap / conversion) of Volvo Modular Whiteblock White T5 T6 with a manual ZF gearbox (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.

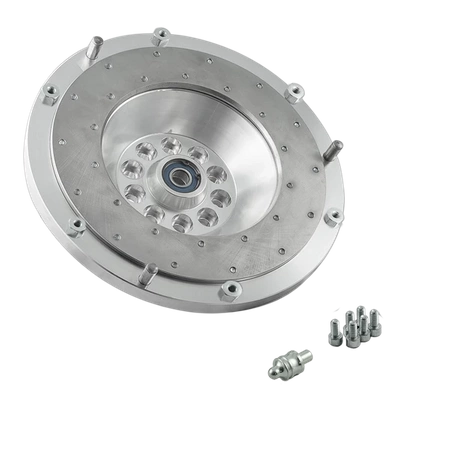

Custom aluminum flywheel 240mm / 9.45" with interchangeable friction disc (FW001.00.02 spare part available on the website) - adapted for BMW M57 or BMW E46 M3 pressure plate (not compatible with M50 / M52 / M54 / S50 / e36 M3). Each PMC Motorsport flywheel is checked and balanced before shipment, the kit includes all necessary mounting bolts.

ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual transmission used in BMW E series with engines M50 M52 M54 ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54)). The weight of the transmission is approximately 39 kg (86 lb), input shaft 23x29-10N.

You should use the flywheel / ring gear from the automatic version of the Volvo OE 1275370

The starter remains OE Volvo OE 1 005 821 977

Use bolts to mounting the Volvo OE 9454743 (not included in the kit)

The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.

Use a 240mm clutch disc that fits your gearbox.

Replace the original spherical pin (pivot pin) with the custom one from the kit.
