Canton - GM LS1-LS6 5-5/8" Deep Front Sump Road Race and Drift Pan
Canton - GM LS1-LS6 5-5/8" Deep Front Sump Road Race and Drift Pan
SKU: Canton-15-276 ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
Couldn't load pickup availability
Now accepting crypto with
Choose Coinbase at checkout
Product Details

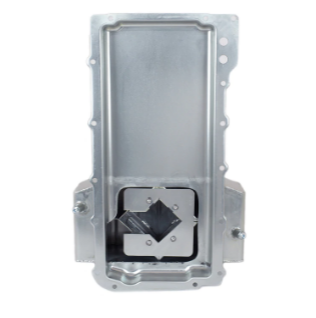

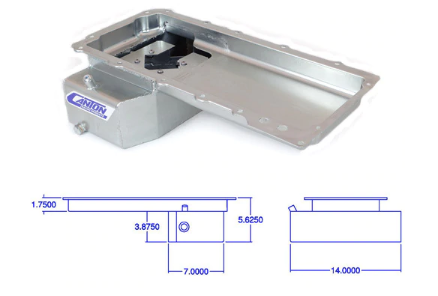

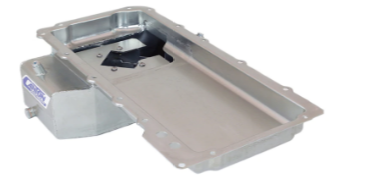

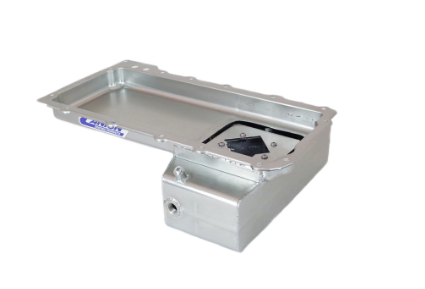

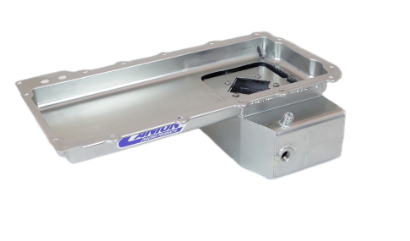

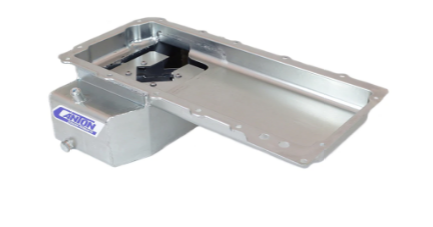

Cantons new 15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. Its diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. Will not fit on LS Next 2 blocks.
Note: GM pickup part #12572654 required.
The Pan Features
* 6.5 qt System Capacity
* 4.25" Stroke Clearance
* Diamond Shape Trap Door Baffle
* Bolt in Slosh Baffle
* 20 mm bung for low oil warning sensor (22-405 required if not used)
* Provision for our 1/4 NPT pan mounted dipstick
* Magnetic Drain Plug
Additional Info
- WARRANTY:
- Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
- SKU:
- 15-276
- CONDITION:
- New
- AVAILABILITY:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- CAPACITY:
- 6.5 Quart System Capacity
- FINISH:
- Gold Iridite Plated
- MATERIAL:
- 16 Gauge Steel
- APPLICATION TYPE:
- Road Racing
- APPLICATION TYPE:
- Drift
- SUMP STYLE:
- T-Sump
- ENGINE TYPE:
- GM LS
-
