Toyota HF2AV Transfer Case Adapter kit - Dodge 8HP AWD 23 Spline

Adapter kit to adapter the Toyota HF2AV Transfer case to a Dodge 8HP AWD Transmission with the 23 spline output axle. Fits Dodge 8HP70 with the smaller output axle with 23 teeth spline.

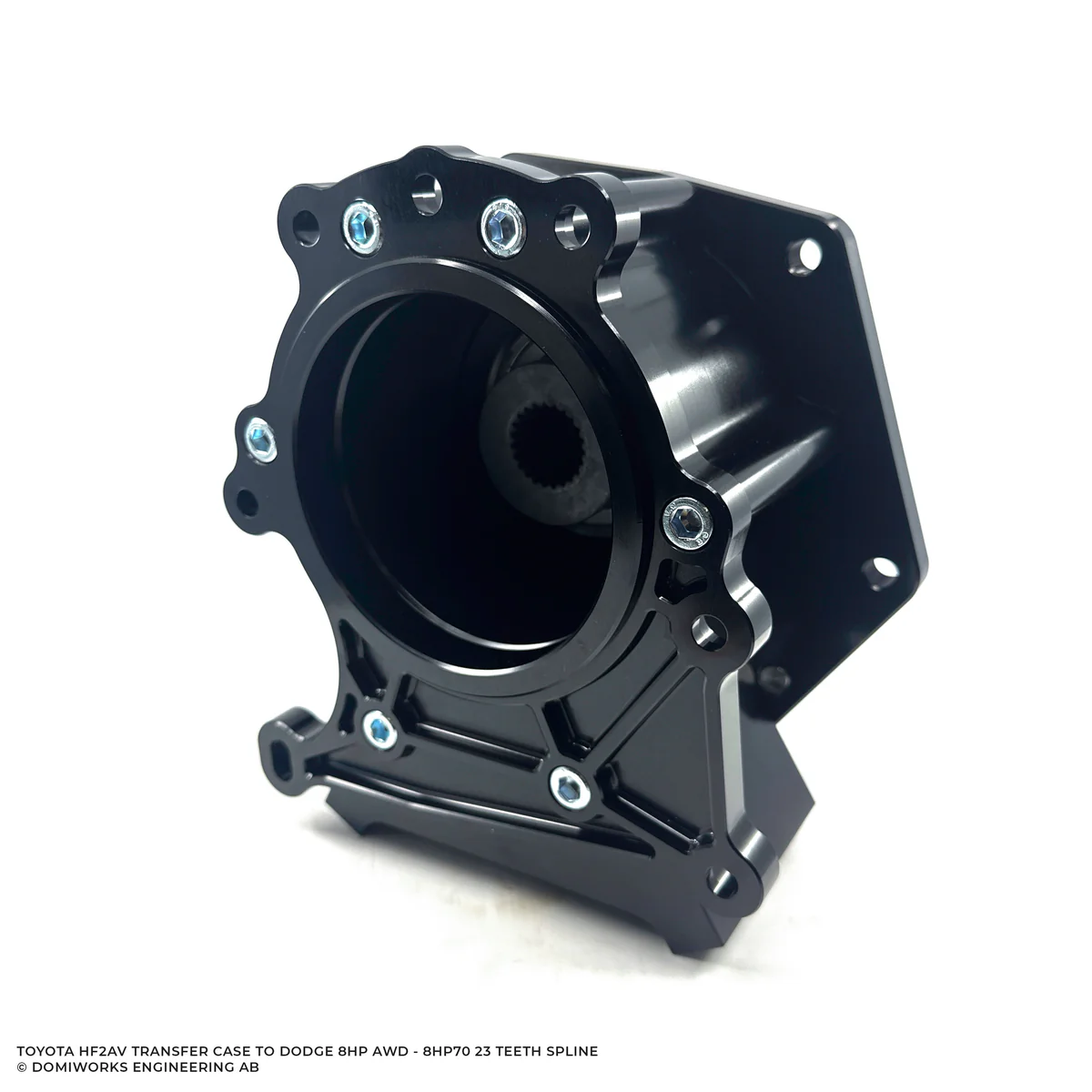

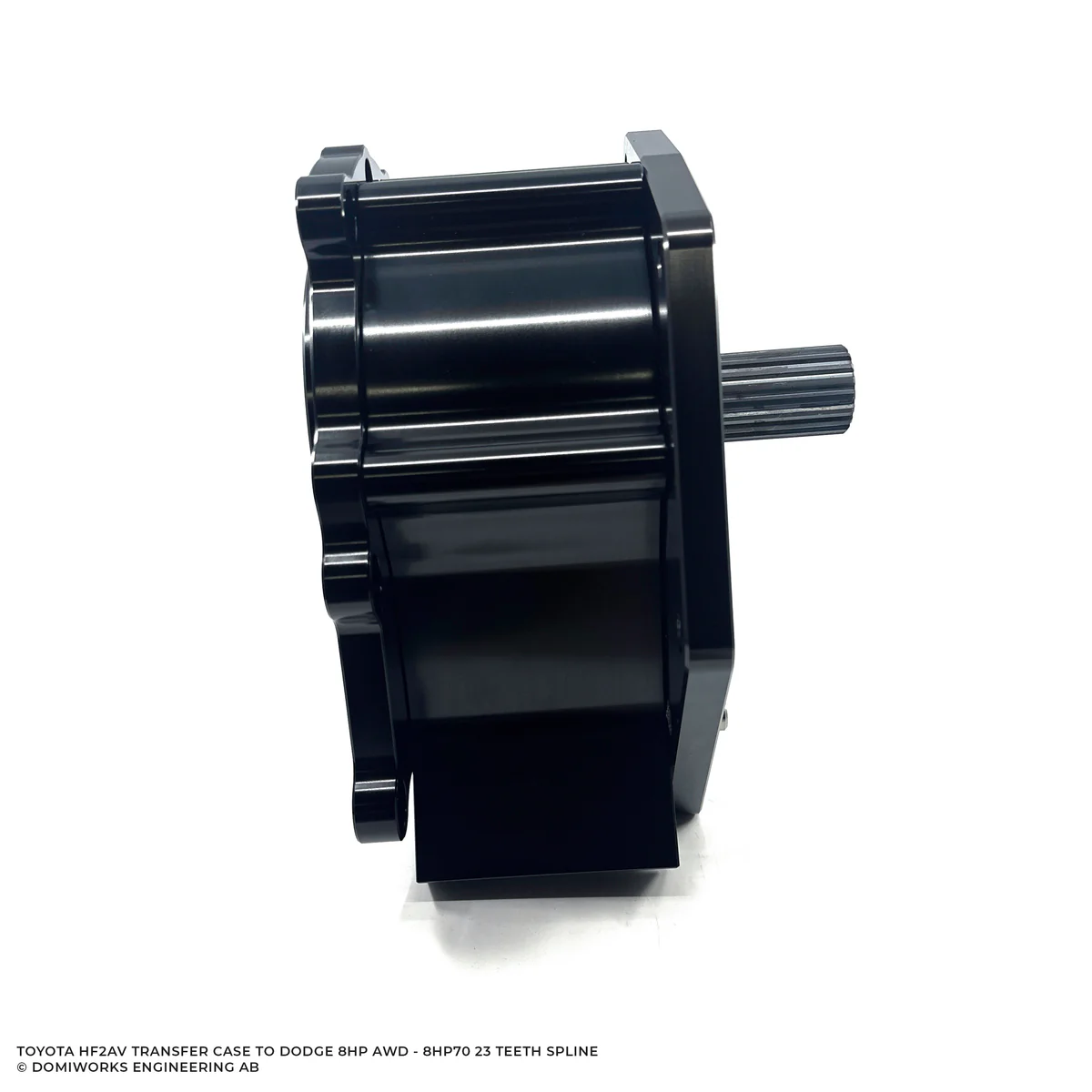

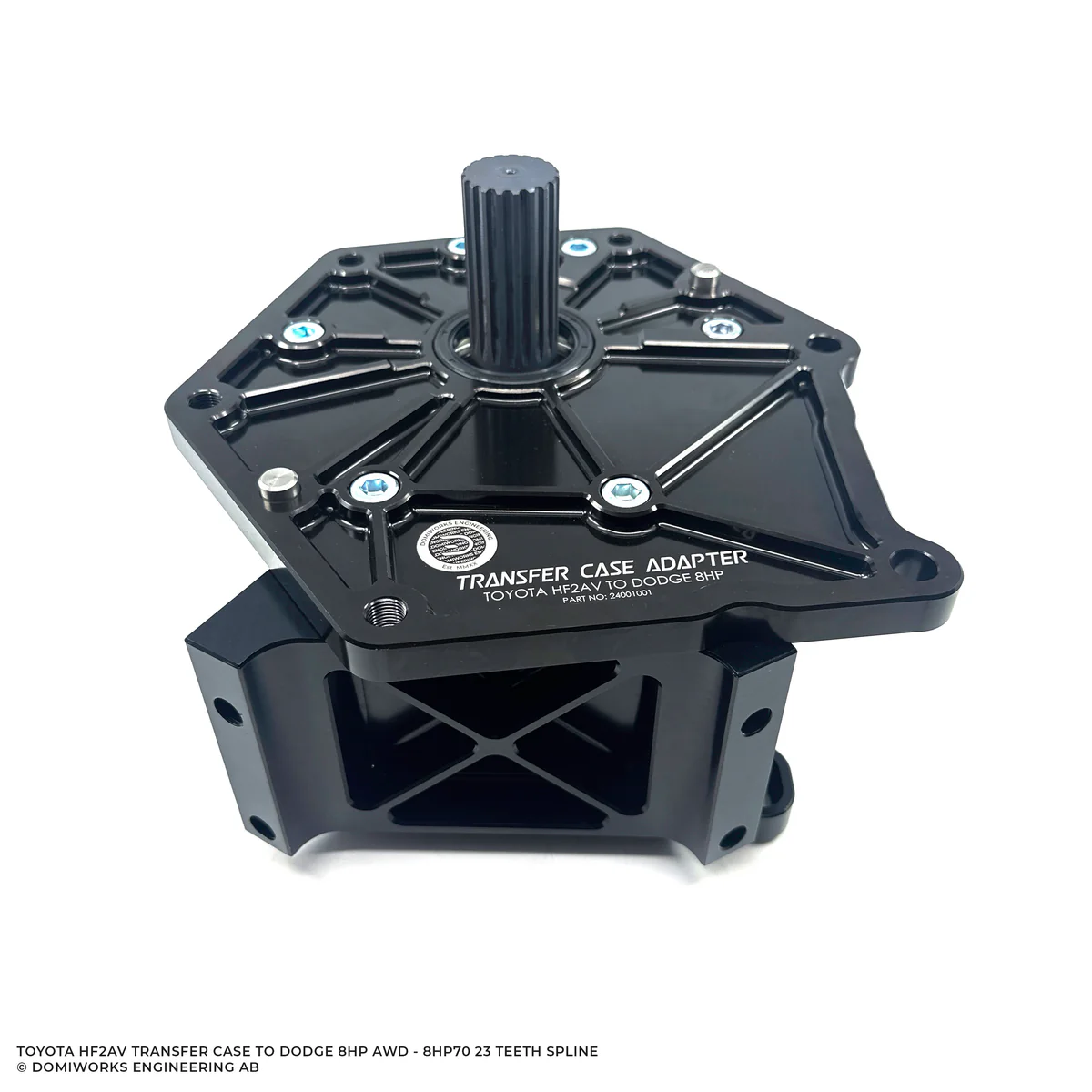

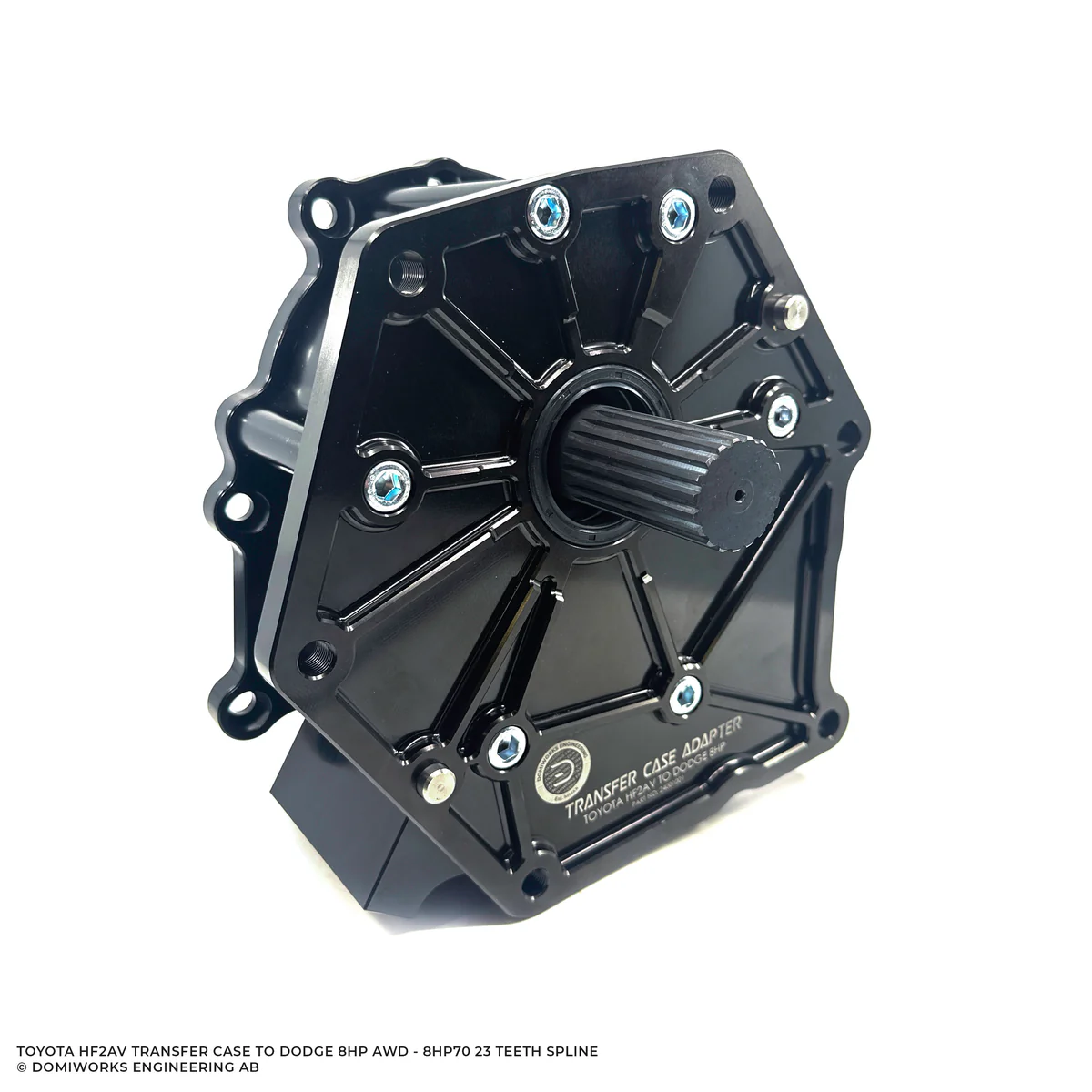

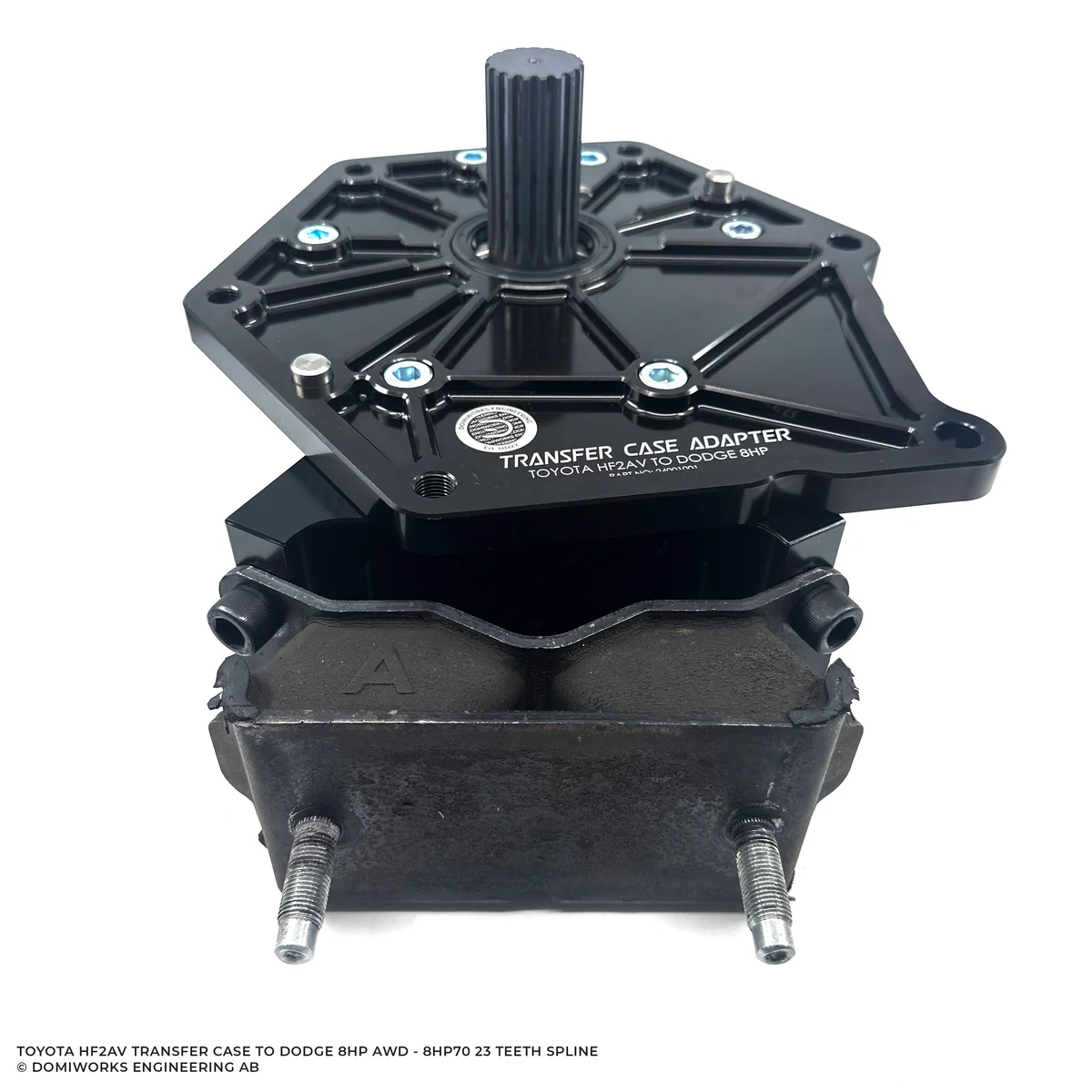

Transfer case adapter measures 126mm. Integrated mount to use the original transmission cushion, which is a direct fit. Made out of high grade aluminum and anodized black. Laserengraved text and logo for a premium feel and experience.

Kit includes a new intermediate axle and a high speed bearing integrated in the transfer case adapter housing. The intermediate axle is made out of Orvar Supreme and heat treated for for increased torque capability and durability. Fits the original input axle of the HF2AV transfer case.

HF2AV Transfer Case Kit for Dodge 8HP AWD 23 spline includes:

- Aluminium transfer case adapter
- New intermediate axle made out of Orvar Supreme
- High speed bearing integrated in the transfer case adapter housing
- Bolt and other accessories necessary to mount

Crossmember or cushion not included.

Note! If not in stock leadtime can be longer due to the complex input shaft manufacturing
