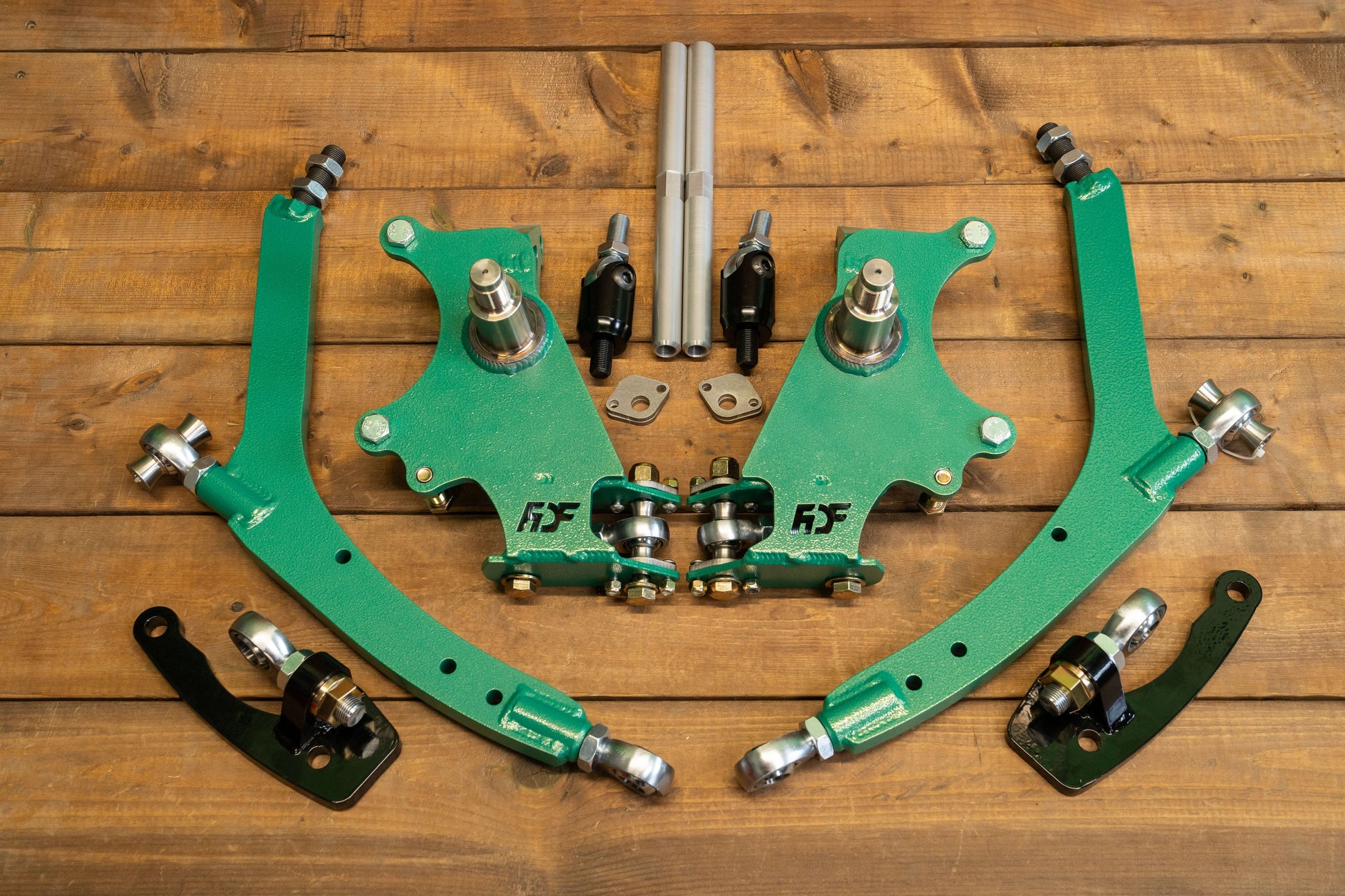

FDF Raceshop - FORD MUSTANG S197 MEGA MANTIS ANGLE KIT

This angle kit has been out on track for years and proven itself on a ton of drift cars. From grassroots to comp-level setups, it’s been tested hard and keeps coming back for more.

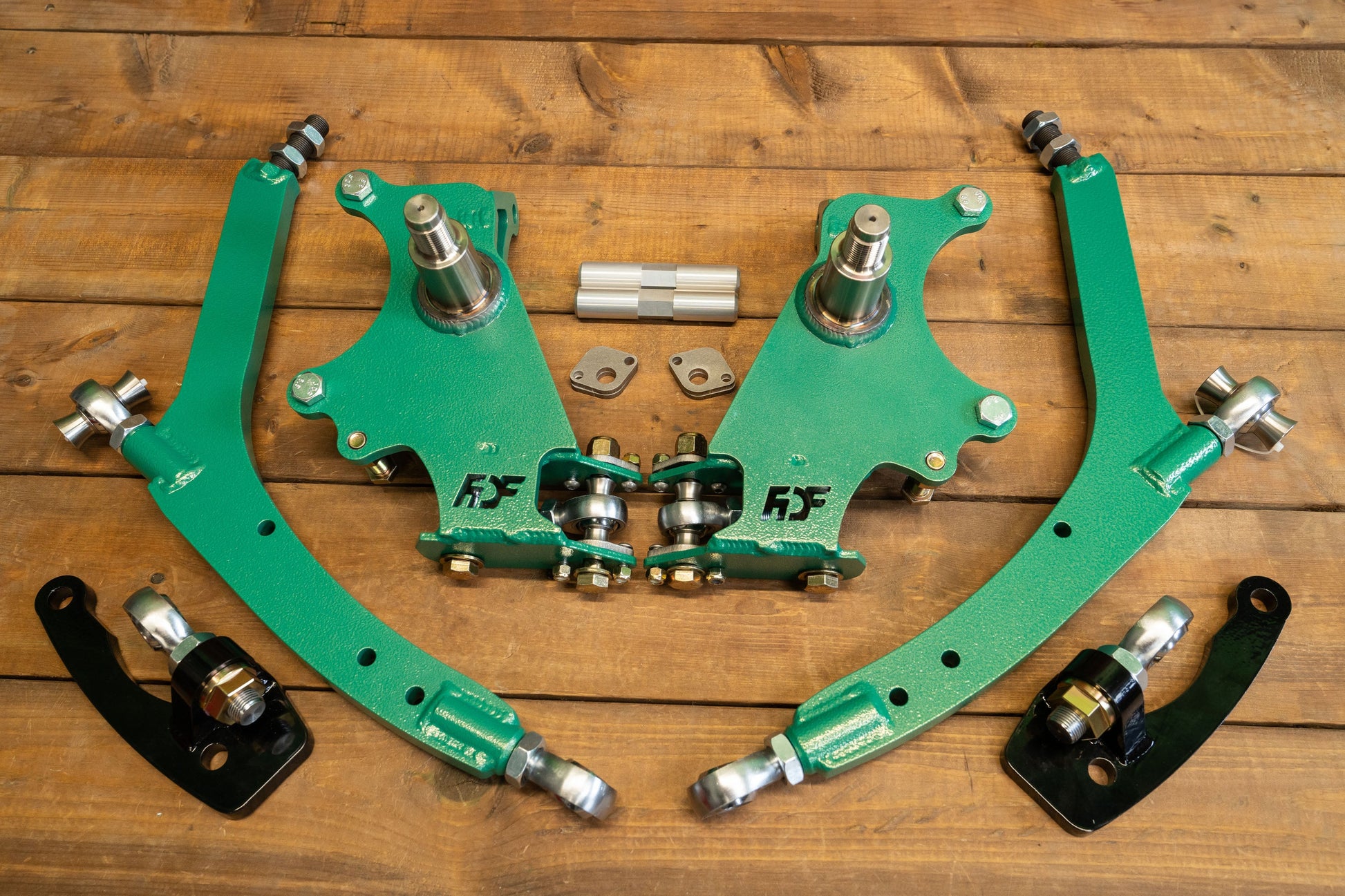

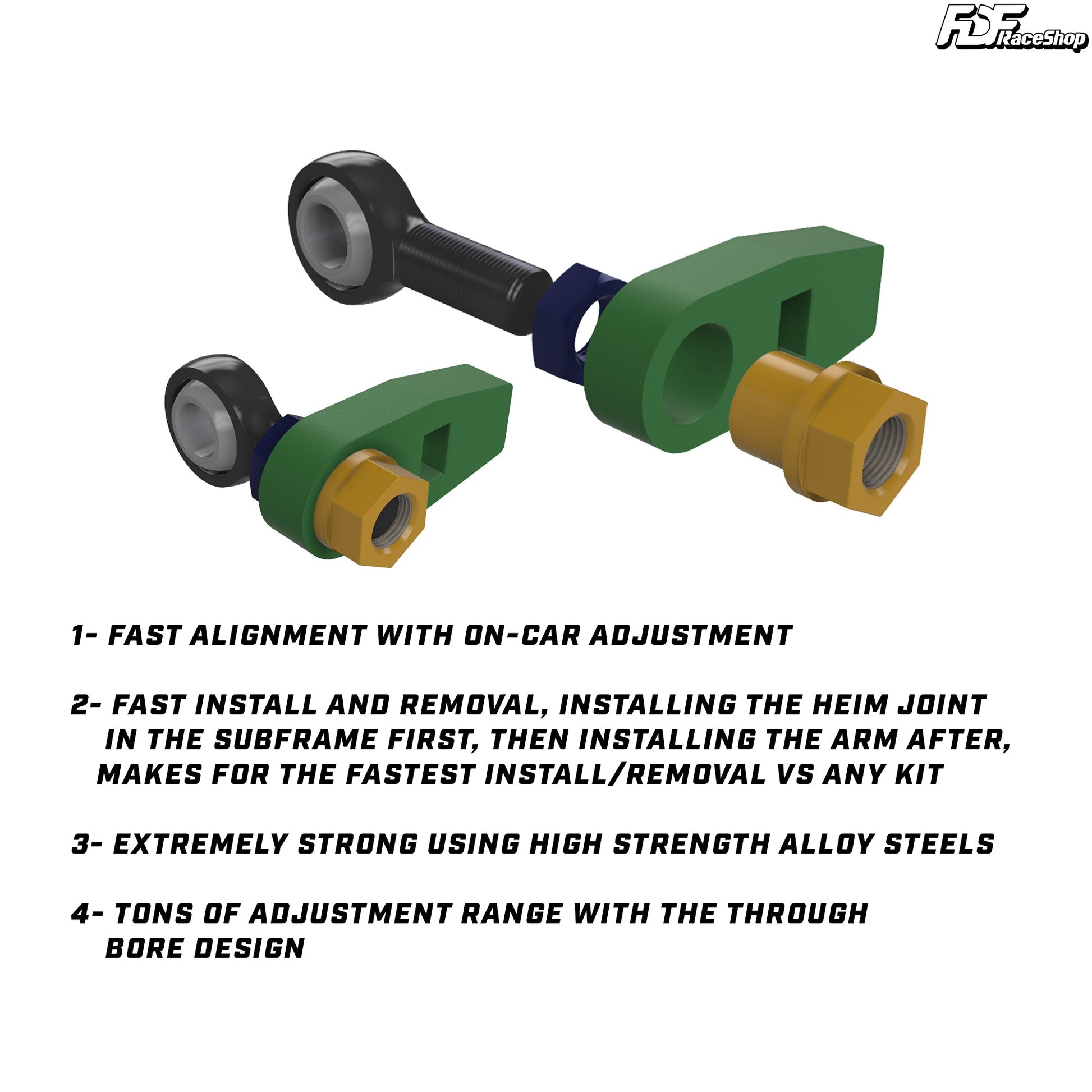

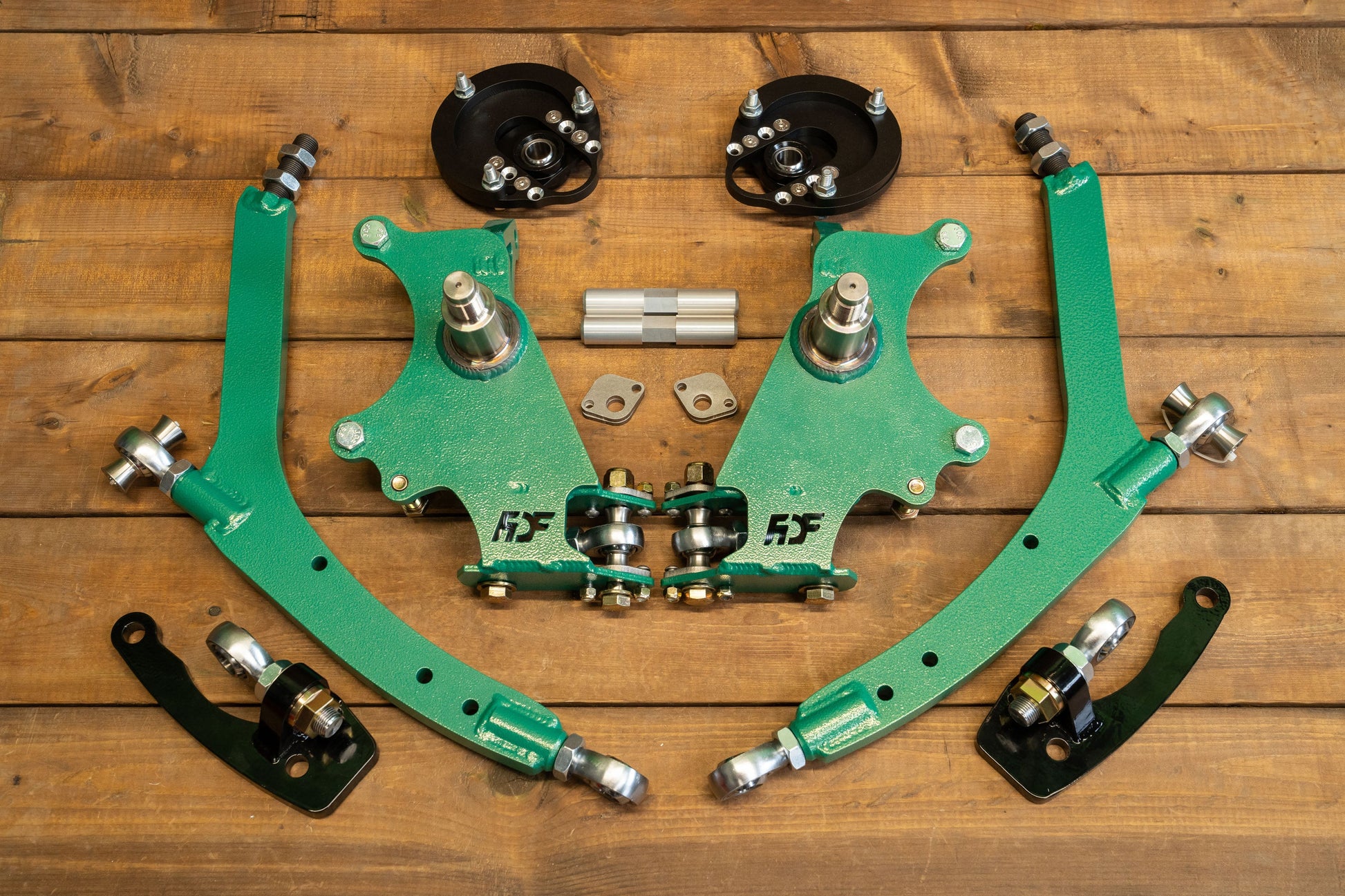

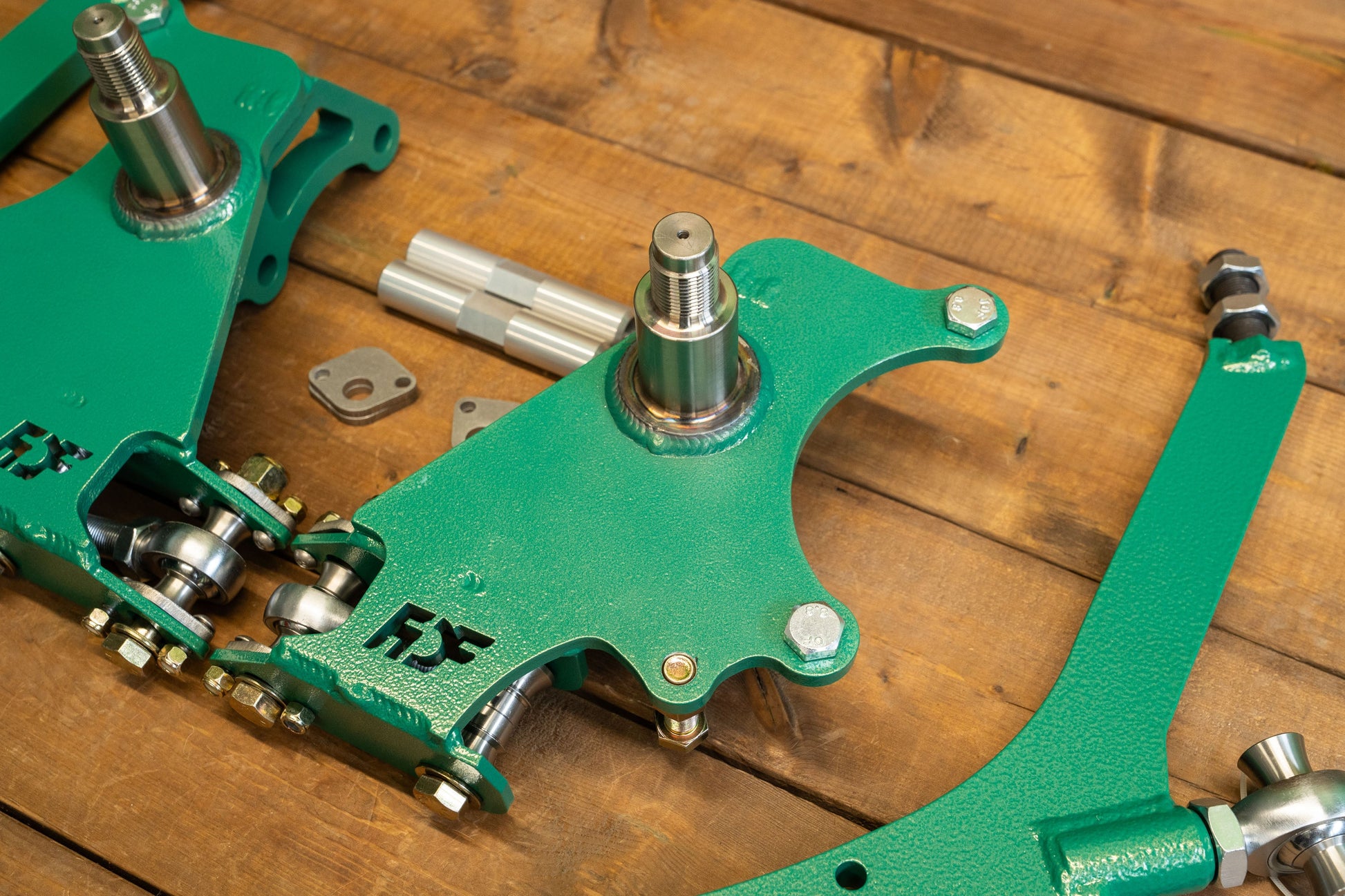

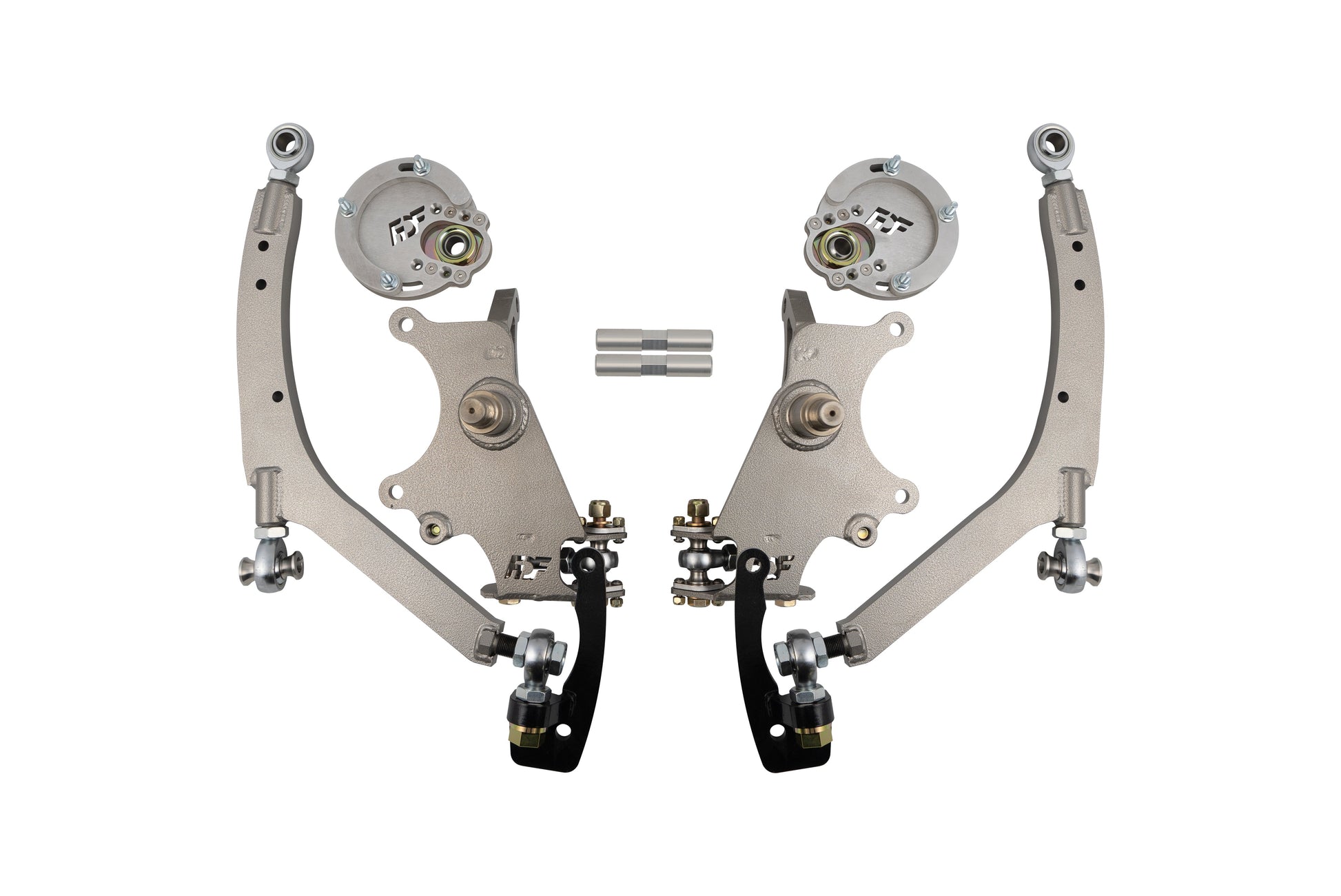

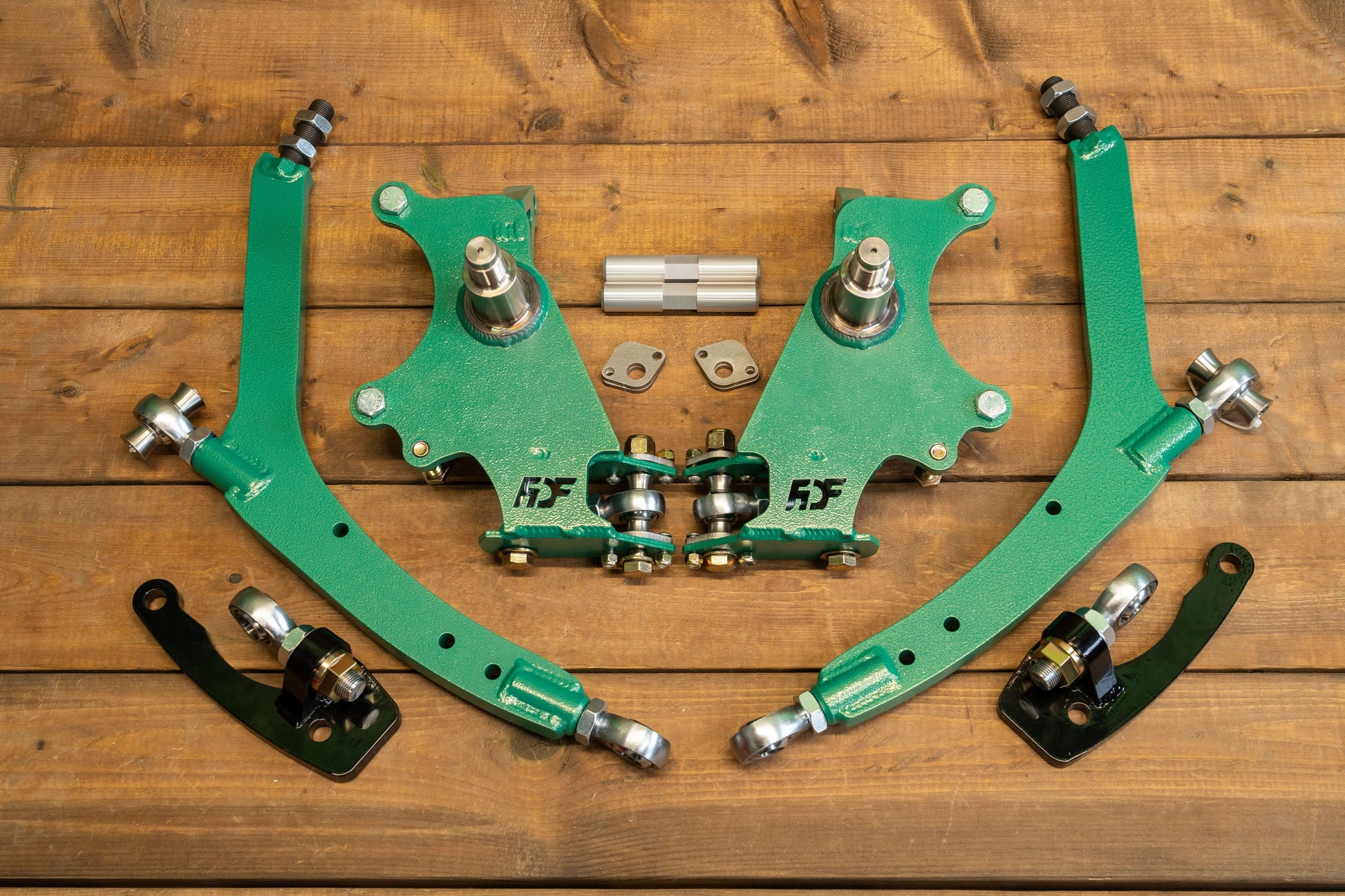

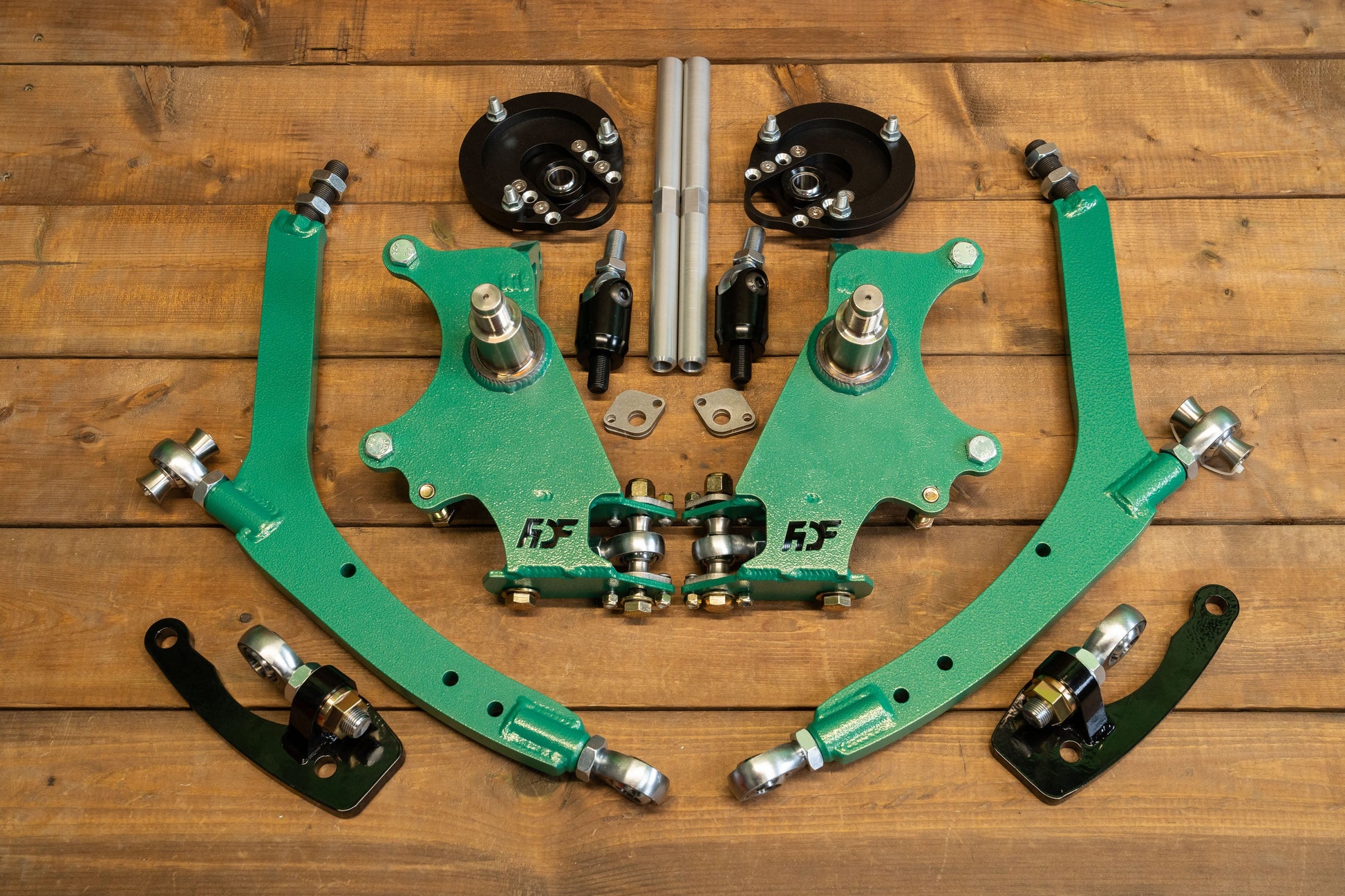

It’s a full knuckle design that keeps the OEM spindle location, so geometry stays in check. You get full lower control arms with heim joints and smooth adjusters that make alignment changes quick and easy—especially at the track.

Everything’s built from high-strength alloy, so it’s tough, durable, and ready to take abuse. If you’re pushing your S197 hard, this kit’s built to keep up.

KEY FEATURES:

• Angle: 65+ degrees.
• Ackermann: Anti/Pro Ackermann adjustable.
• Roll Center: 50mm Roll center adjustment.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pitch angle.
• Caster: Optimized caster for lead and trail wheel contact, with built-in trail to the knuckle, optional Caster plates to perfect self-steer, and front tire contact at lock.
• Camber: Optimized camber to counteract caster at full lock.
• Track Width: Adjustable range from 50mm-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to lock at max droop and max compression.
• Joints: Chromoly 3 piece Heim joints and spherical bearings.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: For custom colors, choose one from Prismatic Powders.Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.
