GKTech - FR-S / GR86 / BR-Z CHASSIS SOLID DIFF BUSHINGS

FAQS

What's the difference between your OEM style solid diff bushings and the "raised 20mm" version?
Solid is as the name suggests, solid. Where the risers come in to it is if you have lowered your car the axle angles get messed up. The OEM axles don't work well at high angles and as such can blow our CV joints. By raising your diff 20mm you are correcting the axle geometry by 20mm.

Why not go more than 20mm?
The diff physically can not sit any higher in the subframe. To go one step further you can however raise your subframe also.

What modifications are required, is this hard to fit?
No modifications are required, simply sit the front bush stiffners by hand into the diff, and then press the rear bushings into the subframe. Note on SUPER low cars with the raised 20mm version your axles may then come into contact with the rear upper camber arm and or subframe which must be notched accordingly. It's uncommon but not impossible.

Is there anything else needed for installation?

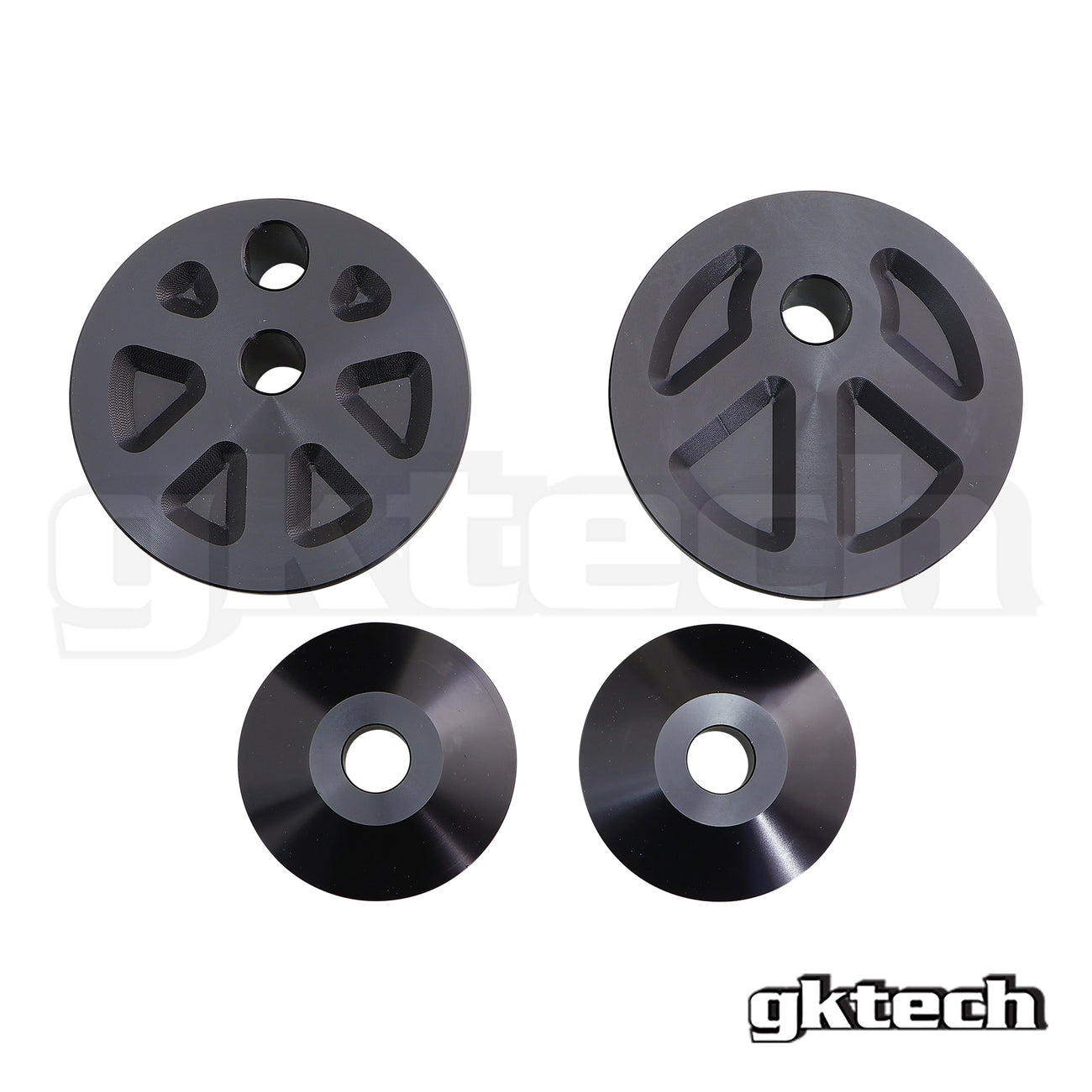

No, you can use your OEM nuts and bolts, in terms of the bushings they will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, if the diff is out the job will take around 30 minutes to remove the OEM bushings and install the new bushings.

Do these cause much vibration/noise in the cabin?
Not really. Obviously, anything solid or more rigid is going to cause an increase in noise and vibration. However, I'd hardly say that it's noticeable. Chances are if you're installing these you've already got coilovers, your car is lowered, you've got an aftermarket exhaust etc.

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
