Grassroots Performance - BMW E46 DIRECT-FIT 19-ROW OIL COOLER KIT

COMPLETE BOLT-ON BMW E46 19-ROW OIL COOLER KIT

ALL BMW E46 KITS NOW COME EQUIPPED WITH A BOLT-ON MOUNTING BRACKET. THIS BRACKET ALLOWS YOU TO MATE THE COOLER TO YOUR EXISTING FACTORY BOLT HOLES ON YOUR UPPER RAD SUPPORT.

Simple installation is key for this custom direct-fit oil cooler kit. A vital upgrade to any performance/track builds for added cooling and engine bay space. Your oil leaves the block and travels through our adjustable-length high-temperature/high-pressure hoses. Grassroots line of performance oil coolers can be used for a variety of oil types, increasing cooling efficiency and oil capacity. Classic design and proven engineering, this 2" thick dual-core oil cooler kit allows your oil to maintain peak performance temperature, also aiding the engine cooling system from heat soaked internals.

Note: This kit is for BMW engines with side feed oil ports on the filter housing. If you need clarification please reach out to us and we will confirm.

SPECS:

• Core Size: 11.5" x 5.5" x 2.00"
• Overall Size: 13" x 6.6" x 2.00"
• High-Quality T-6061 Aluminum
• Working load tested up to 150 psi
• .38L increased oil capacity
• -10AN In/Out
• Suitable for Engines, Transmissions, Differentials, Power Steering, and anything else you can cool using oil.

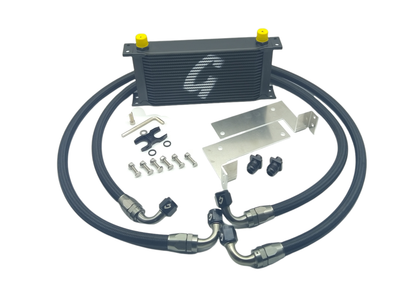

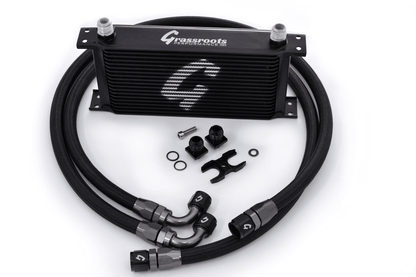

INCLUDES:

[1] 19 Row Oil Cooler

[2] (1.2m) Stainless Steel Braided Nylon Hose

[2] -10AN Straight Fittings  Installed on Lines (Adjustable Length)

[2] -10AN 90-Degree Swivel Fittings  Installed on Lines (Adjustable Length)

[1] BMW Series Adapter

[2] OEM BMW O-rings for a leak-free installation

(1) DIRECT FIT BRACKET FOR E46 CHASSIS

APPLICATION:

BMW E36 Euro E82 E9X 135/335 E46 M3 E90 E92
92.98 BMW E36 w/ 6 cyl. engine (Euro oil filter housing)
01.06 BMW E46 M3
06.11 BMW E90 335i/335xi/335i/xDrive (Sedans)
07.12 BMW E92 335i/335is/335xi/335i/xDrive (Coupes)
07.12 BMW E93 335i Convertible
08+ E82 BMW 135i 1M Coupe
