PMC Motorsport - Adapter Kit Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 370Z Z34 CD009 - 184mm / 7.25" (A-JZ-350-184P)

PMC Motorsport - Adapter Kit Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 370Z Z34 CD009 - 184mm / 7.25" (A-JZ-350-184P)

SKU: PMC - A-JZ-350-184P ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

$1,060.31 USD
$1,060.31 USD $1,060.31 USD
Sale Sold out

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 / Nissan 370Z Z34 CD009 - 184mm / 7.25"

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with Nissan gearbox. It is an ideal solution for motorsport.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment

Engine list:
  • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ-FSE
    • Toyota 1JZ-GE
    • Toyota 1JZ-GTE
  • Toyota 2JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ-FSE
    • Toyota 2JZ-GE
    • Toyota 2JZ-GTE

Gearbox list:
  • Nissan CD001
  • Nissan 350Z typ CD005 32010CD005 32010-CD005
  • Nissan 350Z typ CD006 32010CD006 32010-CD006
  • Nissan 350Z typ CD007 32010CD007 32010-CD007
  • Nissan 350Z typ CD008 32010CD008 32010-CD008
  • Nissan 350Z / Infiniti G35 typ CD009 32010CD009 32010-CD009 6MT
  • Nissan 370Z 320B0-1EA0A JK40C



Model Model series Date Part number   ADD
350Z DE Z33 06/02 -10/02 32010-CD000   1st and 2nd Double Cone Synchro
  Z33 10/02 - 02/03 32010-CD003   1st and 2nd Double Cone Synchro
  Z33 02/03 - 04/03 32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 04/03 - 07/03 32010-CD006   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/03 - 07/04 32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/04 - 11/06 32010-CD009   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
350Z HR Z33 11/06 - 07/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z33 07/07 - 32010-JK41B   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 DE V35  08/02 - 02/03  32010-CD003   1st and 2nd Double Cone Synchro
  V35  12/02 - 02/03  32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35  02/03 - 04/03  32010-CD005 All models incl.  1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 04/03 - 09/03  32010-CD007
  V35 09/03 - 08/04  32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 11/04 -  32010-CD009  Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 HR V36 sedan 08/06 - 06/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  V36 sedan 06/07 - 07/08 32010-JK40B    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q40 V36 sedan ALL 32010-JK41A    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q60 CV36 Coupe ALL 32010-JK41A   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro



RATIO:



  • 1st 3.794
  • 2nd 2.324
  • 3rd 1.624
  • 4th 1.271
  • 5th 1
  • 6th 0.794
  • Reverse 3.446

Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.





Brand
PMC Motorsport
Symbol
A-JZ-350-184P
Engine
Toyota JZ 1JZ 2JZ
GearboxGearbox
Nissan CD001
Nissan 350Z type CD005 32010CD005
Nissan 350Z type CD007 32010CD007
Nissan 350Z type CD006 32010CD006
Nissan 350Z type CD008 32010CD008
Nissan 350Z type CD009 32010CD009
Nissan 370Z 320B0-1EA0A JK40C

Clutch Set

Set with Clutch
No
Flywheel Type
Ultralight Race 184mm / 7.25"
Diameter
184mm / 7.25"
Recommended clutch pressure plate
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 xxx Twin disc (POT)
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-013 xxx Triple disc (POT)
Clutch disc required
Nissan 350Z 23x25-24N [184mm / 7.25"]

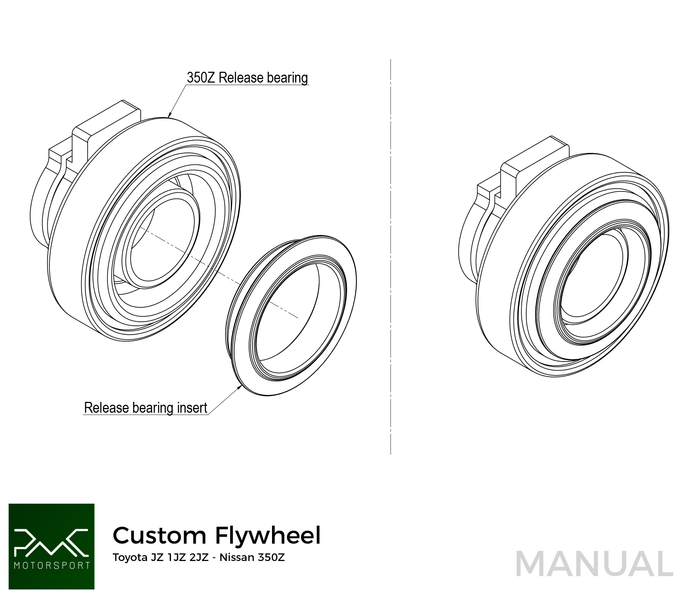

Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox

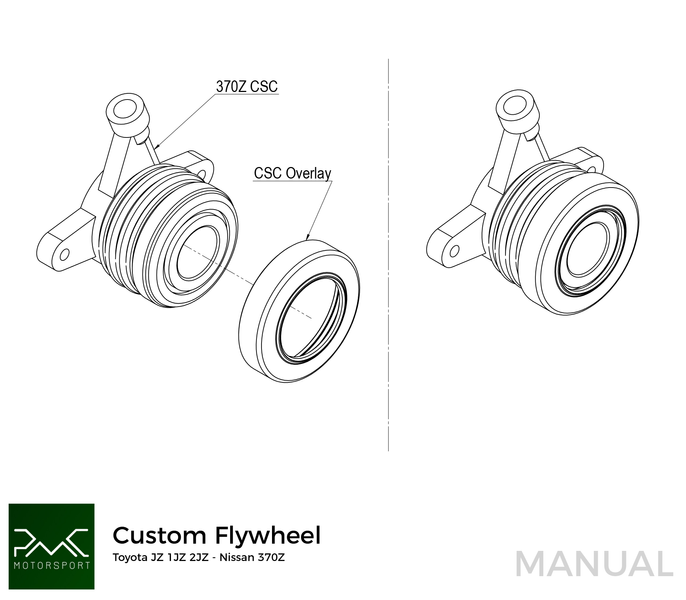

Clutch slave cylinder
Dedicated to your gearbox
Starter required (Not included)
Toyota JZ (OE)
Flexplate / ring gear required (not included) :
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate

Additional information

Adapter Kit Type
Race
Drift
Moment obrotowy dokręcania
72Nm + glue
Replaceable friction surface
Yes
Gearbox adapter thickness
20mm / 0.78"

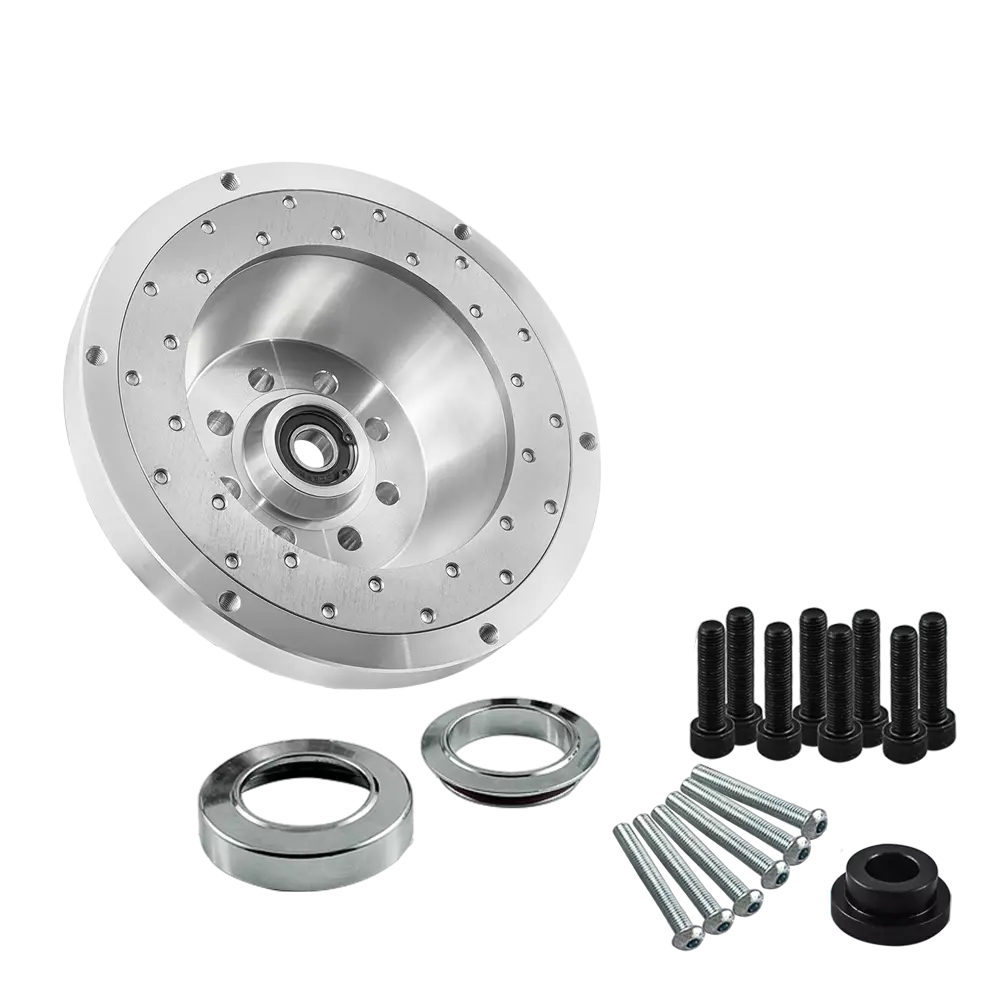

Set includes

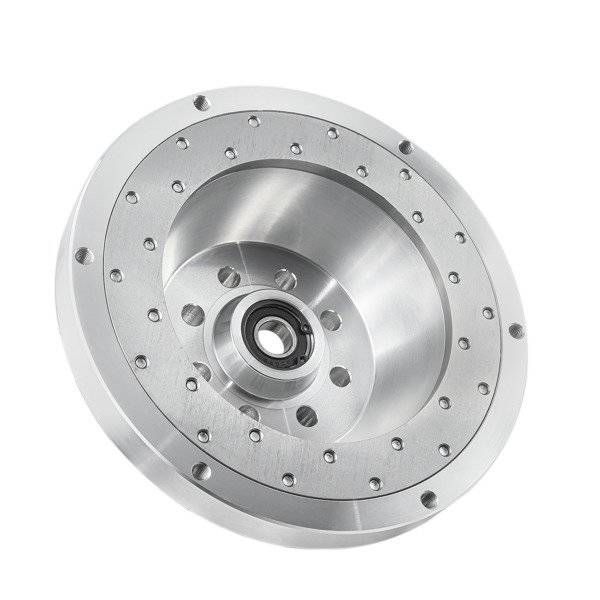

Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Flywheel centering sleeve

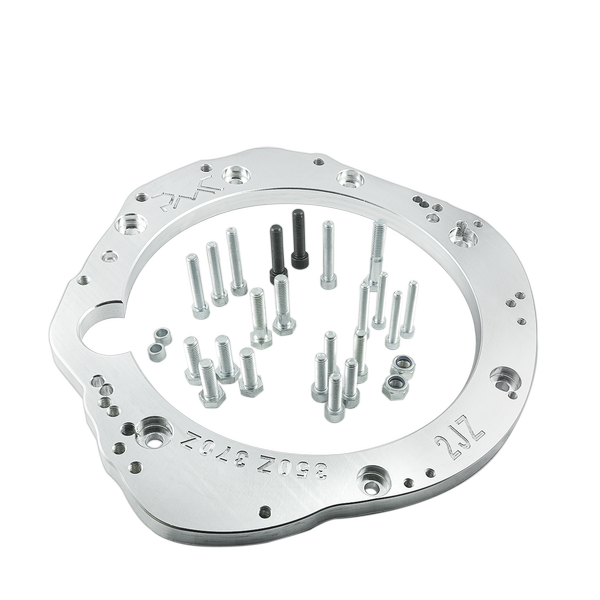

Aluminium gearbox adapter
Gearbox adapter bolts
Material
Aluminium
Cast iron
Product sales codes included
F0350-JZ
K0350-TP-JZ
EAN
5903707410378
