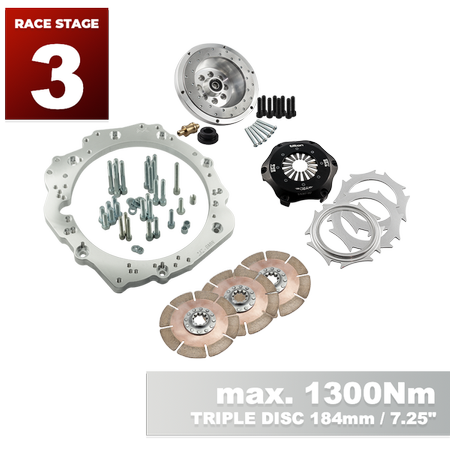

PMC Motorsport - RACE STAGE 3 Toyota JZ - BMW M57 / E46 S54 M3 - 184mm / 7.25" (S) (RS3-JZ-M57-TS)

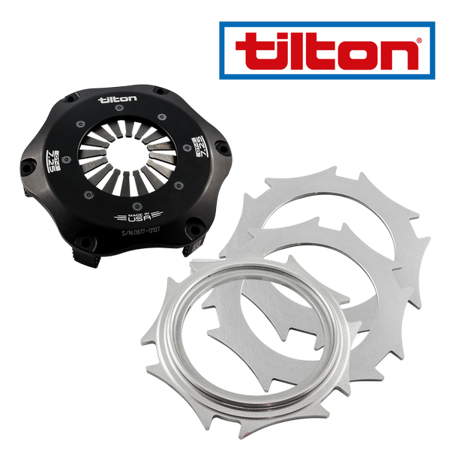

PMC Motorsport RACE STAGE 3 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - BMW M57 ZF GS5-39DZ 5-speed/ BMW E46 S54 M3 GETRAG 420 6-speed - 184mm / 7.25" STEP  - 3x sintered disc + Pressure plate Tilton Engineering®

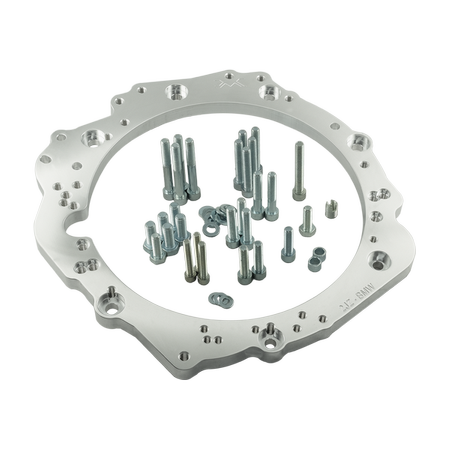

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

• Designed in a CAD environment
• Only certified materials were used in the production process
• CNC machining
• Replaceable cast iron friction surface
• The flywheel is balanced prior to shipment

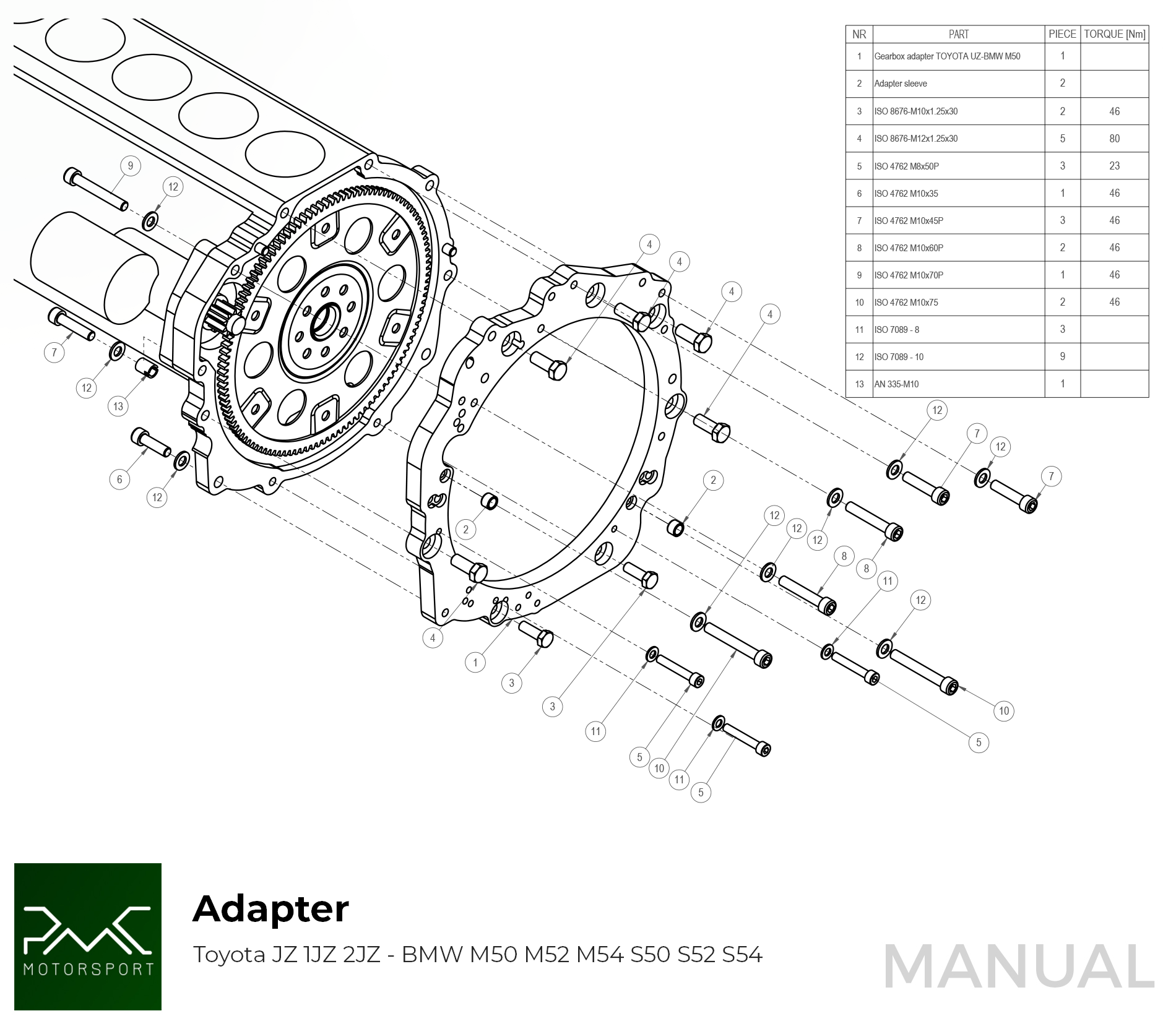

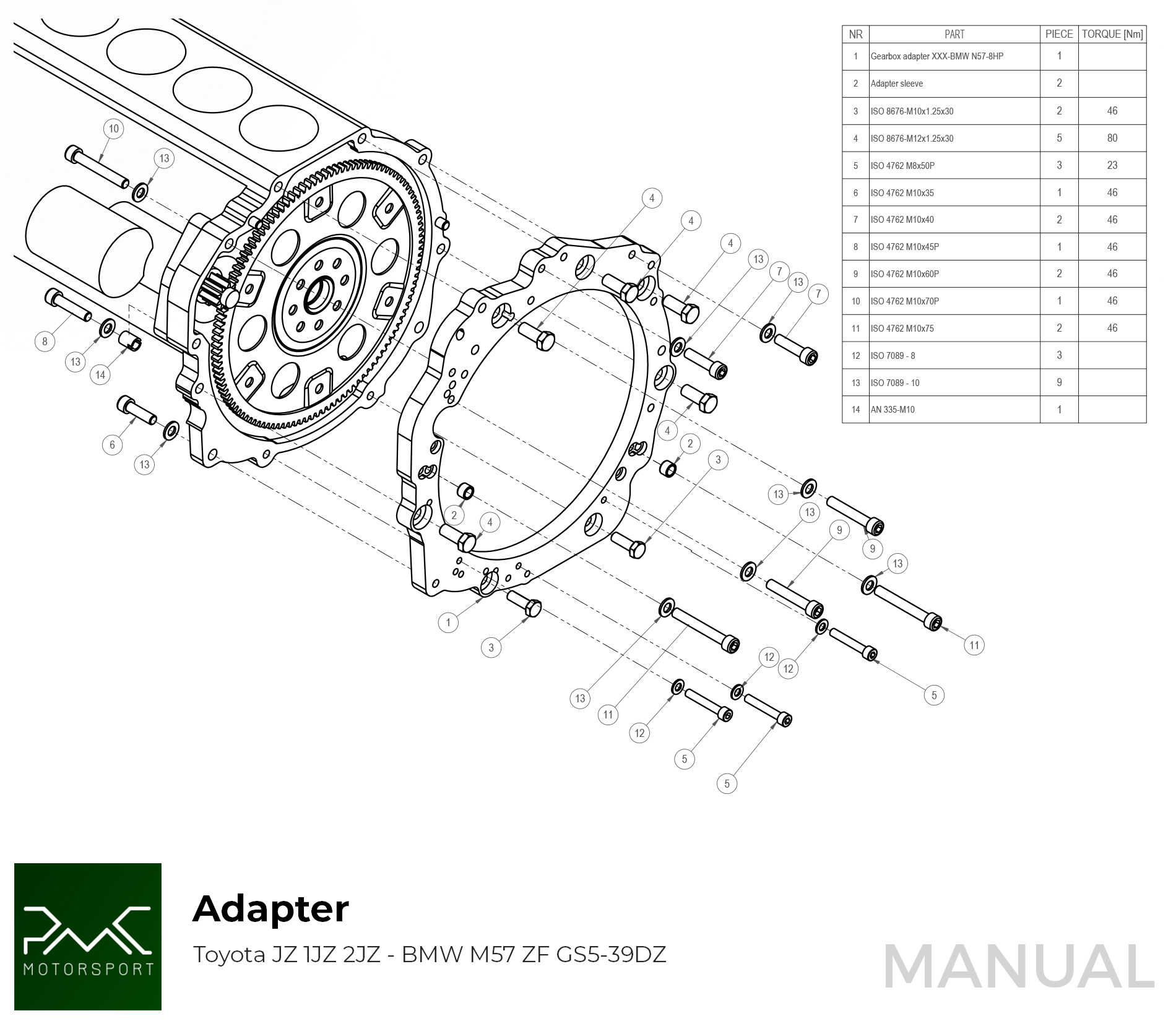

Manual

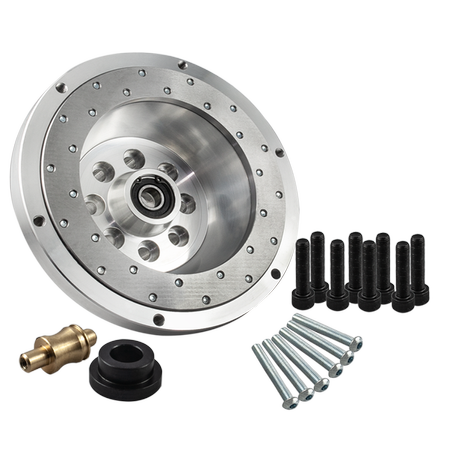

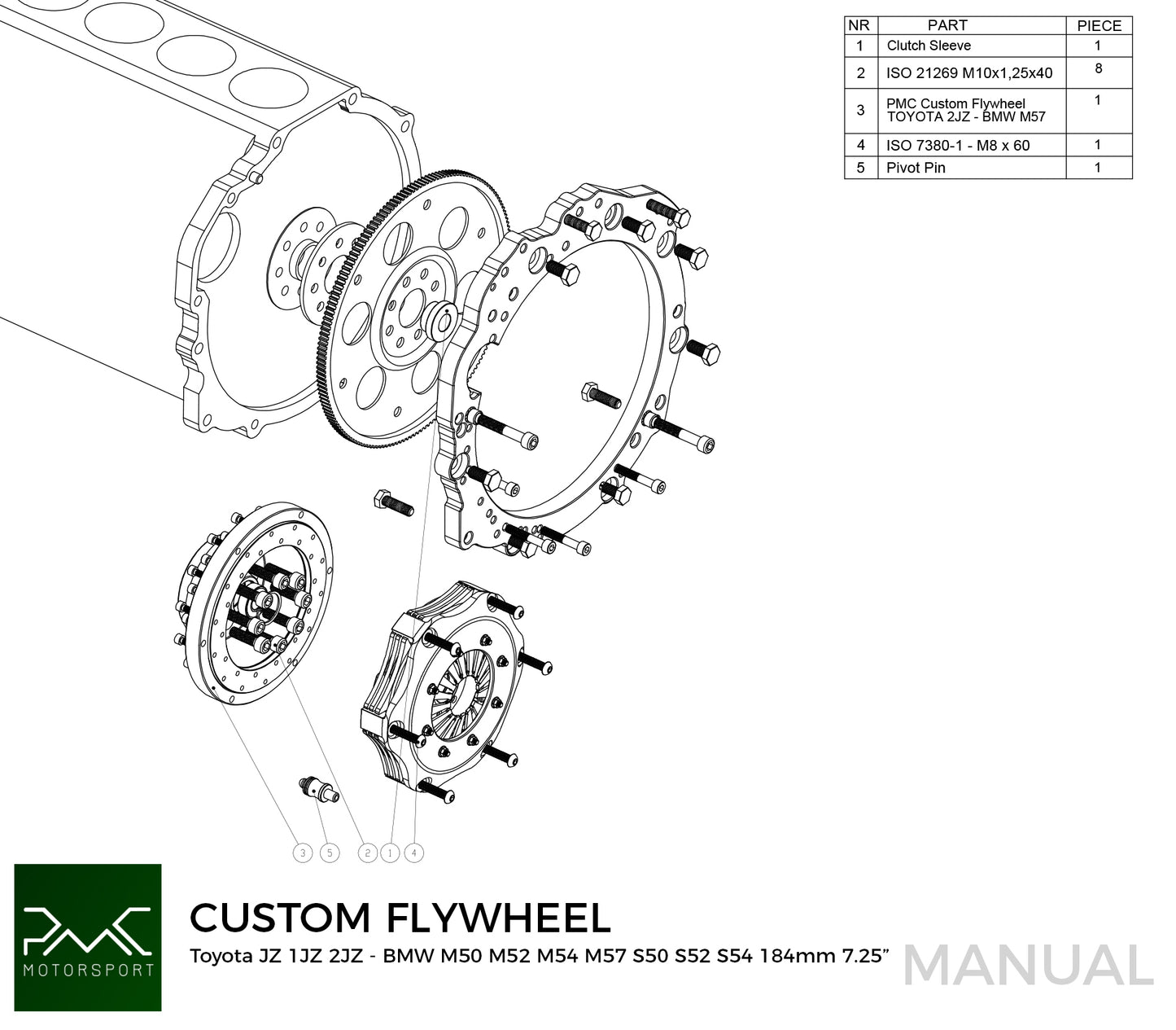

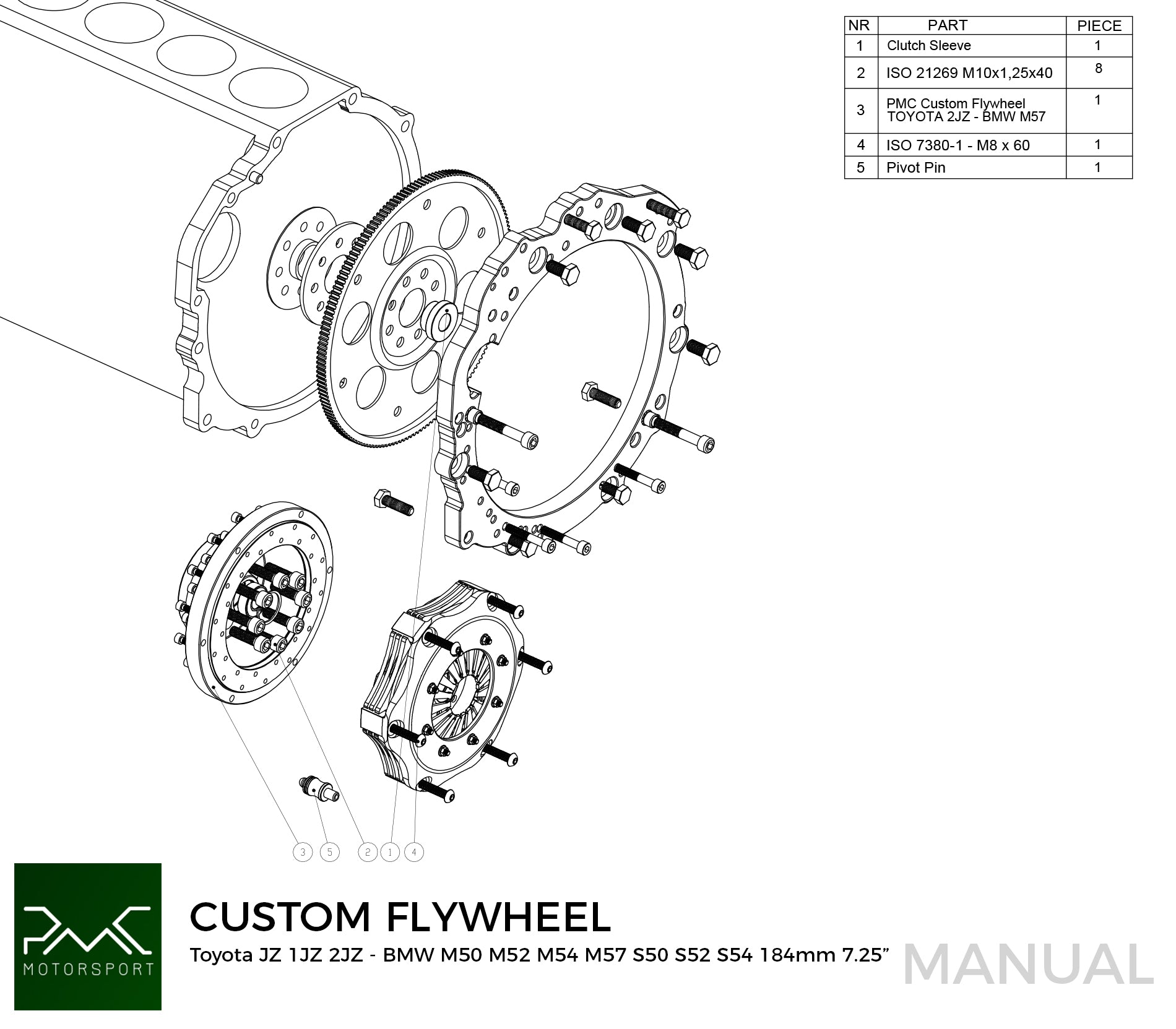

• Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
• Tighten the flywheel to the same torque as OE.
• The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position

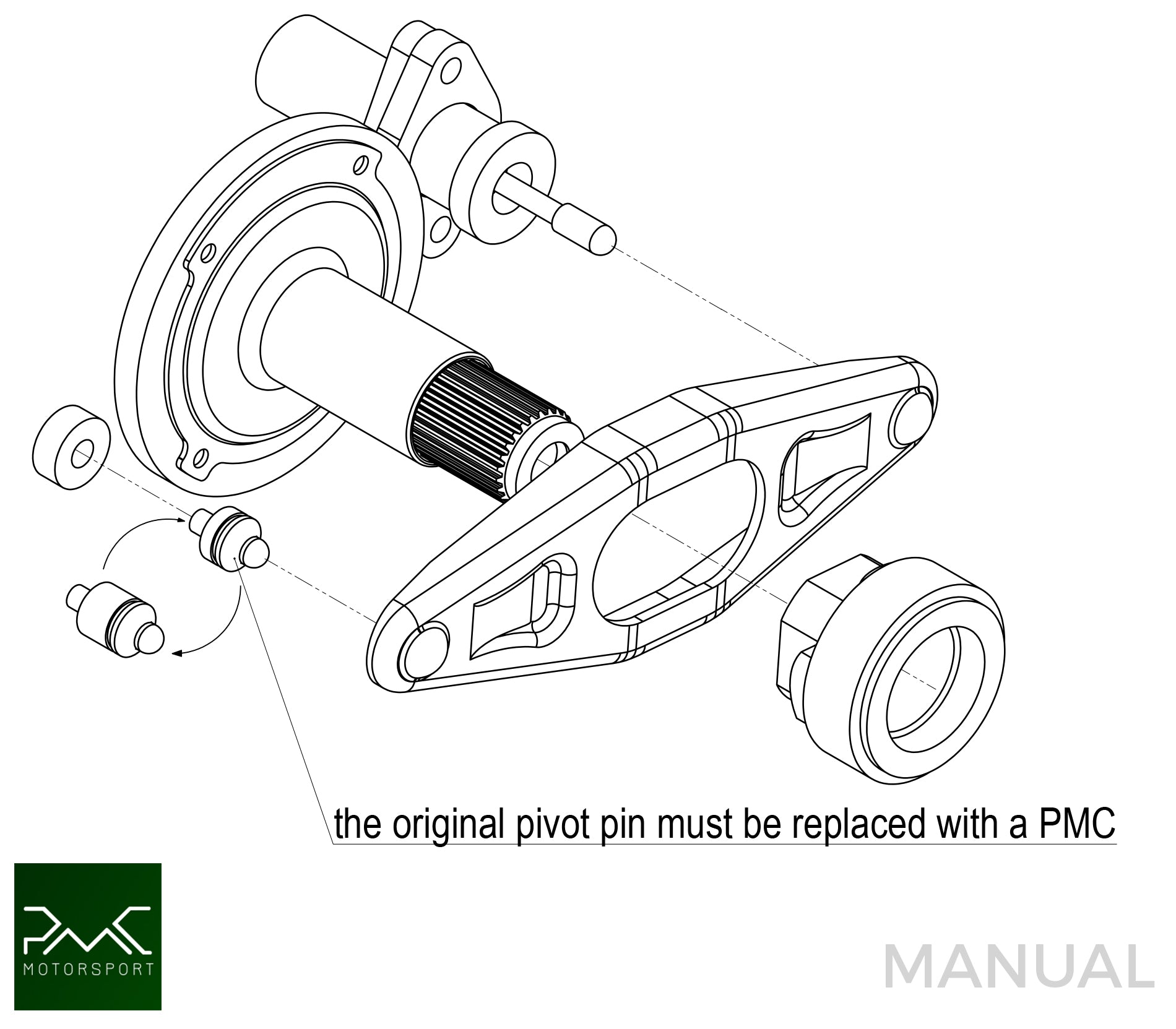

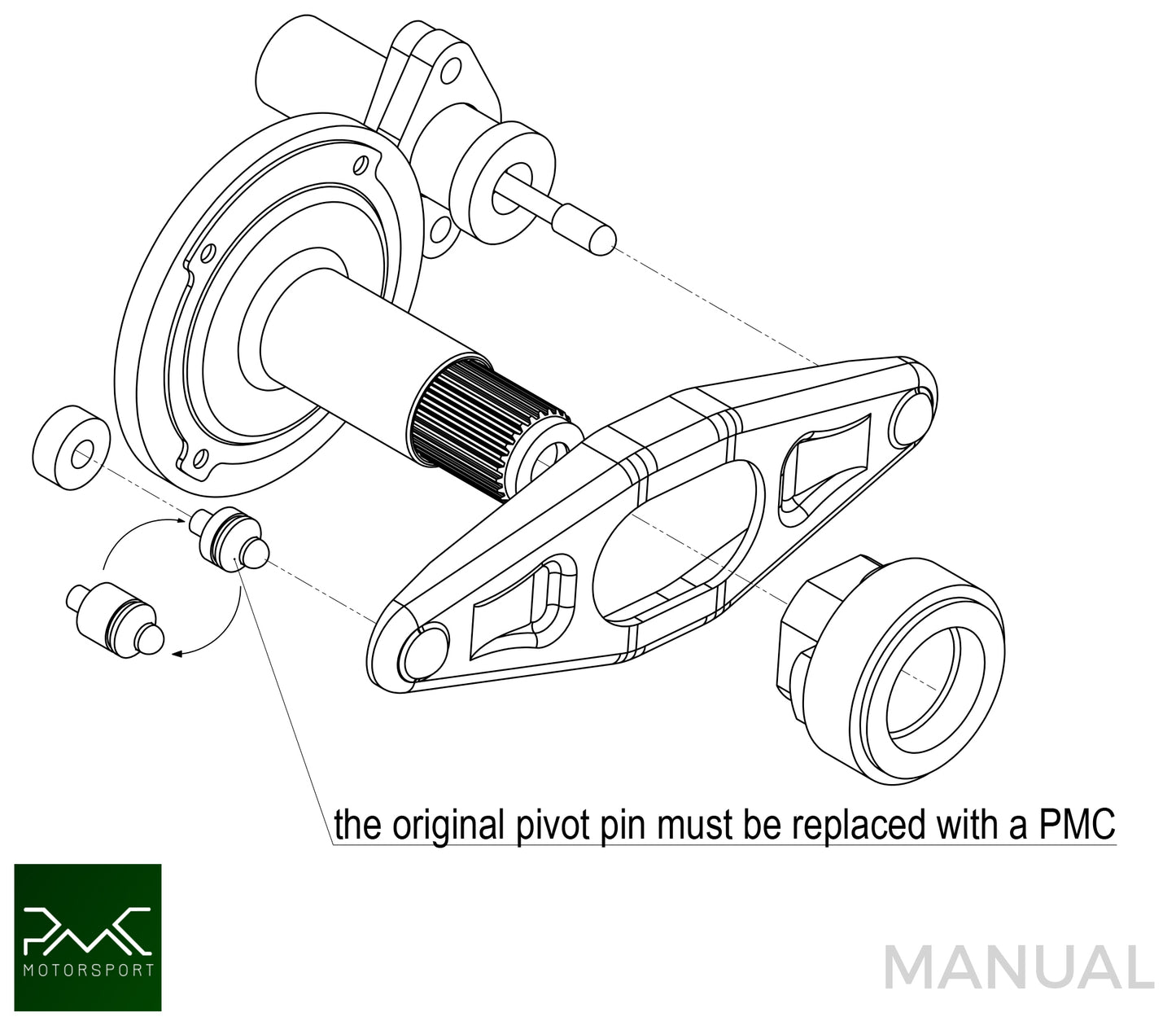

• Replace the original custom pivot pin with the one from the kit.
• Required adaptation of the clutch slave pump (change of the pump to a smaller one - piston diameter or shortening the pump stroke)

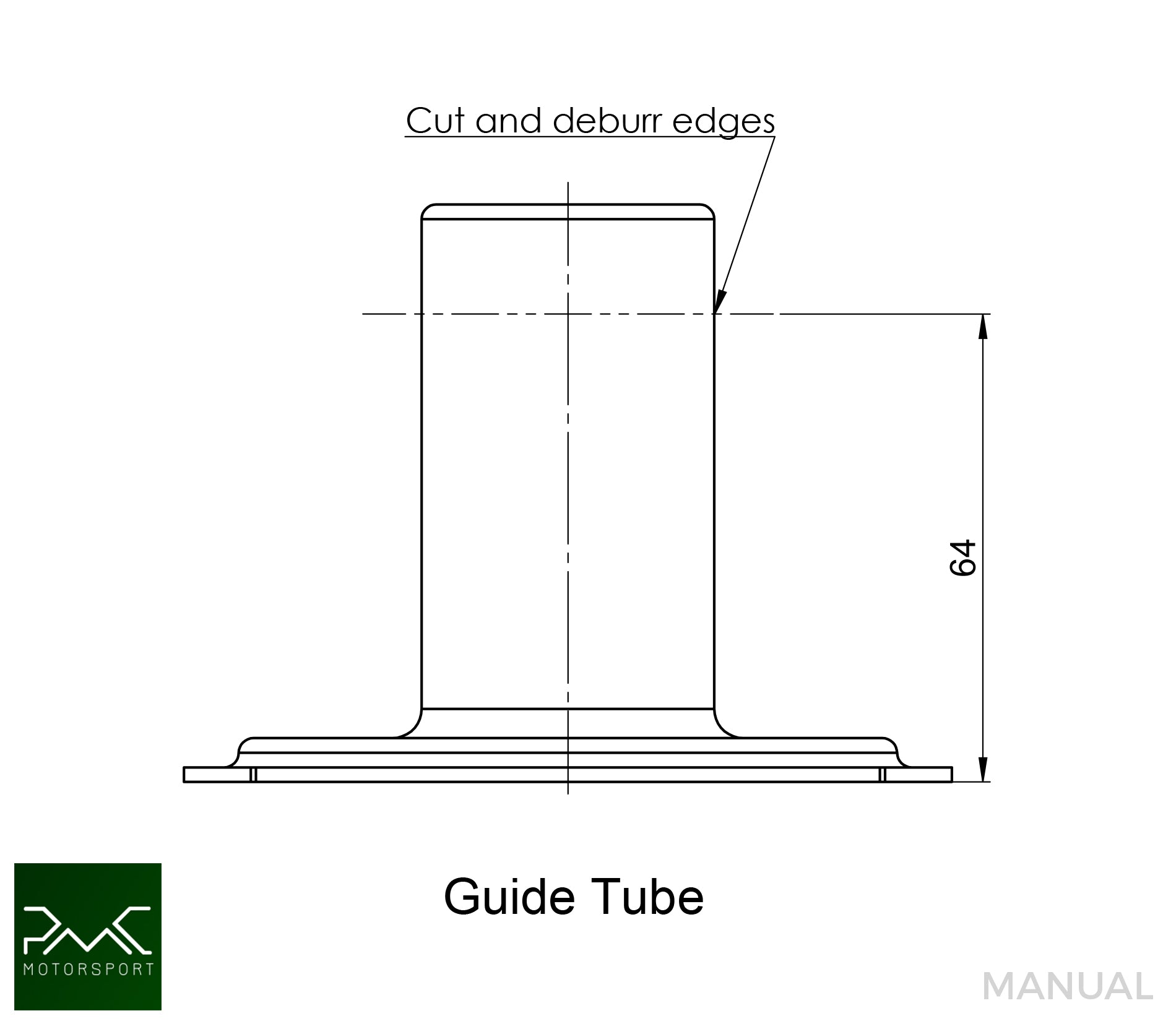

• Guide tube shortening required BMW OEM 23 11 7 501 714
