PMC Motorsport - STAGE 1 Toyota JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.) (S1-JZ-J160-742)

PMC Motorsport - STAGE 1 Toyota JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.) (S1-JZ-J160-742)

SKU: PMC - S1-JZ-J160-742 ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

$1,303.16 USD
$1,174.02 USD $1,303.16 USD
Sale Sold out

Now accepting crypto with

Coinbase Commerce logo

Choose Coinbase at checkout

View full details

Product Details

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45" - Sachs 3000 950 742

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with Toyota Aisin J160 gearbox. It is an ideal solution for motorsport and people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ-FSE
    • Toyota 1JZ-GE
    • Toyota 1JZ-GTE
  • Toyota 2JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ-FSE
    • Toyota 2JZ-GE
    • Toyota 2JZ-GTE
Gearbox List
  • Lexus IS200 J160 First gen. Aisin AZ6 (2.0 L 1G-FE AS200)

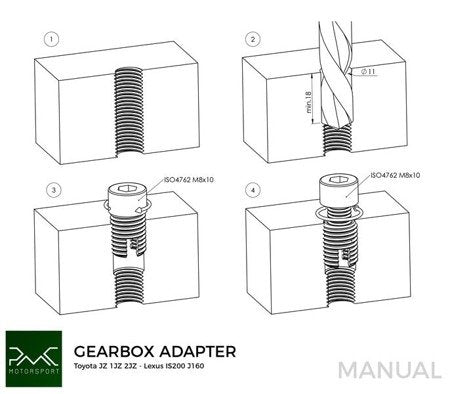

Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.



Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)

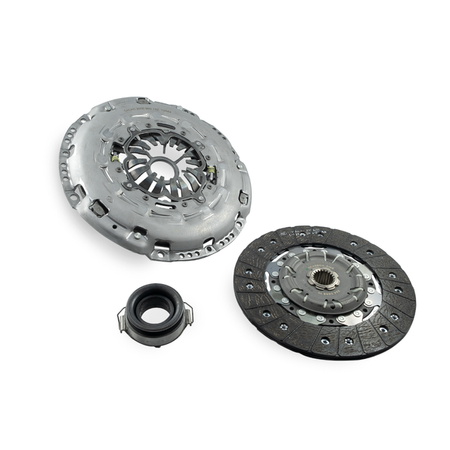

CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:
Single Disc
Clutch Set:
Sachs 3000 950 742
Clutch disc required:
Included
Release bearing required:
Included
Clutch fork required:
dedicated to your gearbox
Starter required:
Toyota JZ (OE) Brak w zestawie
Flexplate / ring gear required:
Toyota OEM 32101-30090 | 32101-22050
ADDITIONAL INFORMATION
Flywheel weight:
5.60 kg / 12.35 lb
Adapter Kit Type:
Daily
Gearbox adapter thickness:
30mm / 1.18"
Replaceable friction surface:
Yes

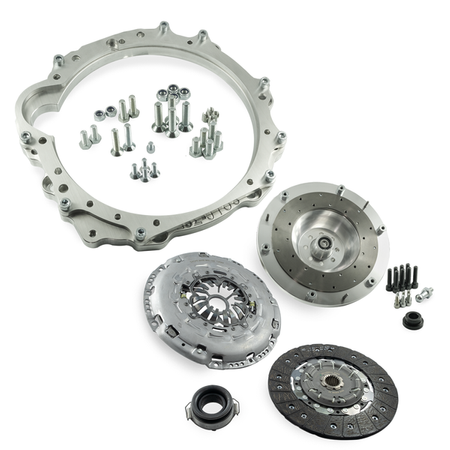

Set includes:

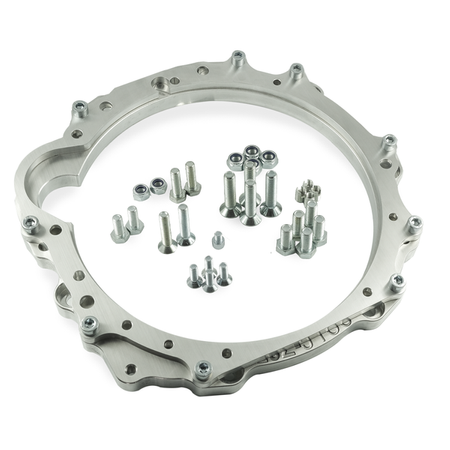

Aluminium gearbox adapter
,
Gearbox adapter bolts
,
Custom Flywheel
,
Crankshaft bolts kit
,
Clutch cover - pressure plate bolts kit
,
Sachs 3000 950 742
Product sales codes included:
F0J160-JZ (2387)
,
K0J160-JZ (2462)
,
Sachs 742
