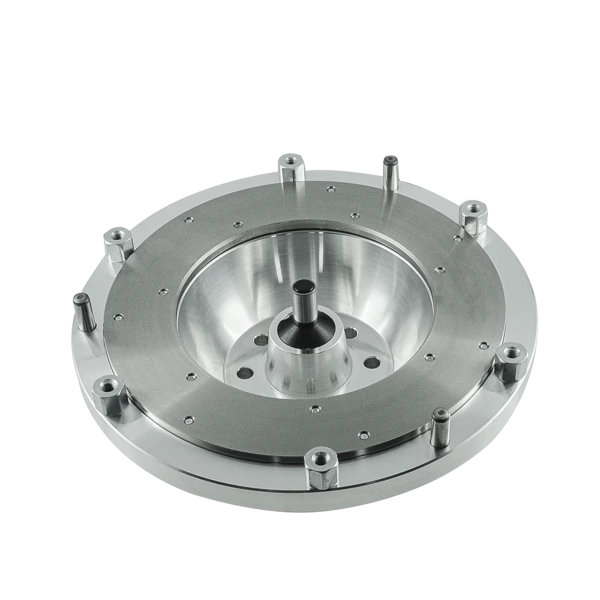

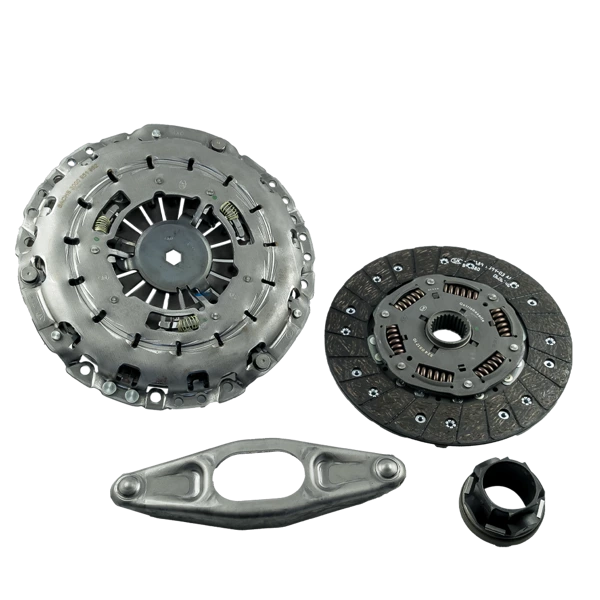

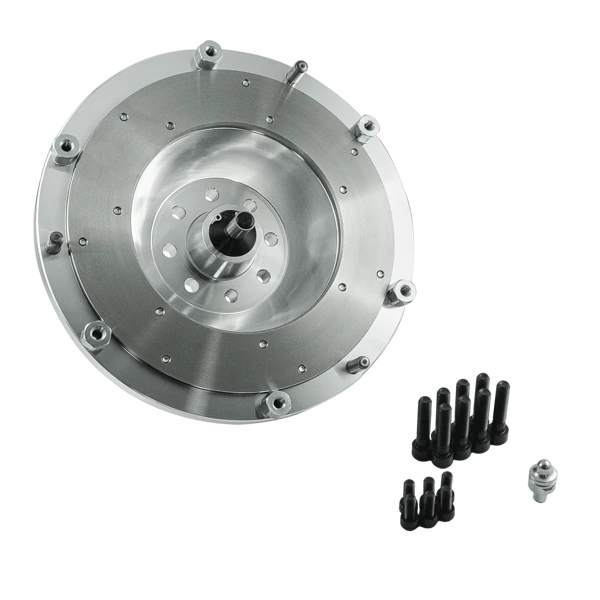

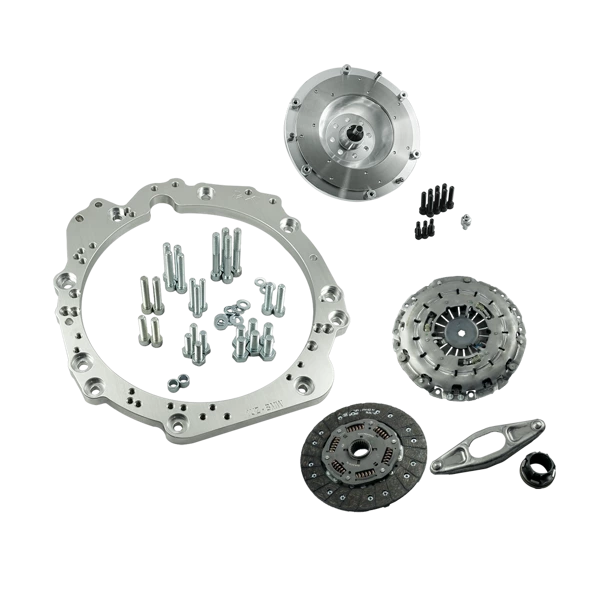

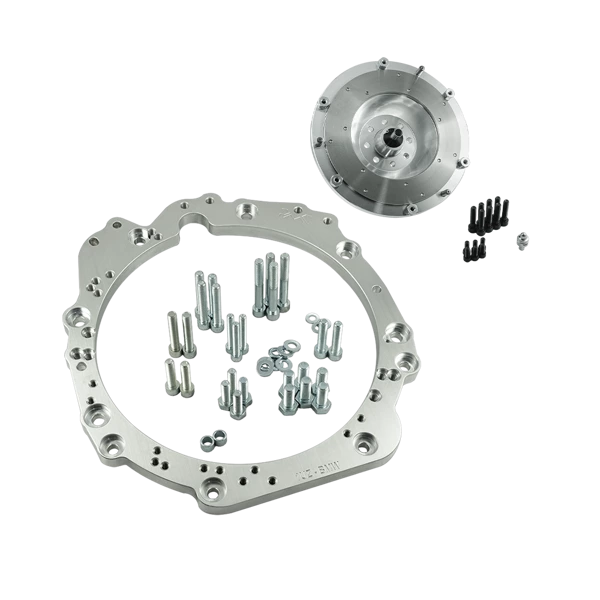

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Toyota Lexus V8 UZ 1UZ 3UZ - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / BMW N54 135i 335i 535i ZF GS6-53BZ 6-speed - 240mm / 9.45" + Sachs XTend 3000 951 952 max. 650Nm / 479,25 lb/ft

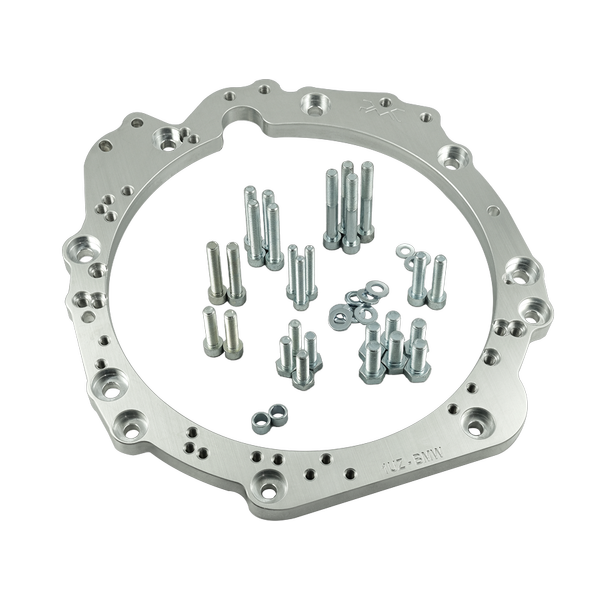

Aluminum adapter enabling to mate (SWAP / conversion) the Toyota Lexus V8 UZ 1UZ 3UZ engine, with the manual ZF (ZF Friedrichshafen) / Getrag gearbox from BMW.

Replace the automatic transmission with a manual transmission from BMW

Why is it worth choosing gearboxes from BMW?

• Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
• Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque(some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)

Want to SWAP Nissan RB RB20 RB25 RB26 RB30 on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.

Why choose PMC Motorsport parts and adapters?

• Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
• Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
• Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
• Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
• Made in EU. All our production and design departments are located in the European Union
• Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com

PMC Motorsport adapters are not only replacement automatic gearboxes in the Toyota or SWAP UZ in BMW. Our kits are often used in Toyota Lexus V8 UZ 1UZ 3UZ in other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34 or Mazda RX7 RX- 7 / RX8 RX- 8

Manual

• Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-50010 4.5mm) between the engine block and the flexplate
• The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
• Use a 240mm clutch disc with a spline dedicate to your gearbox.
• Replace the original custom pivot pin with the one from the kit.
