Product Details

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota Lexus V8 UZ 1UZ 3UZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45" - Sachs 3000 950 742

The adapter kit enables users connection of Toyota Lexus V8 UZ 1UZ 3UZ engine series with the Toyota Aisin J160 gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • Toyota / Lexus V8 1UZ 1UZ-FE
    • 1989–2000 Lexus LS 400 / Toyota Celsior
    • 1989–2002 Toyota Crown / Toyota Crown Majesta
    • 1991–2000 Lexus SC 400 / Toyota Soarer
    • 1992–2000 Lexus GS 400 / Toyota Aristo
    • 1995–1997 SARD MC8/MC8-R
  • Toyota / Lexus V8 3UZ 3UZ-FE
    • Lexus LS 430 (2000-2006)
    • Lexus GS 430 (2000-2007)
    • Lexus SC 430 / Toyota Soarer (2001-2010)
    • Toyota Crown Majesta (2004-2010)
    • Hongqi HQ430
Gearbox List
  • Lexus IS200 J160 First gen. Aisin AZ6 (2.0 L 1G-FE AS200)



Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-50010 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.



Engine:
Toyota / Lexus V8 UZ 1UZ 3UZ
Gearbox:
Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)
CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:
Single Disc
Clutch Set:
Sachs 3000 950 742
Max torque:
600Nm / 442,39 lb/ft
Clutch disc required:
Included
Starter required:
Toyota UZ (OE) Brak w zestawie
Release bearing required:
Included
Clutch fork required:
dedicated to your gearbox
Flexplate / ring gear required:
Toyota Lexus OEM 32101-50010
ADDITIONAL INFORMATION
Adapter Kit Type:
Daily
Gearbox adapter thickness:
30mm / 1.18"
Replaceable friction surface:
Yes

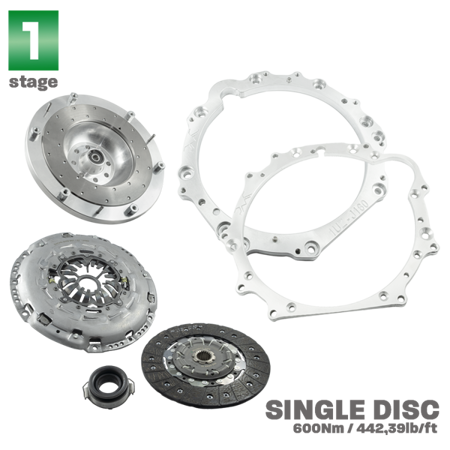

Set includes:

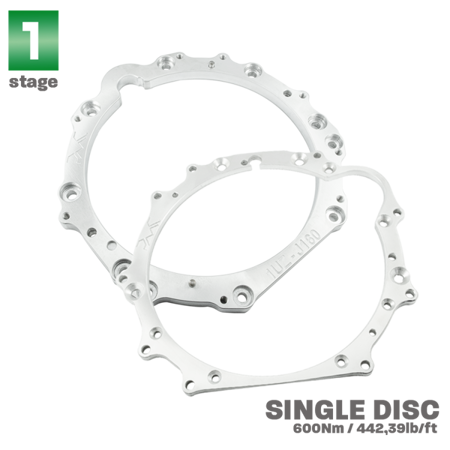

  • Aluminium gearbox adapter
  • Gearbox adapter bolts

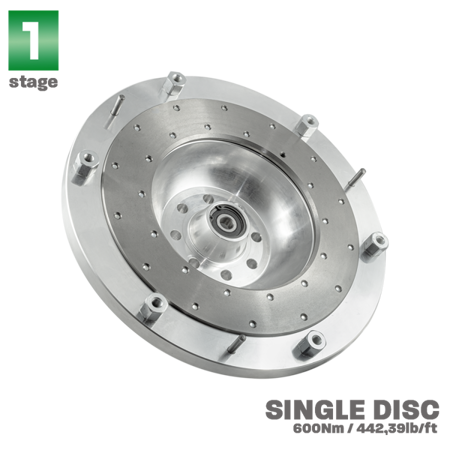

  • Custom Flywheel
  • Crankshaft bolts kit
  • Clutch cover - pressure plate bolts kit

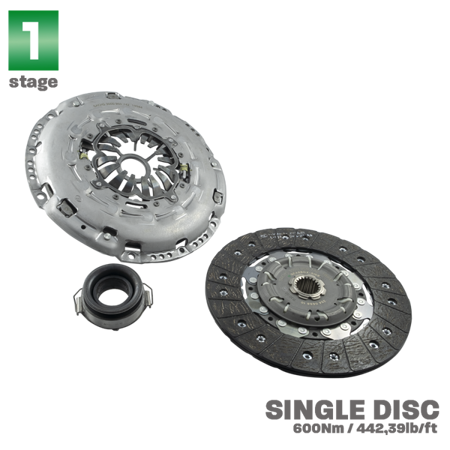

  • Sachs 3000 950 742
Product sales codes included:
  • F0J160-UZ (2648)
  • K0J160-UZ (2433)
  • Sachs 742
