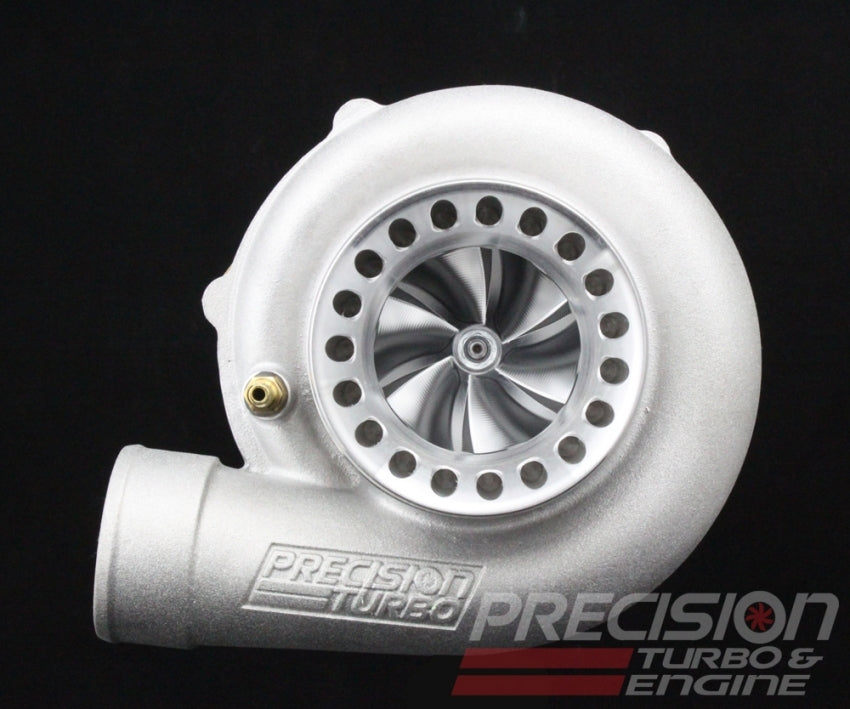

Precision Turbo - Street and Race Turbocharger - PT 6766 CEA (Journal Bearing)

HP Rating: 935

We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, PTE can help you find the perfect turbocharger for your unique setup.

Journal Bearing

PTE's PT6766 Turbocharger features the following:
Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
67mm inducer compressor wheel
Compressor cover options:
- "E" compressor cover 3.0" inlet/2.0" outlet
- "S" compressor cover 4.0" inlet/2.5" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
- "H" compressor cover 4.0" inlet/3" outlet
- "Ported H" compressor cover 4.0" inlet/3" outlet
Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
Turbine housing options:
- T3 .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
- V-Band inlet .82 A/R with V-Band discharge
- T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- Buick .63 or .85 A/R
- K26 .82 A/R
* NOTE: Additional cost may apply for certain housings.
Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
