Procharger - Stage II Tuner Kit Supercharger Chevrolet Corvette C5 Z06 LS6 01-04 (1GK206-SCI)

Procharger Stage II Tuner Kit Supercharger Chevrolet Corvette C5 Z06 LS6 01-04

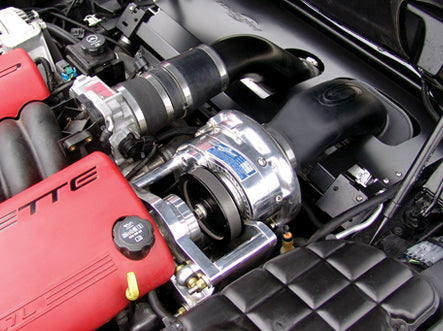

Based on the design of the C6 HO Intercooled system and ProCharger C5 race kit, the new Stage II Intercooled ProCharger system substantially raises the bar for C5 performance. The rugged new bracket design shows more of the supercharger for a better appearance, produces the industry s greatest belt wrap, and allows belt replacement without removing the supercharger. A larger, highly effective 4.5" twin highflow intercooler system with 3" tubing is standard, as is a new, higher flowing air inlet system. And unlike others, not only is all the hardware of OEM quality, a new radiator cradle is supplied to avoid cutting into the stock vehicle. Furthermore, an industry exclusive 3 year warranty is available up to 9 psi.

P-1SC-1 Supercharger Specs:
- Volute Diameter: 9"
- Max Supercharged HP: 825
- Base HP Range of Motor (Naturally Aspirated): 200-450
- Max Flow (cfm): 1200
- Max boost (psi): 32
- Inlet Hose Diameter: 3.75"
- Inducer Diameter: 3.37"
- Exducer Diameter: 5.25"
- Outlet Hose Diameter: 3"
- Outlet I.D.: 2.62"
- Max Impeller RPM: 65,000
- Internal Step-up: 4.10:1
- Reverse Rotation Available: Yes
- Self Contained: Yes
- Oil Capacity :6 oz

Std intercooler: 4.5" twin highflow. Call for other specifications.

Available Options:
-8 rib Drive System upgrade from standard 6 rib.
D-1SC ProCharger (replacing P-1SC-1).
Please select below.

Notes:
-Model year must be specified below.
-Polished finish is standard for Corvette systems.
-Pinning the balancer to the crank is recommended. Pin kit for stock balancer supplied.
