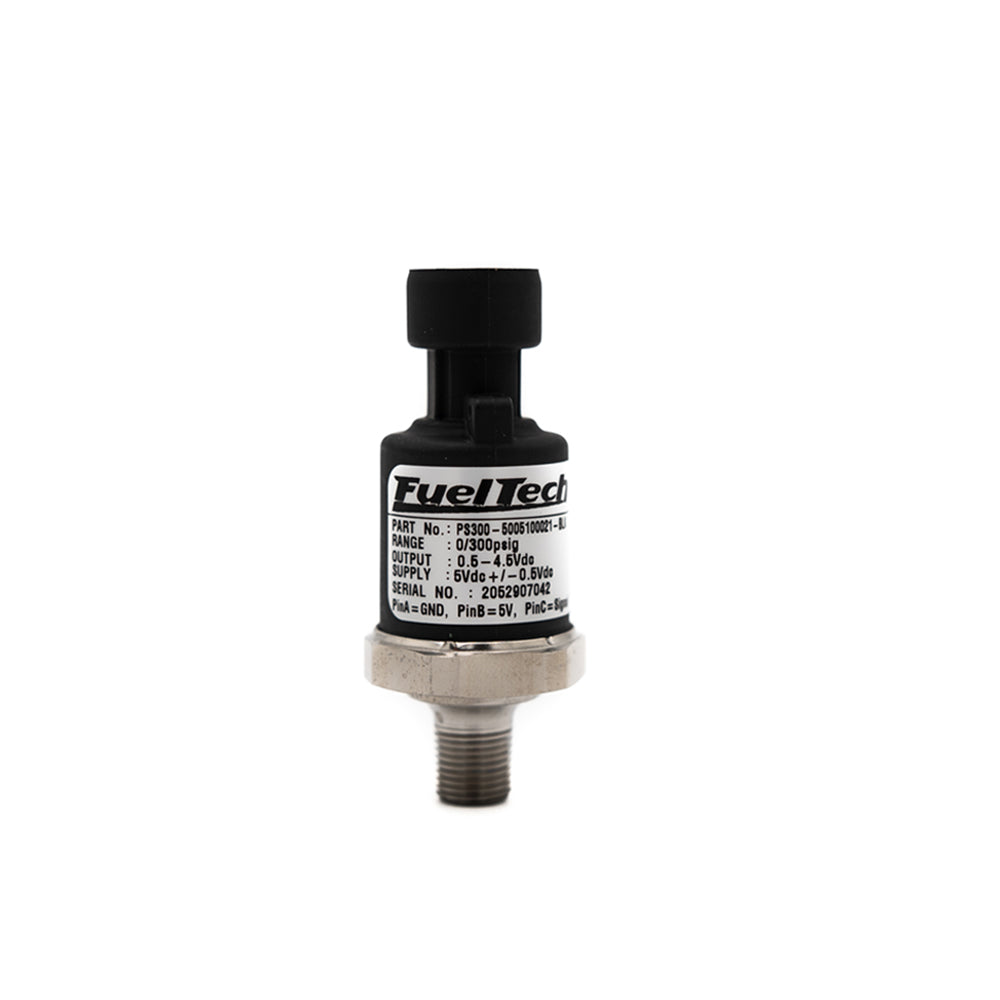

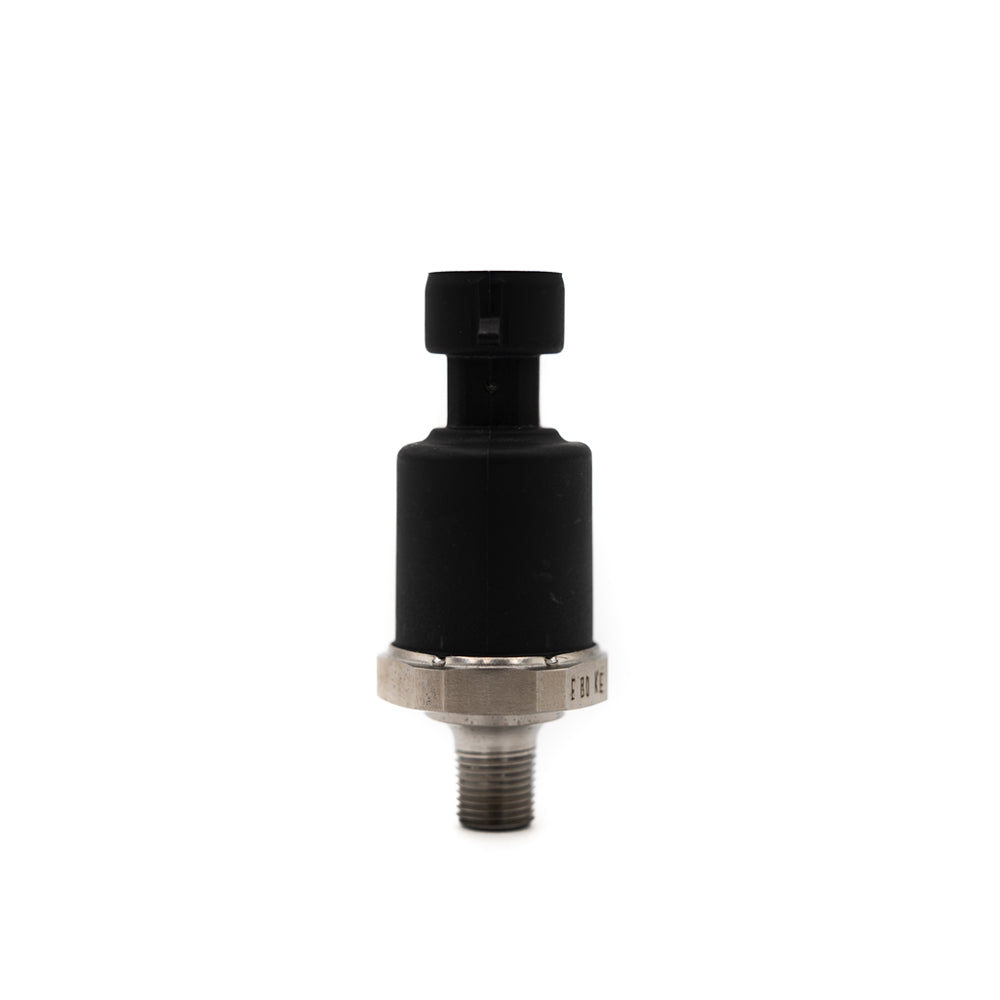

FuelTech USA - PS-300 Pressure Sensor (0-300 psi)

FuelTech's 300 psi pressure sensor is engineered for accuracy and durability, providing readings for fuel, oil, wastegate pressure, and more. Protect your engine and maximize performance with accurate sensor data.

TECHNICAL DESCRIPTION

• Output: 0.5-4.5V
• Supply: 5V
• Range: 0-300 psi

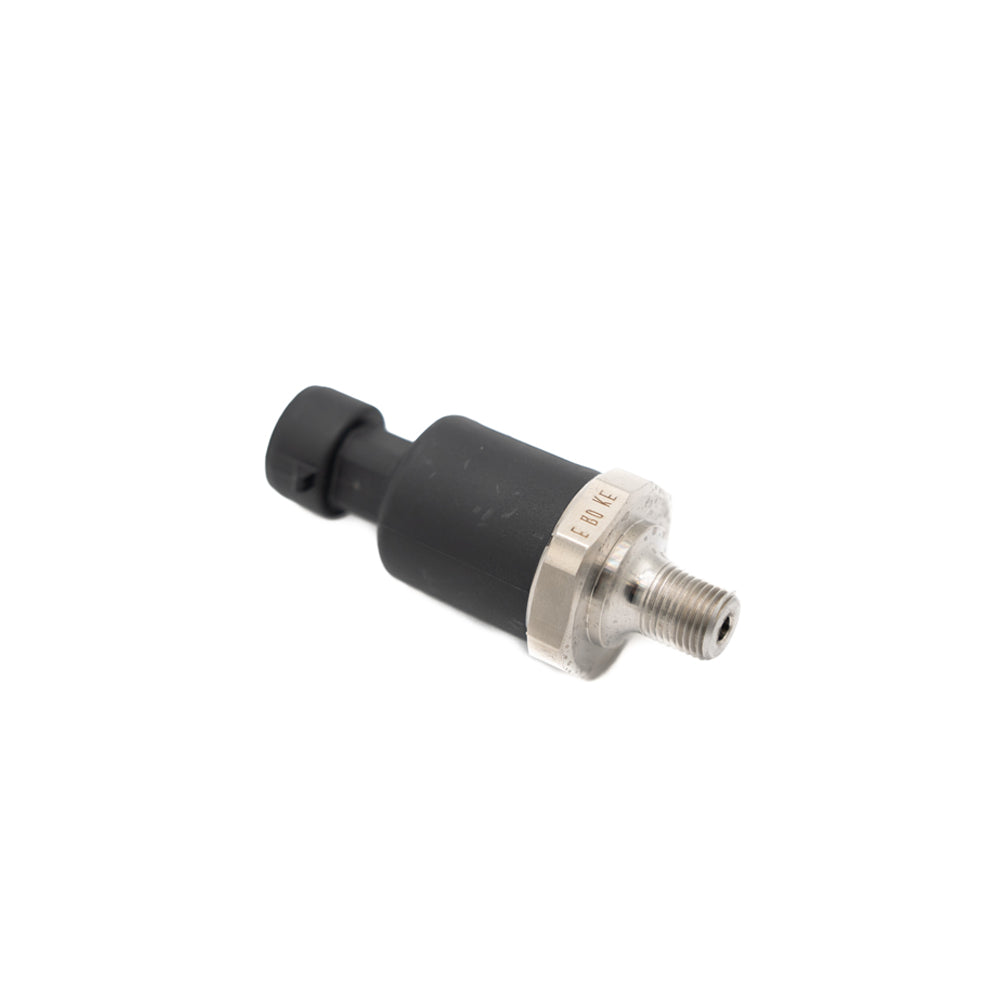

• Thread size: 1/8" NPT

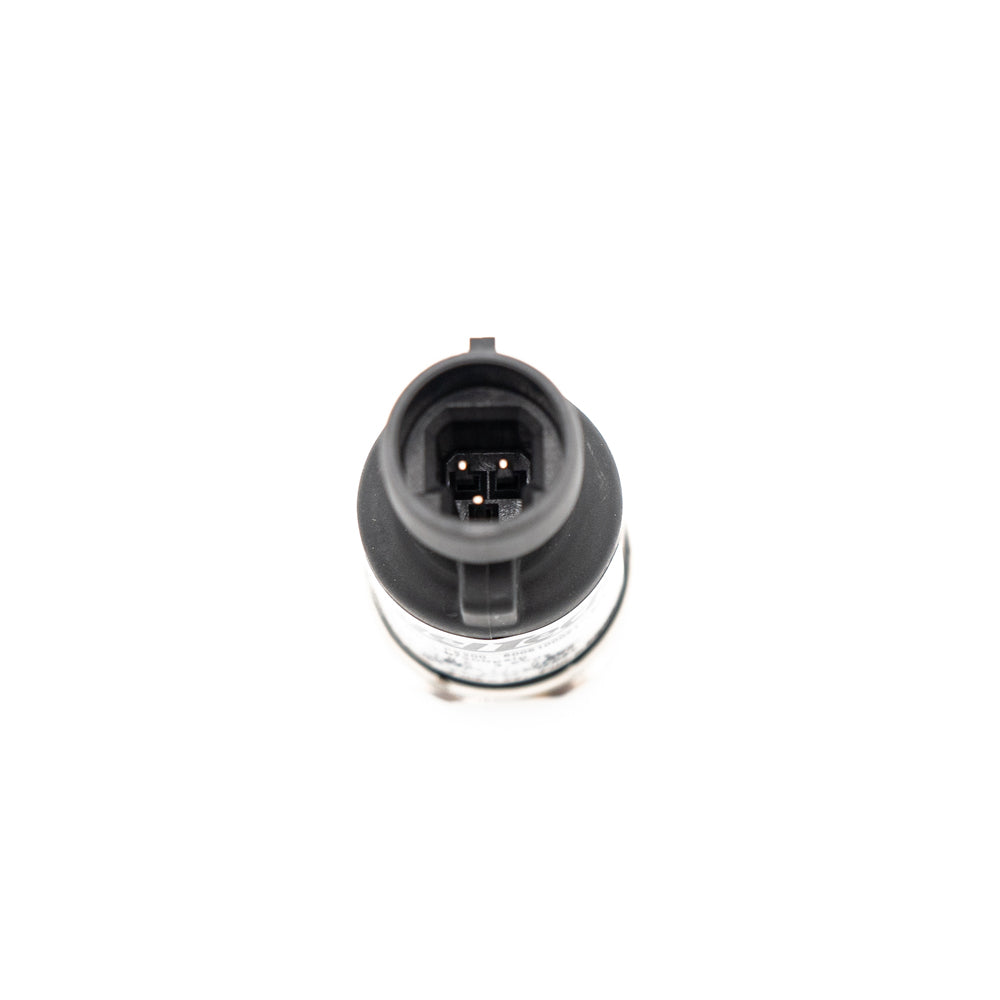

Connector Pinout:

• A - Ground
• B - 5V
• C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)

Accuracy: 0.25% FS

Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)

Compensated Temp: -40°F to +257°F (-40°C to +125°C)

Operating Temp: -40°F to +257°F (-40°C to +125°C)

Zero Tolerance: 0.5% of span

Span Tolerance: 0.5% of span

Response Time: 1ms

Fatigue Life: 1M Cycles

Wetted Parts: 17-4 PH Stainless Steel

Enclosure: IP67 (IP65 for electrical code G)

Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)

Shock: Withstands free fall to IEC 68-2-32 procedure 1

EMC (Radiated Immunity): 100V/m

Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228

Weight: 35 Grams
