STAGE 1 Honda K K20 K24 - Mazda RX-8 5-speed - 240mm / 9.45" - ( PMC - S1-K-RX8-5-L9 )
STAGE 1 Honda K K20 K24 - Mazda RX-8 5-speed - 240mm / 9.45" - ( PMC - S1-K-RX8-5-L9 )
SKU: PMC - S1-K-RX8-5-L9 ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
Regular price
$1,271.16 USD
Regular price
$1,271.16 USD
Sale price
$1,271.16 USD
Unit price
per
Couldn't load pickup availability

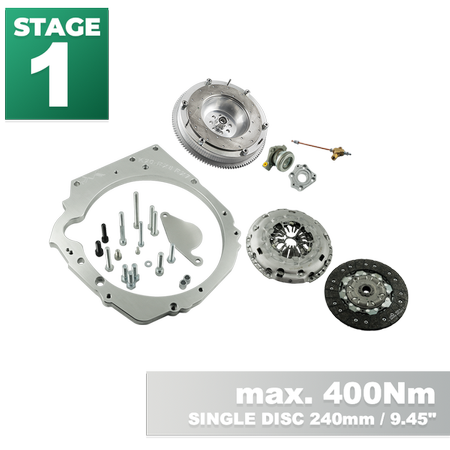

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Honda K K20 K24 - Mazda RX-8 5-speed - 240mm / 9.45" - LUK 624 3297 09
The adapter kit enables users connection of Honda K K20 K24 engine series with a Mazda RX-8 manual gearbox.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface

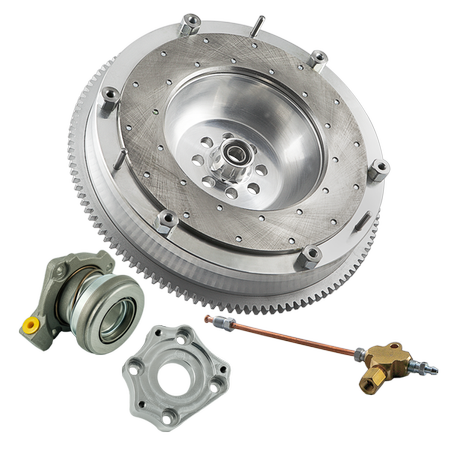

- The flywheel is balanced prior to shipment
| Engine List |
|
| Gearbox List |
|

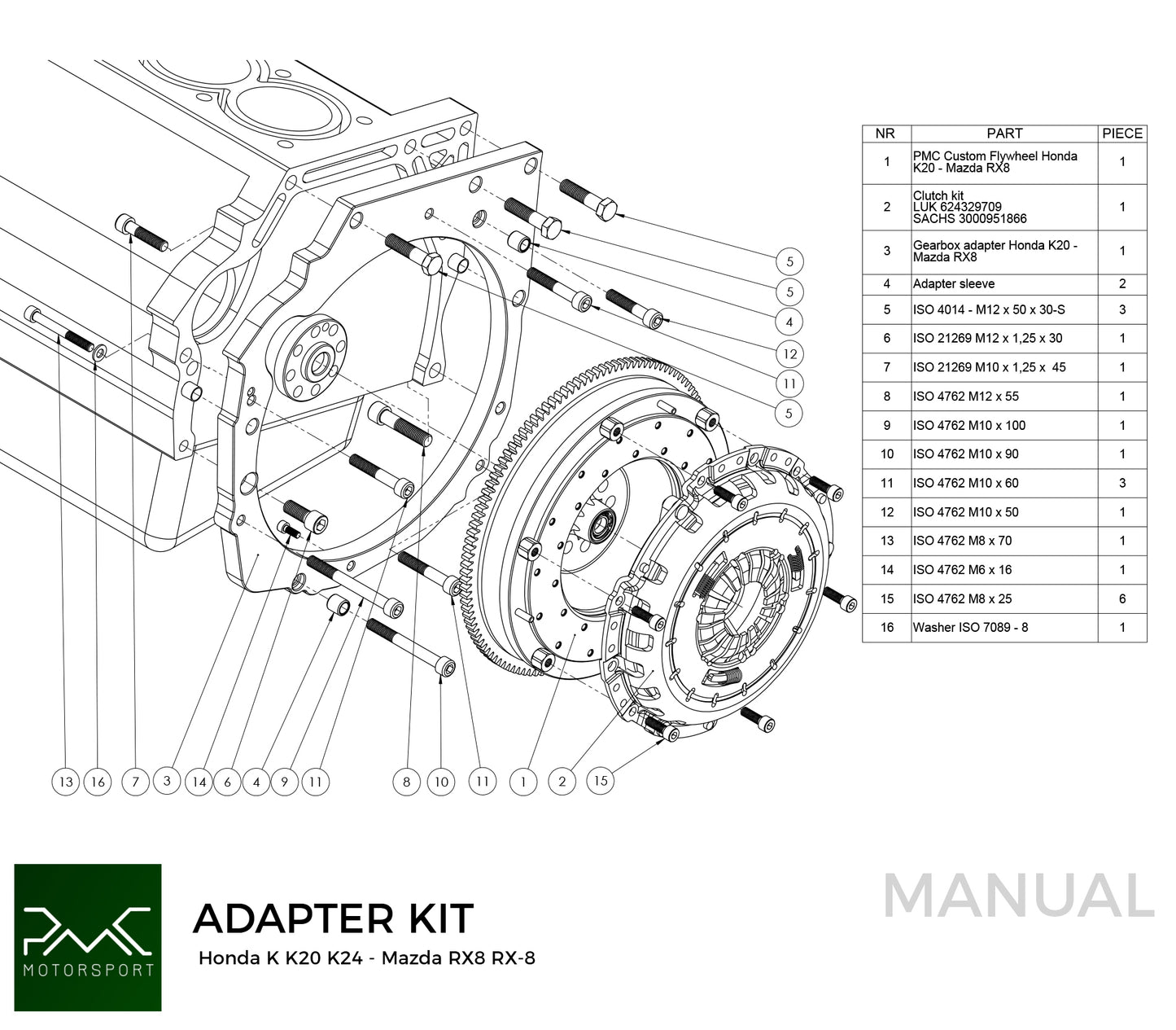

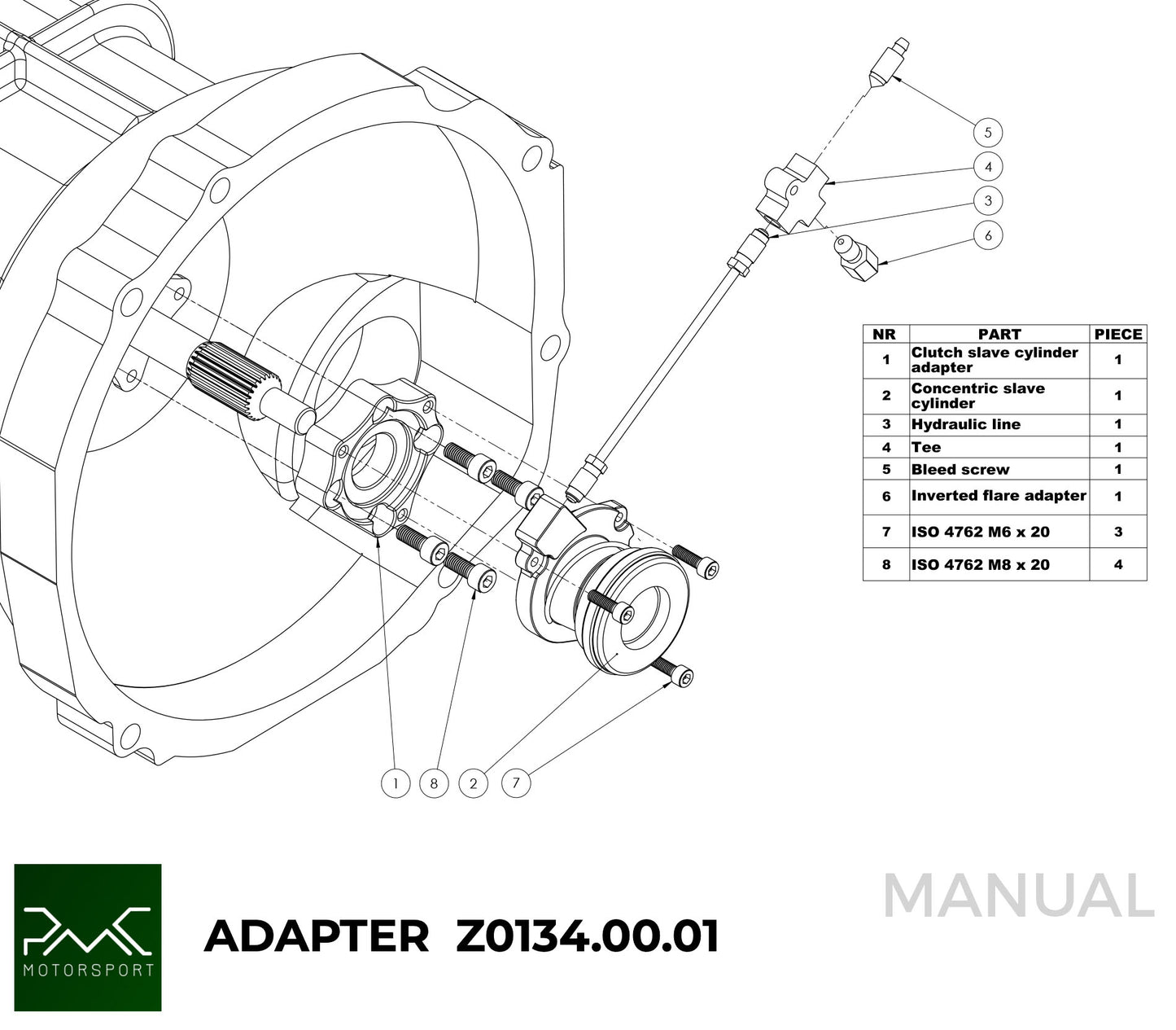

Manual
- Tighten the flywheel to the same torque as OE. Use Honda K Manual OE Bolts.
| Engine: |
Honda K K20 K24
|
| Gearbox: |
Mazda RX-8 5-speed
|
|
CLUTCH SET
|
|
| Set with Clutch: |
Yes
|
| Flywheel Type: |
Single Disc
|
| Clutch Set: |

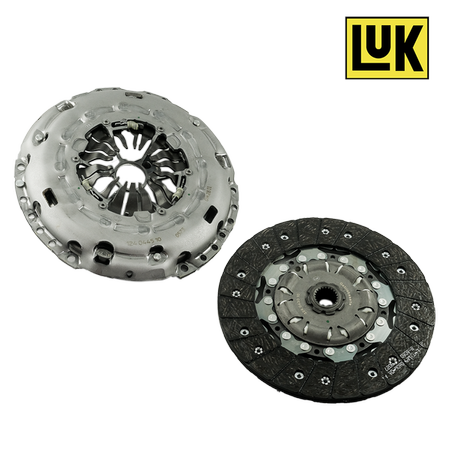

LUK 624 3297 09
|
| Clutch disc required: |
Included
|
| Release bearing required: |
Included
|
| Starter required: |
Honda K (OE) Brak w zestawie
|
| Flexplate / ring gear required: |
---
|
|
ADDITIONAL INFORMATION
|
|
| Flywheel weight: |
5.45 kg / 12.01 lb
|
| Adapter Kit Type: |
Motorsport
,
Daily
|

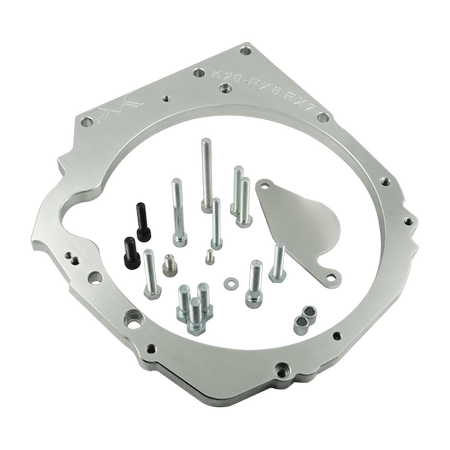

| Gearbox adapter thickness: |
20mm / 0.78"
|
| Replaceable friction surface: |
Yes
|
| Set includes: |
|
| Product sales codes included: |
|
| Max torque: |
400Nm / 295 lb/ft
|
-
