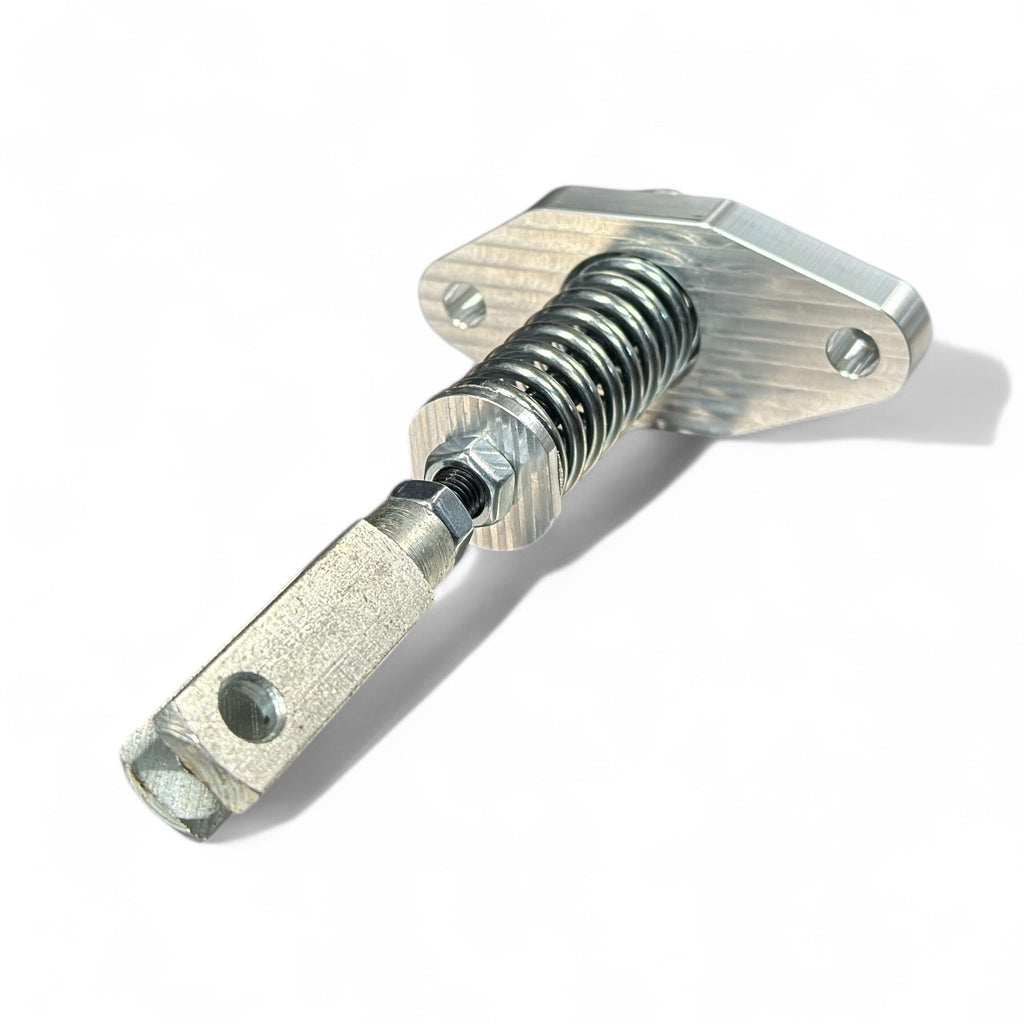

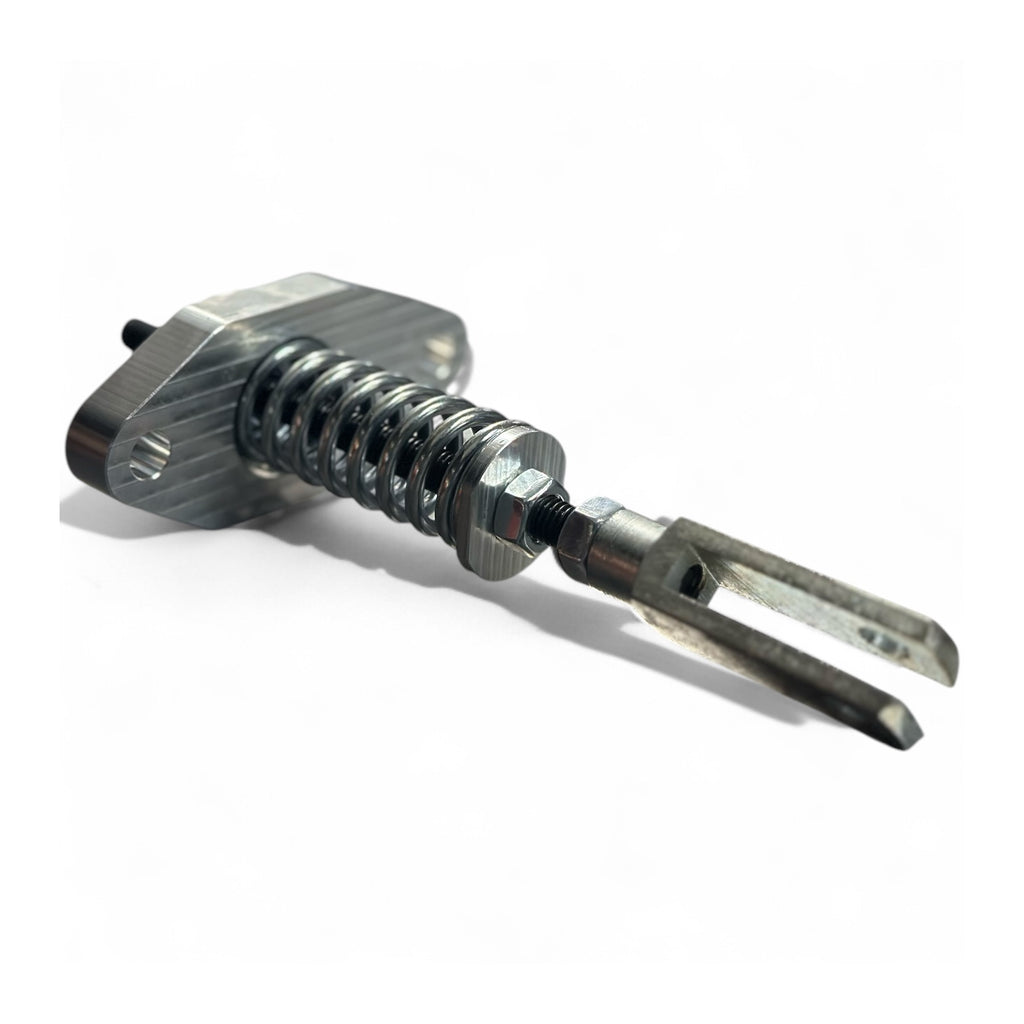

Style Drift Rats - 8HP/DCT CLUTCH PEDAL EMULATOR

Developed to replicate a realistic clutch pedal feel as in most OEM Toyota and Nissan chassis for those swapping 8HP or DCT style transmissions into the chassis of their choice. This product DOES NOT yet include a linear position sensor or sensor of the type required to communicate pedal position to the TCU controller. HOWEVER, Haltech does sell linear position sensors that can be used in conjunction with our product. We have only confirmed sensor fitment in Toyota JZX/IS300 chassis with part number HT-011201 that has a length of 50mm. Different length sensors may be required for your chassis and it is up to you to determine the proper length sensor you need.

UNSURE ABOUT FITMENT FOR YOUR CHASSIS?
The wilwood type universal master pattern is likely your best option considering there are many manufacturers who sell Wilwood clutch master adapters for likely whatever chassis you’re trying to install our product in. Wilwood clutch masters with #260-XXXXX part numbers all share the same bolt patterns with 2.25” spacing center to center. The only difference may be your rod length. It is possible to extend your rod length by using a female to male “stand-off” at the end of the threaded portion of the rod. You can purchase custom stand off lengths from manufacturers like McMaster. Or if you need it to be shorter, you may trim some of the thread length.

ANY DAMAGE TO OUR PRODUCT BY IMPROPER INSTALLATION, MISUSE, OR MODIFICATION DOES NOT CONSTITUTE A REFUND OR EXCHANGE SO PLEASE “MEASURE TWICE CUT ONCE”.
