FDF - BMW E36 MANTIS ANGLE KIT - Platinum

 The Mantis Kit for the BMW is the most relevant angle kit in today's drift society, and here's why:

Mega Mantis Angle Kit for BMW E36

Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.

Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions

-Angle, 70 degrees depending on your steering rack setup

-Ackerman, adjustable Ackerman

-Roll Center, optimized handling by adding 40mm of roll center correction

-Bump steer, minimal bump steer in drift by perfecting tie-rod pickup location

-Caster, displaced caster built into the knuckle for optimal alignment force

-Camber, optimized camber ranging from adjustable from -3 to -6

-Track Width, 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders)

-Suspension Travel, long travel range, full lock to full lock at any point throughout  suspension travel for increased grip

-Joints, Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable

-Weight Reduction, compact knuckle design makes for a lightweight and strong design, scissor frame constructed alloy steel arms, 7075 aluminum used where possible

Choose the options according to your preferences or send us an email if you need help

*Must Have Coilovers To Run This Kit*

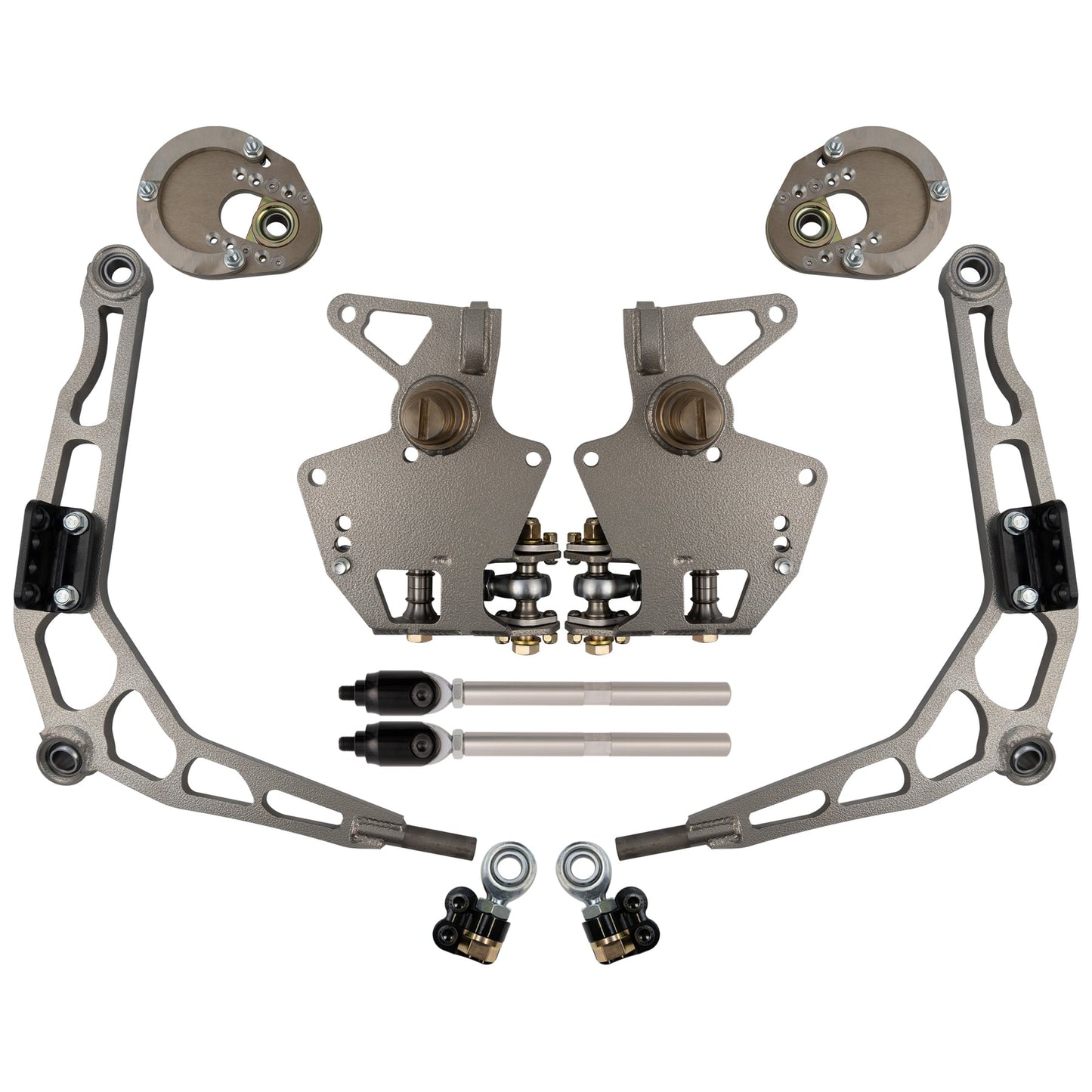

The kit includes everything you need to install with the chosen options

-2 lower control arms

-2 knuckles

- Ackerman Plates

- 2 inner and outer tie-rods

- 2 caster/camber plates

-All bearings and hardware required for install

For custom colors, email your order number and the color wanted.

Please allow 2-3 weeks of fabrication before the item is sent.
