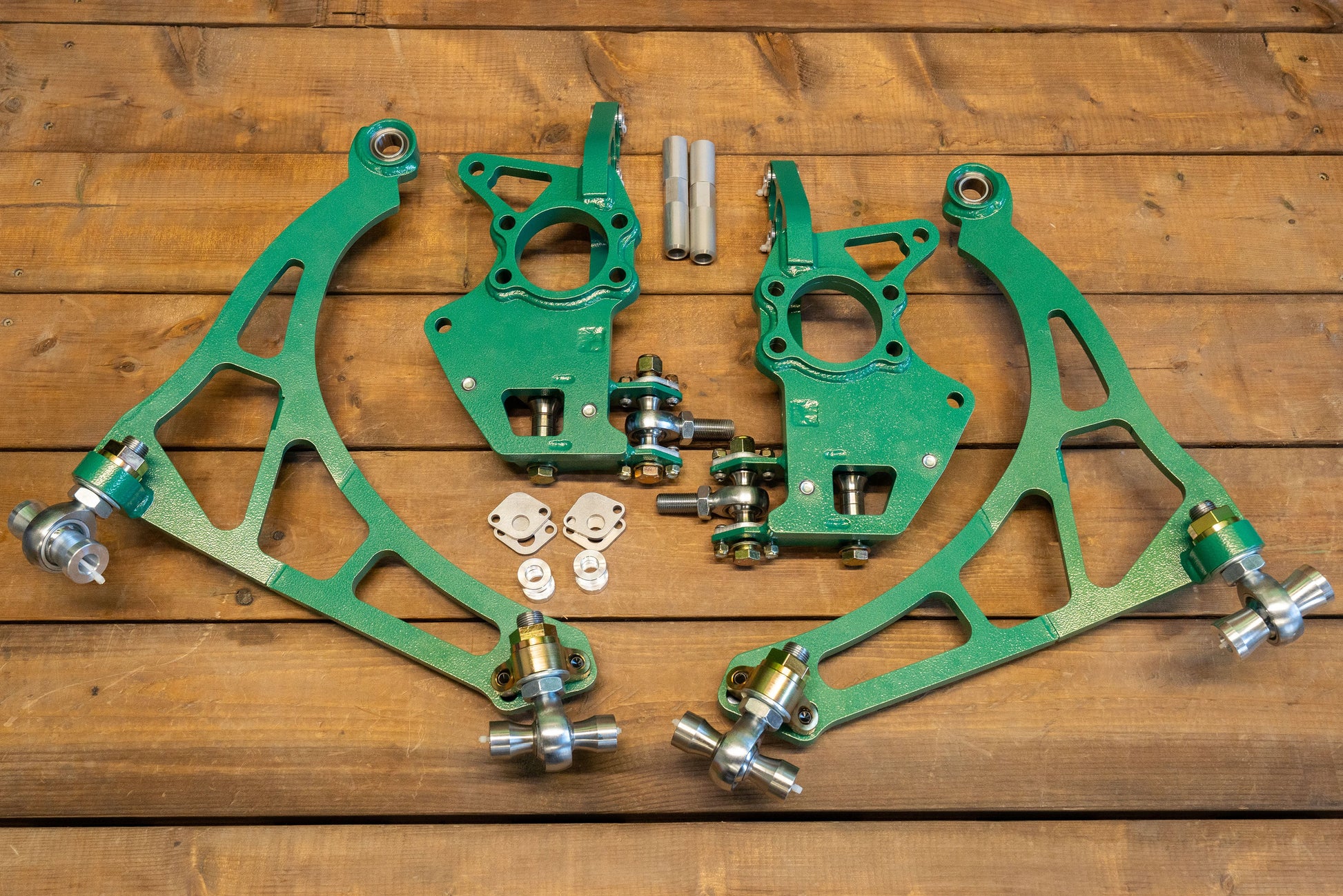

FDF Raceshop - Hyundai Genesis Mega Mantis Angle Kit

Drawing on years of angle kit manufacturing experience, this V2 kit is designed to be the strongest and easiest-to-adjust kit on the market. These qualities save you significant time and money when aligning the car and preparing for aggressive driving. Using the highest quality materials, these components work together to provide over 65 degrees of usable steering angle and amazing handling characteristics. It features optimized self-alignment torque, roll center, steering ratio, and Ackermann geometry to help you get the most out of your Genesis.

Key Features:

• Angle: 65 degrees+ depending on wheel size and track width.
• Ackermann: Adjustable ackermann.
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pitch angle.
• Caster: optimized Perfected range of adjustment for the best alignment torque and front grip ratio
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: Wheel Bearing not included.

Note: For custom colors, please list it within the order notes.

Note: 2 weeks waiting time for custom colors

Note: Please allow 2-3weeks of fabrication before the item is sent.

Installation Manual

Camber Plate Description

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
