AiM - AiM MXM Compact Dash Logger

• Compact high-performance dash logger with customizable data display, RGB backlit screen, and seamless ECU, GPS, accelerometer, and gyro integration.
• Features configurable alarms, shift lights, digital outputs, and expandable modules for enhanced vehicle monitoring and performance analysis.

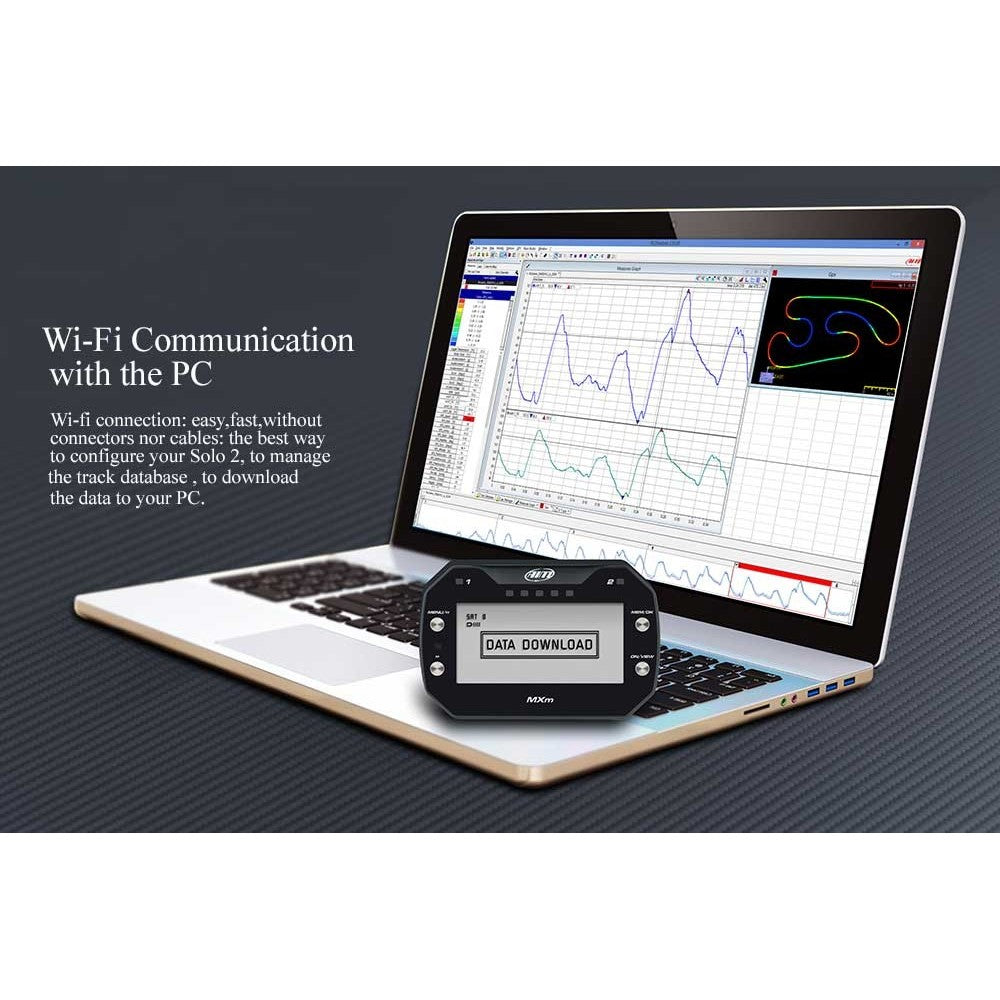

• Advanced connectivity including WiFi, CAN, RS232, and multiple analog/digital inputs, with high-resolution color display and internal memory.

MXm The Compact Entry-Level dash logger

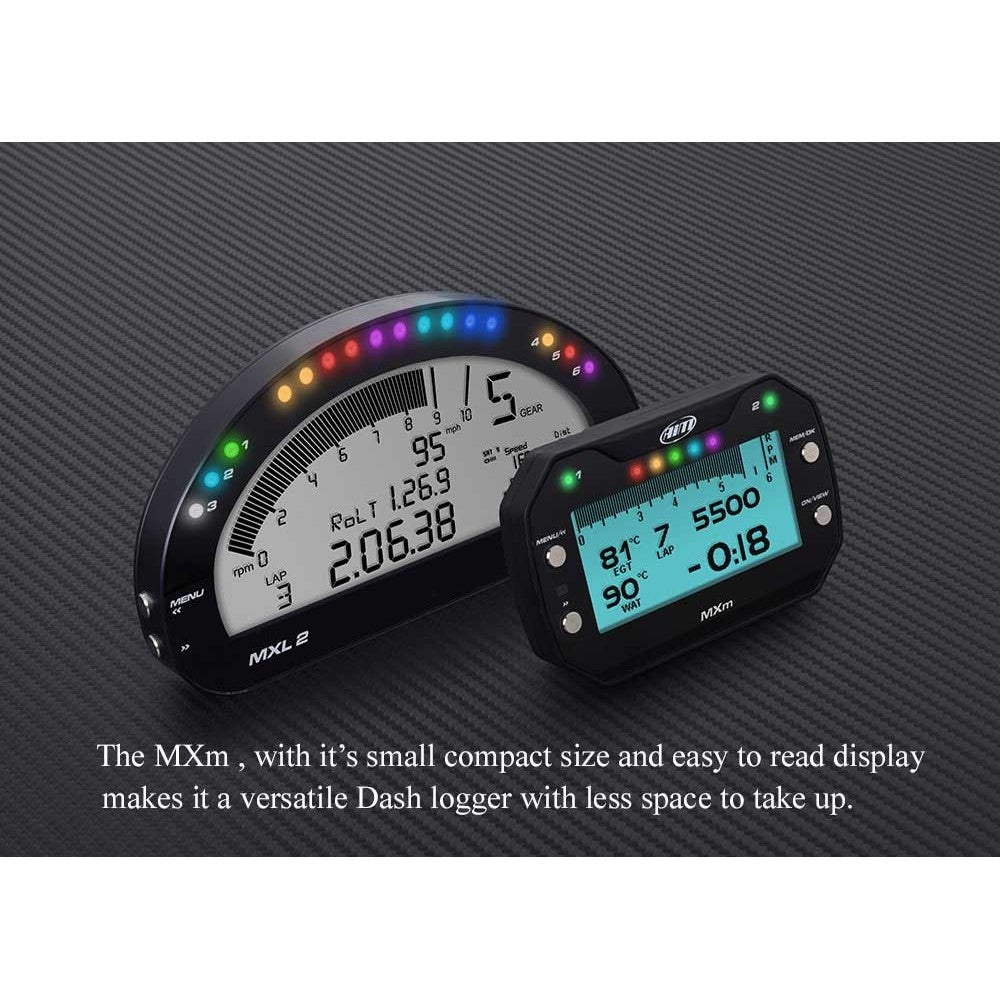

MXm is a compact-sized dash logger designed for racers needing all the essential information to monitor their vehicle behavior and improve their performance.

It has been designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the internal GPS receiver, analog/digital inputs and predefined math channels. The spectrum of data acquired can also be incremented adding expansion modules.

Choose your own data layout

You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Easy to read in any light conditions

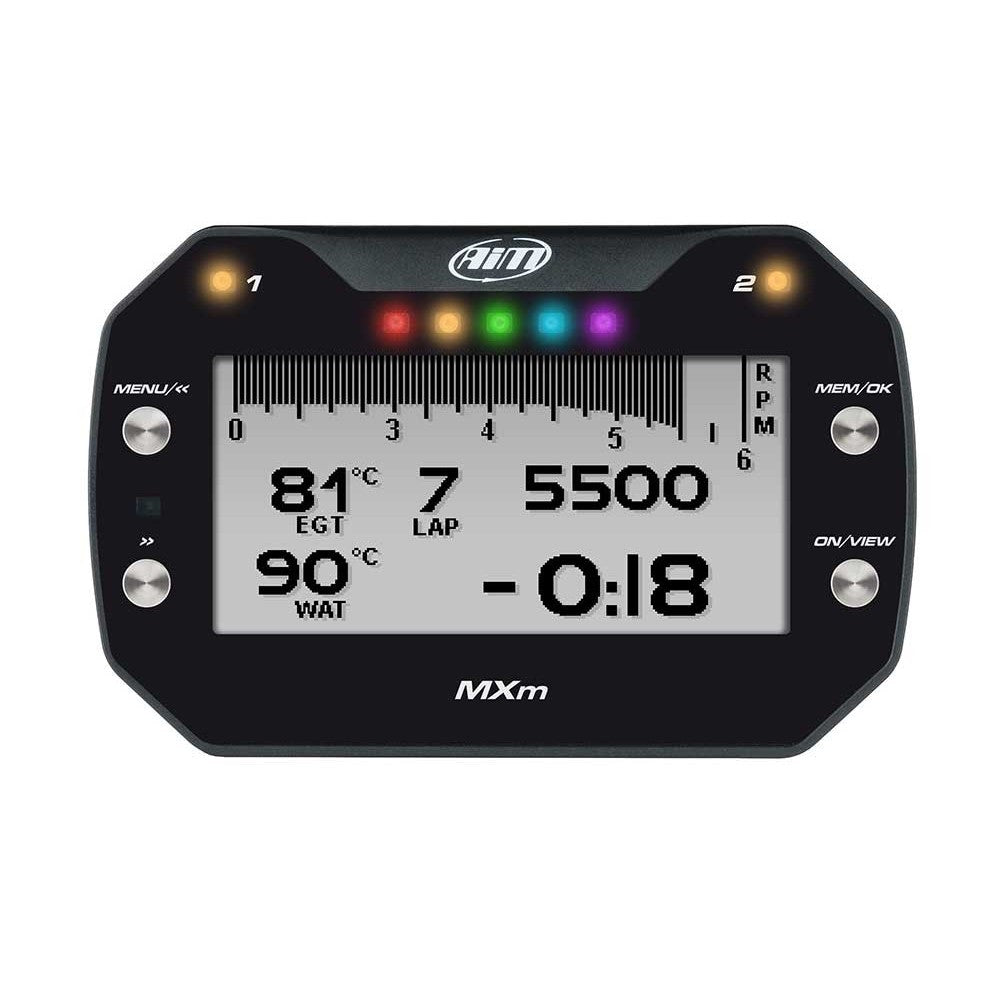

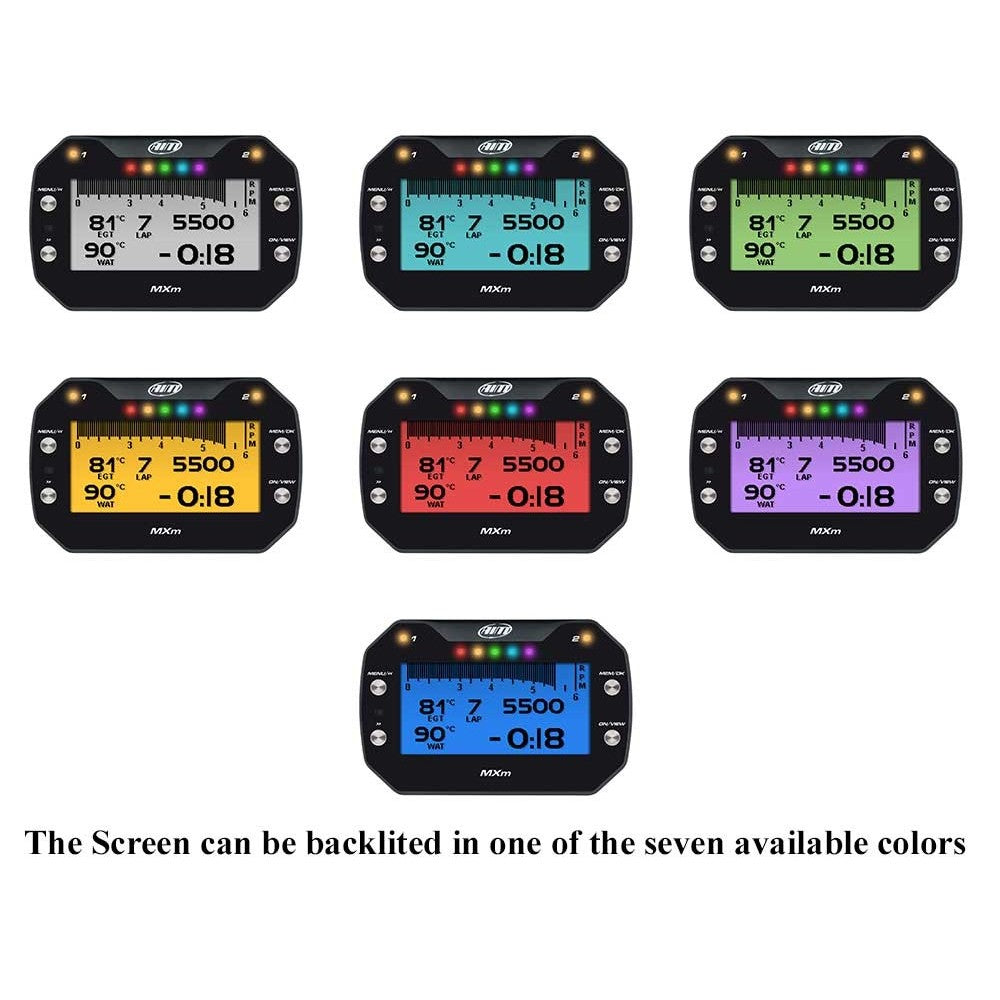

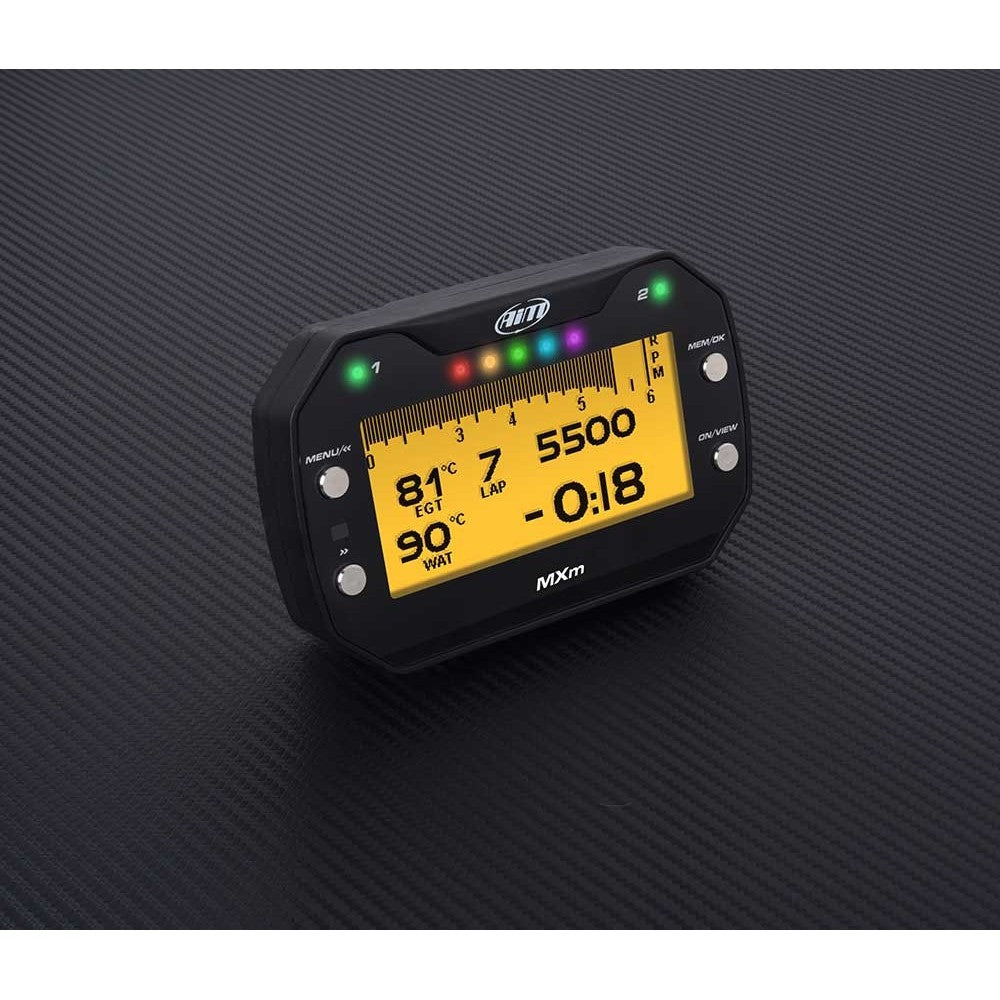

MXm features a wide 268x128 pixel graphical display. The screen can be backlighted in one of the seven available colors.
The incorporated light sensor makes brightness and contrast ideal in all light conditions.

Flexible alarms and shift lights

MXm features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency. Shift Lights are completely configurable, too.
The five RGB LEDs can be customized to your liking, and for each unique gear when required.

Two Digital outputs

MXm features two digital outputs. Each of them can give an output of 20 Amp max. at 12 Volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Data Recall

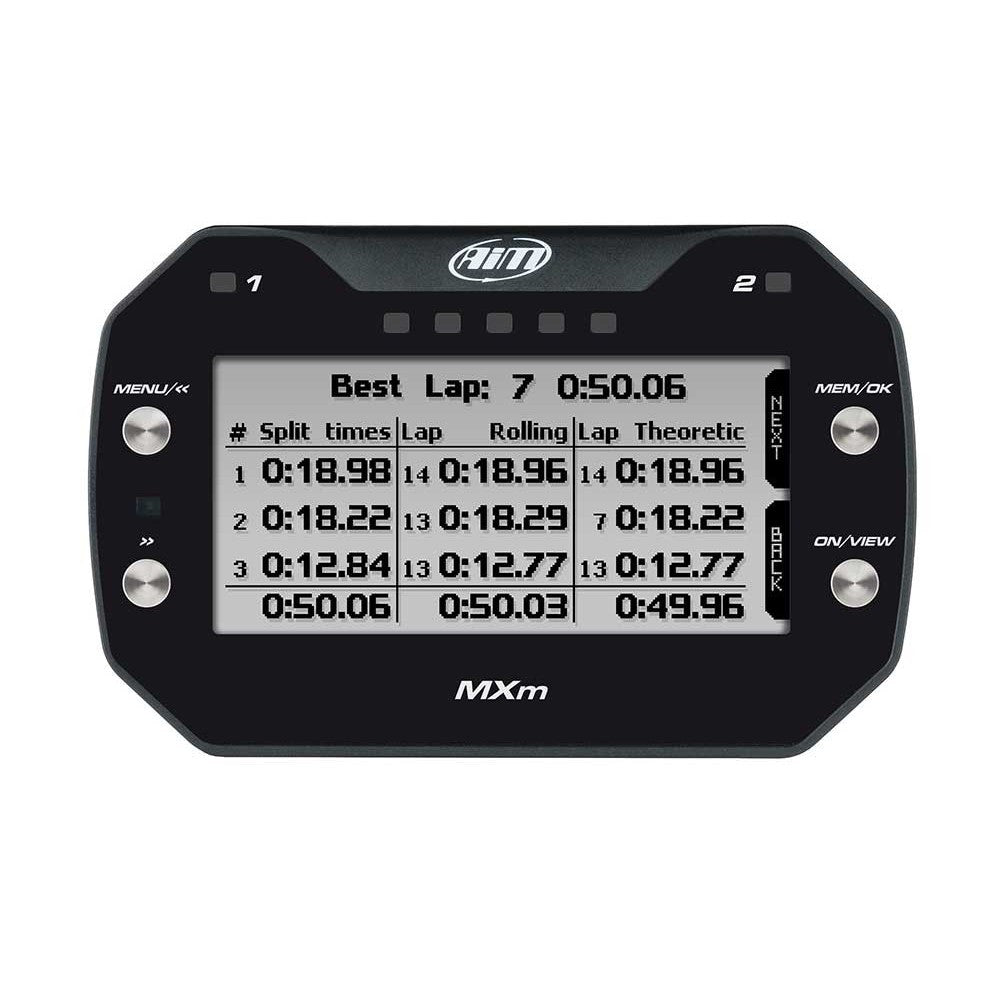

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Expansions

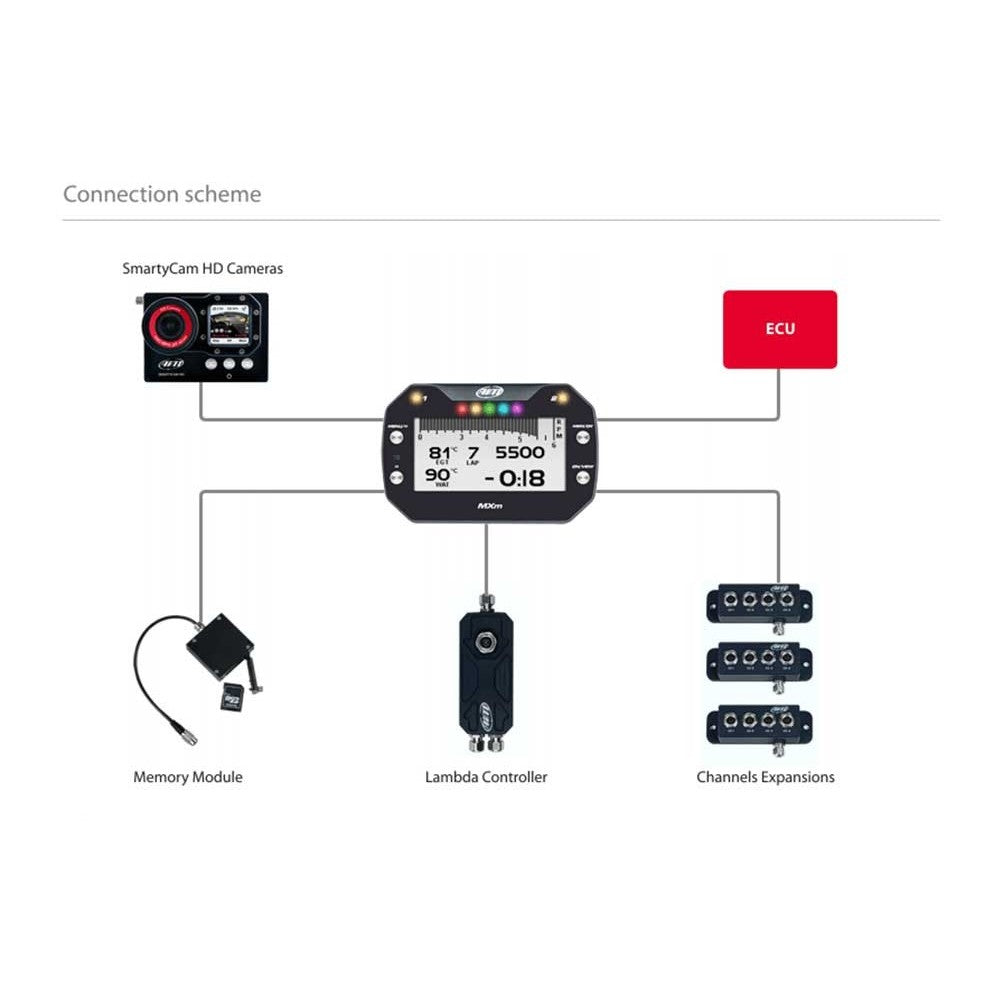

A number of expansions can be added to MXm for incrementing the performance and the data acquired:

• Channel Expansion
• TC Hub
• LCU-One Lambda Controller
• SmartyCam HD Cameras
• Memory Modules

Technical Specifications

Display Resolution : 268 x 128 pixels
Backlight : 7 configurable RGB colors
Ambient Light sensor : Yes
Shift Lights : 5 configurable RGB LEDs
Alarm LEDs : 2 configurable RGB LEDs
CAN connections : 2
ECU connection : CAN, RS232 or K-Line to 1,000+ industry leading ECUs
GPS : Integrated
External modules : Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
Analog inputs : 4 fully configurable, max 1,000 Hz each
Digital inputs : 2 speed inputs, lap signal, coil RPM input
Digital outputs : 2
Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro
WiFi connection : Yes
Internal memory : 4GB
Body : Glass fiber reinforced Nylon
Pushbuttons : Metallic
Connectors : 37 pins Motorsport connector + 4 pins power connector

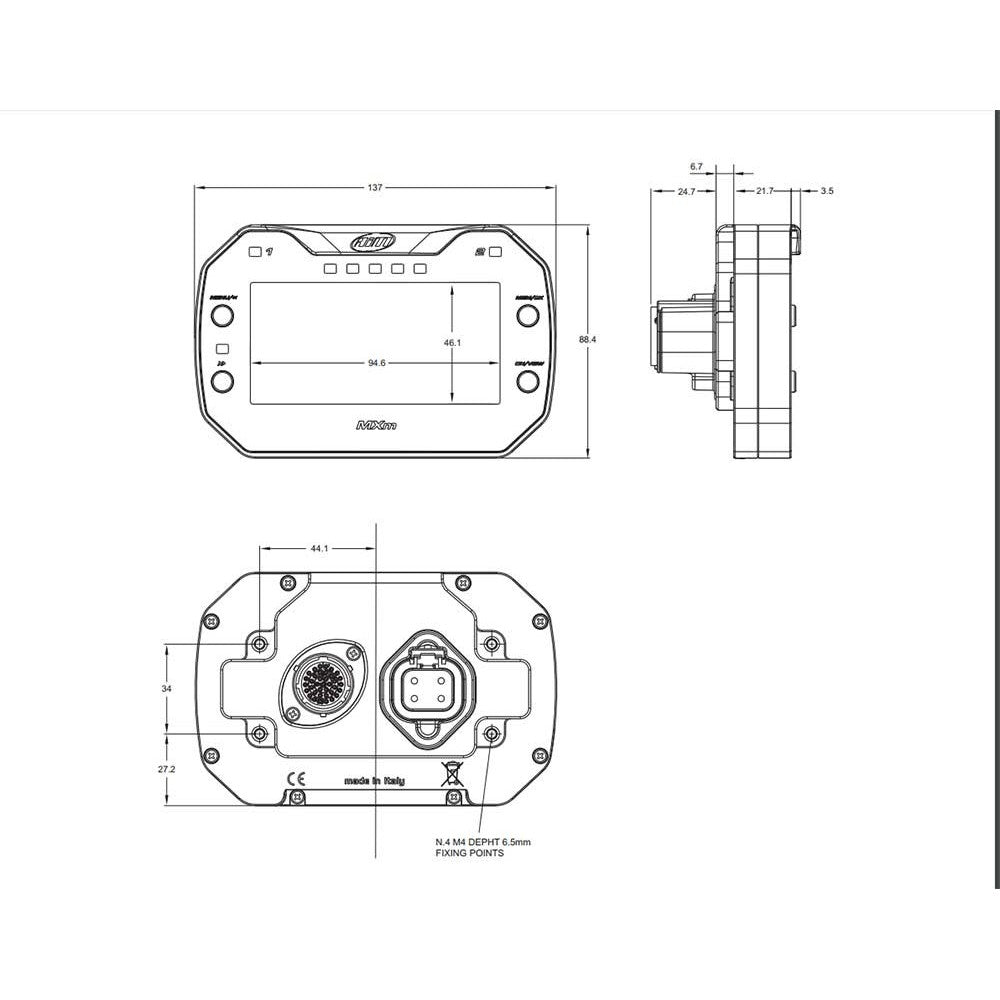

Dimensions : 137 x 88.4 x 31.9 mm
Weight : 330 g
Waterproof : IP65
