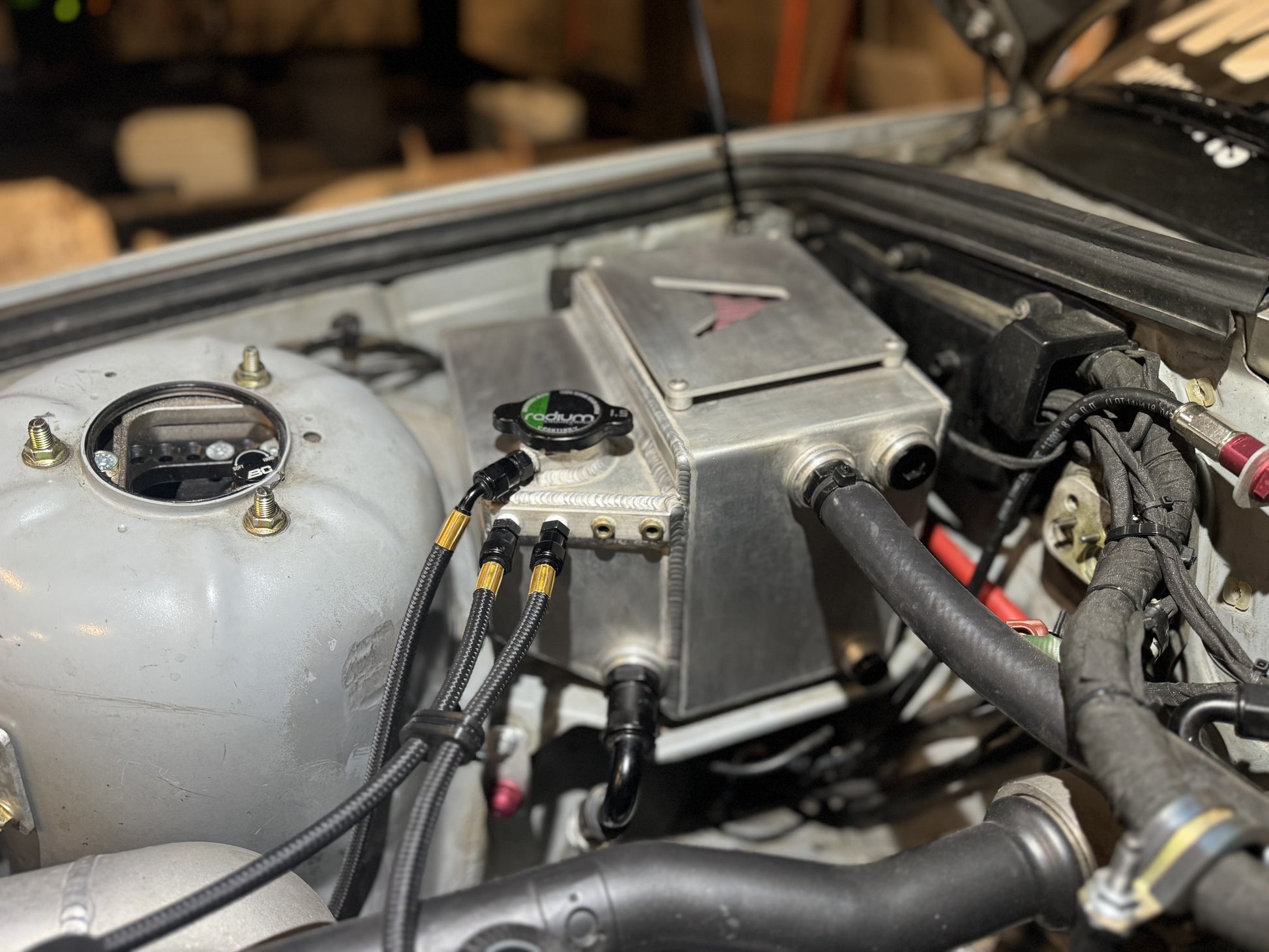

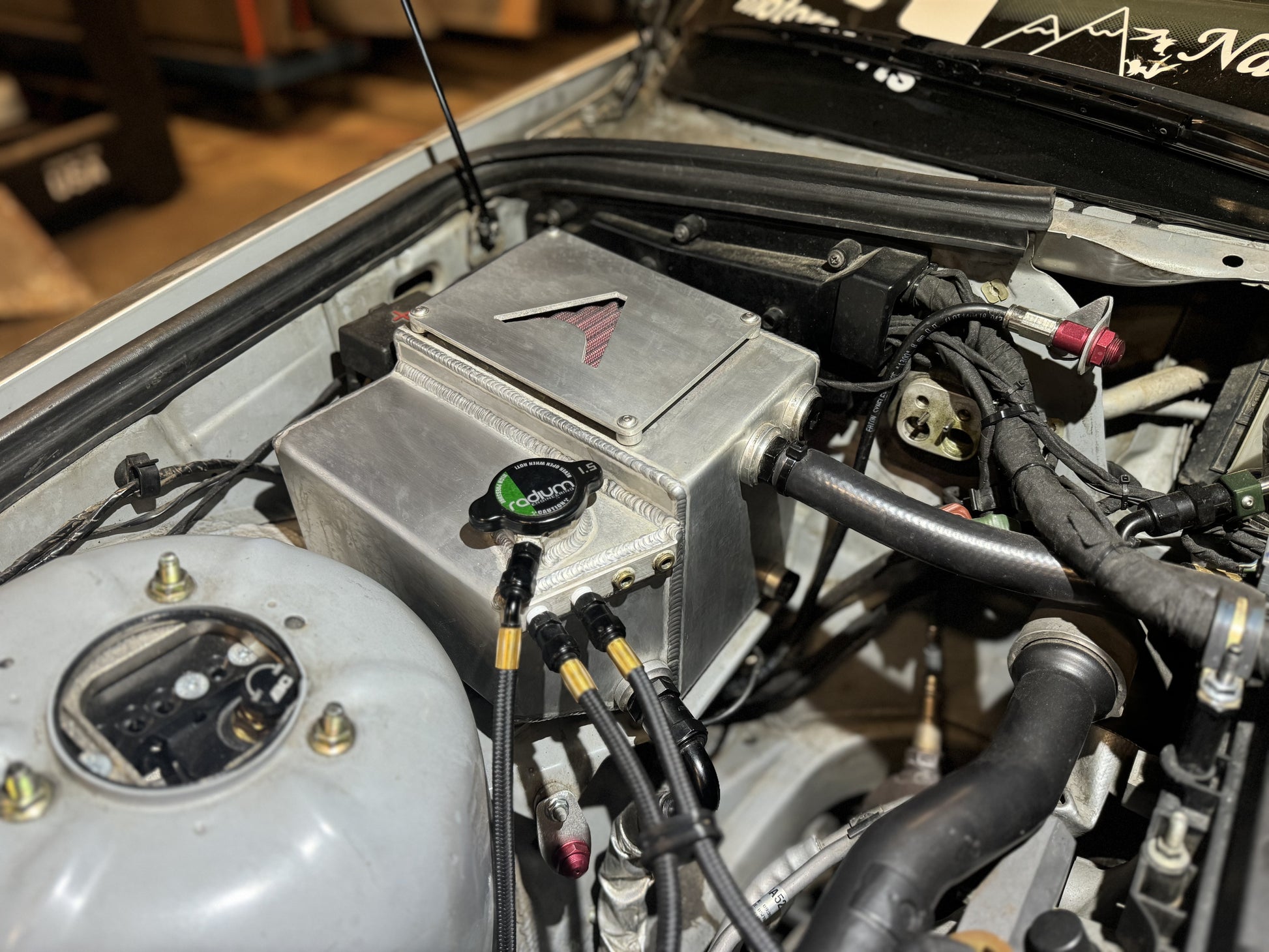

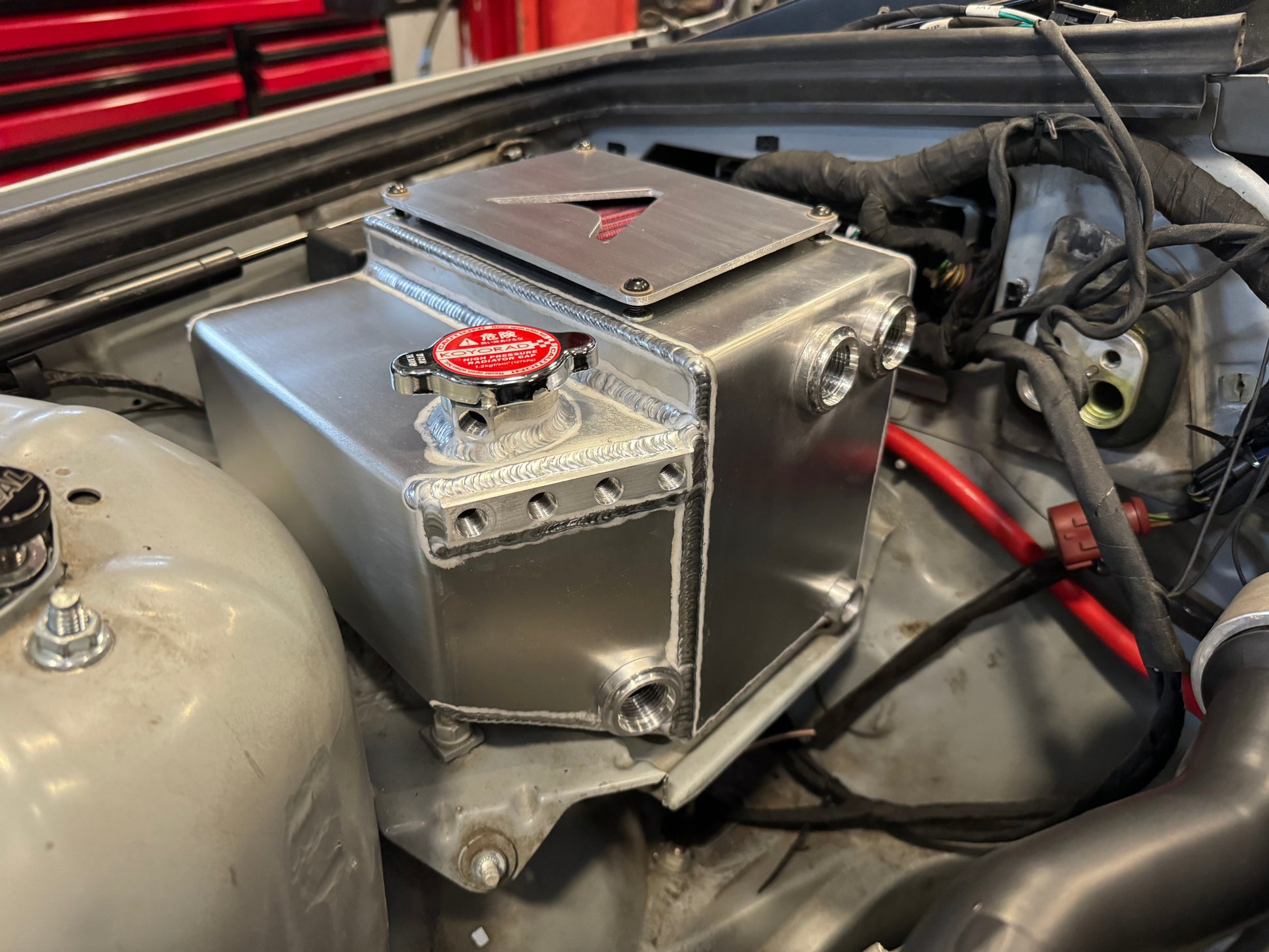

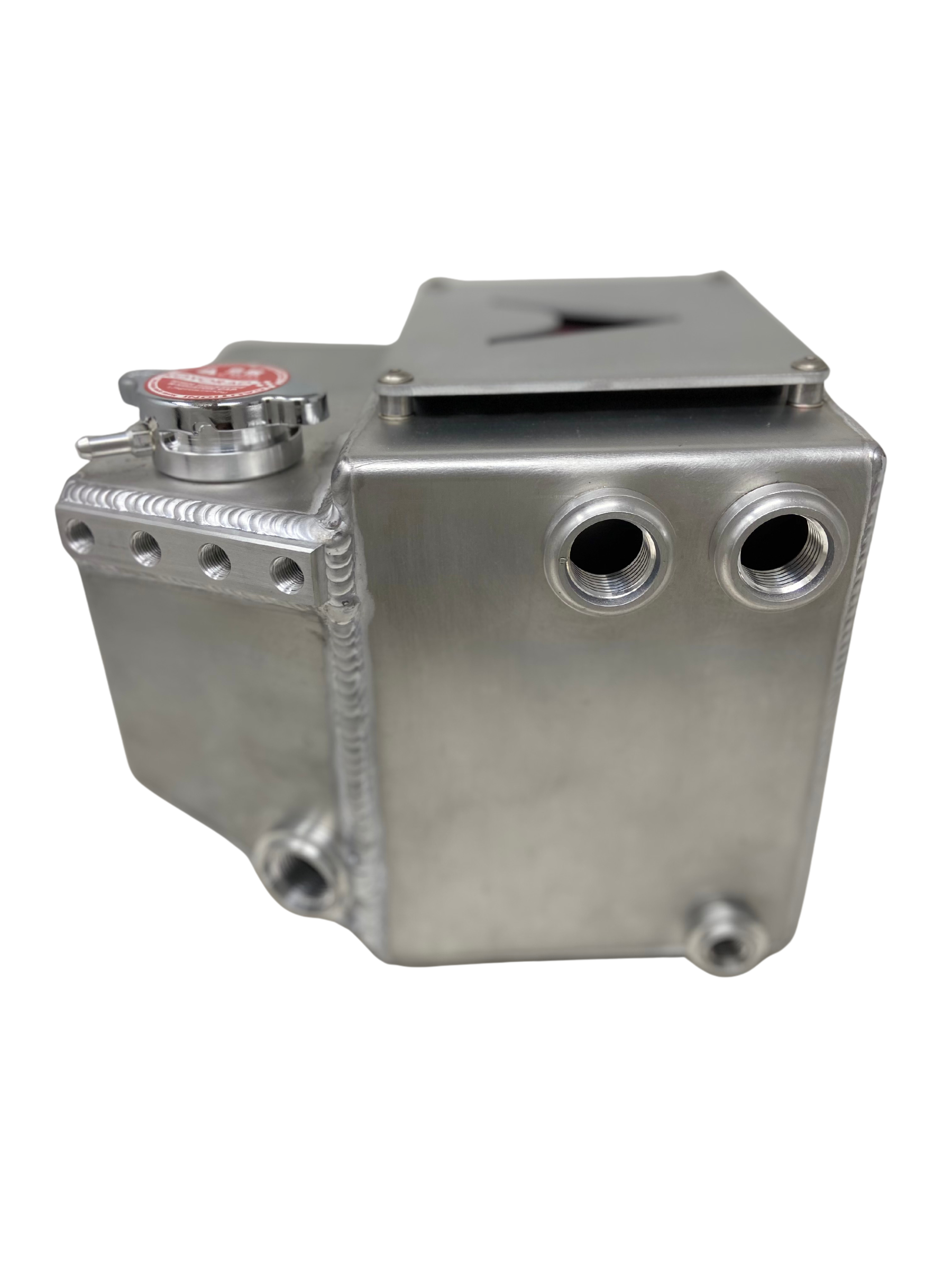

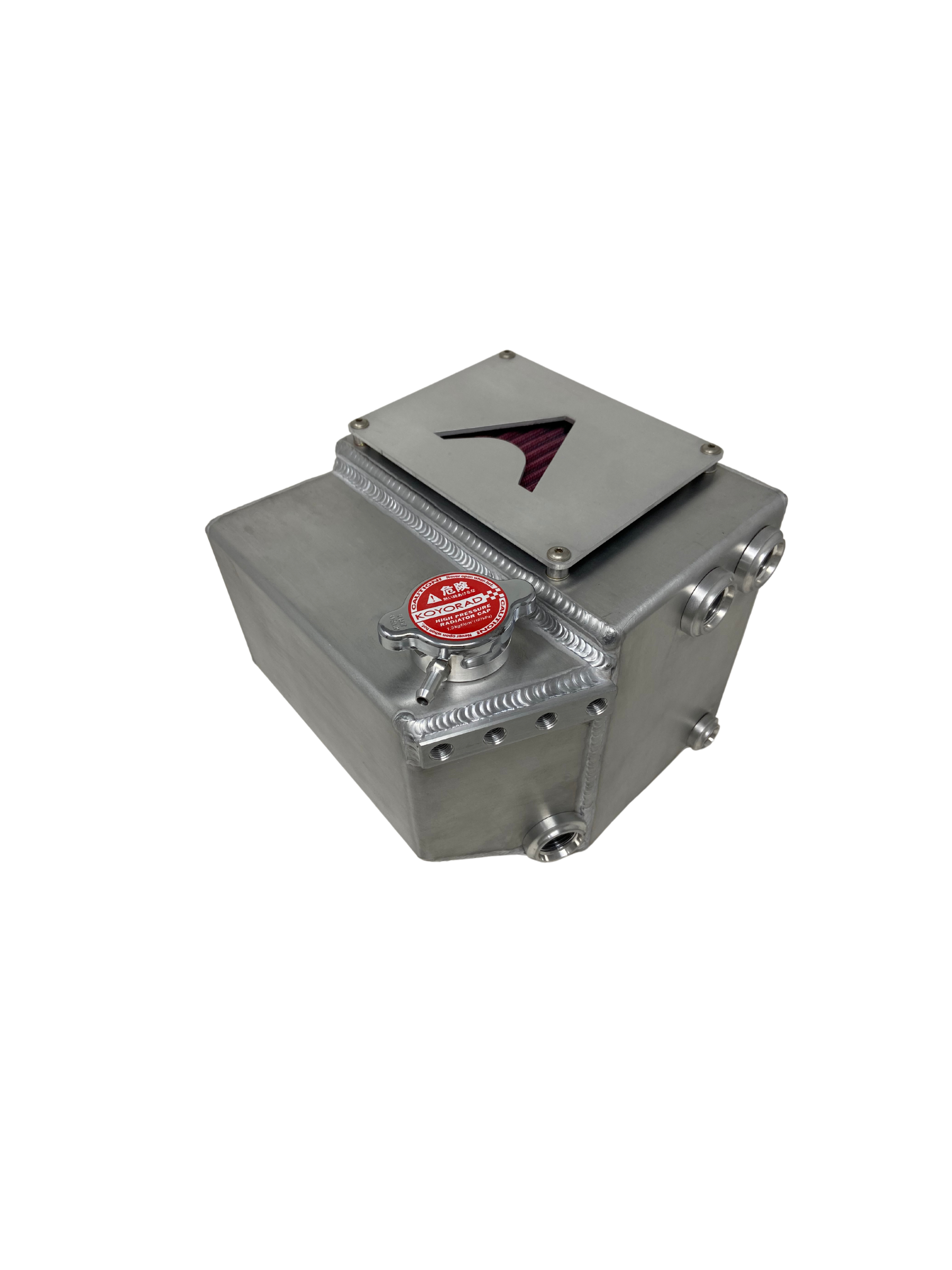

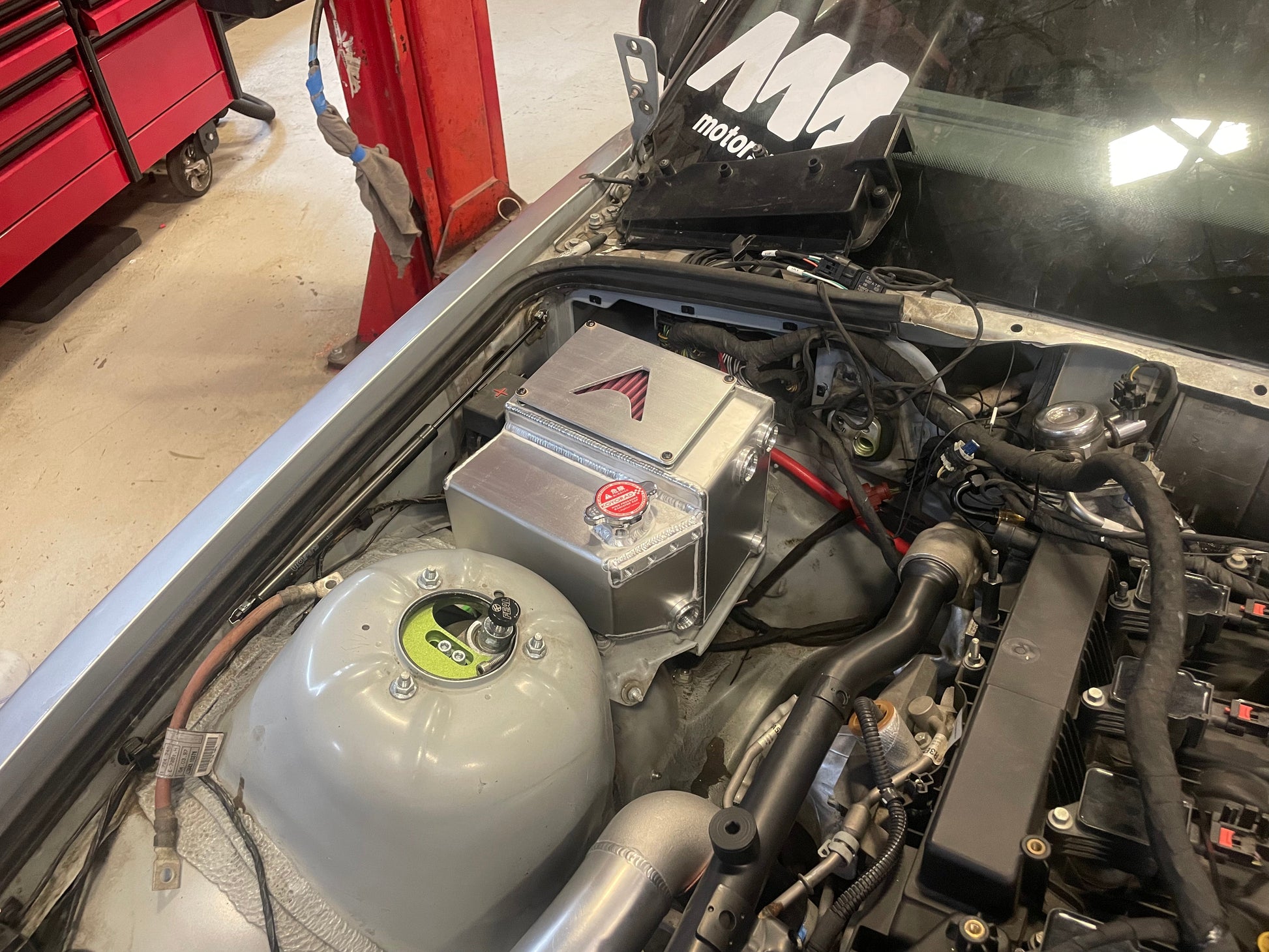

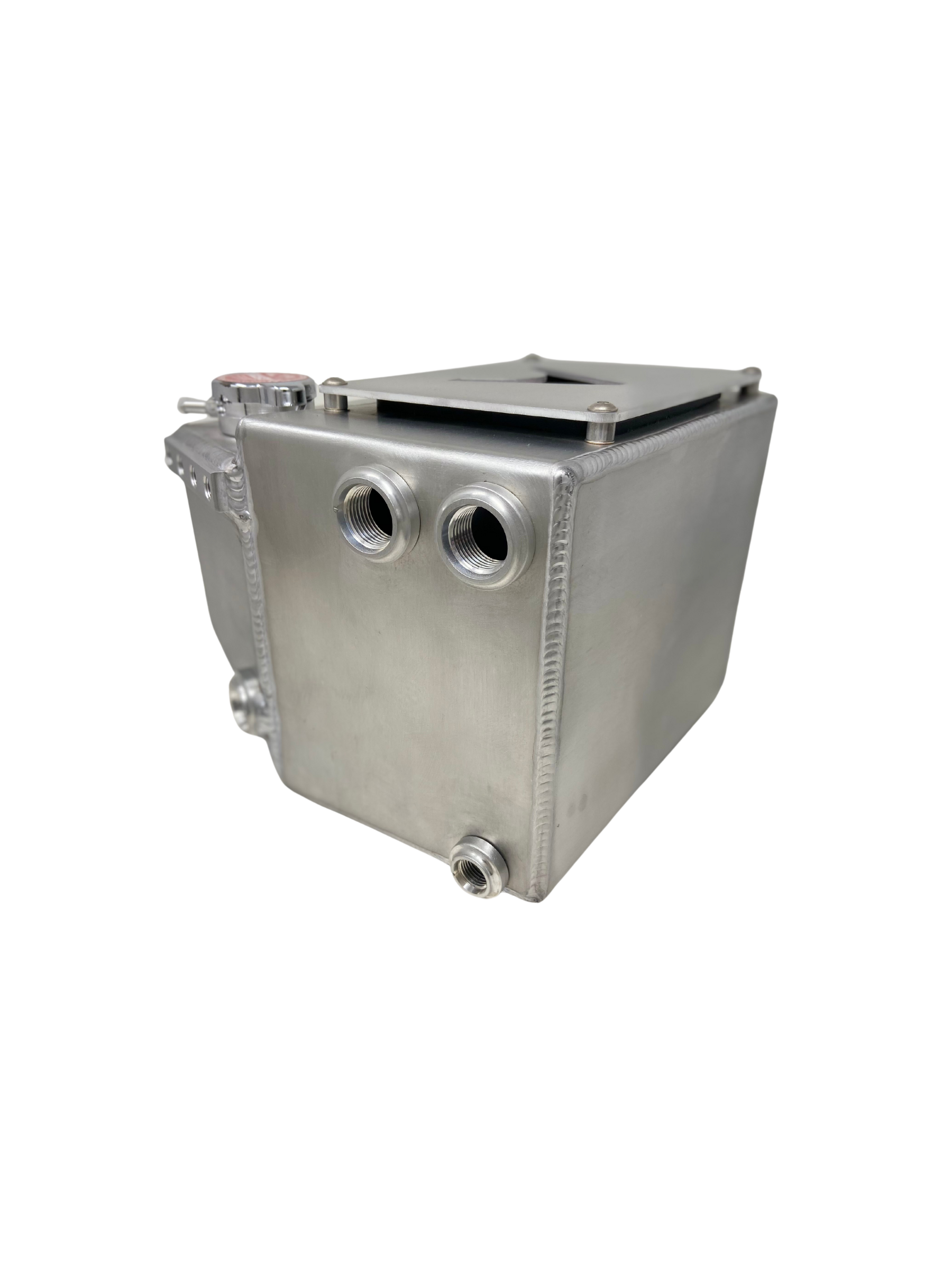

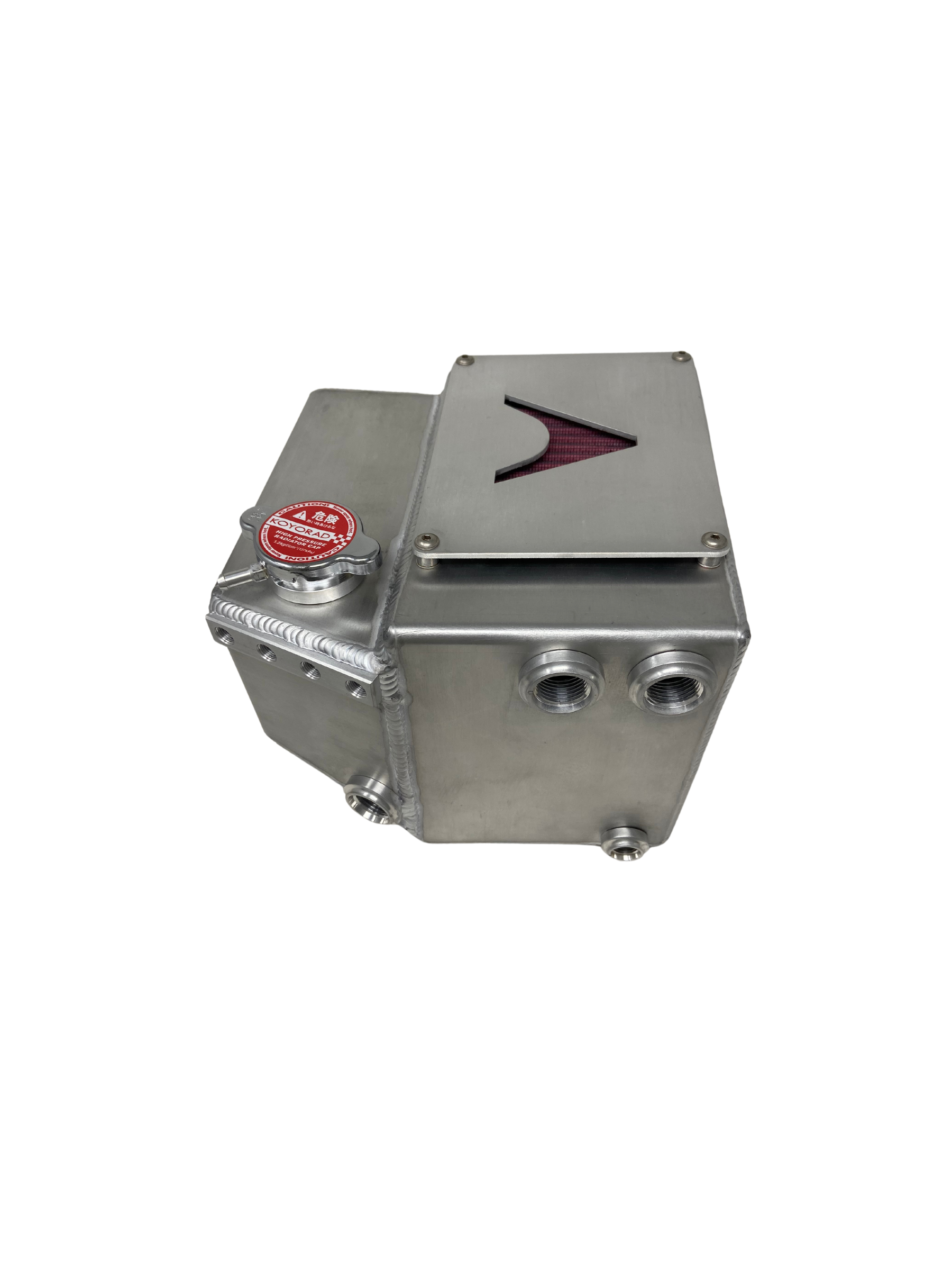

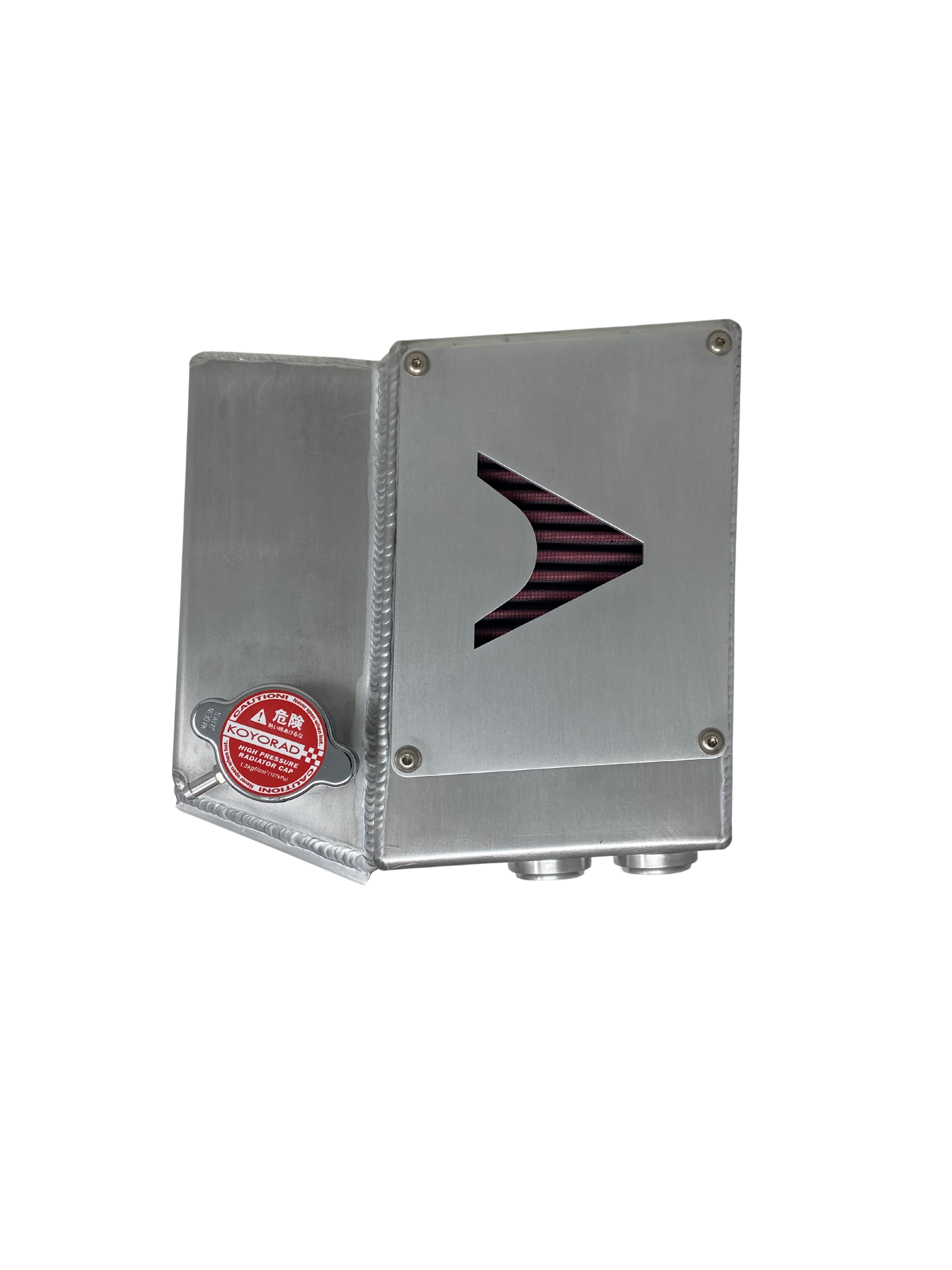

Alaria - E36 Bolt-in Combination Breather tank/ Coolant header tank

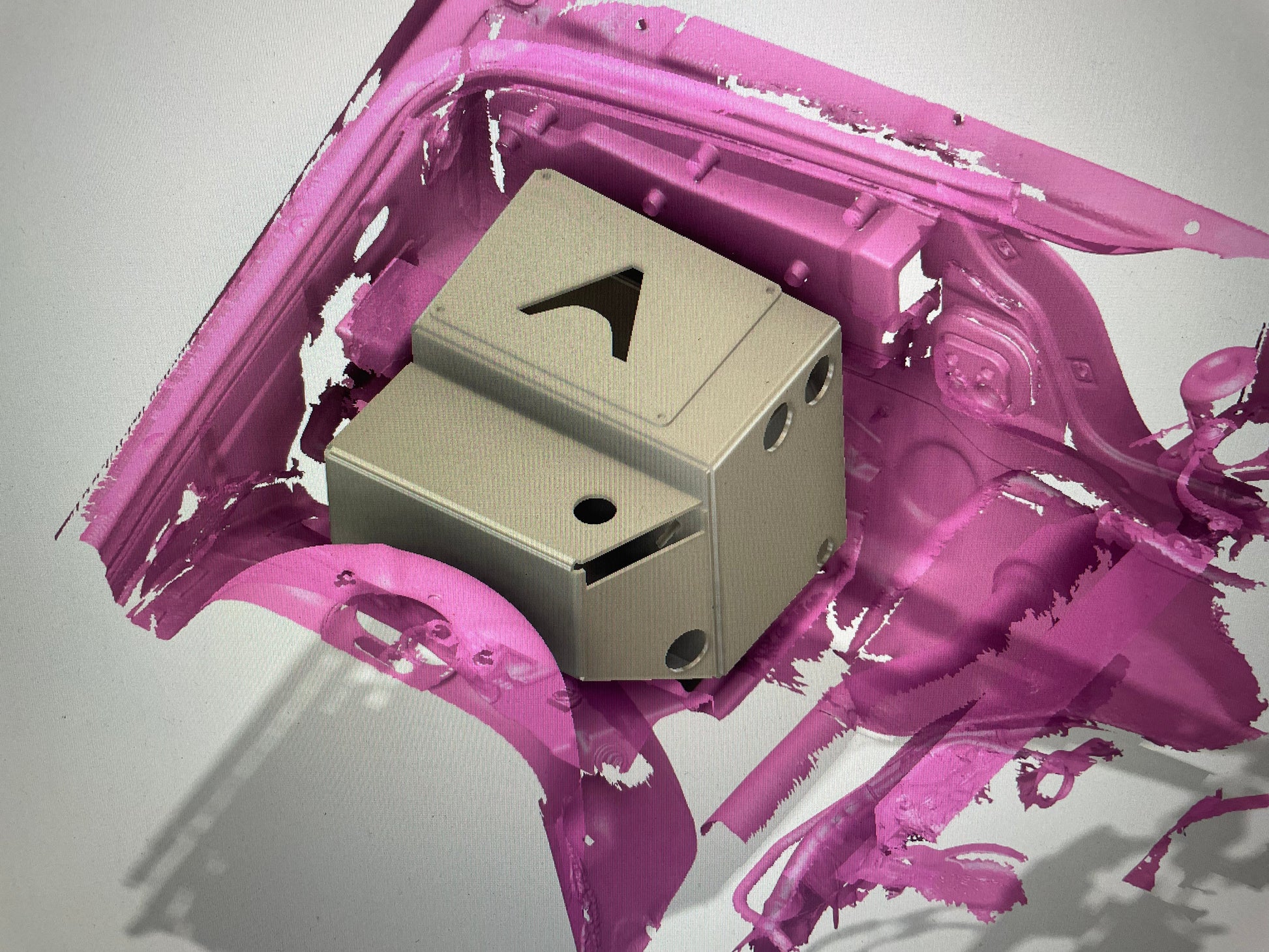

The ALARIA Ultimate Combo engine crank case Breather/ coolant header tank for BMW E36 Chassis is here.  CAD Designed, CNC cut and bent right here in Maryland, USA out of 5052 Aluminum and 100% Hand TIG welded in house.   This can design has been in planning for years as we felt there was not a good offering on the market to fit our needs when swapping various engines into the BMW E36 Chassis for both race and street use.

This tank is perfect for BMW engines but also LS swaps that want to bleed the steam ports, SR20, 2JZ/ 1JZ, Ecoboost swaps and more.

Currently offered in Brushed raw aluminum finish only.

Oil breather tank section:

• High Volume breather tank cavity excellent for High HP Turbo applications
• Multiple baffle design to keep oil and fluids in but allow vapor to escape
• K&N Panel filter is cleanable and re-useable
• 2x -10 AN ORB inlet bung
• 1x -6  AN ORB drain bung

Coolant header tank section:

• Mid sized capacity header tank volume designed to be used with an overflow tank
• Billet radiator cap bung for use with the most compact radiator caps
• Billet 4 port 1/8" NPT bleeder line bung (inlets) allows multiple bleed lines direct to tank.
• 1x -10 AN ORB outlet bung (feeds engine to water pump side)
• Proven design to continuously bleed air out of your cooling system

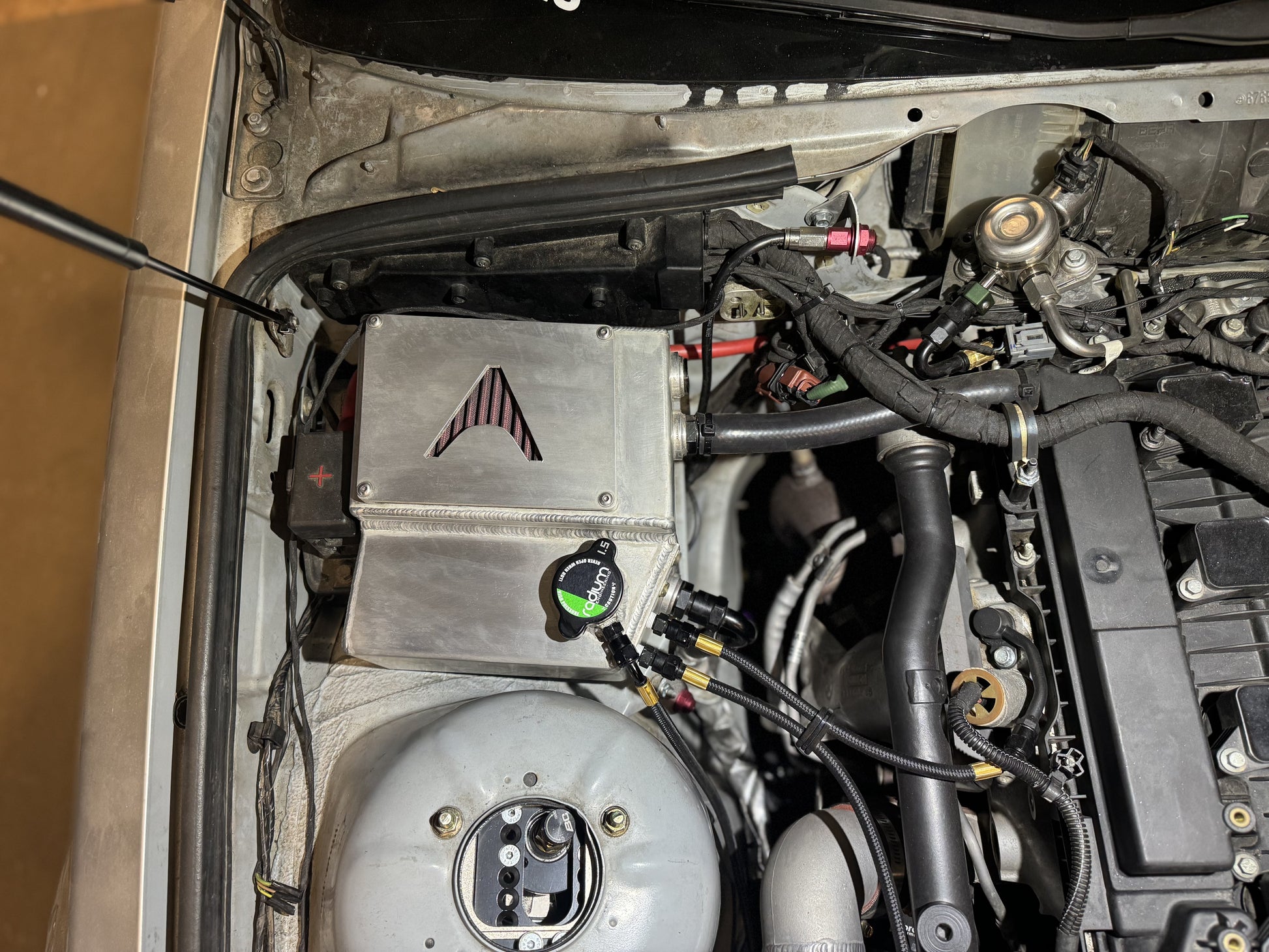

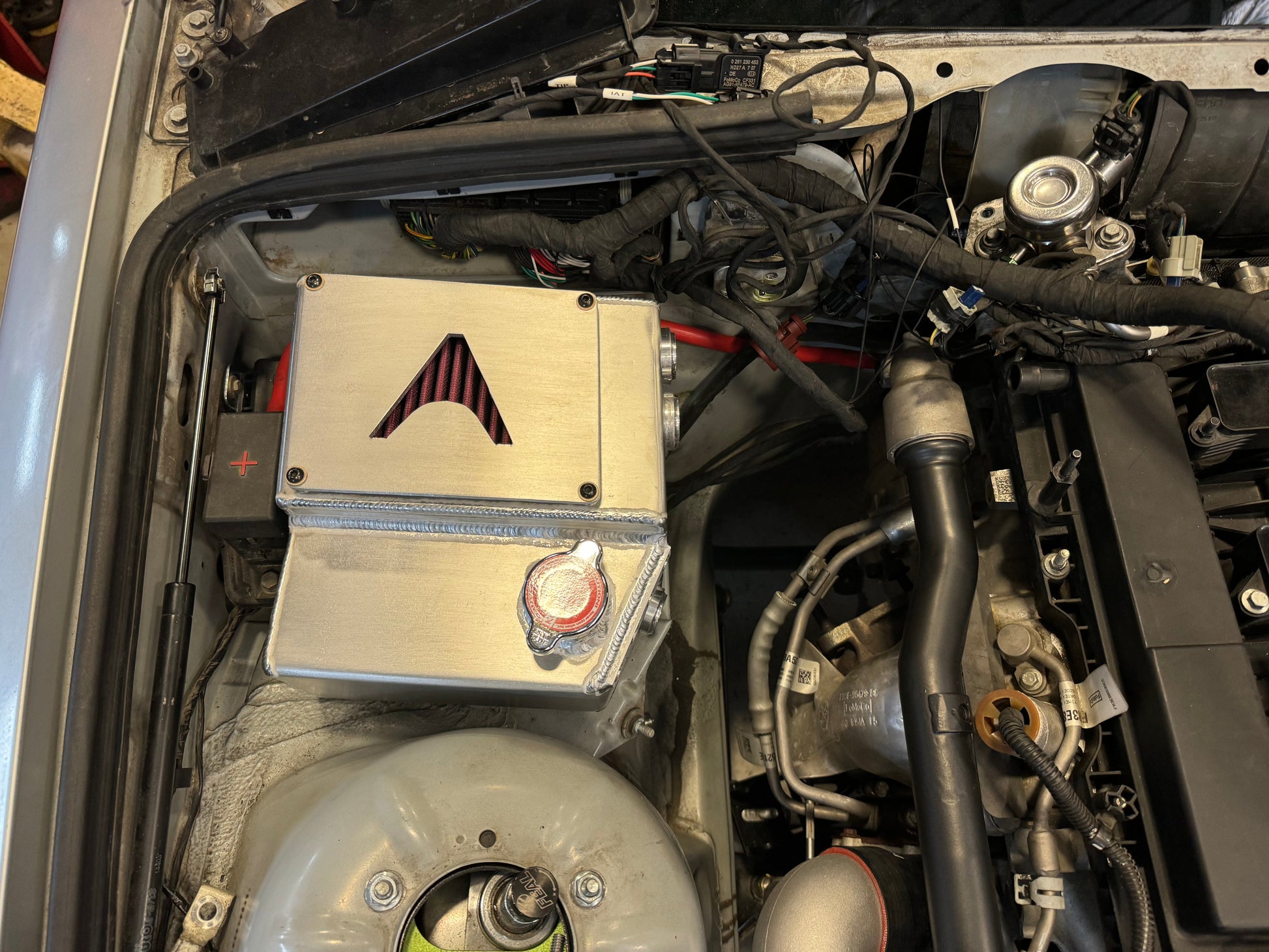

Requires relocation or deletion of OEM Vacuum pump and in some models relocation of the Power Wire block.

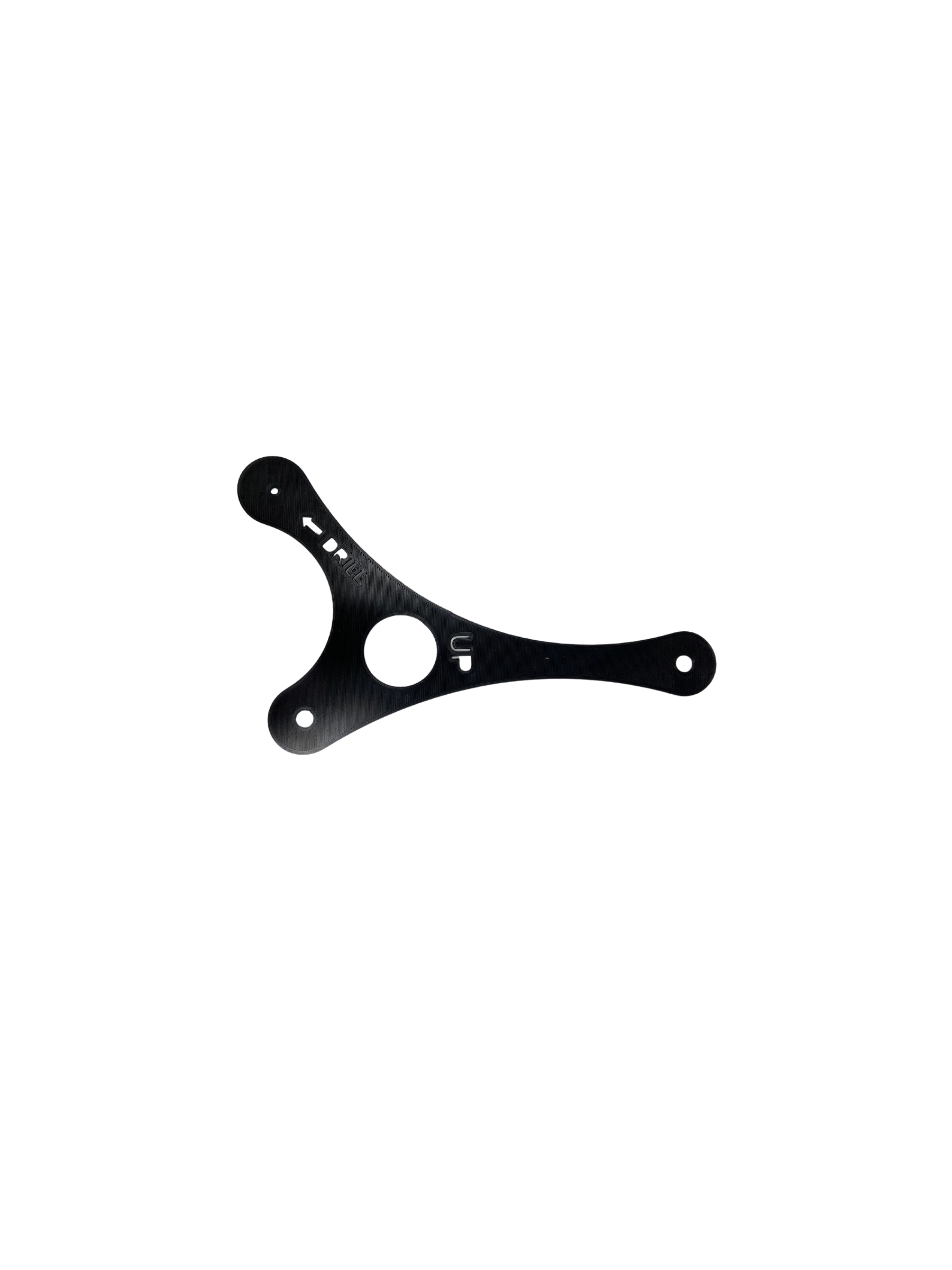

Included is Combo Tank itself, 3D printed drill/ install template, mounting hardware.  No fittings or radiator cap are included.

Actual weight: 6.9 lbs
