APEXi - N1 Evolution-X Exhaust, Toyota Supra (A90) 20+, Non-Resonated with Titanium Tip (164-KT16P)
APEXi - N1 Evolution-X Exhaust, Toyota Supra (A90) 20+, Non-Resonated with Titanium Tip (164-KT16P)
SKU: APEXi-164-KT16P ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
ENTRIES: 532
This purchase would enter you into the 2024 GR Corolla giveaway with 532 entries. Learn moreCouldn't load pickup availability

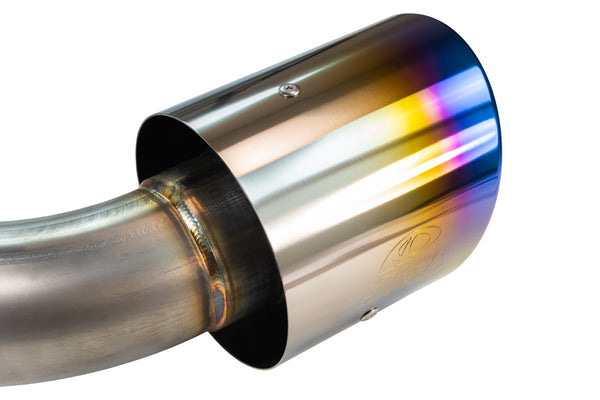

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
Bolt-On |
Yes |
Part Number |
164-KT16 (Resonated) 164-KT16P (Non-Resonated) |
Year |
2020 |
Make |
Toyota |
Model |
GR Supra |
Body Style |
2-Door Coupe |
Engine |
B58 |
Chassis |
DB42 (A90) |
Exhaust Type |
N1 Evolution Extreme Muffler (N1-X) |
Piping Diameter |
80mm. -> 60.5mm. x 2 -> 70mm. x 2 |
Tip Diameter |
123mm. x 2 |
Pieces |
4 |
Exhaust Tip Style |
Titanium Round- Dual wall rolled, Angle cut (Riveted) |
Piping Material |
SUS304 Stainless Steel |
Muffler Material |
SUS304 Stainless Steel |
Muffler Tip Material |
Titanium |
System Weight |
54.23 lbs. (Stock- 54.45 lbs.) |
Sound Level |
Sound Level: 84.4 dB @ 4,500 RPM |
Special Notes |
Built-In Exhaust Valve- Compatible with OEM Valve Actuator/Motor Assy. NOTE: Do not use harsh chemicals or metal polish cleaners when cleaning titanium tips. We recommend using standard isopropyl alcohol |
|
WARNING: California Prop 65 Cancer & Reproductive Harm |
