APEXi

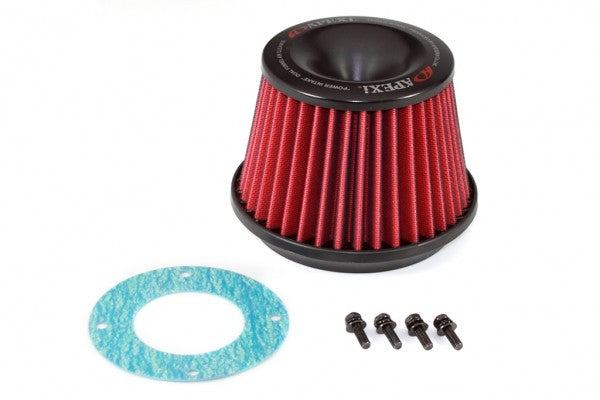

APEXi - Power Intake Filter, OD 160mm / ID 65mm (500-A023)

APEXi - Power Intake Filter, OD 160mm / ID 65mm (500-A023)

SKU: APEXi-500-A023

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

Regular price $89.00 USD
Regular price Sale price $89.00 USD
Sale Sold out

"The Power Intake is the premier air filter designed to create pure horsepower. The intake funnels used in racing machines take advantage of a characteristic where air travels along the side of the side of surfaces. However, the center portion of the funnel is virtually unused. It is this concept that gave birth to the Dual Funnel design. A primary funnel on the top portion of the air cleaner was inserted to channel the air flow directly into the lower funnels at the base of the cleaner. This design was a huge success on the former Super Intake model. The Power Intake took this design and improved the flow characteristics. New funnel design, element material and air flow channeling characteristics make the Power Intake one of the most efficient air cleaners on the market today. By constructing the upper and lower funnel from a highly durable injected resin, engineers were able to construct the ideal shaped funnel previously not possible with the stainless steel material. Funnel shapes focused on increasing air speed without changing the flow direction of the intake air. The result is a high speed and smooth flow of air into the intake. The lower funnel has been engineered at a 14 degree curve for maximum efficiency. Also, the lower funnel position has been made even closer to the base of the cleaner to reduce drag and eliminate any _dead spotsb within the cleaner.

The Power Intake incorporates a newly developed material (layer filter of dry density fibers) which improves the element density. This allows maximum protection from foreign materials entering the engine. Compared with past model, the Power Intake has also succeeded in decreasing its ventilation resistance by about 10% (pressure loss) for maximum performance and protection. The Power Intake is dry-type filter and is trouble free. Some of the problems associated with wet type cleaners, such as oil sticking to the air flow meter, are a thing of the past. The Power Intake is basically maintenance free. Filter replacement, when necessary, can be done at a very low cost.

CONCEPT:

- Air filter with minimal air-flow restriction

CHARACTERISTICS:

- Dual funnel filter system minimizes intake turbulence - Ideal for use on any existing intake pipe or for use as a filter on a turbocharger inlet

Part Number

OD 160mm / ID 85mm : 500-A021

OD 160mm / ID 75mm  : 500-A022

OD 160mm / ID 65mm : 500-A023

OD 140mm / ID 75mm : 500-A024

Intake Type

Power Intake – Universal

Overall Length

120mm (4.72 in)  :  500-A021, 500-A022, 500-A023

Filter Outer Diameter

160mm (6.30 in) :  500-A021, 500-A022, 500-A023

140mm (5.51 in) : 500-A024

Filter Base Opening Inner Diameter

85mm (3.35 in)  : 500-A021

75mm (2.95 in) : 500-A022, 500-A024

65mm (2.60 in) : 500-A023

Special Notes
