Brian Crower

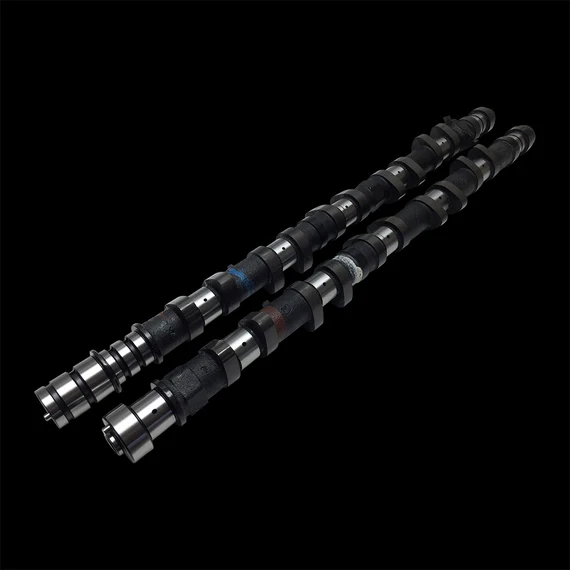

Brian Crower Toyota 1JZGTE w/ VVTi Camshafts - Stage 3 - 272 Spec

Brian Crower Toyota 1JZGTE w/ VVTi Camshafts - Stage 3 - 272 Spec

BRCBC0335

$850.00 USD
$850.00 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

Toyota 1JZGTE VVTi Stage 3 Camshafts - Race Spec

The third generation of the 1JZ-GTE was introduced around 1996, still as a 2.5-litre turbo, but with Toyota's BEAMS architecture.[2] This included a reworked head, newly developed continuously variable valve timing mechanism (VVT-i), modified water jackets for improved cylinder cooling and newly developed shims with a titanium nitride coating for reduced cam friction.[3] The turbo setup changed from parallel twin turbo (CT12A x2) to a single turbo (CT15B). The single turbo is in part made more efficient by the use of smaller exhaust ports in the head, this allows the escaping exhaust gasses to have more velocity as they exit the head, which in turn, spools the turbo faster and at lower RPM. The adoption of VVT-i and the improved cylinder cooling allowed the compression ratio to be increased from 8.5:1 to 9.0:1. Even though the official power figures remained at 280 metric horsepower (210 kW) at 6200 rpm, torque was increased by 20Nm to 379 newton meters (280 lbs ft) at 2400 rpm. These improvements resulted in increased engine efficiency that reduced fuel consumption by 10%. The adoption of a much higher efficiency single turbocharger than the twins as well as different manifold and exhaust ports were responsible for most of the 50% torque increase at low engine speeds . This engine was used primarily in Toyota's X chassis cars (Chaser, Mark II, Cresta, Verossa), the Crown Athlete V (JZS170) and in the later JZZ30 Soarer, as the JZA70 Supra was long discontinued by this time.

Longer duration profile, added rpm potential. Intended for fully built engine. Tuning and ECU mods recommended. Requires kit BC0300.

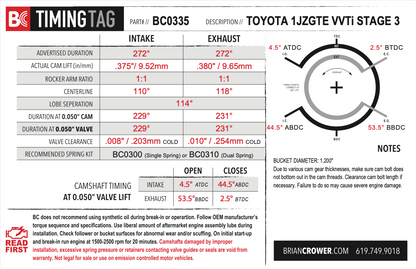

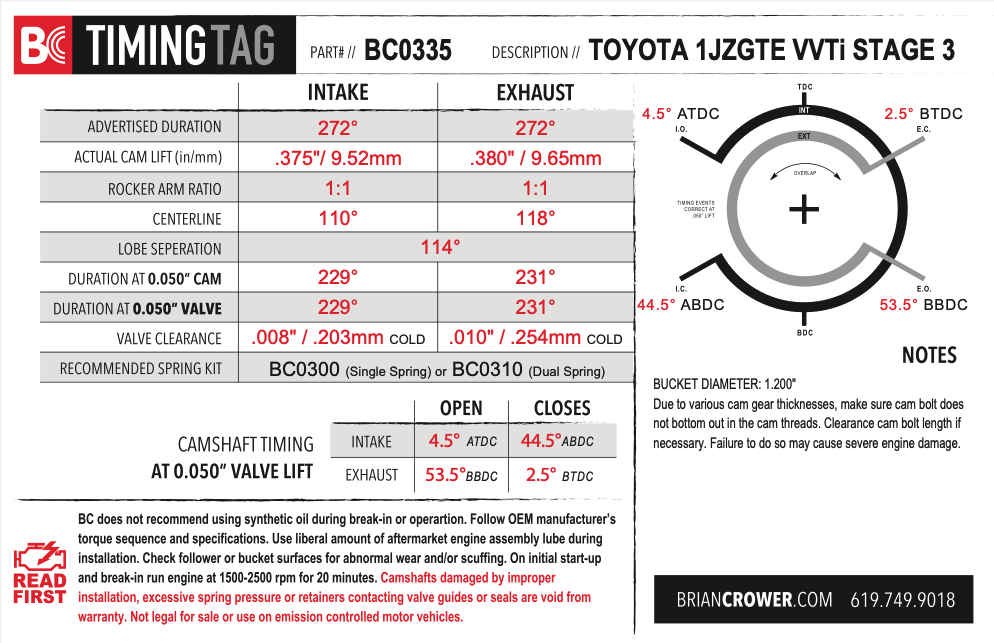

Adv Dur 272°/272°
Dur @ .050 229°/231°
Valve Lift (1:1) .375"/.380"
Valve Lift (mm) 09.52/09.65
