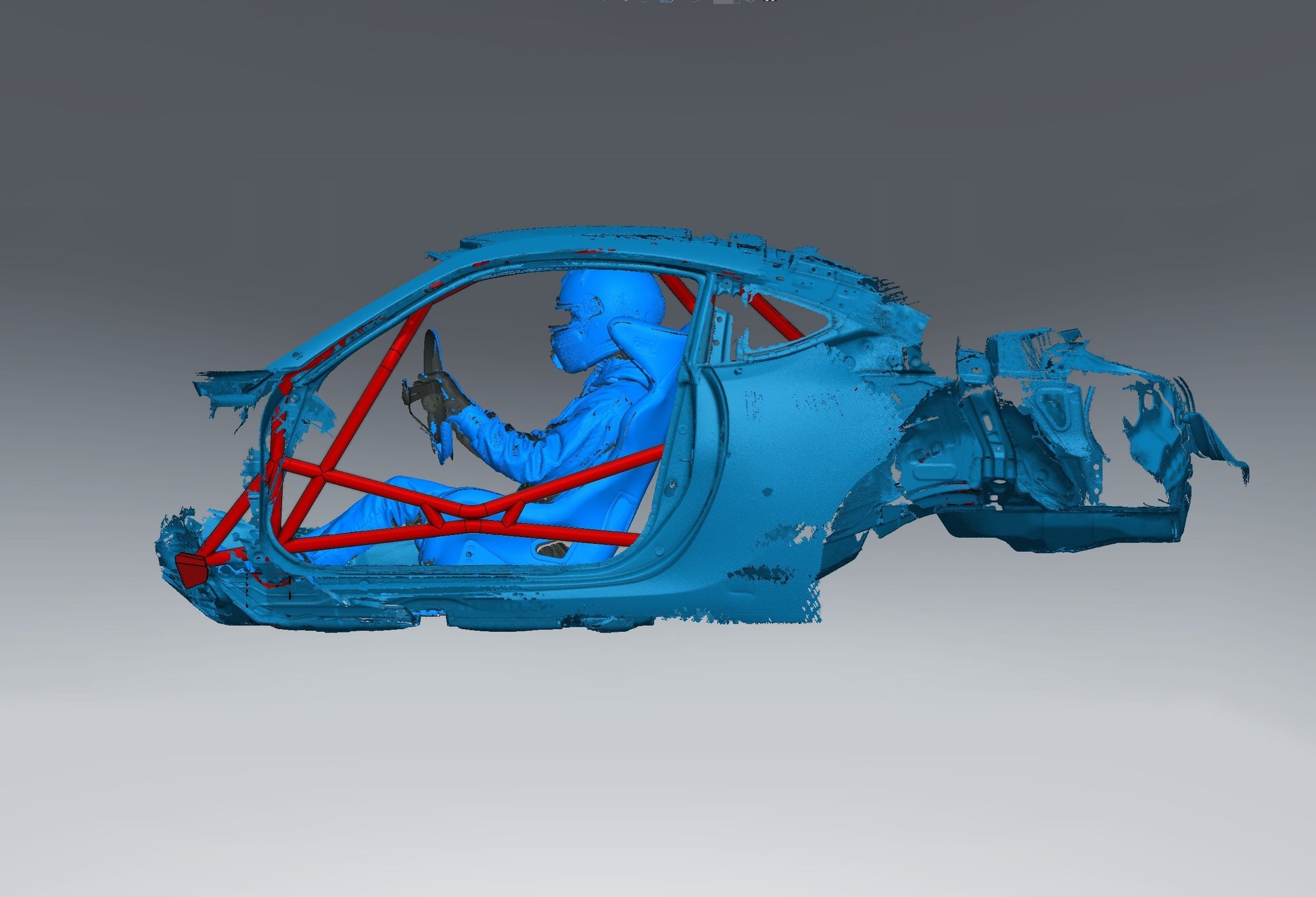

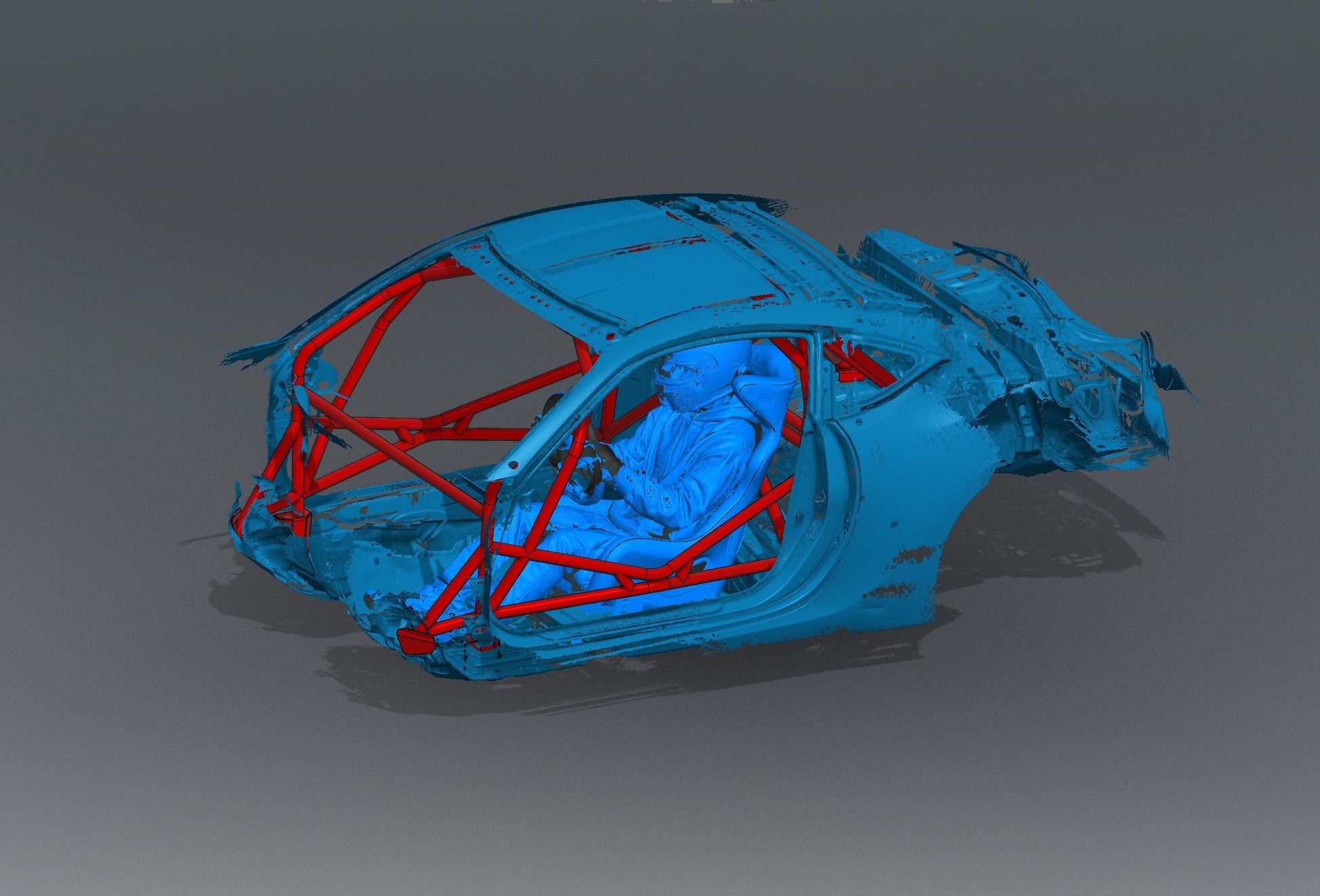

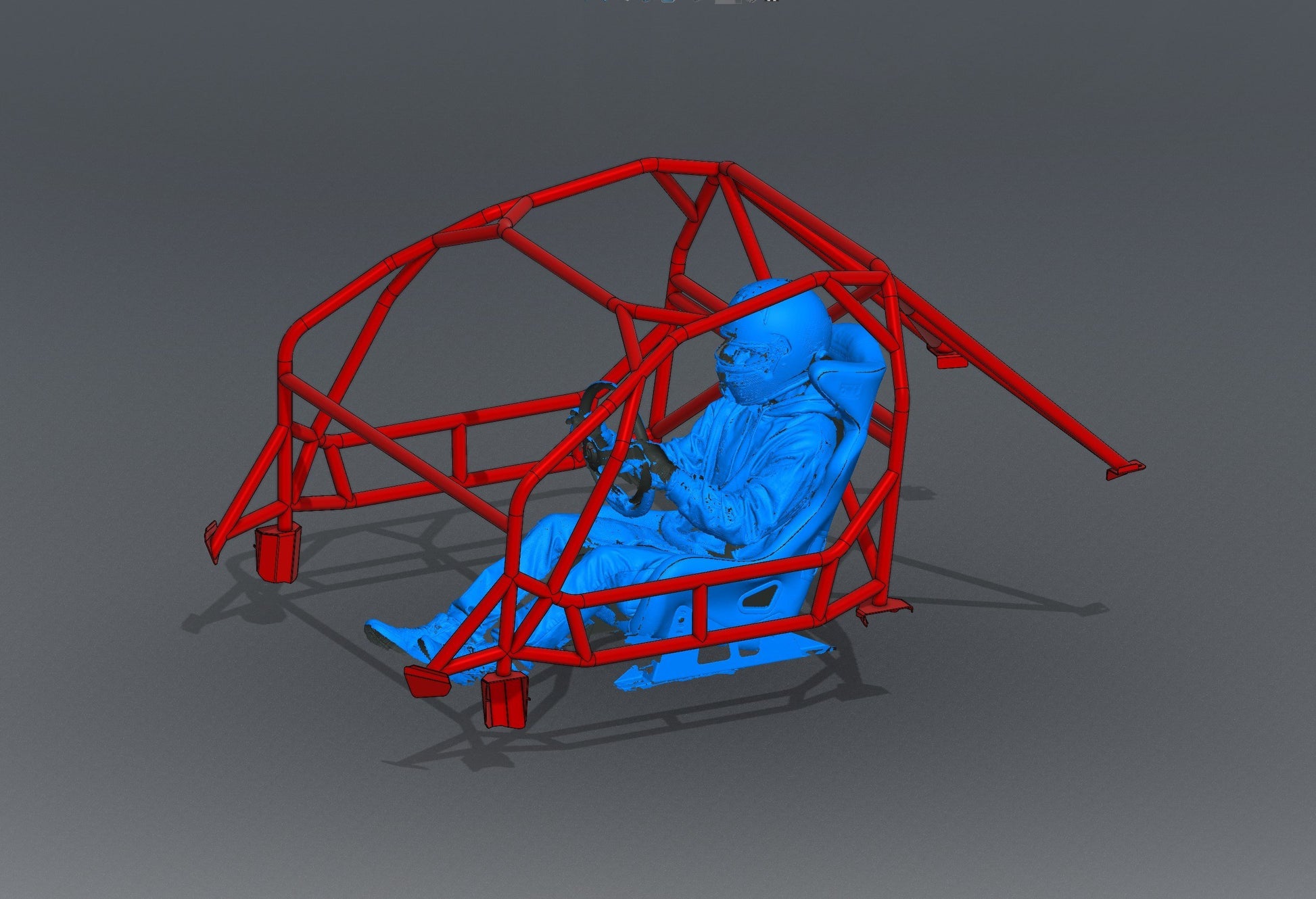

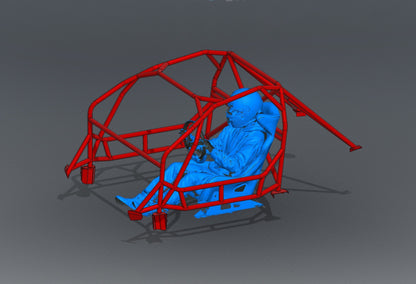

The CageKits ZN6 FD Spec Roll Cage Kit is engineered for exceptional precision and chassis fitment. Built from 1.5″ x .095″ 1020–1026 DOM tubing, each bar is CNC-notched, precision-bent, and laser-etched for perfect alignment and an accurate, straightforward install. This kit delivers an exact fit within the chassis, providing a clean, professional foundation for your build — no custom fabrication required. This kit was designed to fit within the following models:
- Toyota GT86 (2012-2021)
- Scion FR-S (2013-2016)
- Subaru BRZ (2012-2020)
Made to Order — Ships Upon Completion
Door Bar Styles
This kit includes your choice of door bar layout, each designed for proper fitment and ease of installation within the ZN6 chassis. Both styles provide equal structural integrity and meet Formula Drift specifications. Options include Ladder-Style or X-Style door bars.
Door Bar Depth
The kit offers two door bar depth options to suit your interior and window setup. Both options require a gutted chassis for installation.
-
Gutted Door Bar Depth – Sits deep within the door cavity for maximum side clearance. Full removal of OEM door cards is required. Windows will not remain.
-
Non-Gutted Door Bar Depth – Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.5″ x .095″ 1020–1026 DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification and positioning
- Precision bent to match ZN6 chassis geometry
- Dual harness bar heights (choose configuration during install)
- Compatible with optional FIA-style bars (not required to complete install)
- Includes single or dual diagonal options for main hoop and rear down bars
Installation & Compliance Notes
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
Want to see it in action? Check out our Instagram.
Need install help? Media tab’s got you.
