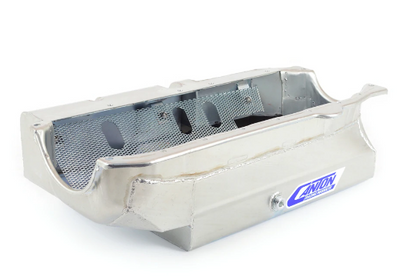

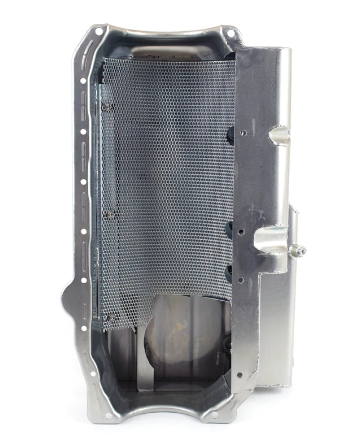

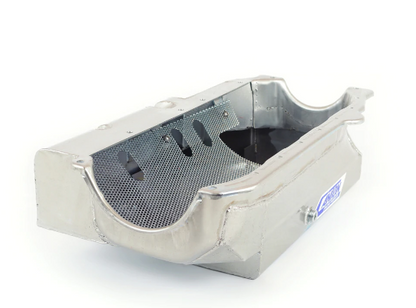

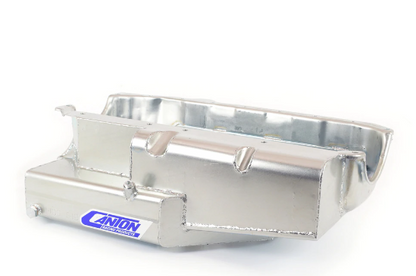

Canton - Small Block Chevy Shallow Open Chassis Circle Track Pan

This open chassis shallow "L" style steel wet sump is for pre-'85 Small Block Chevys. The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modified, sprint cars, and some late models). It has a 16" long, 6-1/2" deep 'L' sump with an 8 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.

NOTES: Requires offset aftermarket starter and a 153 or 168 tooth flywheel. 20-914 Pro Louvered Windage Tray Upgrade Required for Dirt Racing.

Oil Pan Features
* 8 qt System Capacity
* Six Trap Door Baffles & Directional Oil Runners
* Pro Style Oil Recovery Pouch
* Bolt in Slosh Baffle
* Built in Screen Windage Tray
* 1/2” NPT Temperature Bung
* Provison for our Pan Mounted Dipstick
* Magnetic Drain Plug

Recommended Accessories
20-036 - Pickup for SBC Standard Volume Pump M55
20-031 - Pickup for Small Block High Volume Pump M55HV
20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
22-300 - Stud Kit For Oil Pan Mounting Small Block Chevy/Oldsmobile/AMC
88-100 – SBC Pre ’85 Oil Pan Gasket

Product Tech
Best Results Installing an Oil Pan (PDF)
