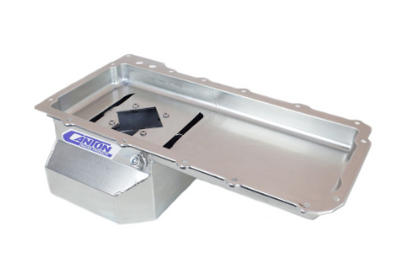

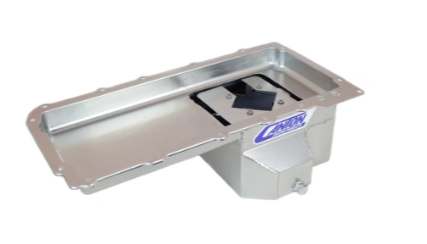

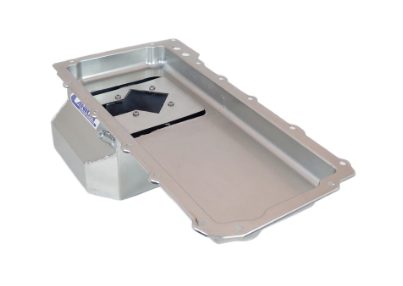

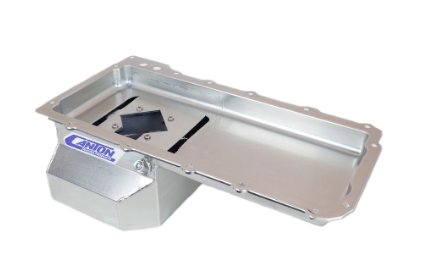

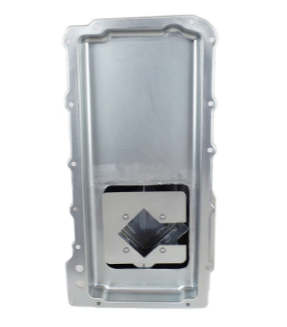

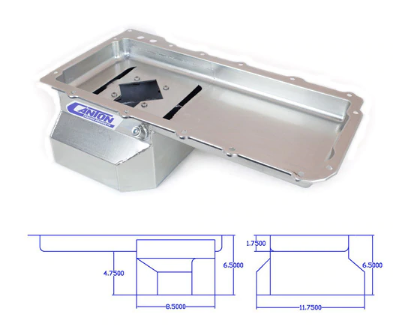

Canton - GM LS1 and LS6 Rear Sump Road Race Pan Baffled

This pan is for GM LS1/LS6 powered cars used in road racing and heavy street use. Fits A,F,Y and 1970's X-body cars. Also fits LS RX7 swaps. Clears a 4.25" stroke with steel rods. Will not fit on LS Next 2 blocks. This pan Requires our LS1 remote filter adapter (#22-630 or #22-632) or filter mount (#22-631) and our #15-275 Pickup.

Works with OEM windage tray#12558189

Oil Pan Features
* 6.5 qt System Capacity
* Diamond shape road race baffle with four Trap Door Baffles.
* Removable windage/Slosh Baffle
* Crank Scraper

Recommended Products
21-870 - LS Flywheel Cover
22-302 - GM LS1 Oil Pan Stud Kit
22-620 - GM LS Remote Filter Mount

Gasket
Stock
