Chase Bays - Fuel Line Kit - Nissan 240sx S13 / S14 / S15 with 1JZ-GTE | 2JZ-GTE
Chase Bays - Fuel Line Kit - Nissan 240sx S13 / S14 / S15 with 1JZ-GTE | 2JZ-GTE
SKU: CB-N-2JZF & 306-06-M122DBLK ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com

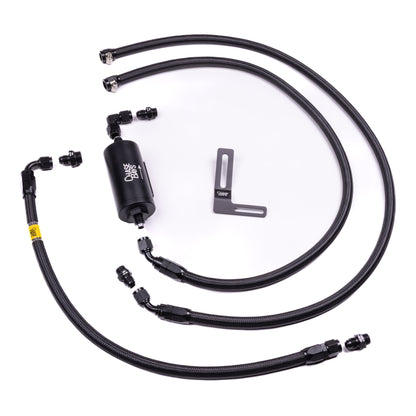

The Chase Bays AN Fuel Line Kit for 1JZ or 2JZ swapped Nissan 240sx / Silvia is designed for enthusiasts who want to adapt their fuel lines with high end components and stealthy design. If applicable, this allows you to adapt an aftermarket fuel rail or fuel pressure regulator (FPR) seamlessly. The kit is assembled with all black aluminum A.N. fittings and -6AN stainless steel reinforced hose with high heat nylon sheathing. We use the best components in the industry and we pressure test every line we assemble. We guarantee a leak free start up if this product is installed correctly.
This deletes a portion of the engine bay feed hard line and replaces the filter. In factory form its ugly, bulky, and routed inefficiently. You will cut the feed and return hard lines back about 12" inches and route over the trans to the LHD driver side. In stock form it would all potentially hit the downpipe. See photo below for visual reference. This creates a nice tidy look that will allow for easy install / uninstall. Plus it can be a safe distance from its neighbor, the exhaust.
There are many different needs out of fuel systems so we offer 2 main options for our Fuel Line Kits. Keeping the Stock FPR (CB-N-2JZF) and integrating an aftermarket external FPR (CB-N-2JZ-FPR).

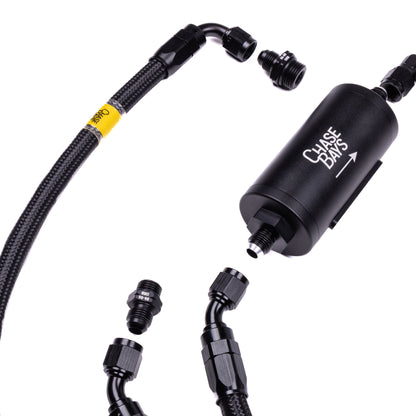

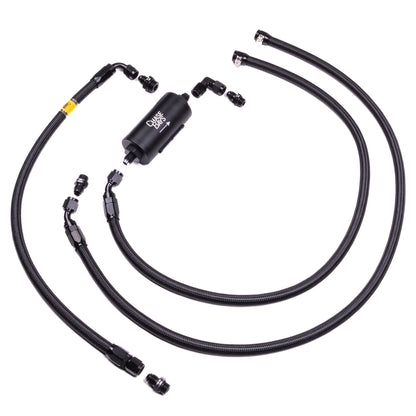

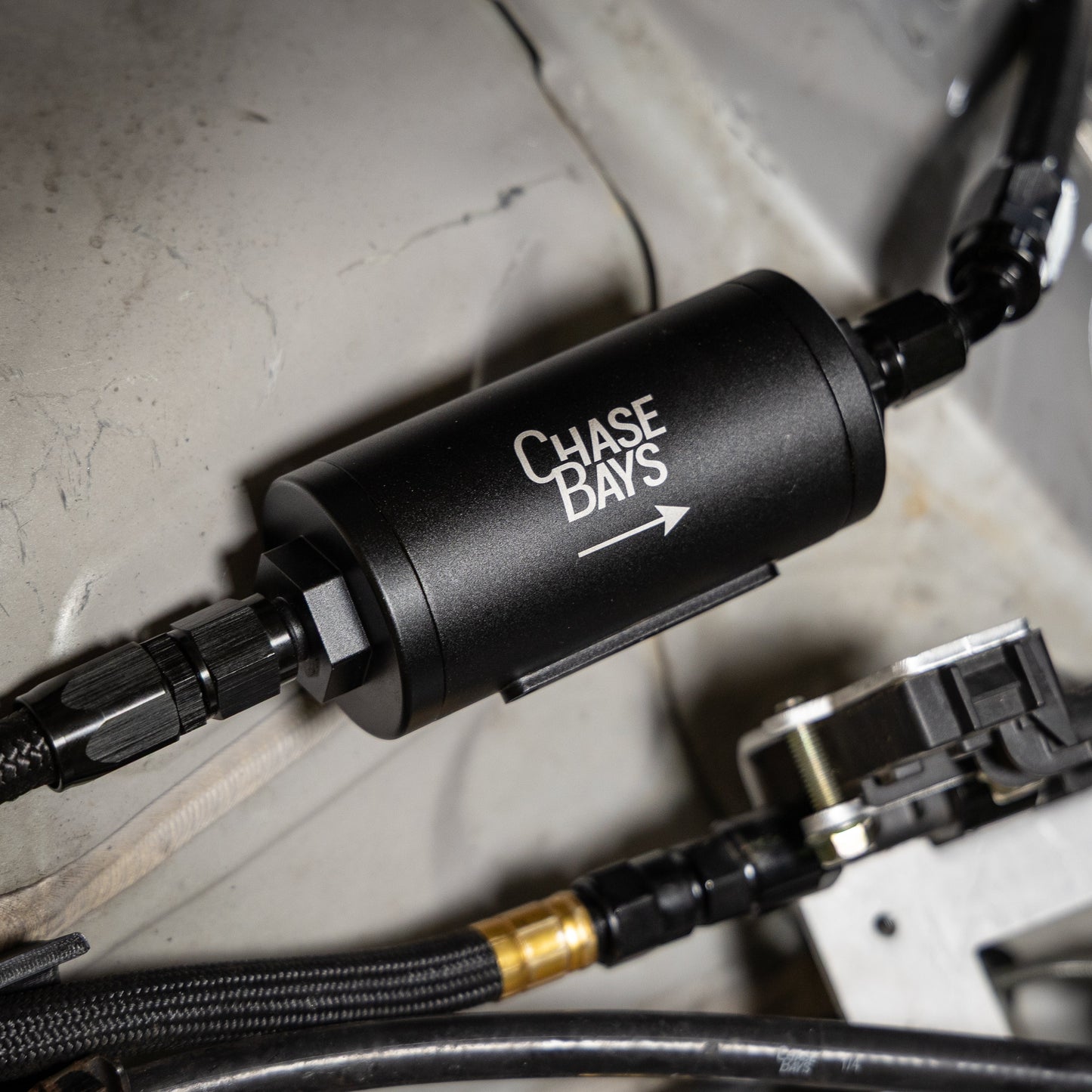

Stock FPR kit has 2 hoses. The feed line routes from the hard line to the inline fuel filter. The inline filter mounts directly to the fuel rail closer to the front of the engine using a 90º coupler and adapter for the fuel rail. The return line is easy enough, attaching from the pressure regulator output to the hardline.
The Aftermarket FPR Kit adds an additional fuel line to integrate the FPR as well as the 3 adapters needed for the FPR to attach the lines to. The aftermarket FPR kit does not work with 2 port type, just the 3 port type. It mounts on the driver side shock tower just in front of the master cylinder (see photo below). It is a "dead head" setup which means the FPR is pre-fuel rail. Many kits have the FPR after the fuel rail which makes for 1 extra fuel line and more engine bay clutter. Chase Bays specializes in fixing clutter. The dead head setup is what the 3 port FPR’s were designed for and is common practice in the motorsport world.
****The second option of "Select Fuel Pressure Regulator Type Used" is solely telling us if you're using a stock FPR or aftermarket FPR. The $50 dollar charge is for additional line, FPR adapter fittings to AN, and FPR bracket. This option does not add the FPR itself. Aftermarket FPR's are not 50 dollars...not quality ones at least!****
-
