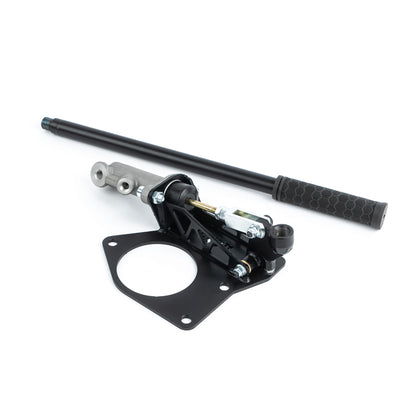

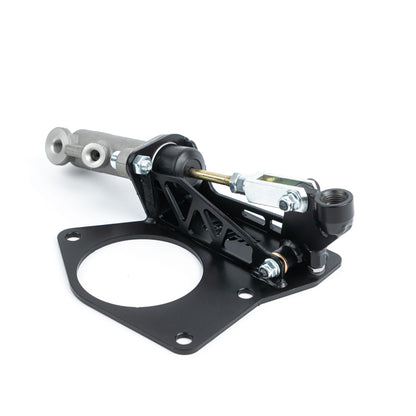

CNC71 - Hidden Hydraulic Handbrake For BMW E46

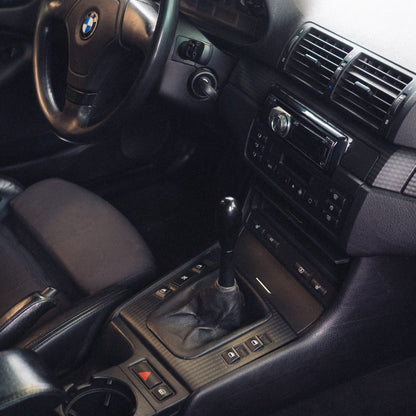

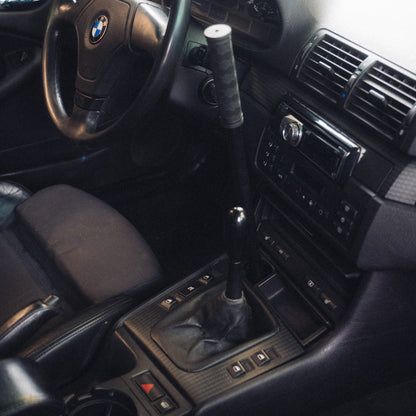

We offer a hidden hydraulic handbrake designed for E46.

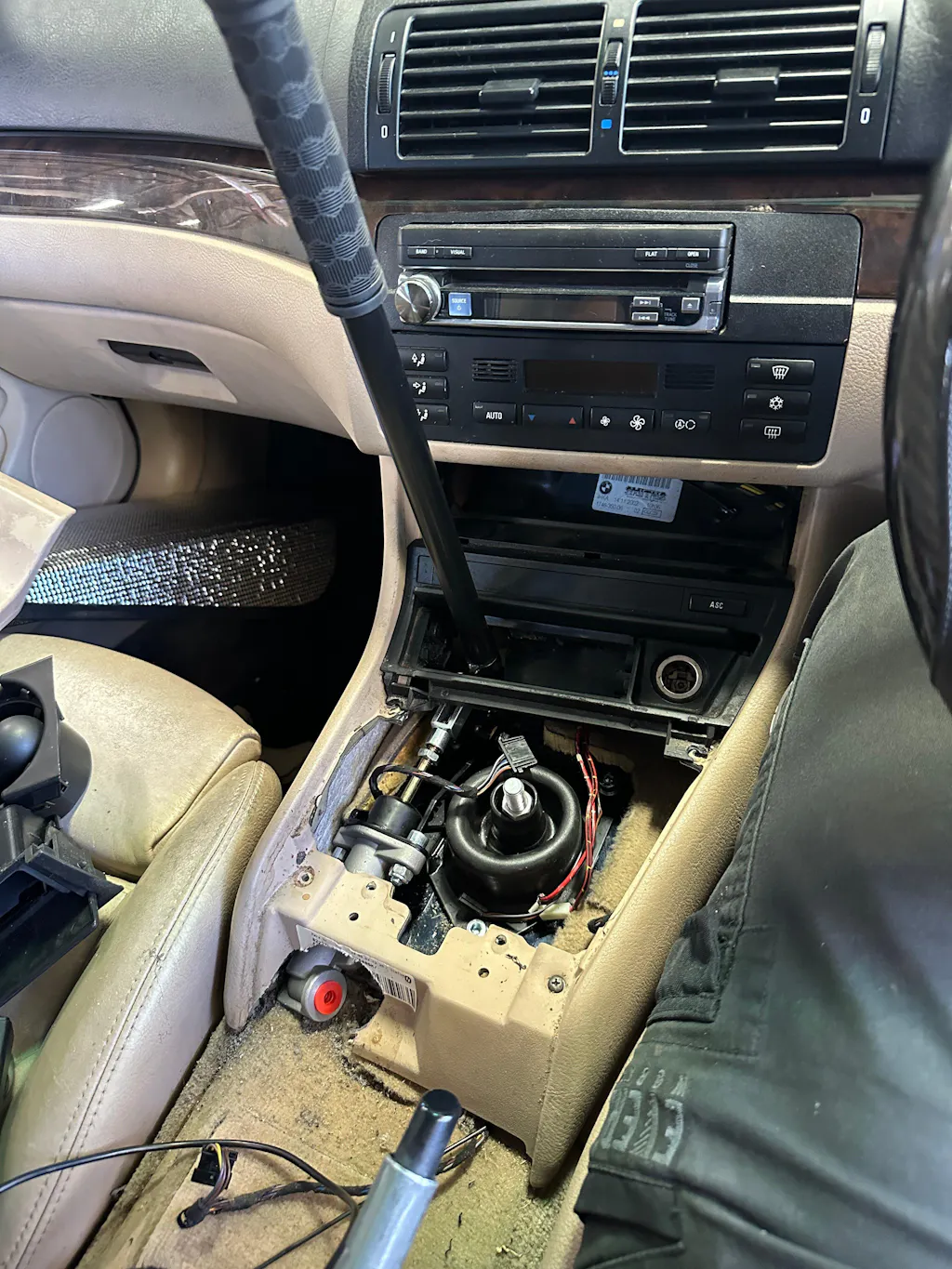

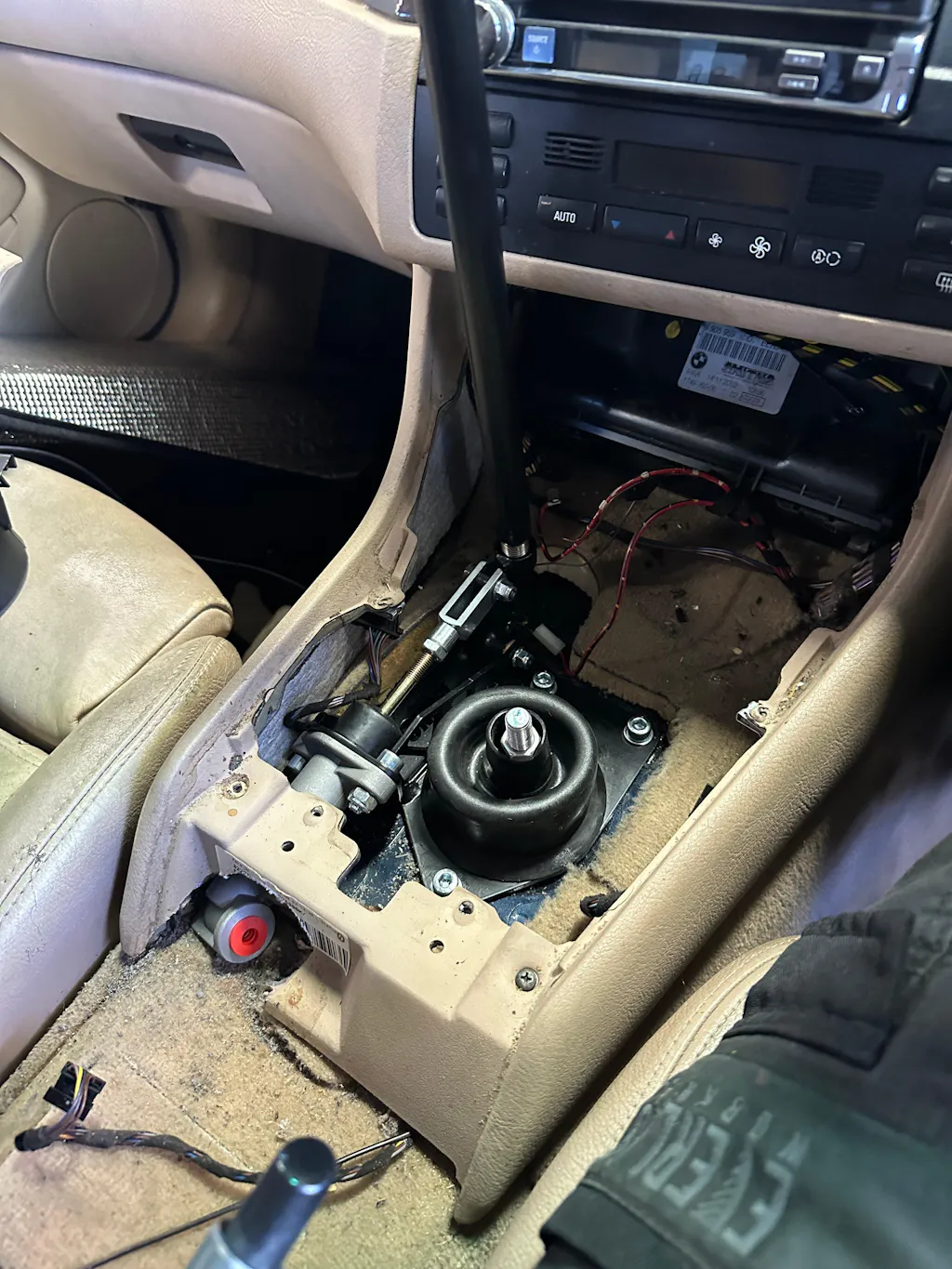

Unlike other solutions on the market, you're not required to relocate windows control buttons. However, substantial modifications to ashtray area are needed.

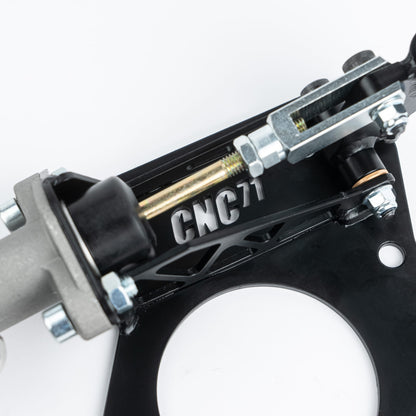

The use of thick, bent steel ensures the rigidity of the structure. No modifications are required that would violate the integrity of the standard body.

We provide center console support.

Possibility to choose the diameter of the pump piston:

• 0.625 - less force needed to lock the wheels, greater lever stroke - good starting point
• 0.75 - greater force needed to lock the wheels, shorter lever stroke, much more direct action.

Master Cylinder Threads:

• Inlet Thread: 7/16"
• Outlet Thread: 3/8"

Brake line adapter:

• Brake line adaptors are available as an optional extra (see the last photo). Designed primarily for the RHD version, where there is very little space to connect the brake hoses – once fitted, they allow the hoses to be installed easily. Fitted with an M10x1 connector.
