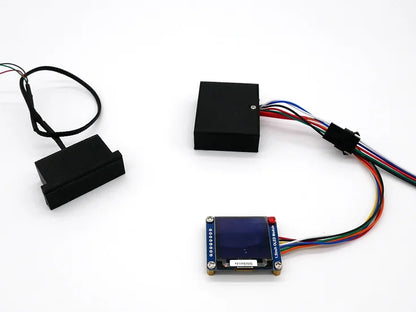

These awesome gear display kits make it easy to integrate a crystal-clear and programmable gear display to any vehicle. Optional RPM elevating shift lights are also programmable and easily wired to the display box.

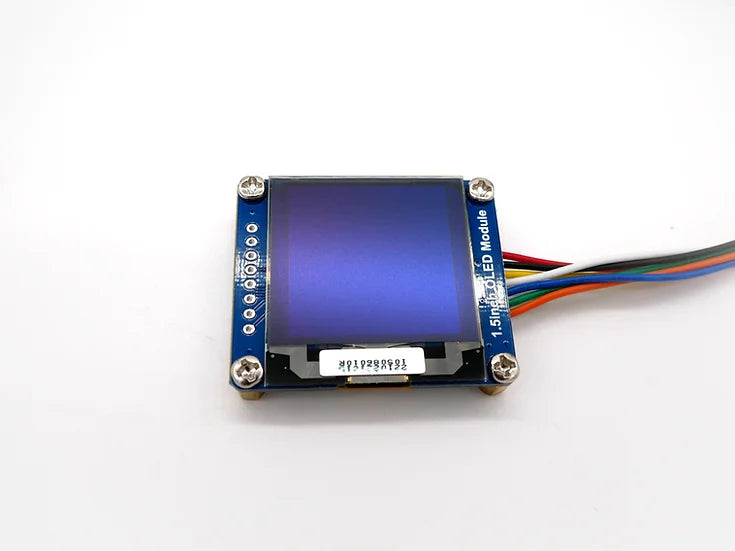

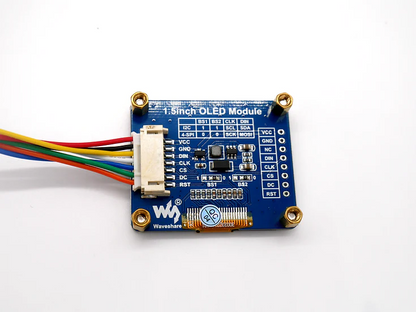

Display: 1.5" OLED White screen. Shows current gear number, trans temperature (in C or F), as well as what mode you are in (P,R,N,D,M). Can be programmed to show many things. Requires only power, ground, and two CAN wires to communicate with the HTG GCU. Instructions can be found HERE

RPM Lights: These race-spec pieces can be programmed to start and end  illumianting at any RPM you would like. The HTG GCU can output this value, so no wiring to the vehicle ECU is neccessary. Easy three-wire connection at the display box. LED lights hidden behind transparent hosuing face.

CAN Speed: 500k

Internal Termination Resistor: No

Wires: Red/12V, Black/Ground, Orange/CANHi, Yellow/CANLow

Default CAN Config: Gearbox Temp 0x641/0, Gearbox Mode 0x641/2, Gear 0x641/3
