Dedicated Motorsports - Universal 1 Gallon Coolant Tank -Davies Craig

Universal 1 Gallon Supercharger Coolant (Ice) Tank for Davies Craig Pump

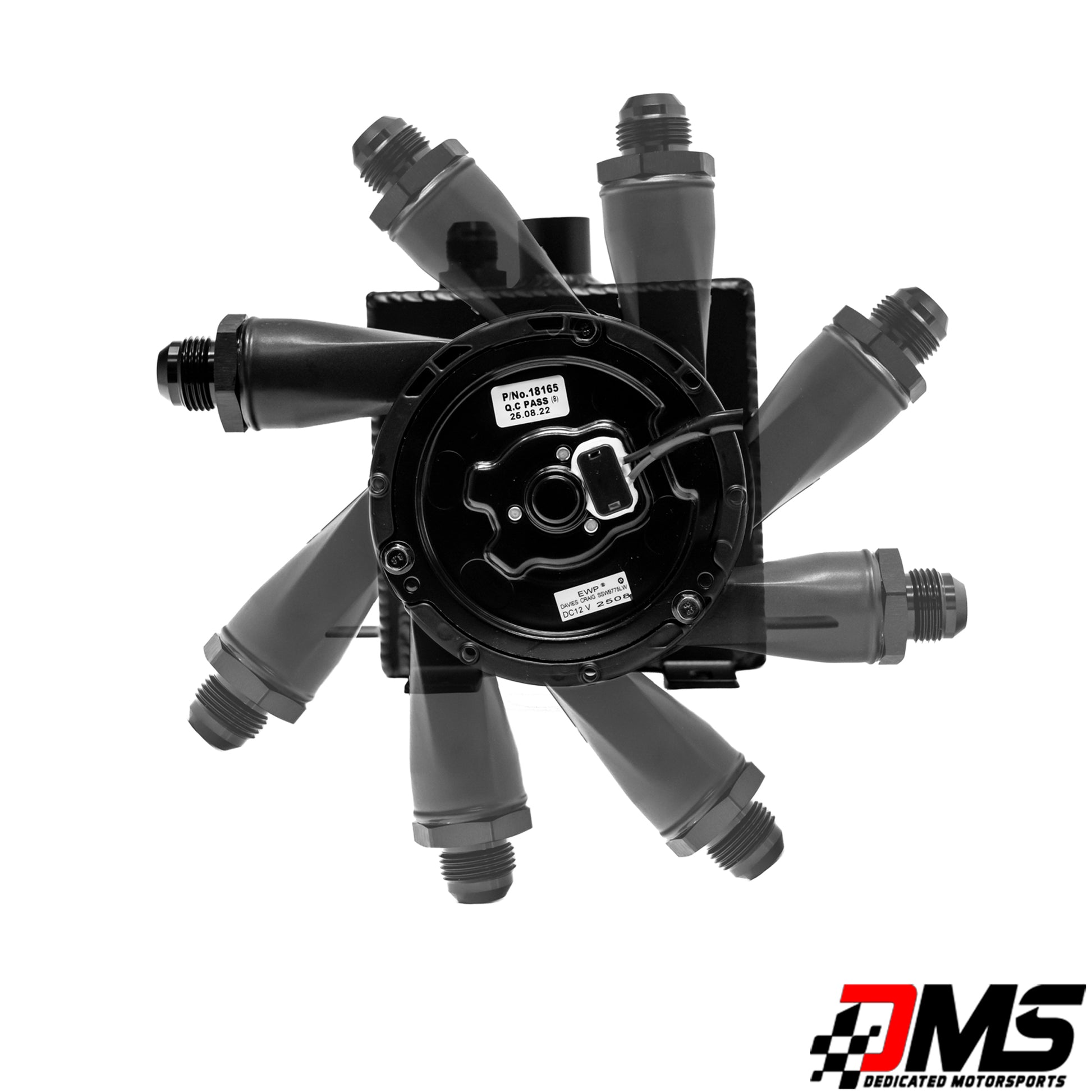

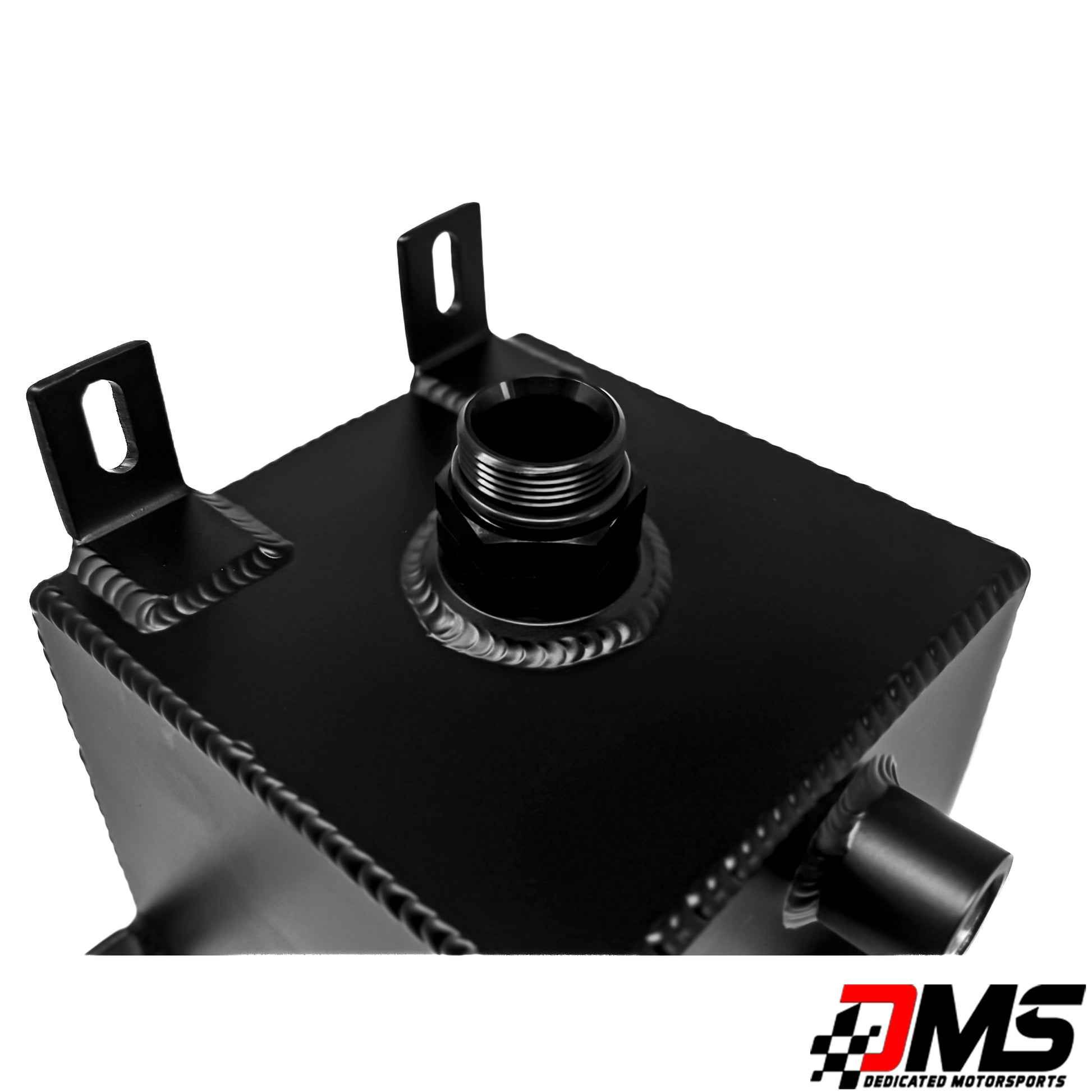

This universal coolant tank is a great way to add 1 gallon of coolant to your air to water intercooler system. While these are most used with supercharged setups, it could also work with a turbo setup with an air to water intercooler. The tank is constructed of .125" 5052 aluminum and Tig welded in-house. Inside you will find an ice screen to protect the pump impeller if you decide to ice it down at the track or dyno. The idea here is if you damage a fitting, it can easily be replaced with another ORB instead of cutting and welding a new one on the tank. Designed around the Davies Craig EWP150 Coolant pump, these pumps are small, efficient, and reliable. We have now updated the bottom fitting to a -16ORB with a union fitting for the Davies Craig pumps, this fitting will still allow the pumps to be clocked in the direction you desire. You can also just install a 12an to -16orb fitting in the bottom and mount the pump remotely.

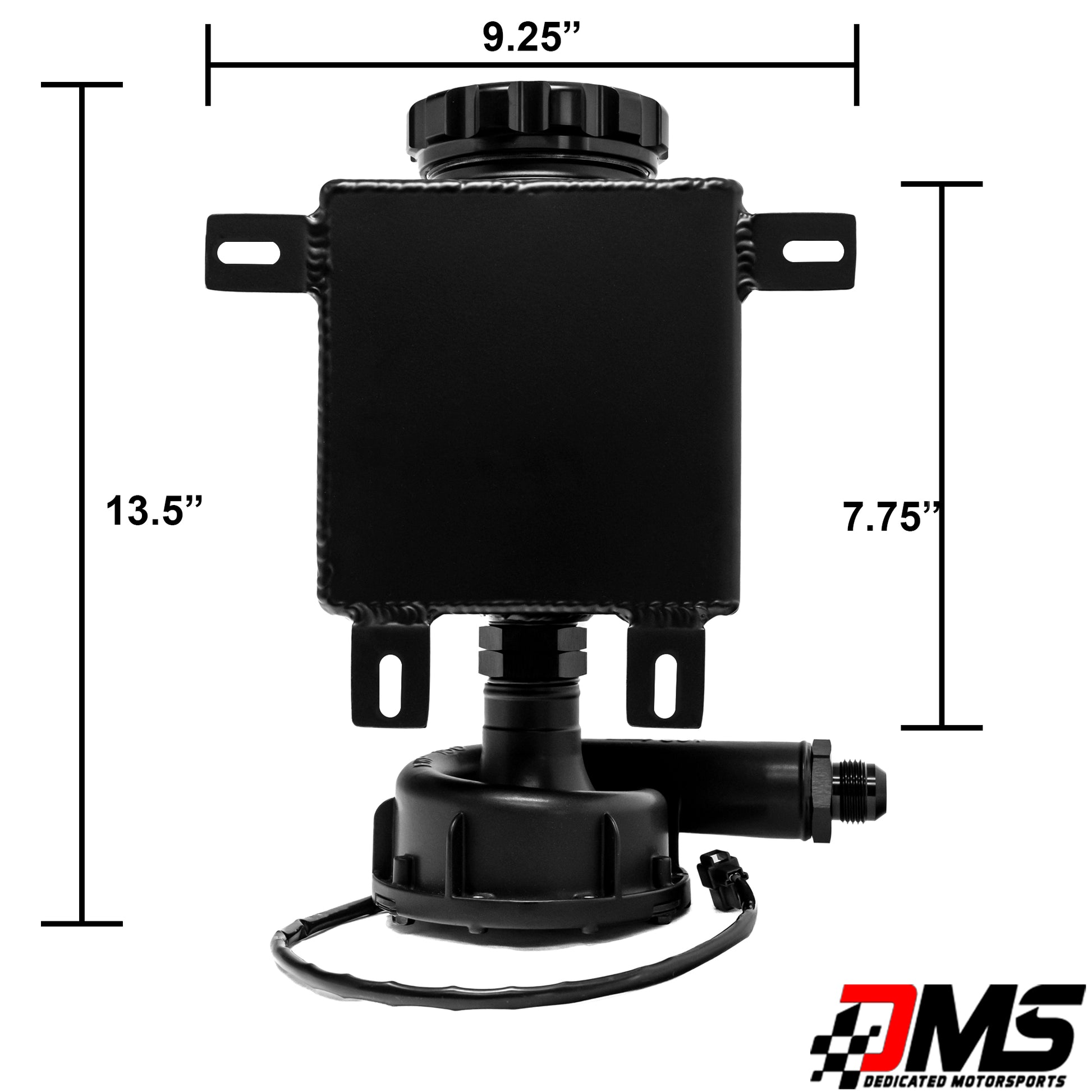

Body Dims 6"X6"X6"

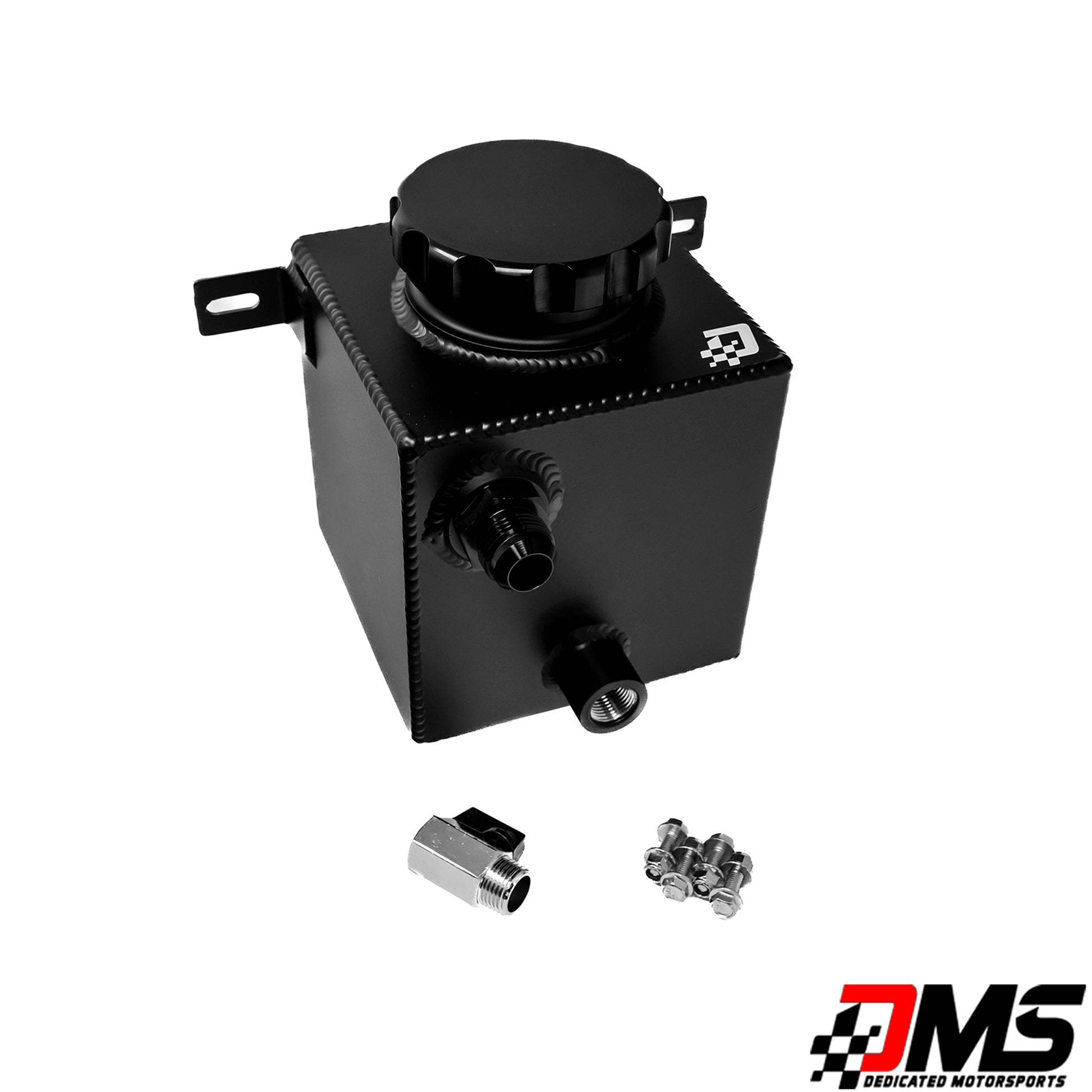

Included:

- 1 Gallon Tank

- Davies Craig EWP Coolant Pump (If option is selected)

- Billet 3" Filler Cap

- (x2) -12an ORB Fittings (If option is selected)

- 1/2 NPT Drain Valve

- Hardware for mounting

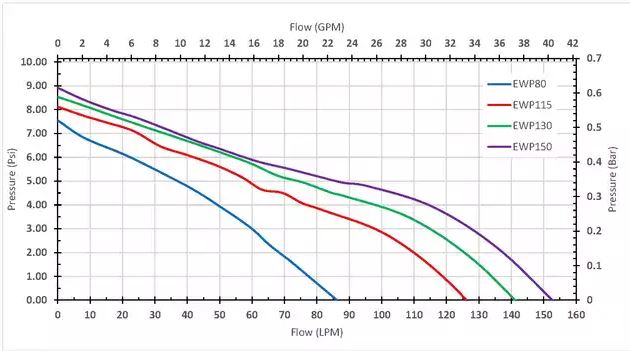

Davies Craig Coolant Pump Specs:

- Aluminum Body

- Max Flow Rate 42.8 G/Min

- Max Current Draw 10 amps

- Weight 2.6 lbs
