DomiWorks Engineering - 8HP OIL COOLER ADAPTER - 8HP70 / 75 JAGUAR LAND ROVER / ASTON MARTIN - TYPE 6

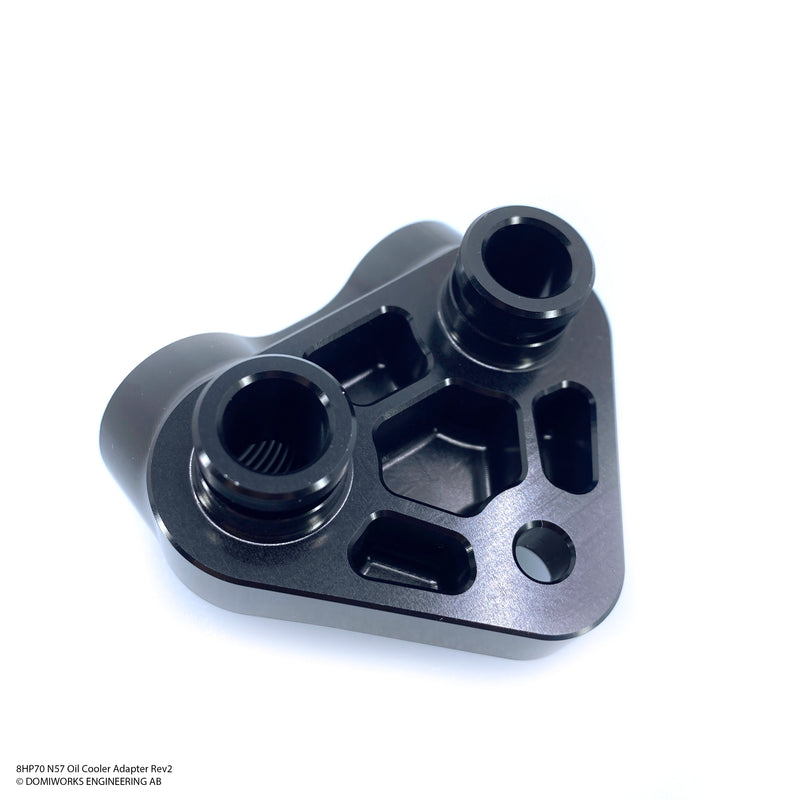

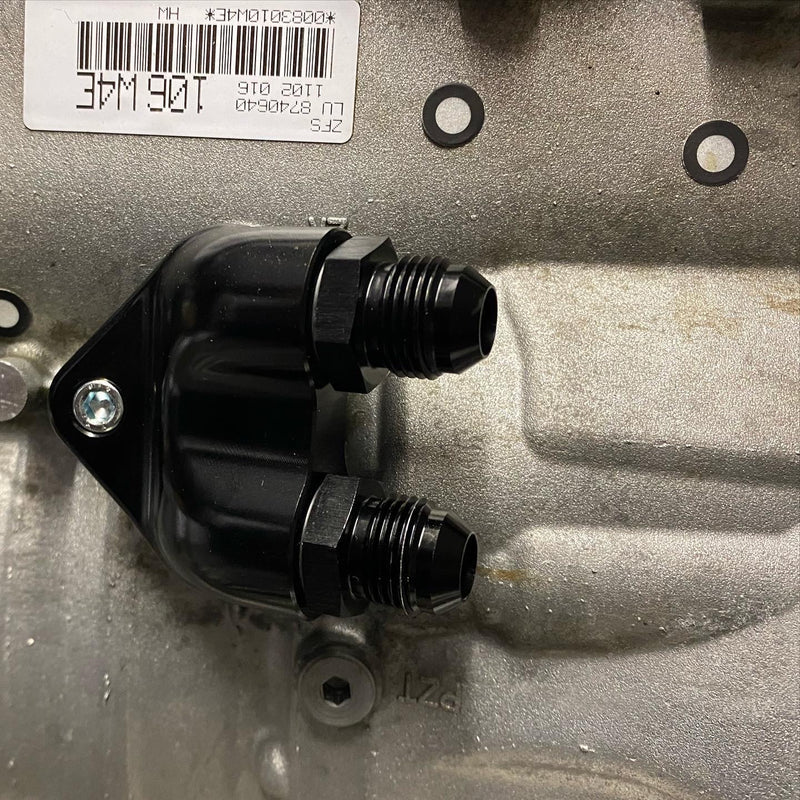

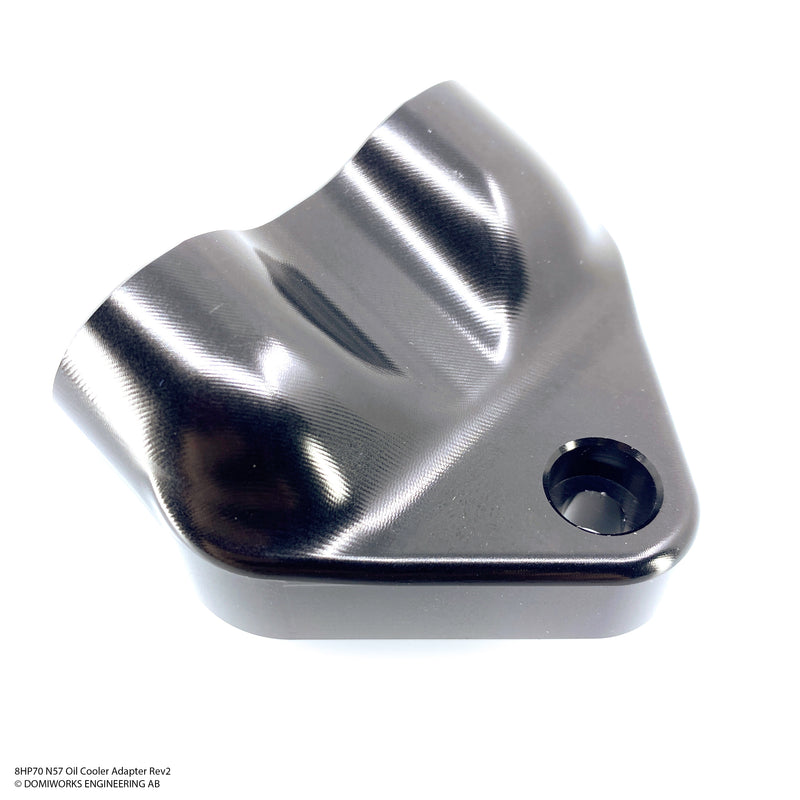

8HP Oil Cooler Adapter for 8HP70 / 75 Jaguar Land Rover / Aston Martin

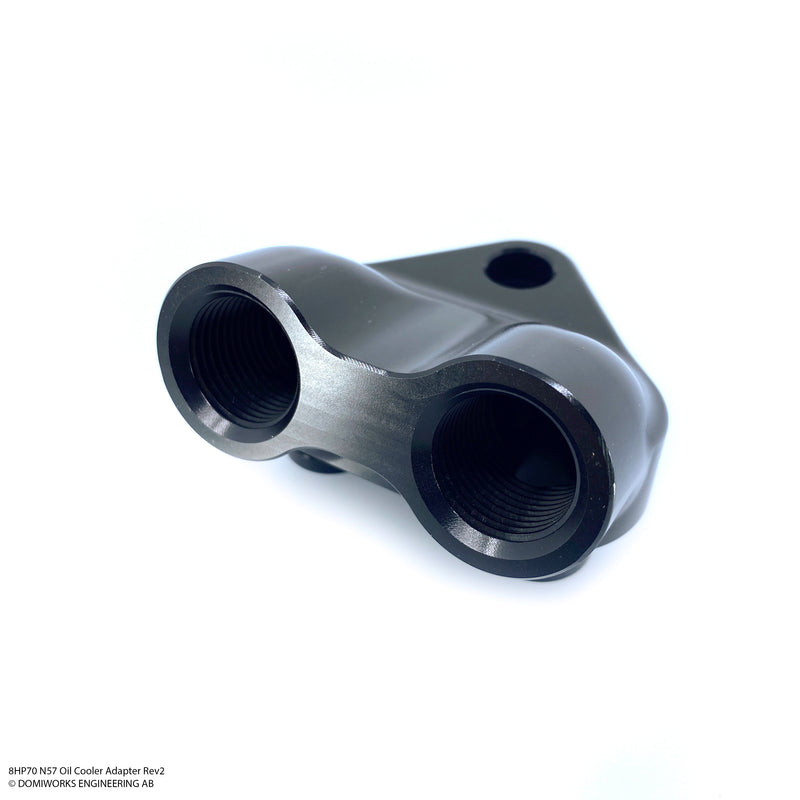

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded output, thread ¾-16.

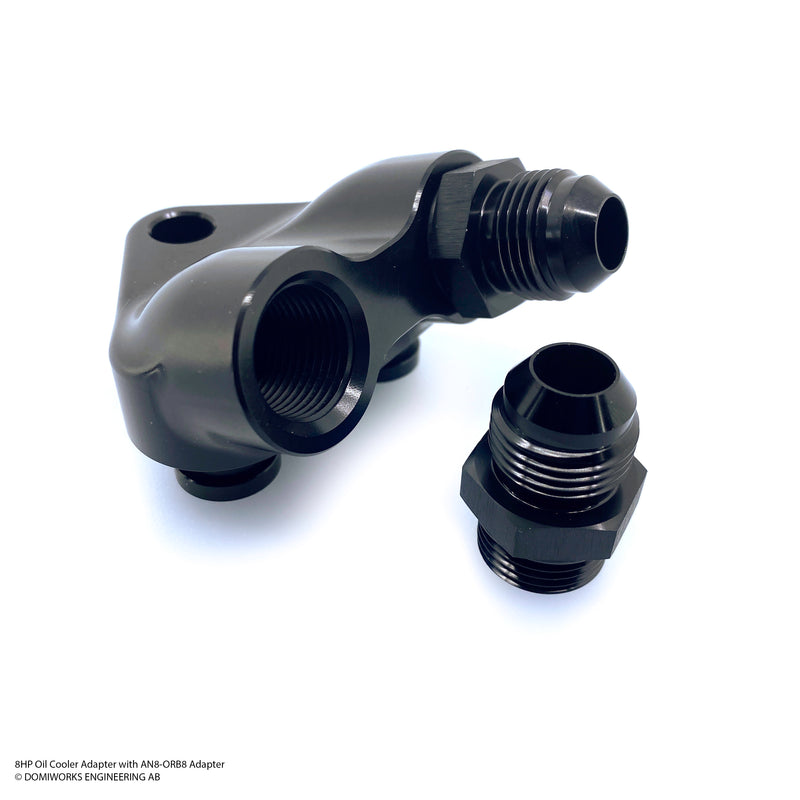

Use any ORB8 fittings to whatever output your application finds suitable (AN6, AN8, AN10 etc.) We offer high quality AN8 fittings from Nuke Performance as an option.

Made by high grade alumium and beautifully 5-axis CNC gives a smooth and attractive look, no bulky straight lines here 😉 Big bore internal oil passages to ensure maximum flow. Anodizied black and laser engraved for a premium feel and experience.
We would like to claim this it the best performing, most lightweight and most beautiful looking oil cooler adapter on the market.

The 8HP70 / 75 Jaguar Land Rover / Aston Martin has 16.0mm bores, ofset holes with M8 mounting bolt. Comes with bolt and o-rings, high quality AN8 adapters available separately.

If you are unsure of the correct sized adapter you need, dont hesitate to contact us.

Transmission technical information

It is important to note that the transmission fluid should not exceed 140°C.

NOTE! This one is compatible with the Blueprint Engines 8HP transmission.
