DomiWorks Engineering - BMW ATC300 Transfer Case to BMW DCT Conversion Adapter

BMW ATC300 Transfer case to BMW DCT Conversion adapter

Conversion adapter kit to fit a BMW ATC300 or BMW ATC45 Transfer Case to a BMW DCT GS7 Transmission to get 4WD output.

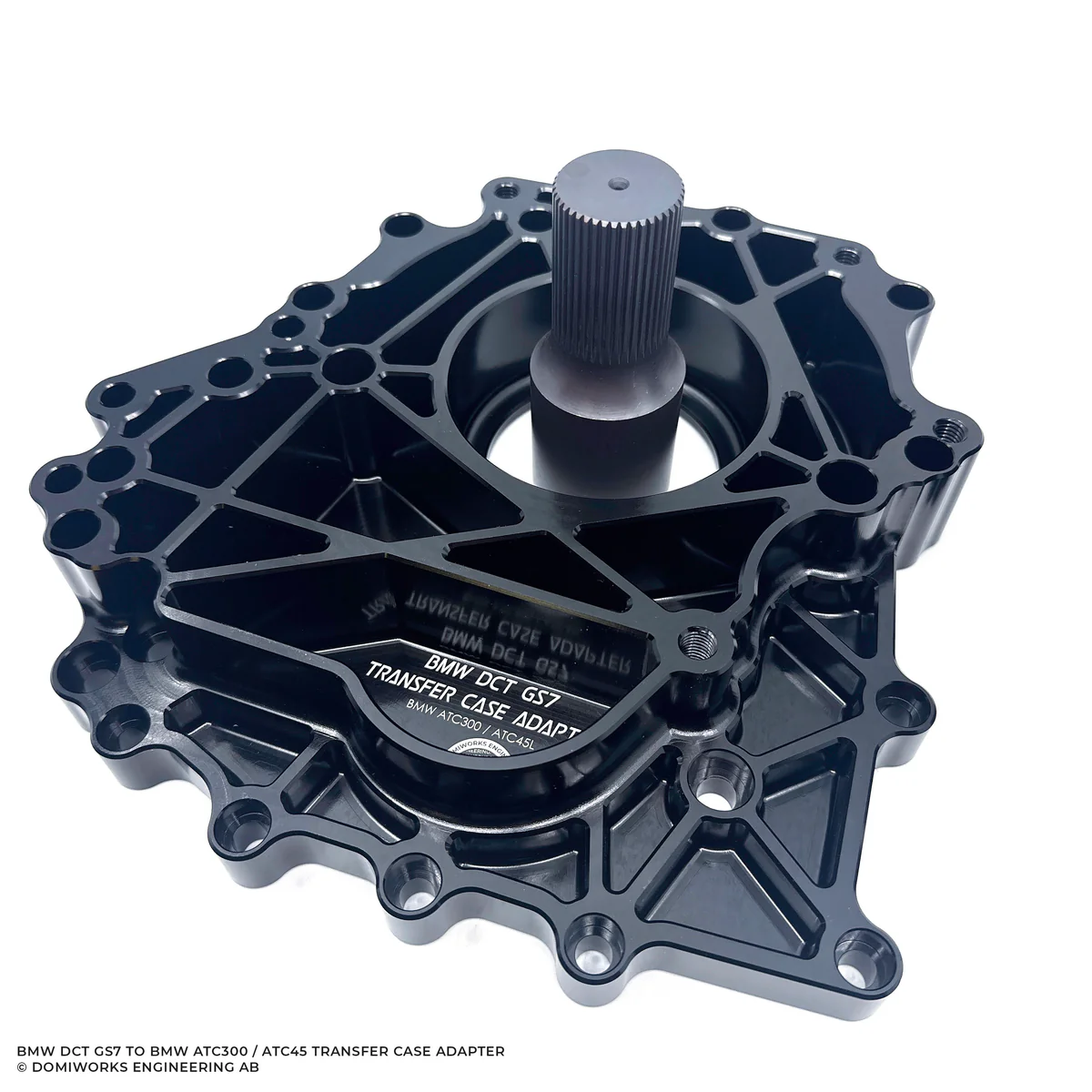

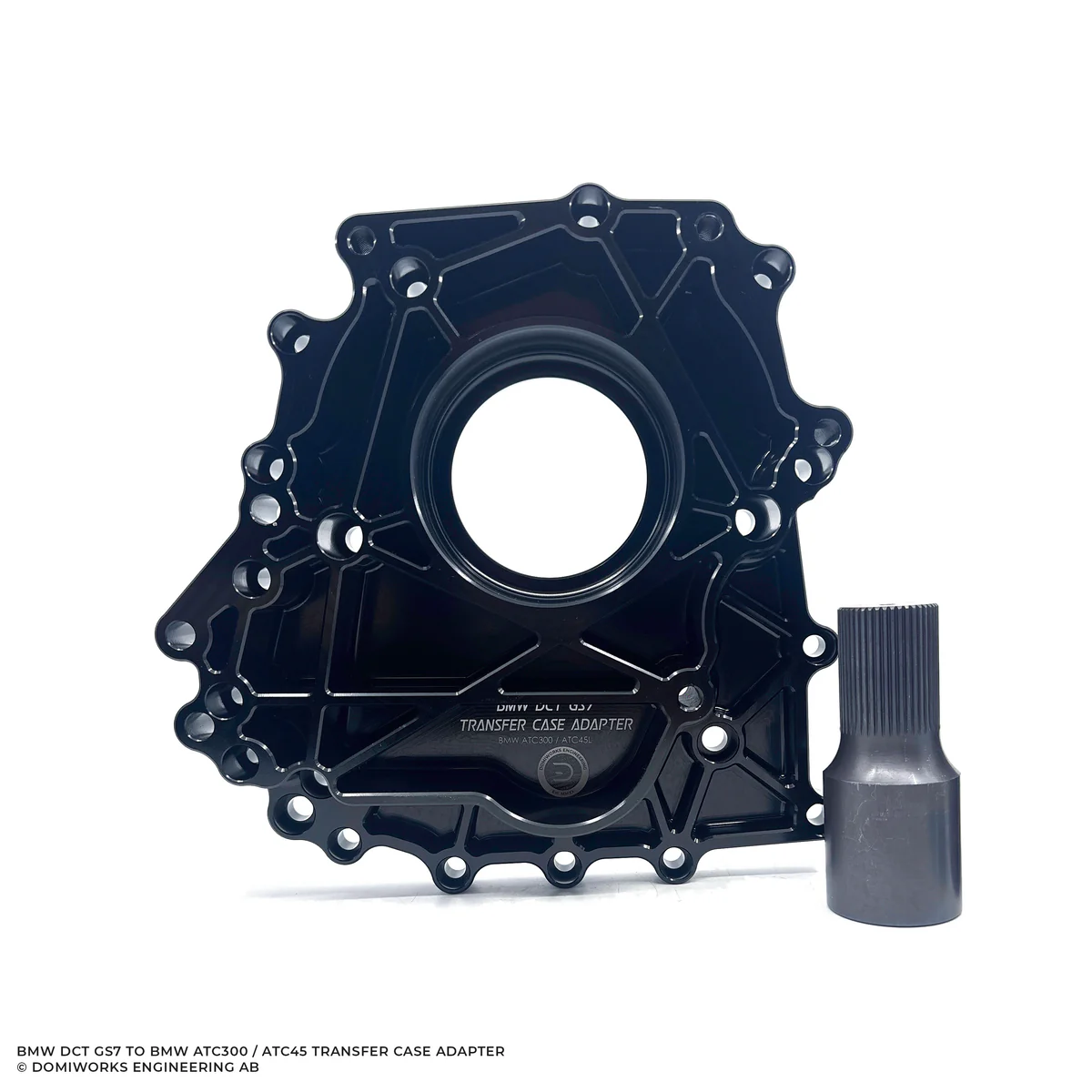

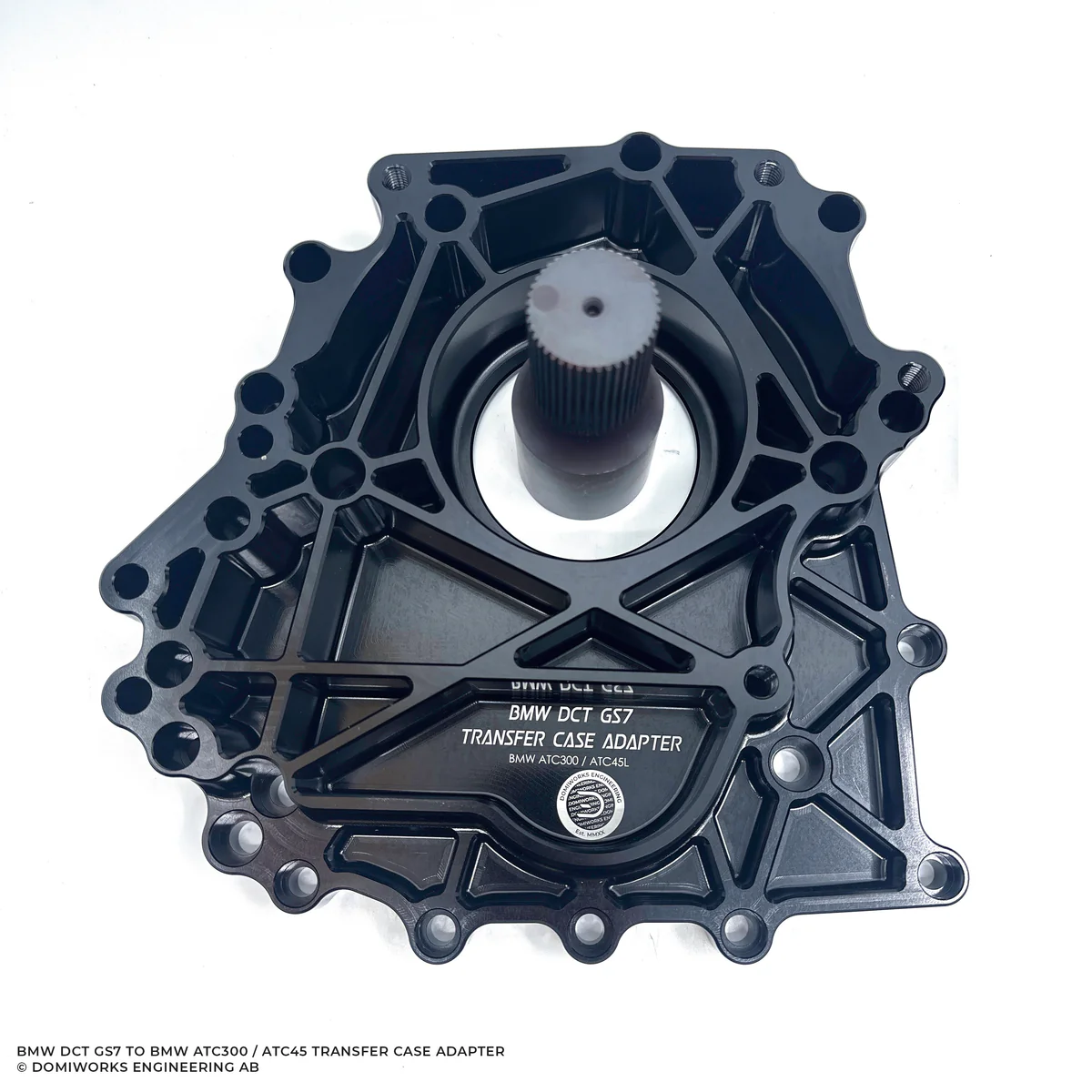

Adapter plate made of high-grade aluminium and anodized black for a premium feel and experience. Accessry spacer made of high-grade aluminium and anodized black.

Intermediate shaft is made out of Orvar Supreme and case-hardened to surface HRC 56.

Fits other transfer cases as well that has the output on the left hand side. The ATC13 has the same bolt pattern and theoretically fits but has a very narrow casing which interferes with the transmisison, so the ATC13 is not compatible.

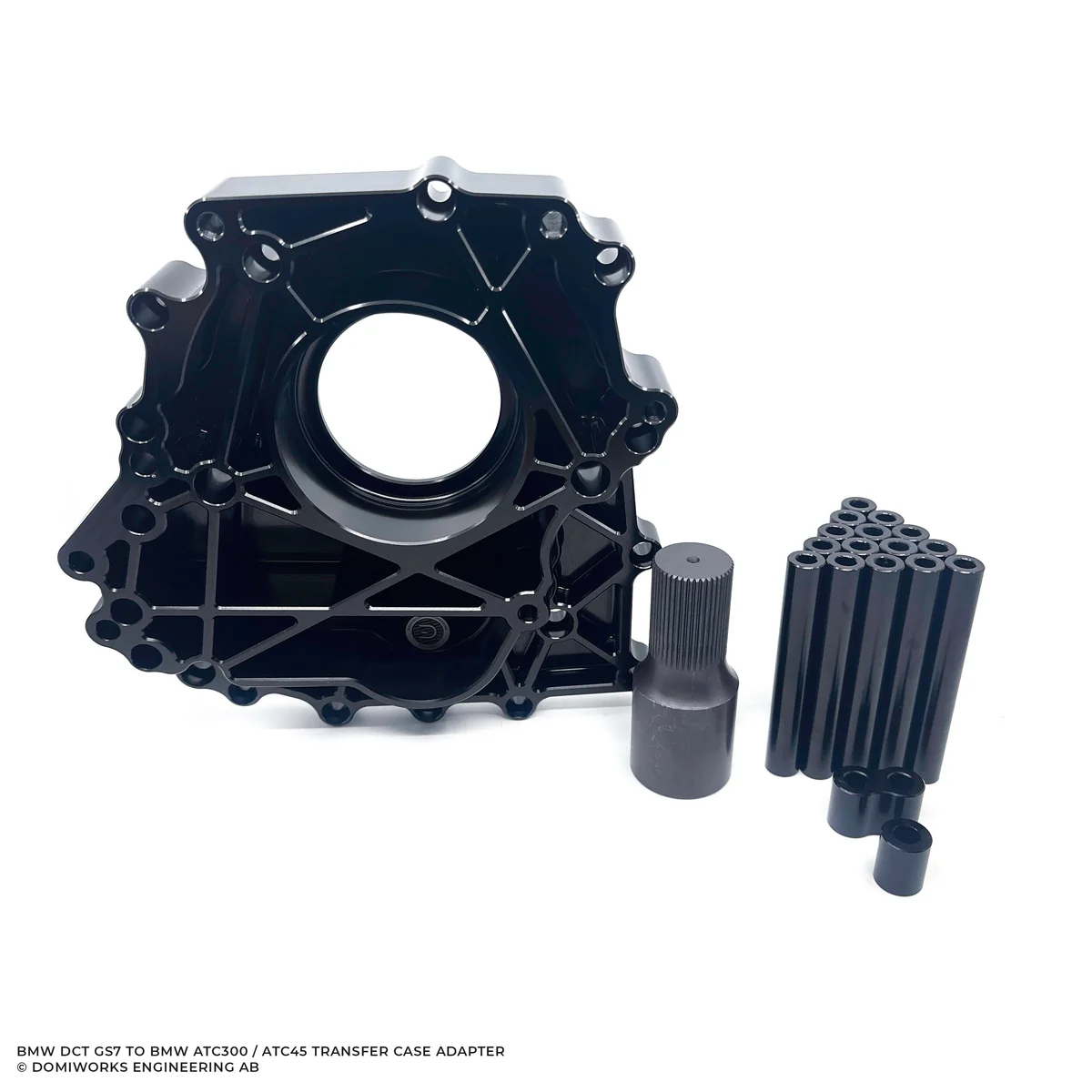

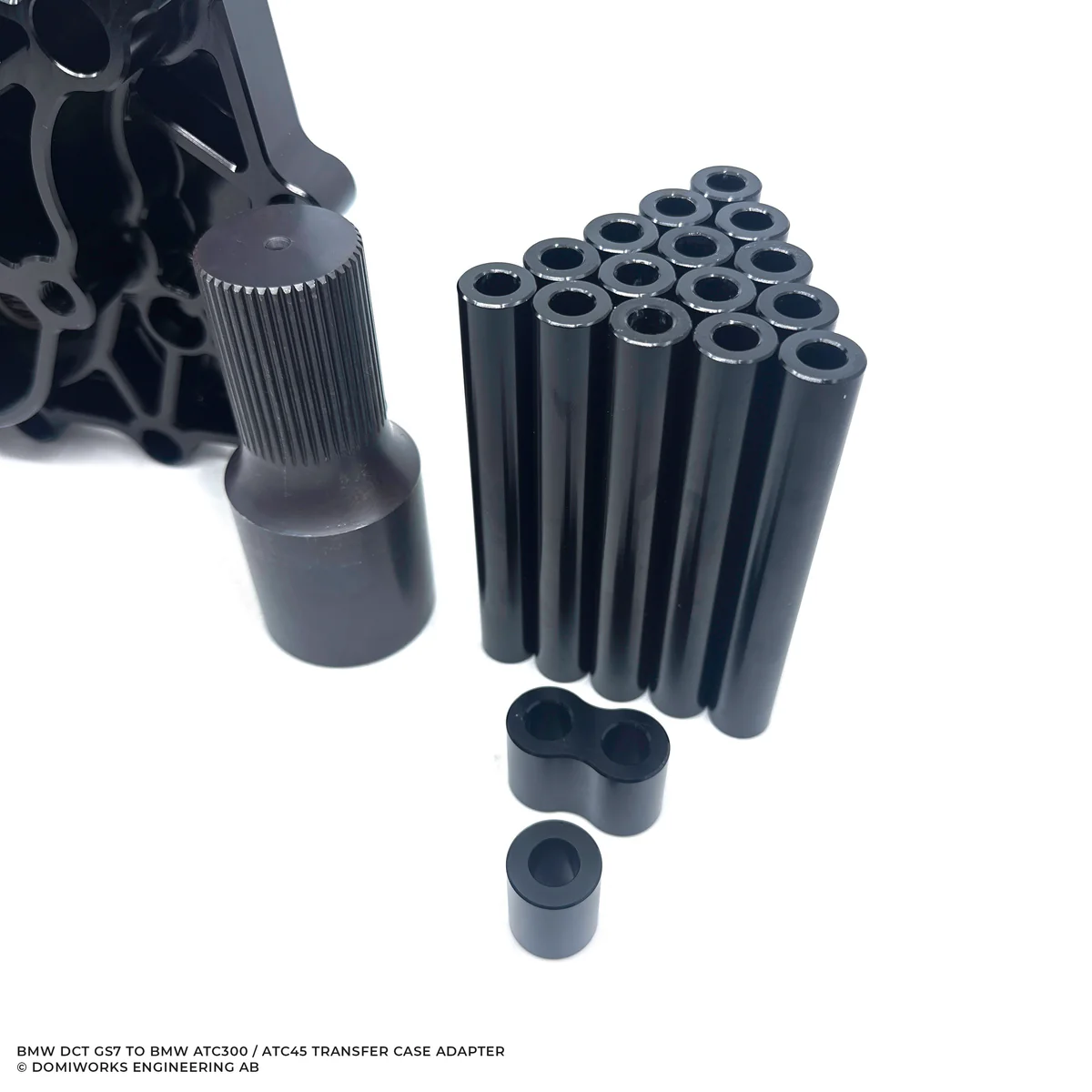

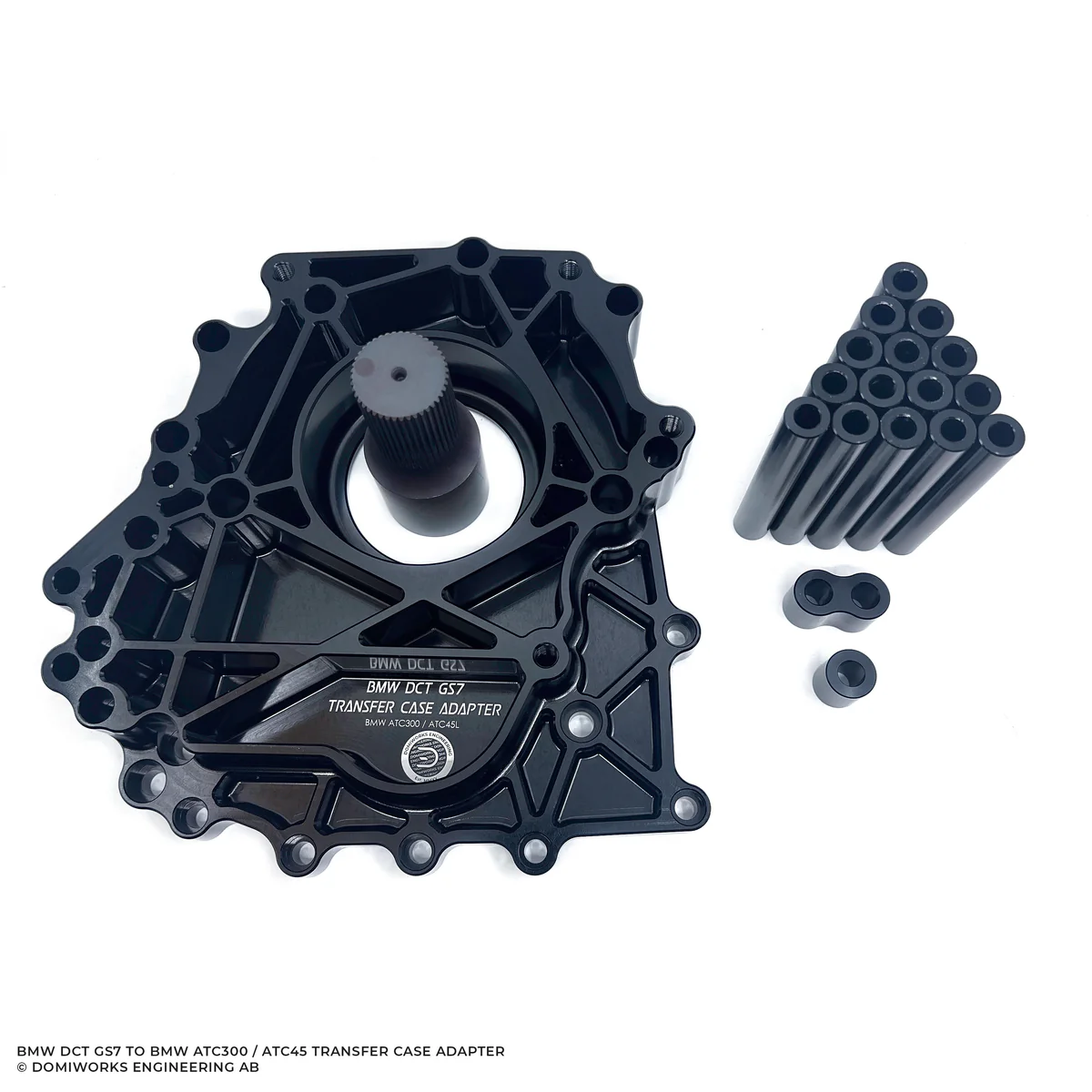

Comes with adapter plate and intermediate axle together with mounting hardware such as bolts and spacers.

NOTE! The rotational pin on the transfer case might need to removed or make room for it in the adapter to get proper alignment. This is dependent on which transfer case is used.
