Billet Adjustable End Links - E30 M3, E34 M5 -31351130075

Description

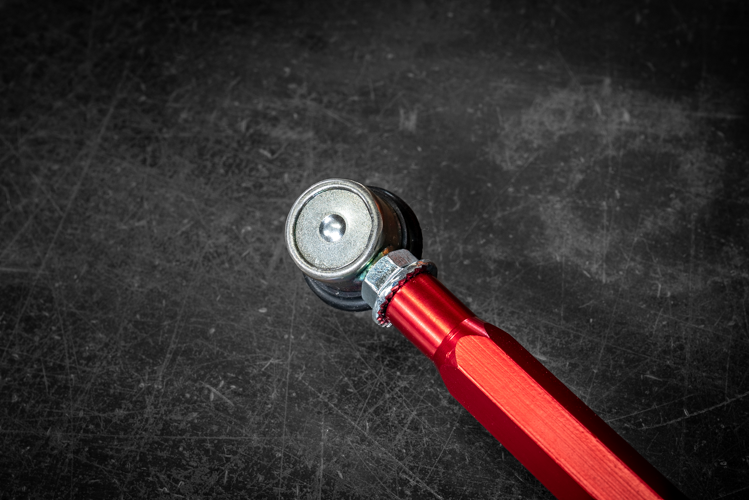

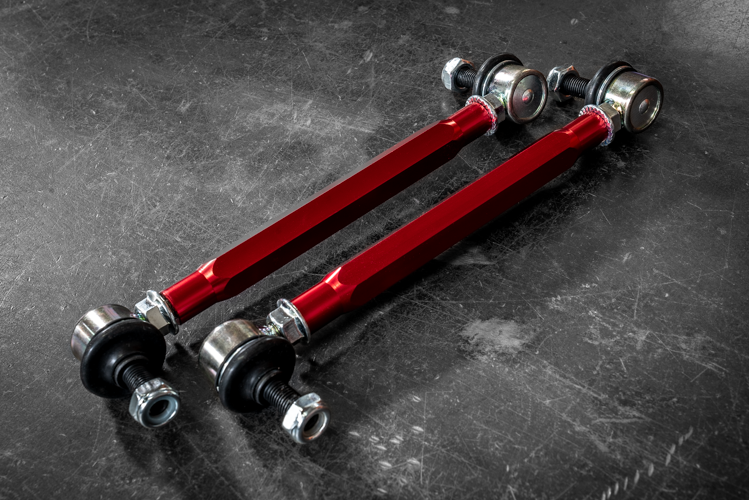

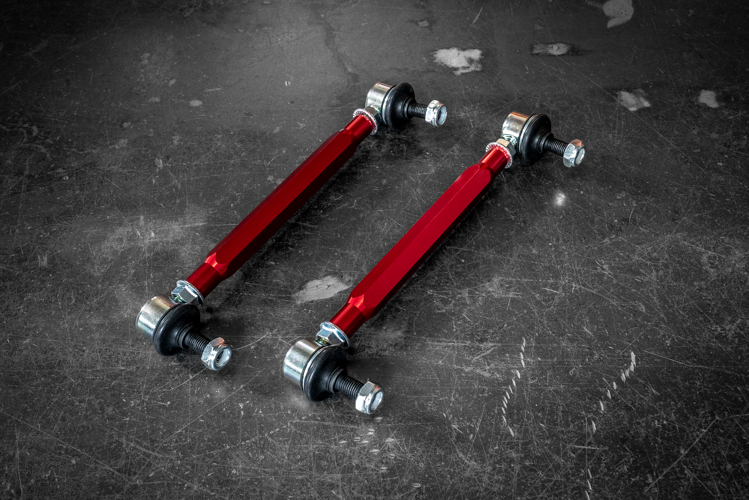

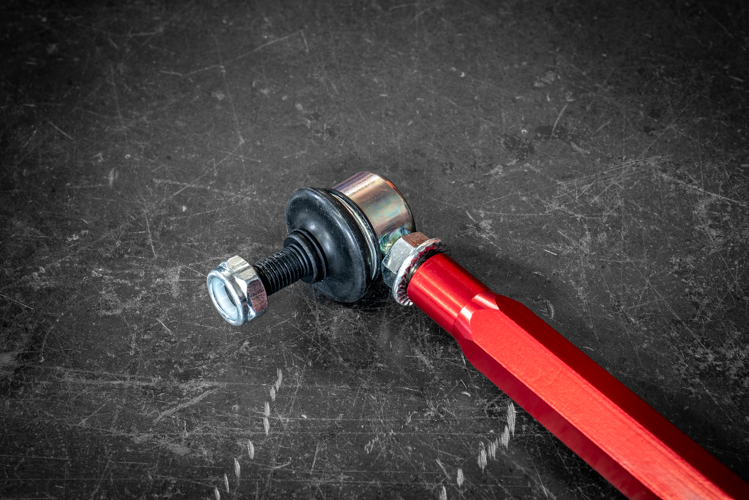

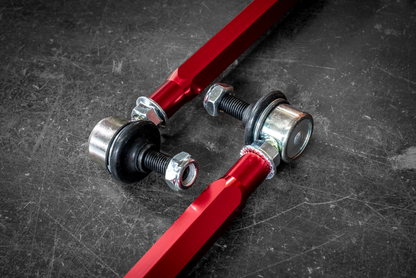

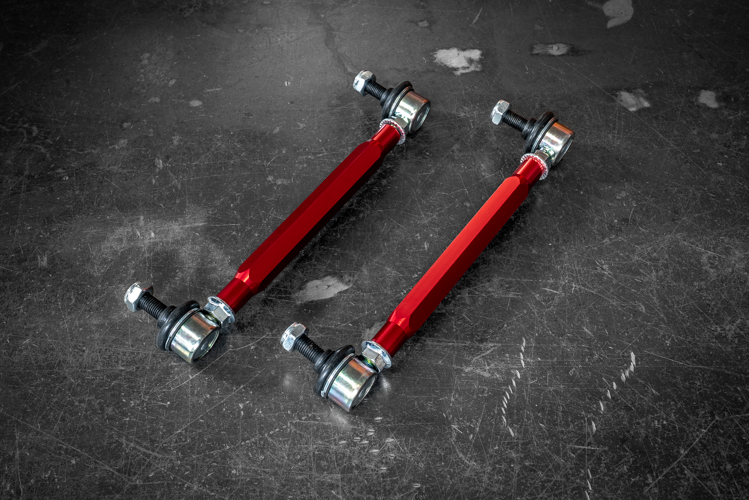

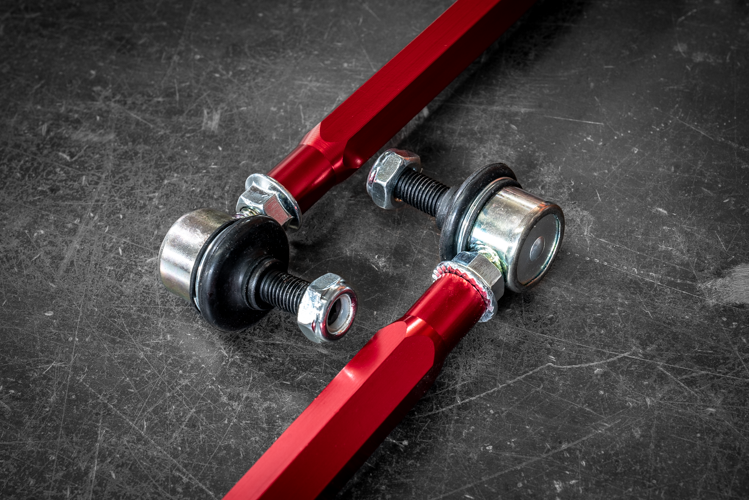

These are the ultimate adjustable end links for your E30 or E34! Originally found only on the E30 M3 and E34 M3, strut-mounted sway bar end links greatly improve handling characteristics. With the addition of weld-on tabs, your non-M E30 or E34 can experience the same improvements! Designed to handle the abuse of the track while being compliant for the street, we've added some new features to increase durability and enhance user experience.
All end links are quality made in the USA and are Teflon lined to ensure lifetime lubrication and eliminate looseness and chatter caused by age. Both links have LH/RH studded rod ends they allow length adjustments and high angularity for correct proper anti-roll bar static flat. This makes the sway bar parallel to the ground. Comes with everything needed for installation. We highly recommend using blue Loc-tite on all threaded connections.

WILL MY BMW NEED ADJUSTABLE FRONT SWAY BAR LINKS?

When you lower your car, the sway bar geometry changes making the bar no longer as effective because of the angle it's at, adjustable end links will allow you to bring the sway bar angle back to its effective position and get rid of any unnecessary pre-load.

Features

• Hex design of the middle rod allows for easy on-car adjustments
• Greater adjustment range allows you to dial in the perfect geometry of your suspension
• Sealed ball joints on both ends to keep debris out

Adjustment Range

• 8.9" to 12.2"

Compatibility

• E30 318, 325 1982-1994*
• E30 M3 1986-1991


*Non-M E30s will require endlink tabs to be welded to the strut. We sell those here!

Note: Before purchase, we recommend measuring from upper to lower end link mounting tab to ensure proper fitment. End link size can depend on ride height and suspension components

How to Adjust your End Links to Set Pre-Load

1. Set your car to the desired ride height
2. Position your sway bar to be parallel to the ground
3. Hook up your end links
4. With the end links installed, use the middle hex rod to make fine adjustments

*To get the perfect pre-load, have a friend do this process while you sit in the driver's seat, or use sand bags or other weights to add your weight in the driver's seat while you adjust the end links
