ECU MASTER - WIRELESS RACING PANEL W/RECEIVER

This version IS wireless.

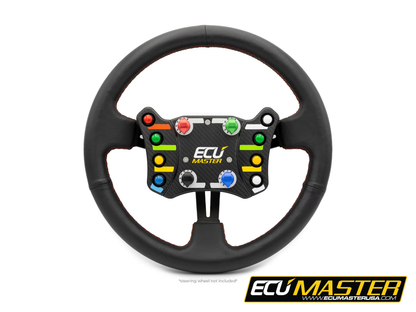

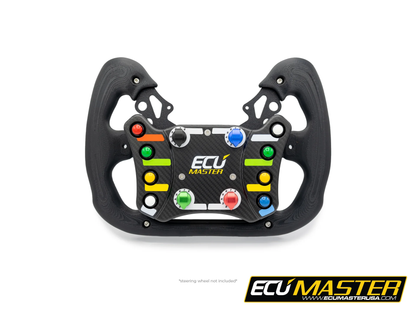

The Wireless Racing Panel offers a convenient and versatile control interface for your vehicle. Equipped with eight push buttons and four rotary switches, it integrates with the included Wireless Receiver. Utilizing advanced wireless Radio Frequency technology, the panel transmits data over CAN bus, enabling diverse applications within your car. Additionally, the panel supports two connections for paddle shifters offering expanded functionality if required (connectors and terminals included).

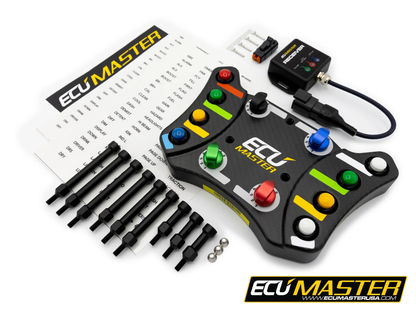

WHAT'S IN THE BOX?

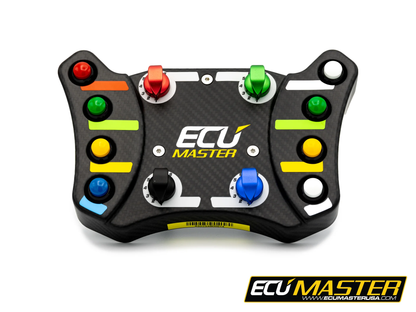

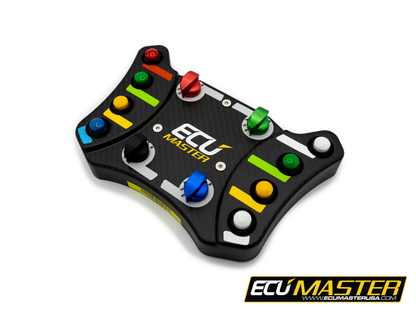

• Wireless Steering Wheel Panel

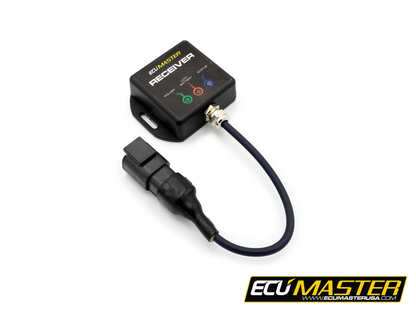

• RF Receiver
• 9x Threaded Spacers (three sets). Distance from back of switch panel to face of steering wheel is 10mm, 35mm or 45mm depending on which spacers are installed.
• Three fasteners
• 2x Paddle Shift Connectors (ZHR-2) with 4x Terminals (SZH-002T-P0.5)
• 4 Position DTM Connector (with terminals)

• CR2450 Battery
• Sticker/label sheet

KEY FEATURES:

• Bespoke Carbon Housing
• 8x Momentary Pushbutton Switches
• 4x 8 Position Rotary Switches
• 2x Spare Switch Inputs (intended for shift paddles or other functions)
• Low power consumption (battery lasts for over 1.5 million button presses at room temperature)
• Wheel Panel uses a CR2450 battery
• Battery level transmitted over CAN-bus along with low battery warning LED on receiver
• Easy wiring with only 4 terminations (12v power, ground, CAN Hi, CAN Lo)
• Compatible with the most popular steering wheel bolt pattern, 6x70mm
• Direct integration with other CAN-bus devices, same message format as an ECUMaster CAN Switch Board V3

ADDITIONAL DOCUMENTS:

Wireless Steering Wheel Panel User Manual

Wireless Steering Wheel Panel Drawing

Wireless Steering Wheel Panel 3D Model (.STEP)
