FDF Raceshop - BMW E36 MEGA MANTIS ANGLE KIT

Just like our E46 kit, the E36 Mega Mantis is one of our most popular setups—run by both grassroots and pro drivers. It delivers big angle, full adjustability, and a strong, reliable front-end feel.

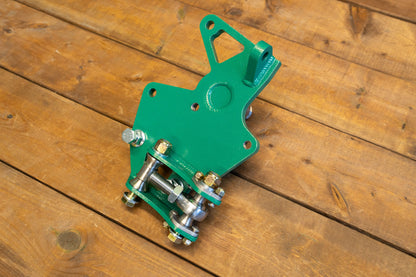

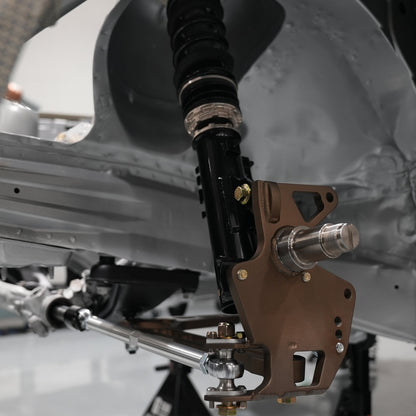

It features a full knuckle, full lower control arms, and all the tuning range you could ask for. The main difference is the knuckle design—it’s built specifically for E36 coilover mounting, and a lot of drivers even choose to run this knuckle on their E46 builds for its simplicity and fitment.

You can choose between two lower control arm options to match your setup:

• Mild Lower: 26mm wider per side, keeping a moderate track width while still clearing high angle.

• Mega Lower: 53mm wider per side for maximum clearance, stability, and a fully adjustable tie rod setup.

A proven kit that gets you angle, response, and confidence—right out of the box.

Key Features:

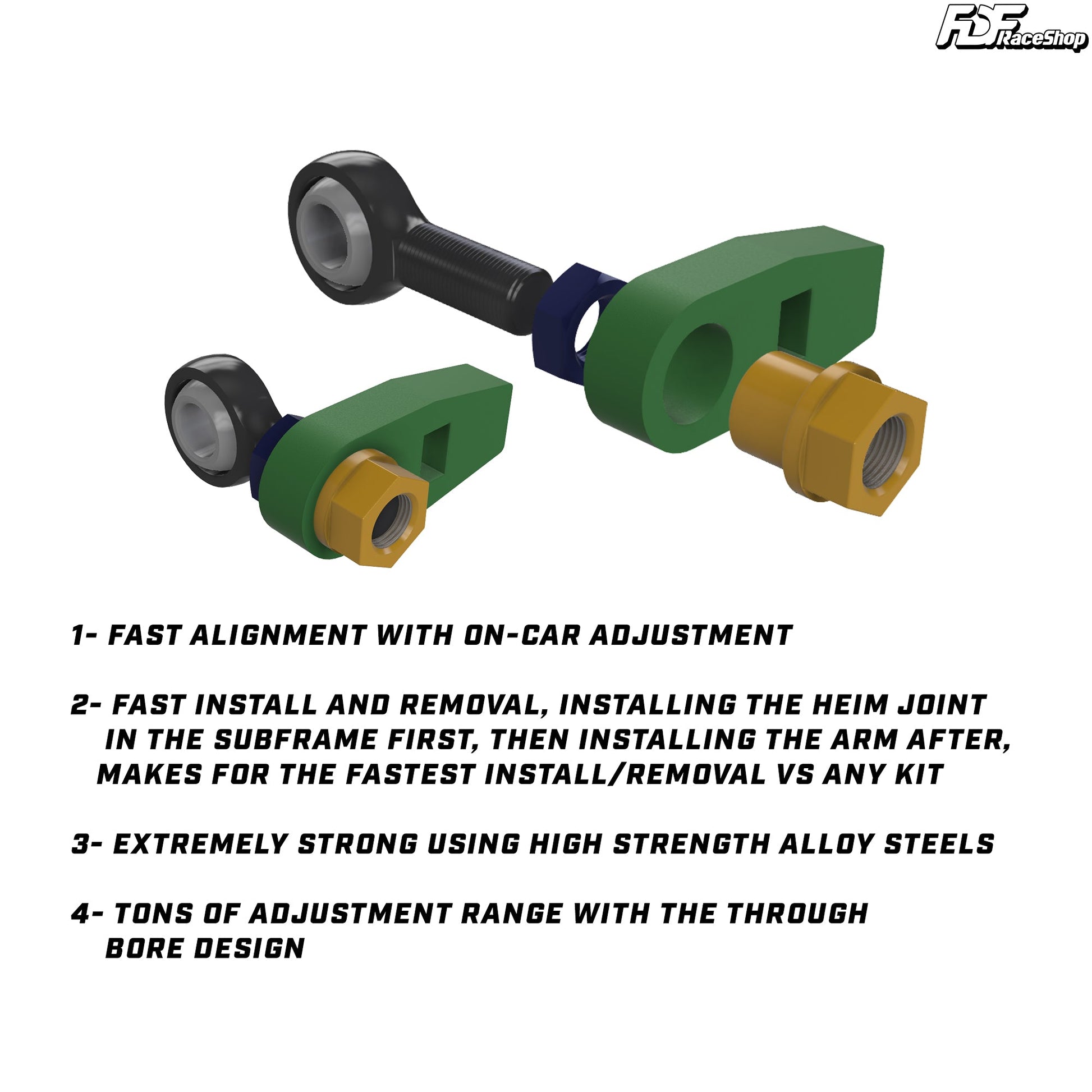

• Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.
• Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions
• Angle: 70 degrees depending on your steering rack setup
• Ackermann: Adjustable Ackermann
• Roll Center: Optimized handling by adding 40mm of roll center correction
• Bump Steer: Minimal bump steer in drift by perfecting tie-rod pickup location
• Caster: Displaced caster built into the knuckle for optimal alignment force
• Camber: Optimized camber ranging from -3 to -6
• Track Width: 55mm wider per side creating a stable and high clearance front end (Recommend front over fenders)
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable
• Durable & Reliable: Made from High strength alloy steel and Aluminum

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com

Note: You Must Have Coilovers To Run This Kit

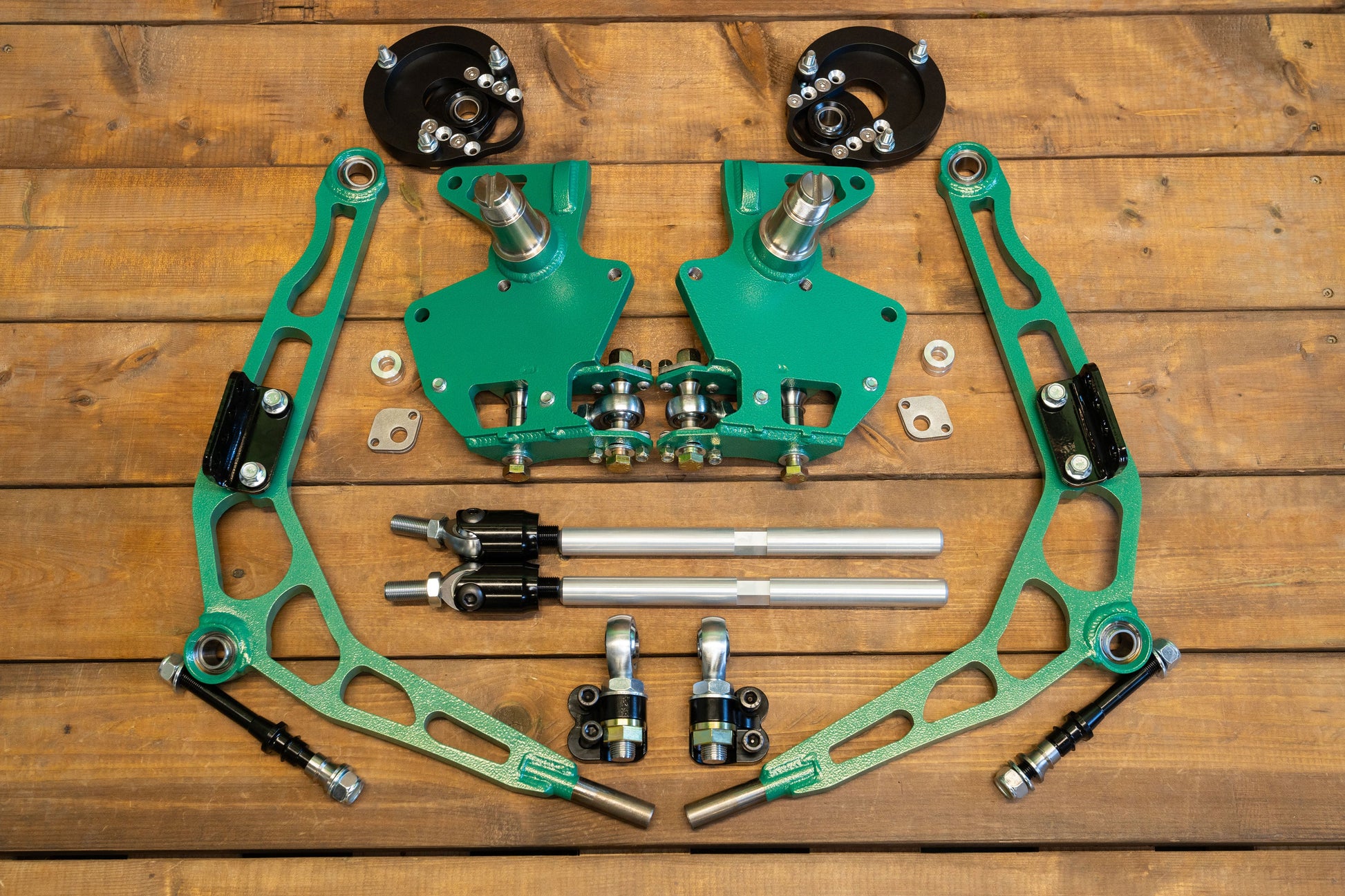

Includes (dependent on chosen option):

• 2 lower control arms
• 2 knuckles
• Ackerman Plates
• 2 inner and outer tie-rods
• 2 caster/camber plates
• 2 On-Car Adjustable Lollipops
• All bearings and hardware required for install

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual

Installation Manual (M3)
