FDF Raceshop - Steering Rack Adaptor

Sold As Pair

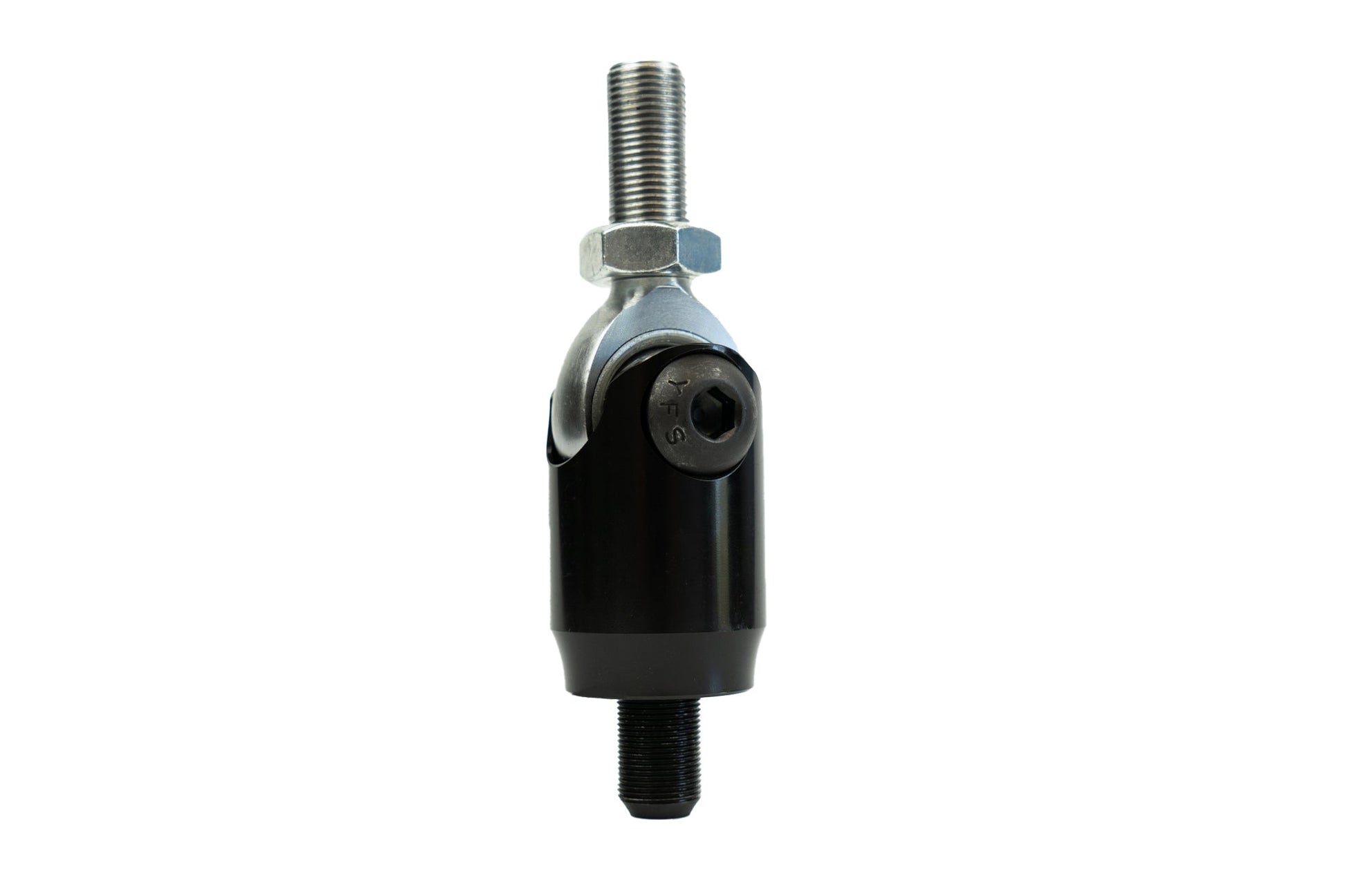

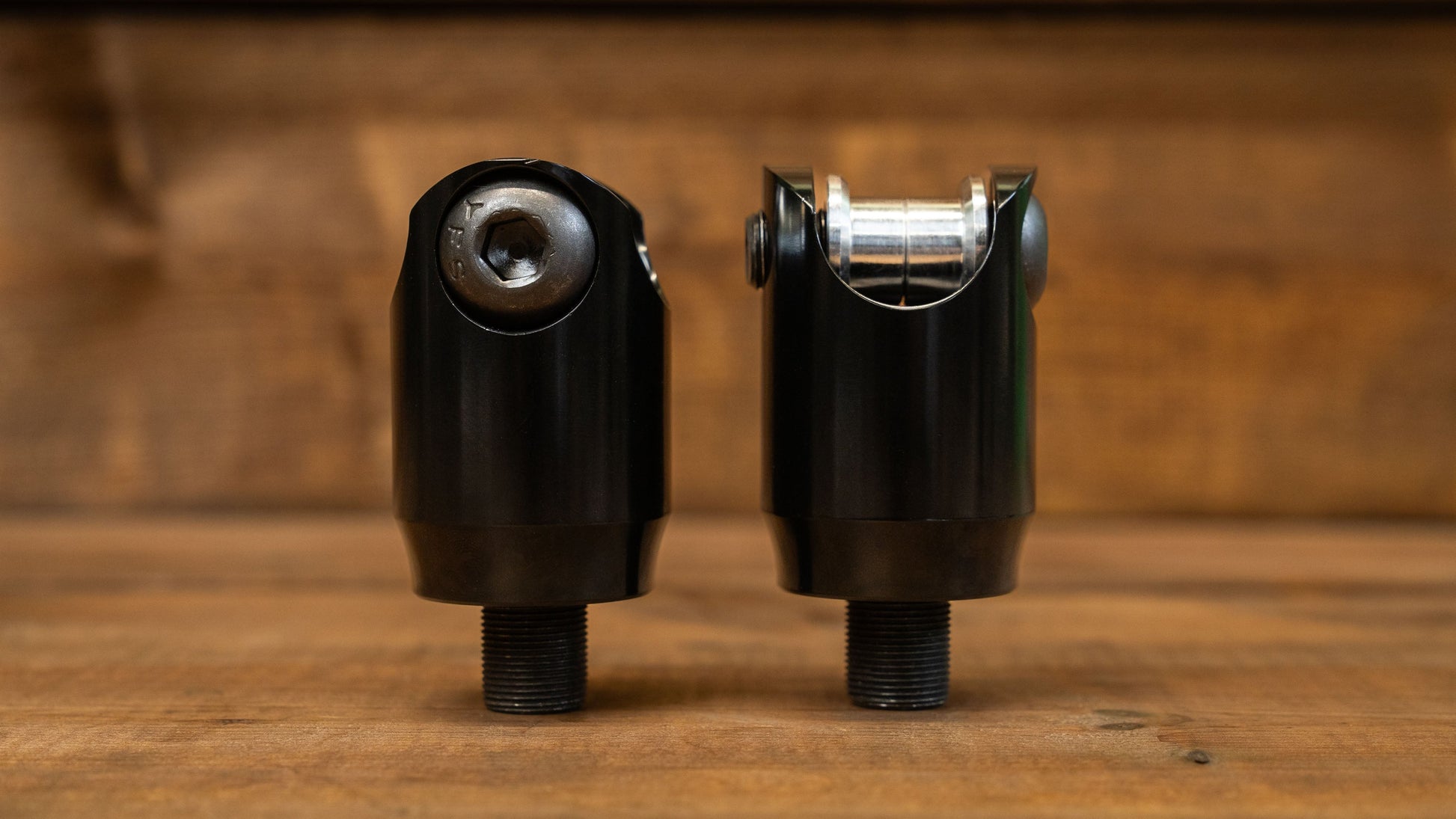

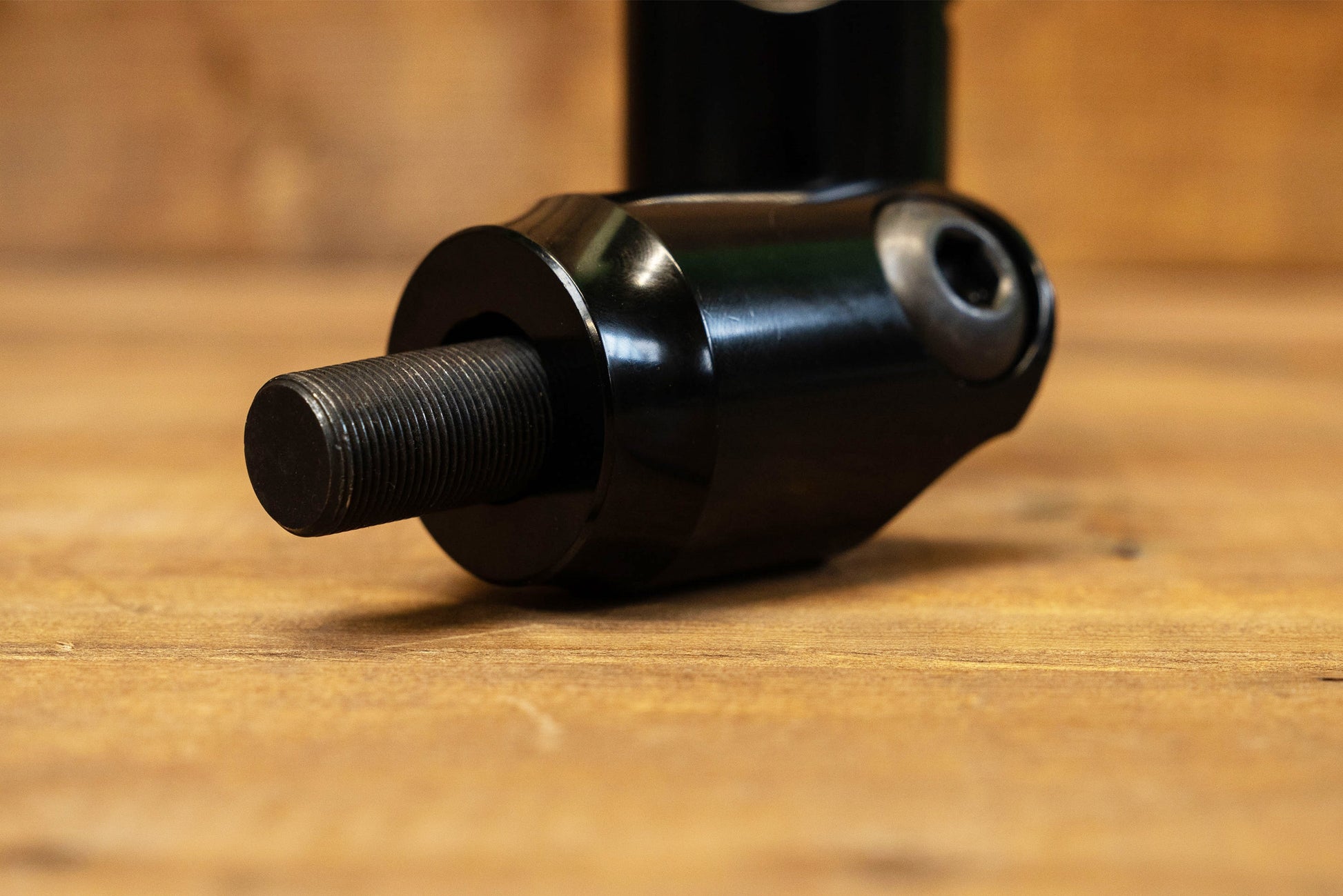

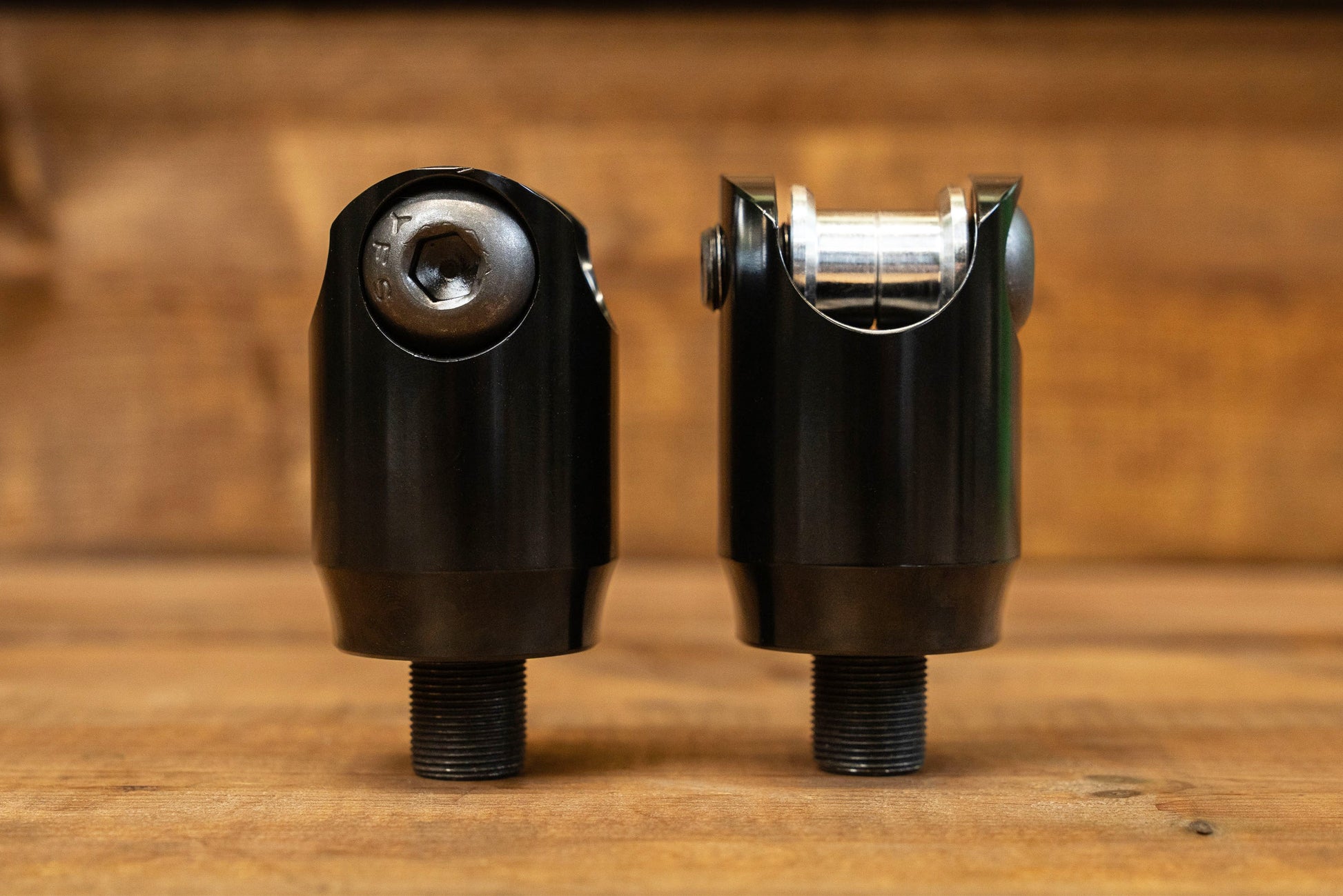

The FDF inline rack adaptor is the ideal solution for your tie rod setup, this product consists of 2 billet shackles that bolt to your steering rack and allow for a 5/8-18 rod end to be used as the inner ball joint.

Key Features:

• Tie Rod: Replaces socket style tie rod with a double shear Heim joint design, this is both easier to service and lasts much longer through heavy abuse.
• Shackle: Takes all the abuse you can throw at your car. Machined from a billet piece of Chromoly and electro-plated.
• Sizing: Fits a 5/8-18 rod end to be used as the inner ball joint.

Rack Bolt Sizing:

BMW E80/E90: M18 x 1.5

BMW E36/E46: M18 X 1.5

MAZDA RX7: M14 X 1.5

GENESIS COUPE: M16 X 1.5

HONDA S2000: M16 X 1.5

SUBARU BRZ: M16 X 1.5

SUBARU IMPREZA: M16 X 1.5

SUPRA / SOARER: M14 X 1.5

NISSAN S-CHASSIS: M16 X 1.0

NISSAN 350/G35: M16 X 1.0

NISSAN G35 (V36 - 2007.5/2008): M18 X 1.0

NISSAN 370/G37: M18 X 1.0

CORVETTE C5/C6: M18 X 1.5

MUSTANG S197: M16 X 1.5

Add On:

• 2 m16x1 Allen head bolts for any s-chassis, r-chassis, and z-chassis
• 2 m16x1.5 Allen head for frs/brz

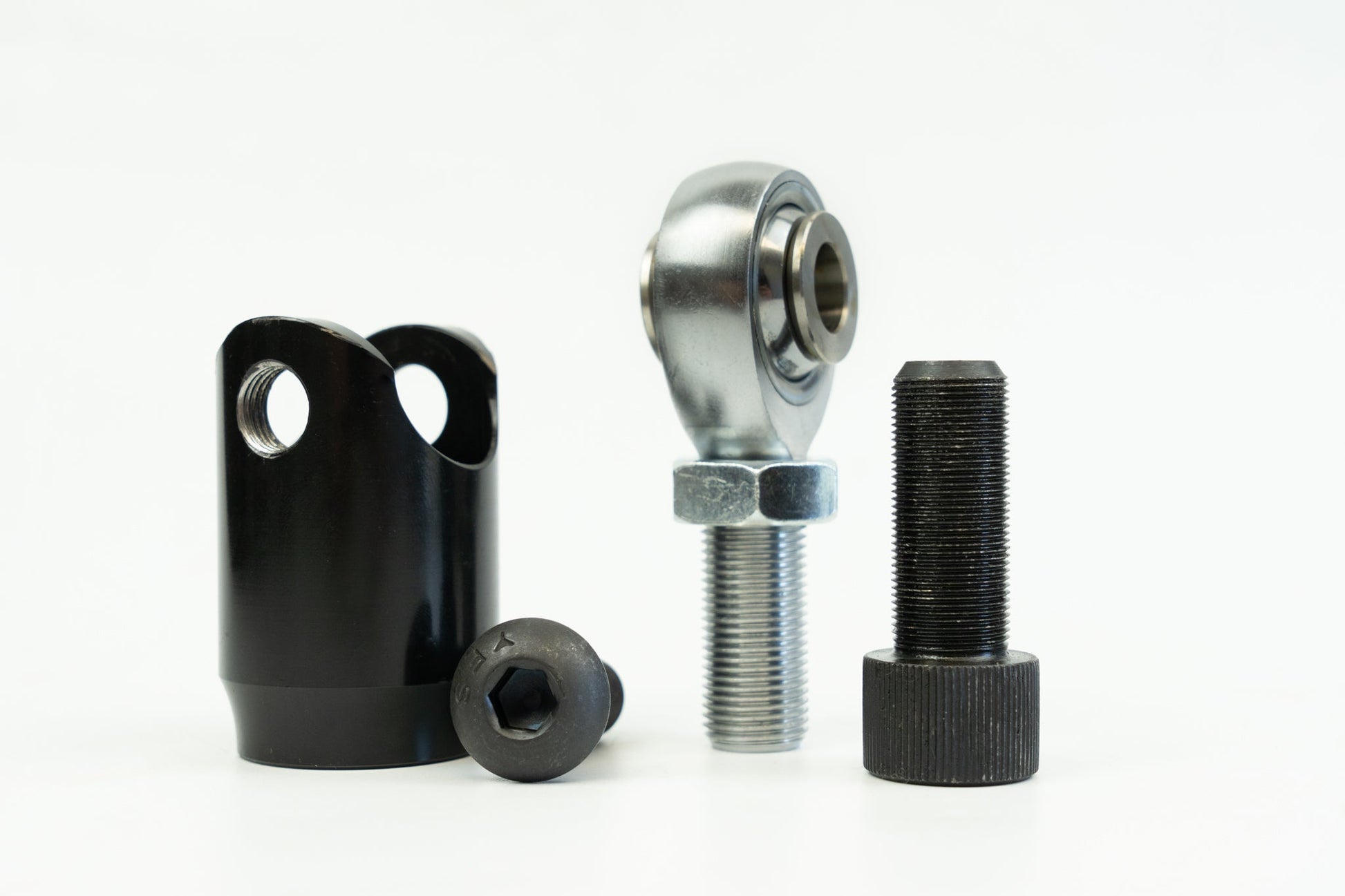

• 2 inner tie-rod heim joints with jam nuts
