[GARAGE SALE] - Dana Spicer Drivetrain Products Yokes 1-2-39

******THIS IS NOT A NEW CONDITION PRODUCT - NO ACCEPTABLE REFUNDS - READ BELOW******

OPEN BOX

NEVER INSTALLED

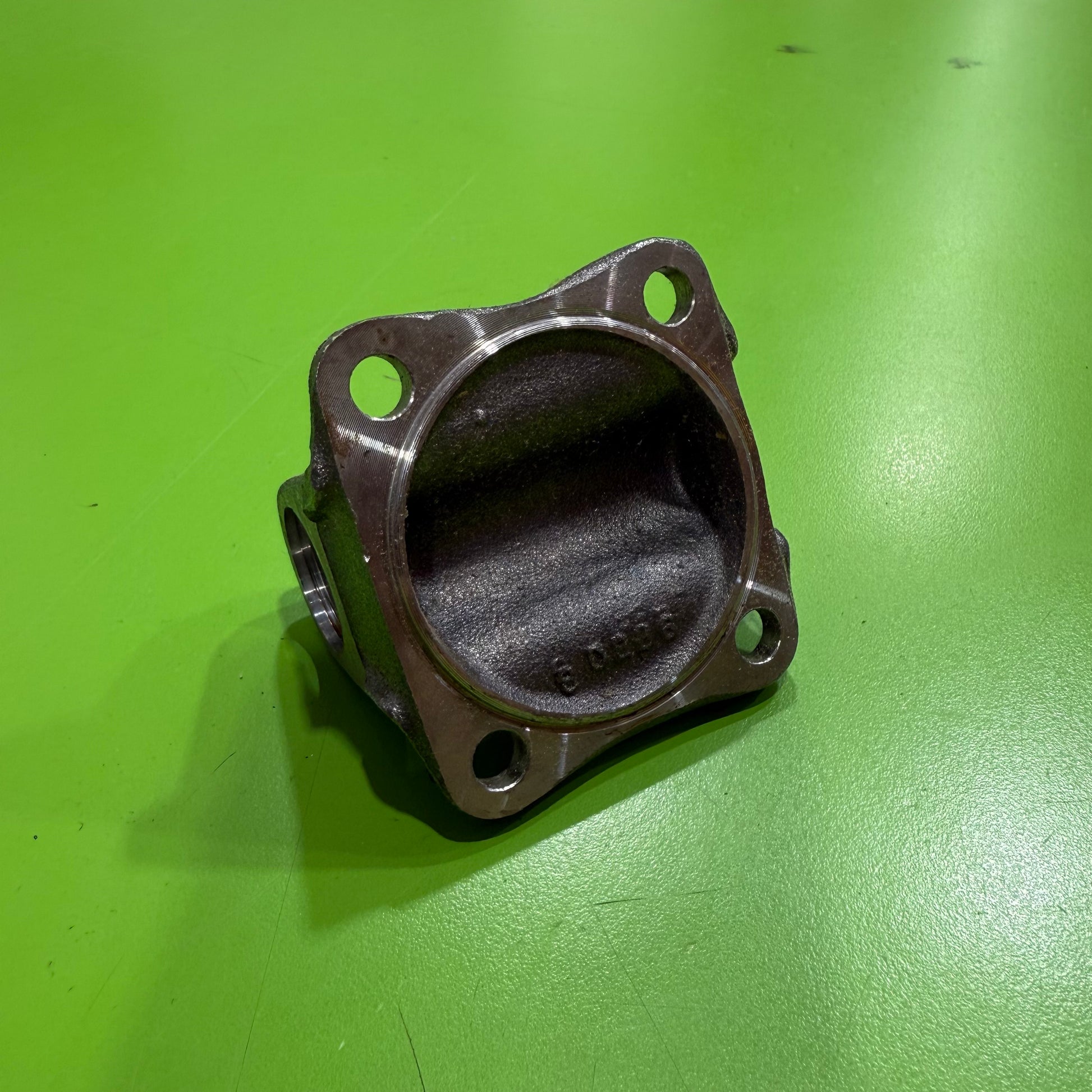

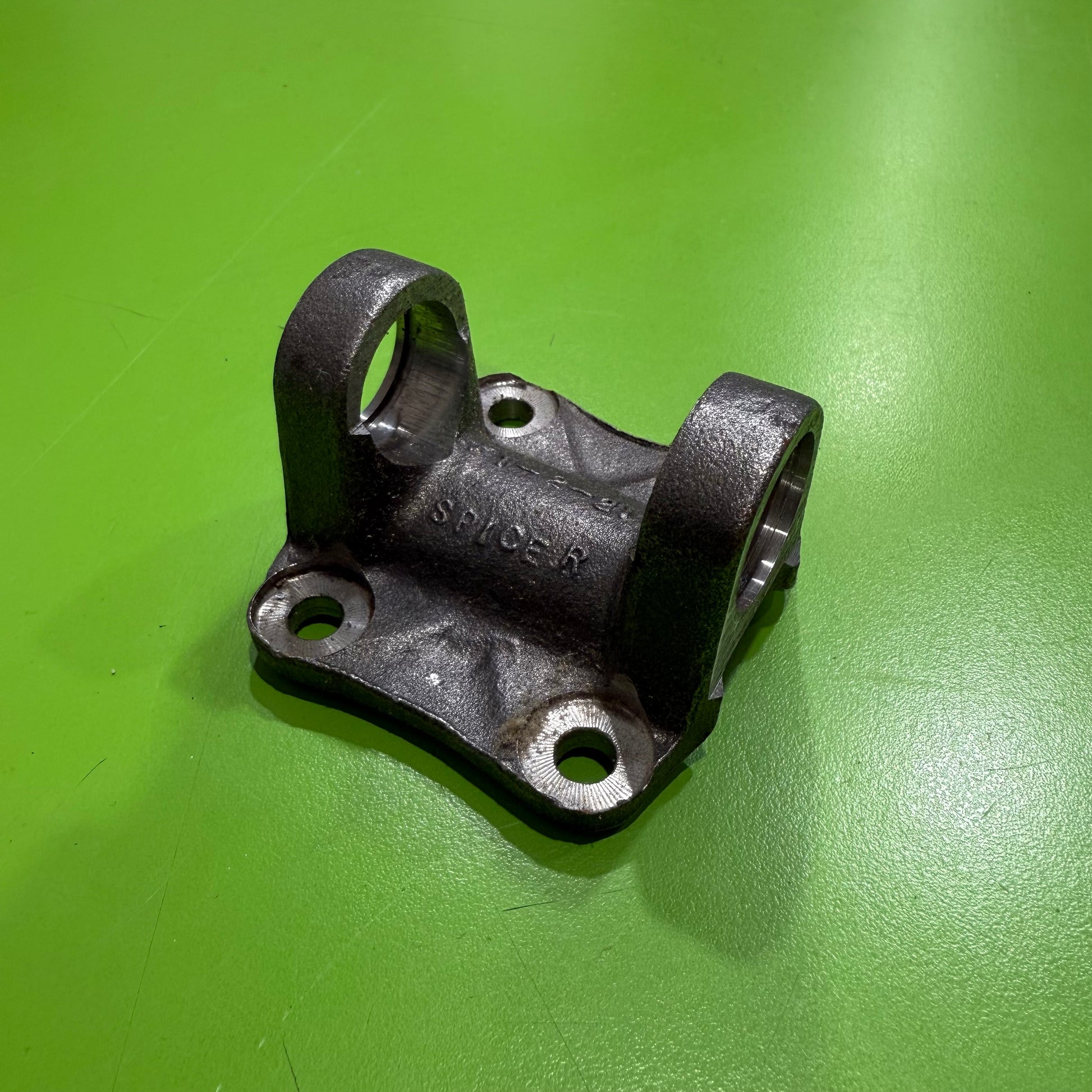

Dana Spicer Drivetrain Products Yokes 1-2-39

The Dana Spicer 1-2-39 is a steel flange yoke designed for 1100/1110-series driveline and power take-off (PTO) applications. Manufactured to Spicer driveline specifications, this flange yoke provides a durable connection point between the driveshaft universal joint and mating flange.

The 1-2-39 features a 2.250-inch male pilot, 2.750-inch bolt circle, and four 0.312-inch drilled mounting holes. It accepts 1100/1110-series universal joints with 0.938-inch bearing caps and uses an outside snap-ring retention design.

Product Features:

• Genuine Dana Spicer driveline component
• 1100/1110-series flange yoke
• Designed for PTO and driveline applications
• Steel construction
• 2.250" male pilot
• 2.750" bolt circle
• Four 0.312" drilled bolt holes
• 0.938" U-joint bearing cap diameter
• 2.656" outside yoke width
• 1.188" flange face-to-U-joint centerline
• Outside snap-ring U-joint retention
• Compatible with Spicer 5-101X and 5-111X U-joints
