[GARAGE SALE] - Radium Fuel Surge Tank Install Kit, BMW E46, Excl Convertible

******THIS IS NOT A NEW CONDITION PRODUCT - NO ACCEPTABLE REFUNDS - READ BELOW******

DISCONTINUED

COMPATIBILITY
99-06 BMW E46 3-series or M3
*NOT COMPATIBLE WITH CONVERTIBLES

The BMW install kit locates the FST in a collision-safe area of the trunk behind the rear seat. The bolt-on aluminum mounting bracket features rubber isolating grommets to reduce fuel pump noise. Also included is a weatherproof fuse and relay to drive the new FST fuel pump. A Delphi weatherpak connector is also provided for the fuel pump trigger activation to make the entire system modular.

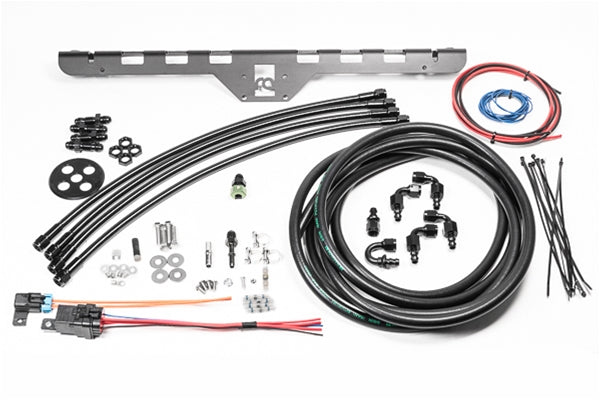

As shown above, four 6AN PTFE hoses are provided which are cut to length and preassembled.

The PTFE hoses mate at a junction point in the trunk using the bulkead plate and 4 bulkheads fittings (shown above) for interior aesthetics.

INCLUDES

-Preassembled 3/8" PTFE Hoses
-Aluminum Mounting Bracket with Vibration Isolators
-AN Bulkhead and Adapter Fittings
-Stainless Steel Hardware
-40 amp Relay and 25 amp Fuse
-Anodized Aluminum Bulkhead Plate
