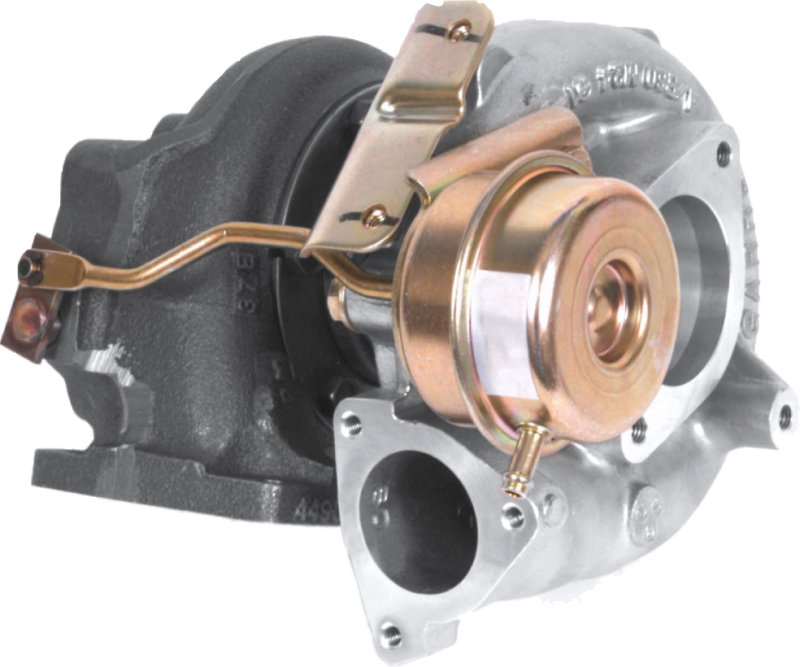

Garrett - GT2560R Turbo Standard Rotation 42MM Comp Ind 0.64 A/R T25 Turbine Inlet 5-Bolt Turbine Outlet

Garrett - GT2560R Turbo Standard Rotation 42MM Comp Ind 0.64 A/R T25 Turbine Inlet 5-Bolt Turbine Outlet

GRT836023-5004S/DHQ

$1,357.93 USD
$1,357.93 USD $1,357.93 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

Horsepower: 170 - 270

Displacement: 1.4L - 2.2L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 46mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA

          Turbocharger Part Number Chart:


          Turbo Reference Data Compressor Turbine
          Turbo PN CHRA Inducer Exducer Trim A/R Inducer Exducer Trim A/R
          836023-5004S 835995-0003 46mm 60mm 60 0.80 53mm 42mm 62 0.64


          About Garrett® GT Series Turbochargers

          Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
