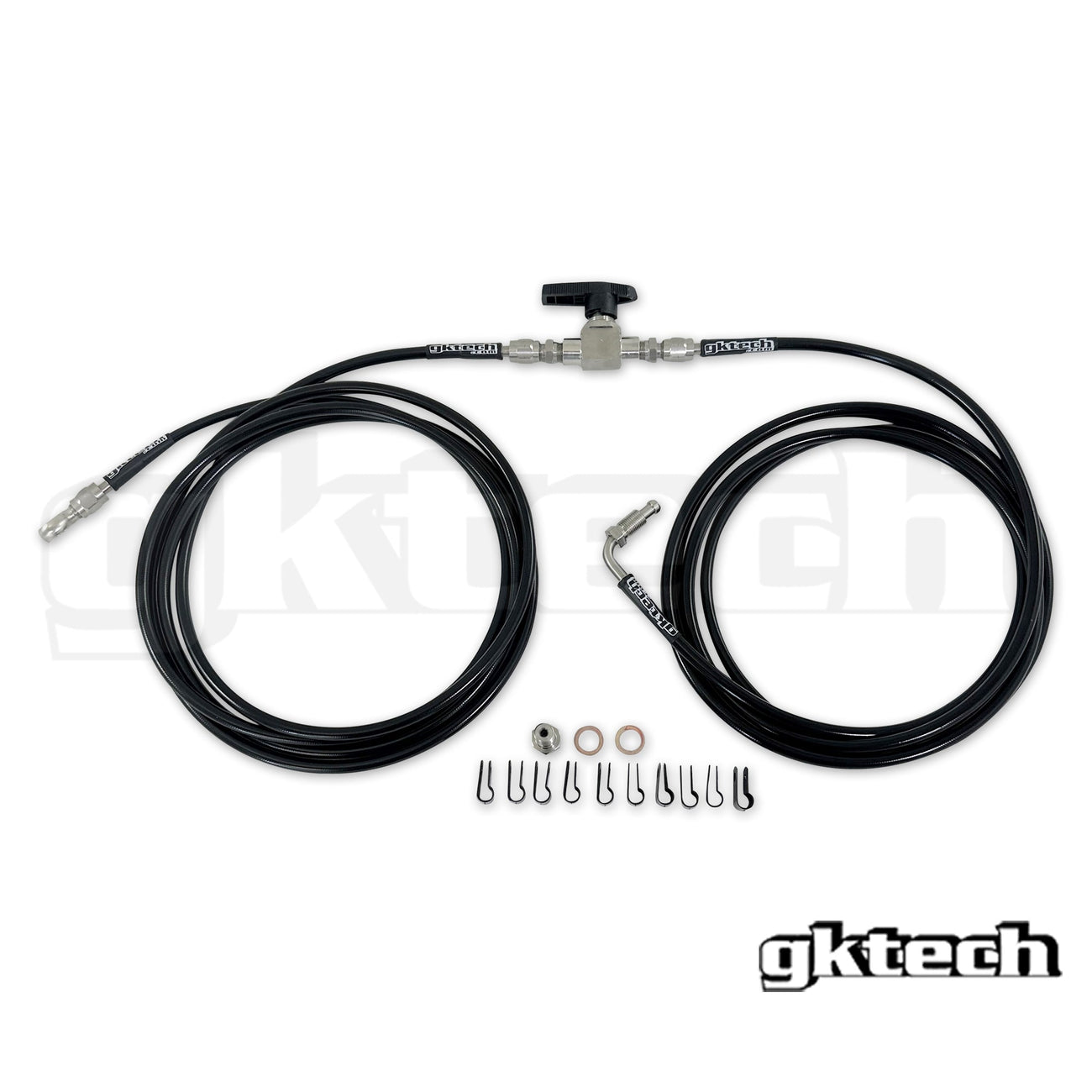

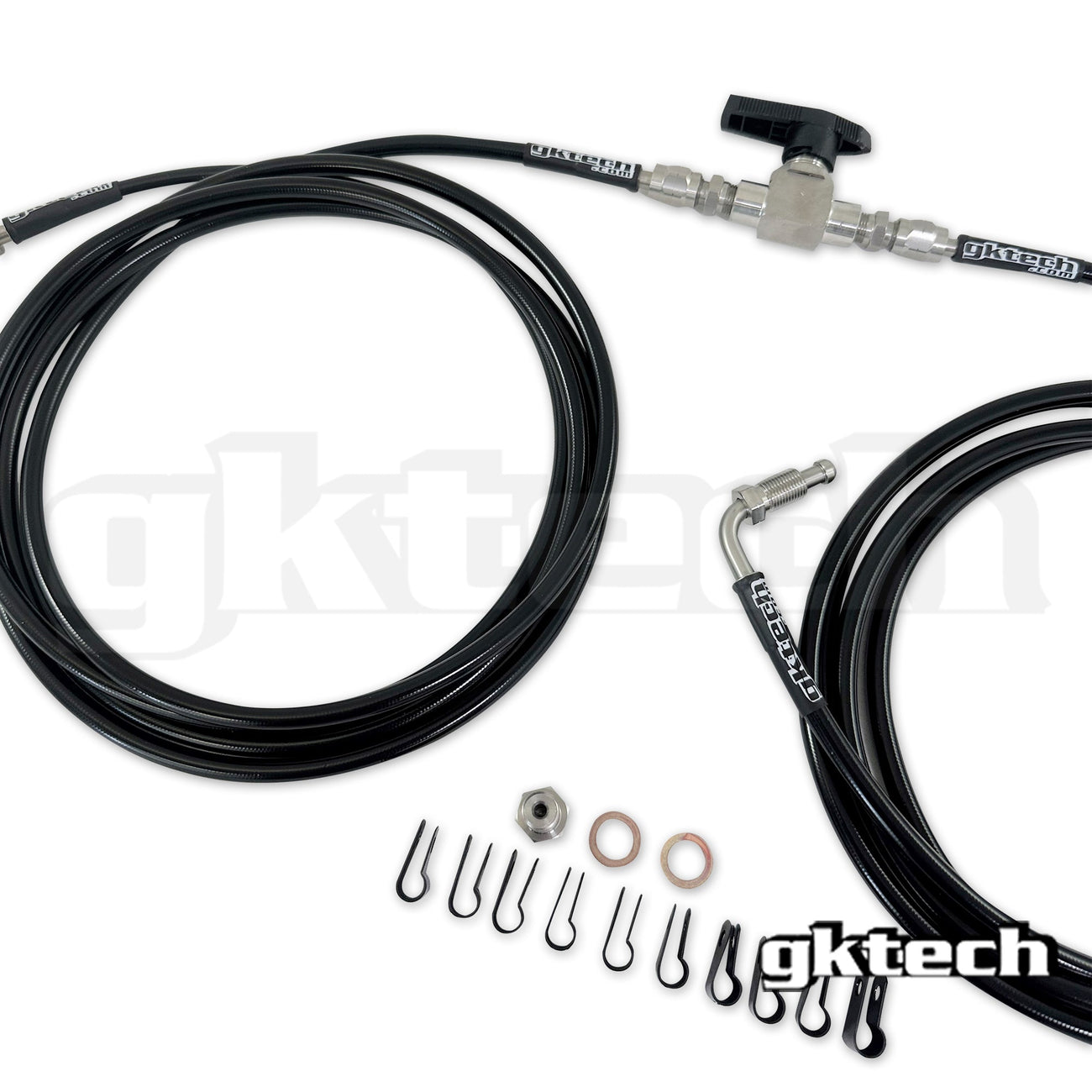

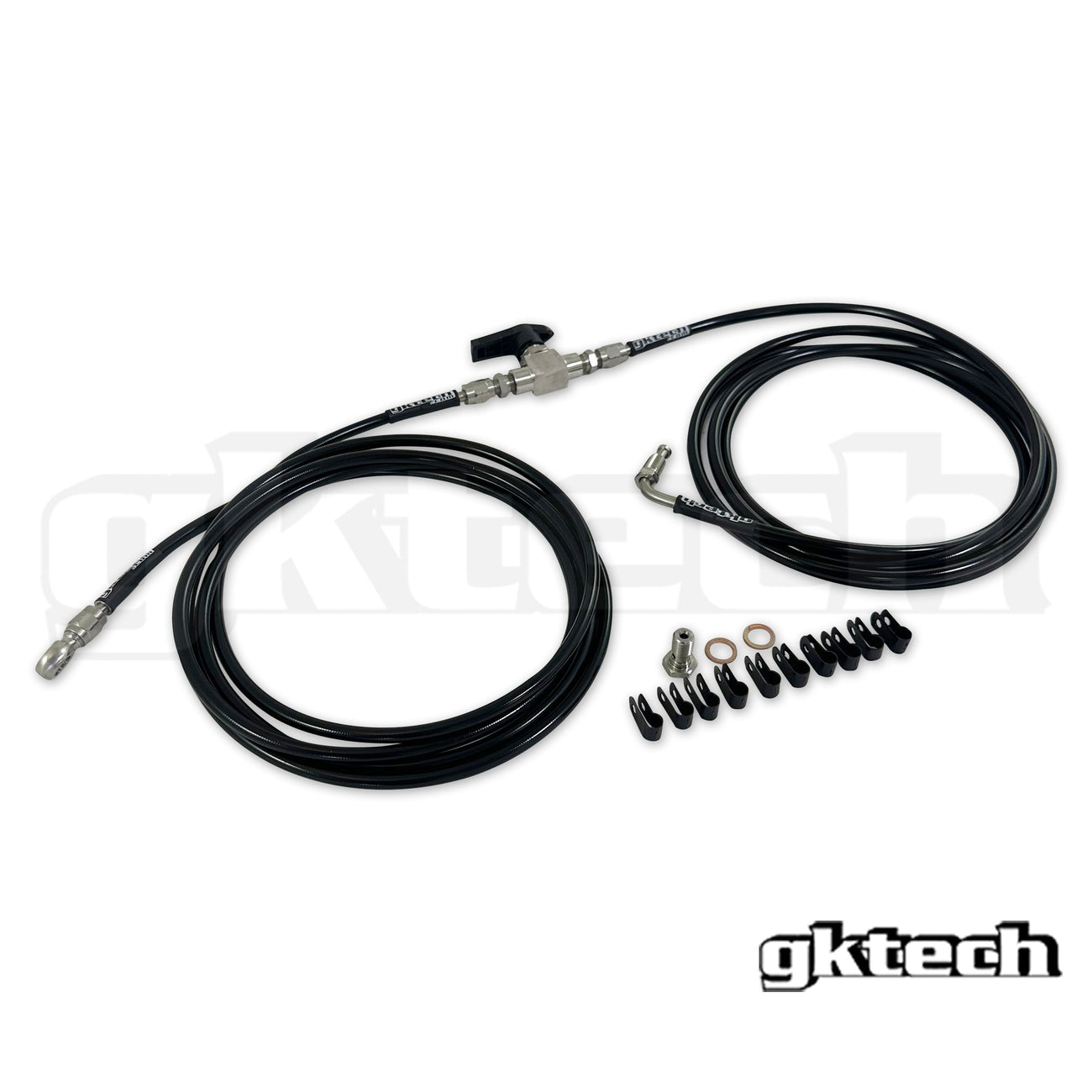

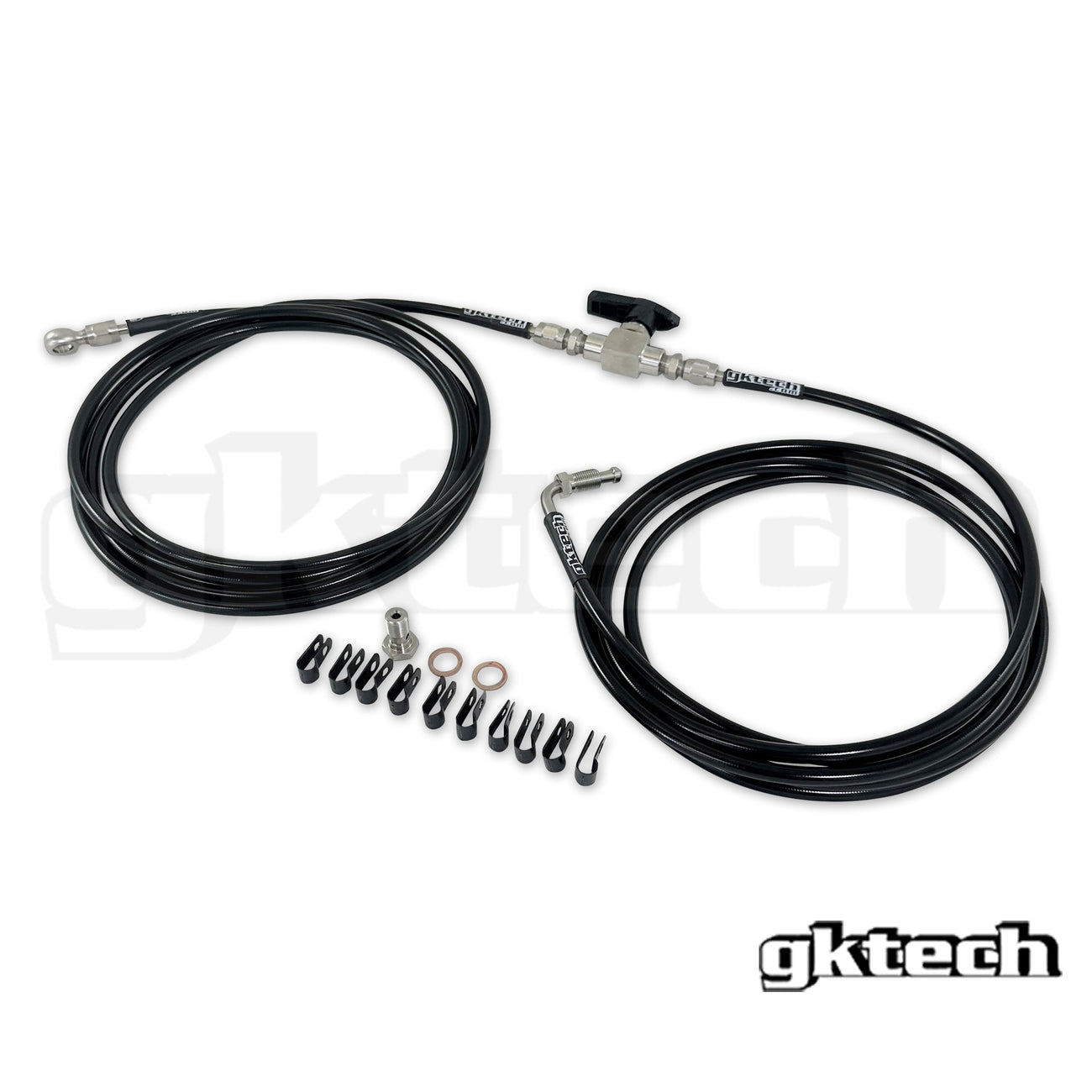

GKTech - 240SX/SKYLINE REAR BRAKE LINE LOCKER KIT

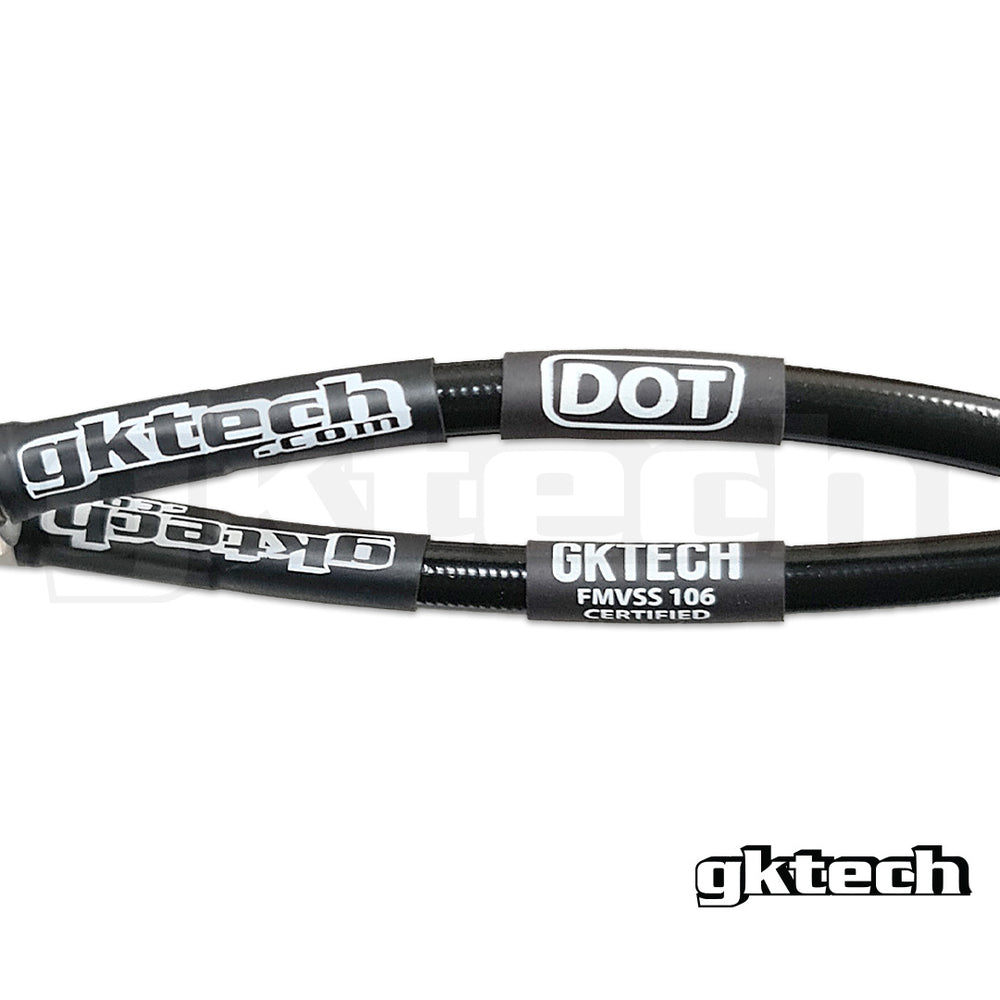

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines DOT compliant in the USA and they are marked as such on the brake line assemblies.

The FMVSS106 testing procedure that the lines have been tested against includes the following tests:

• 370lbs pull test
• 35 hour whip test
• 7000psi burst test
• -45degF to 245degF temperature tests
• 24 hour salt corrosion resistance test

We developed these kits so that the rear brake lines can be simply disengaged in the flick of a switch for your next victory burnout, without frying the rear brakes!

Our kit is super easy to install, simply remove the single hard line and connect our braided line to the master cylinder, running the lock off valve where ever you desire in the cabin, and then the braided line back to the rear brake line block in the engine bay. Total install time should be around 30 minutes. For race cars only, however, no permanent modifications are required.

NOTE: Will fit both LHD and RHD vehicles
