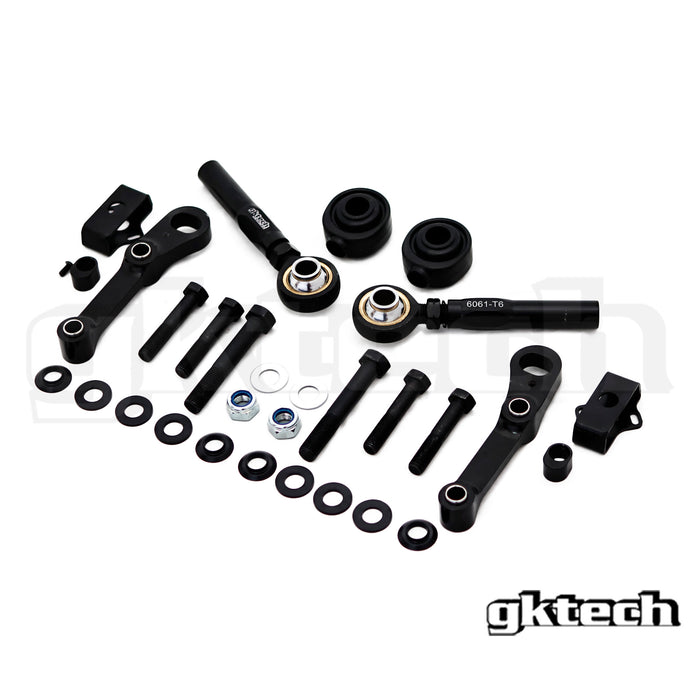

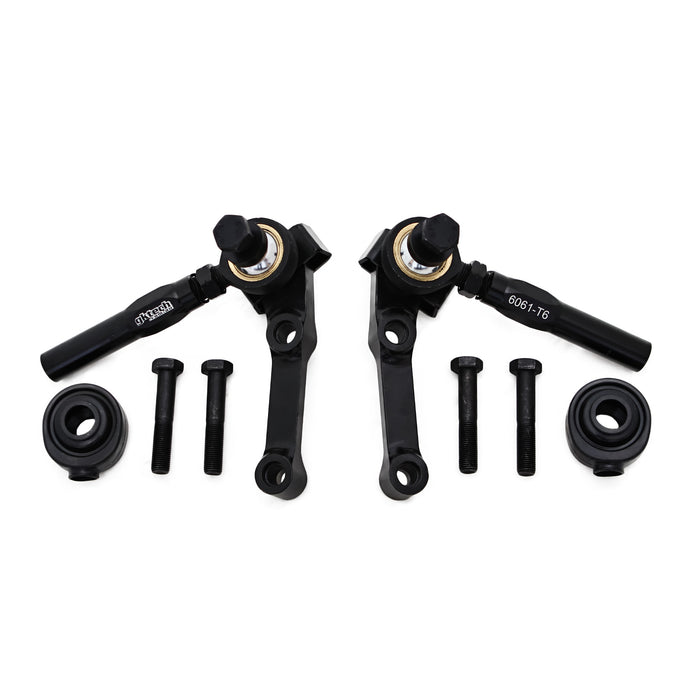

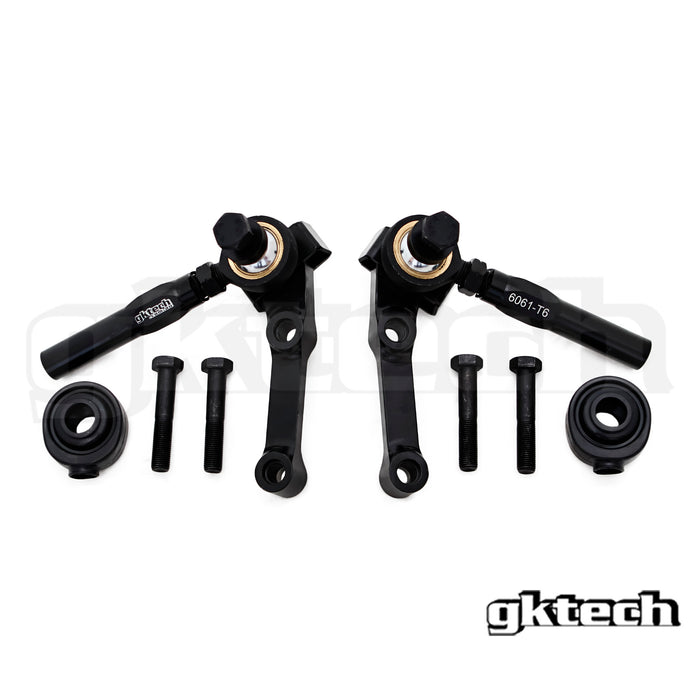

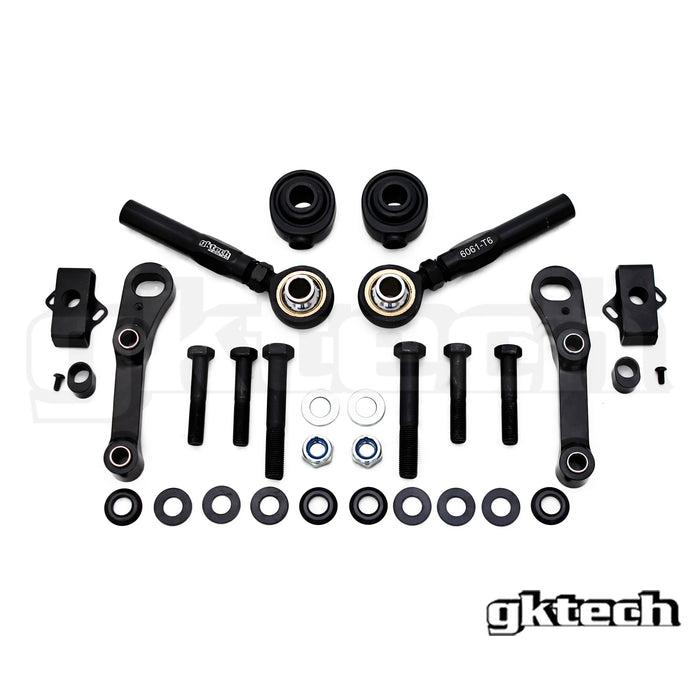

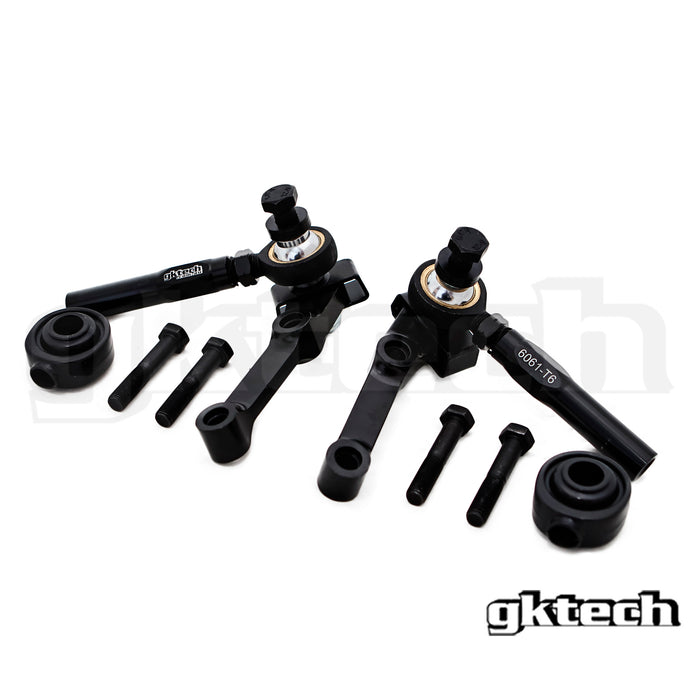

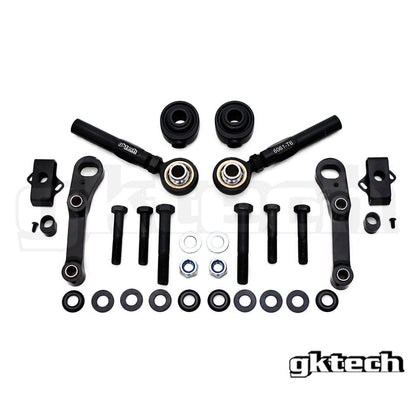

GKTech - IS200/IS300 STEERING ANGLE KIT WITH ACKERMANN ADJUSTMENT

The GKTECH IS200/IS300 angle kit is a simple, lightweight, easy to install and super effective steering kit.

If you own one of these vehicles, you will know the OEM steering angle sucks! We measured them to have less than 40 degrees lead wheel and 32 degrees trailing. This kit will instantly allow you to get around 45 degrees of lock lead wheel and with adjustable Ackerman you can achieve substantially more trail wheel lock and front end grip.

These billet adapters have been CAD designed and FEA tested to ensure optimal geometry and strength with a 4130 billet chromoly steel construction.

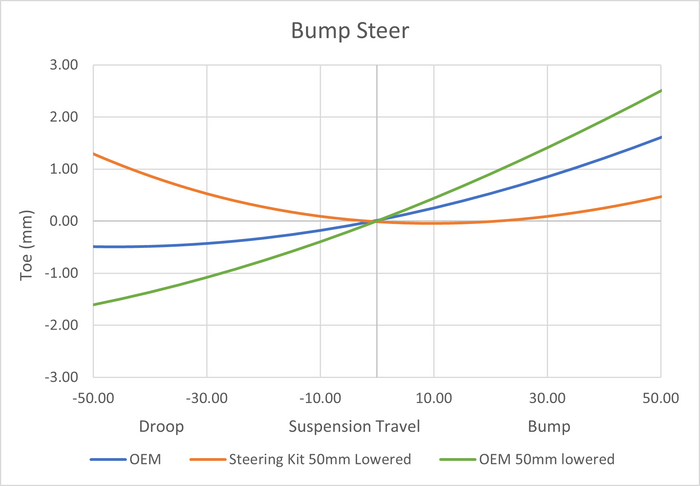

Steering speed has been increased by 30%, suitable for both the dedicated drift cars whilst working equally as well for a grip/street car looking to speed your steering up. Bump steer has been optimised for a more predictable and consistent steering feel.

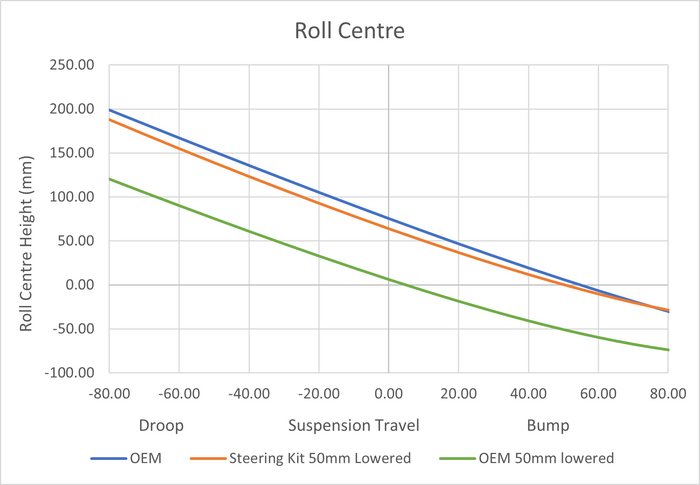

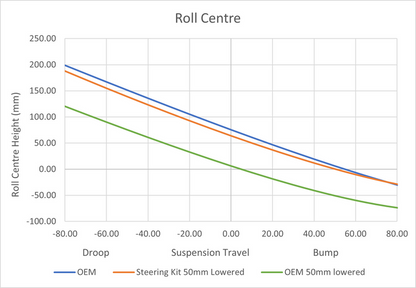

25mm of roll centre correction has been included to prevent excessive body roll and return a lowered vehicle back to OEM values. Adjustable Ackermann has been included to give the option between OEM and less Ackermann for more parallel steering. We've also included an adjustable lock stop is included to allow for compatibility with extended LCA's.

- 4130 Billet Steel construction
- 30% faster steering
- 7.5mm of bump steer adjustment
- 25mm of Roll centre correction
- Adjustable Ackermann
- Adjustable lock stop
- Circa 45 degrees of steering lock

NOTE - Removal of the OEM tie rod pickup is required. This is a permanent modification.
