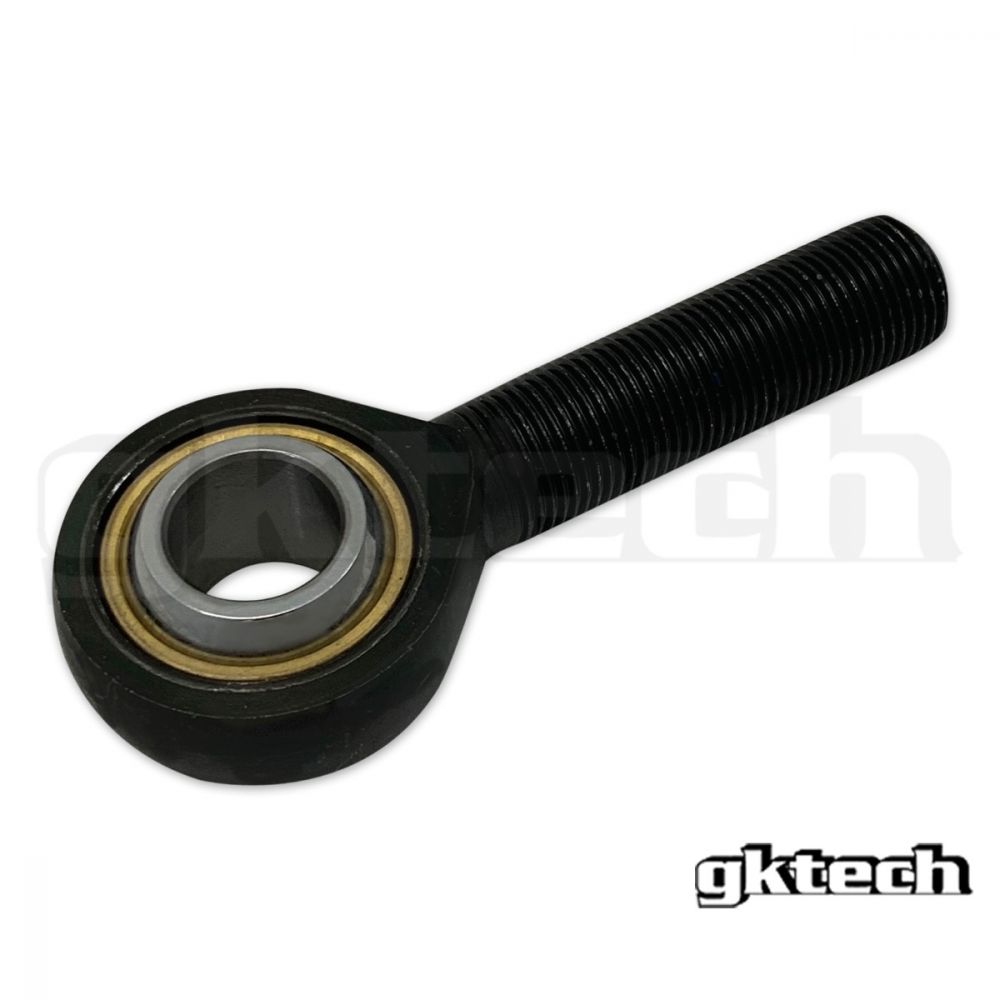

GKTech - REPLACEMENT PCML12TES HEIM

GKTech - REPLACEMENT PCML12TES HEIM

SKU: PCML12TES ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

This purchase would enter you into the 1999 Mitsubishi Evo with 4 entries. Learn more
$18.00 USD
$18.00 USD
Sale Sold out

Replacement PCML12TES heim (can also be replaced with PCML12T, non extended version and PCML12TE)

Used in the following GKTECH products:
Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)
V3 and V4 Rear camber arms (SKU = REAR-CMBR and STRT-CMBR)
V3 and V4 Rear toe arms (SKU= S13X-TOEX and S145-TOEX)
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S14/S15/R33/R34 subframe)
R32 front upper camber arms (SKU= R32X-FUCA)
R33 front upper camber arms (SKU= R33X-FUCA)
V2 Rear LCA's (SKU=REAR-LCAX)
V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)
V3 and V4 Front tension rods (SKU = S13X-CSTR and S145-CSTR)
Z33/350z Front upper camber arms (SKU = Z33X-FUCA)
Z33/350z Rear camber arms (SKU = 350Z-CMBR)
Z33/350z Front super lock arms (SKU = Z33X-FLCA)
Z33/350z Toe arms (SKU=350Z-TOEX)





PCML12TES

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
2.53 in 64.45 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF LH 3/4 - 16 UNF LH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.8700 in 47.4980 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined

VEHICLE COMPATIBILITY

NISSAN

R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GTR
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
Z32 300ZX
Z33 350Z
Z34 370Z

INFINITI

G35
G37
