GKTech - REPLACEMENT PCYML10TS TIE ROD END HEIM

GKTech - REPLACEMENT PCYML10TS TIE ROD END HEIM

SKU: GKTECH-PCYML10TS ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

$22.00 USD
$22.00 USD
Sale Sold out

Now accepting crypto with

Coinbase Commerce logo

Choose Coinbase at checkout

View full details

Product Details

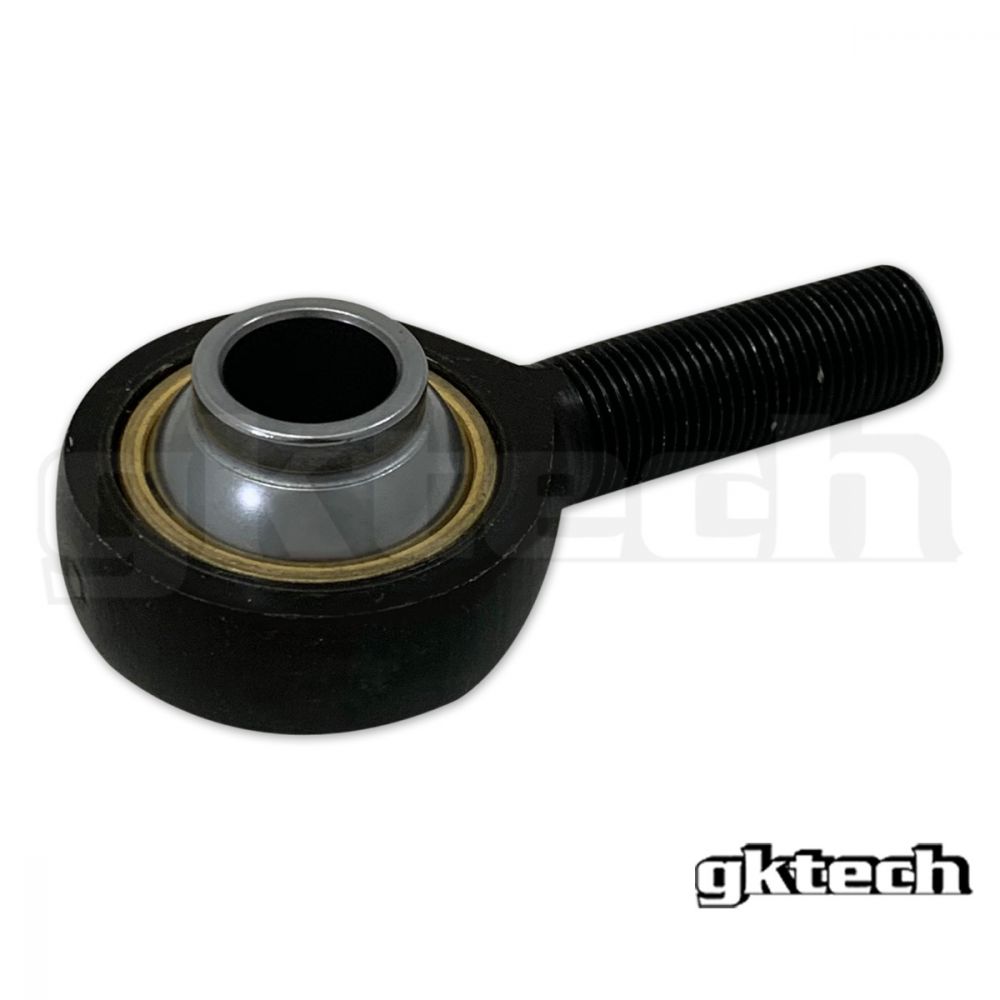

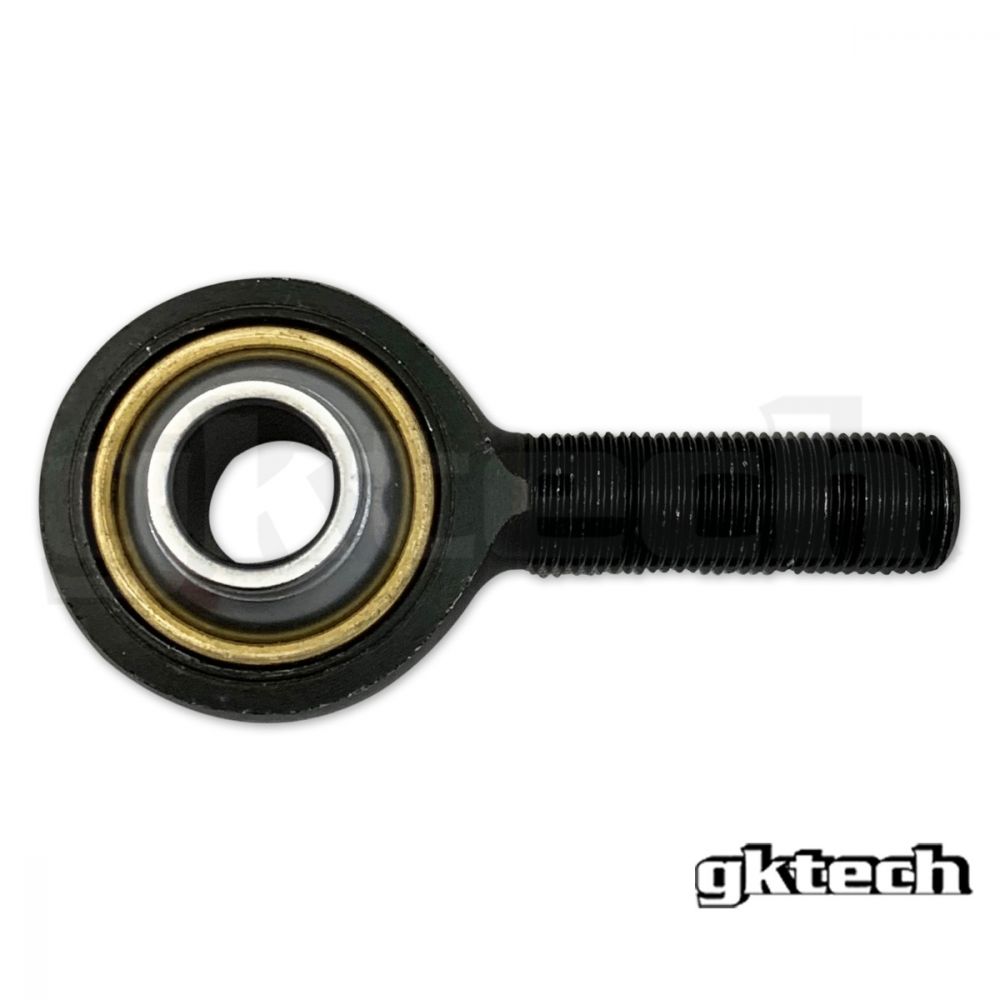

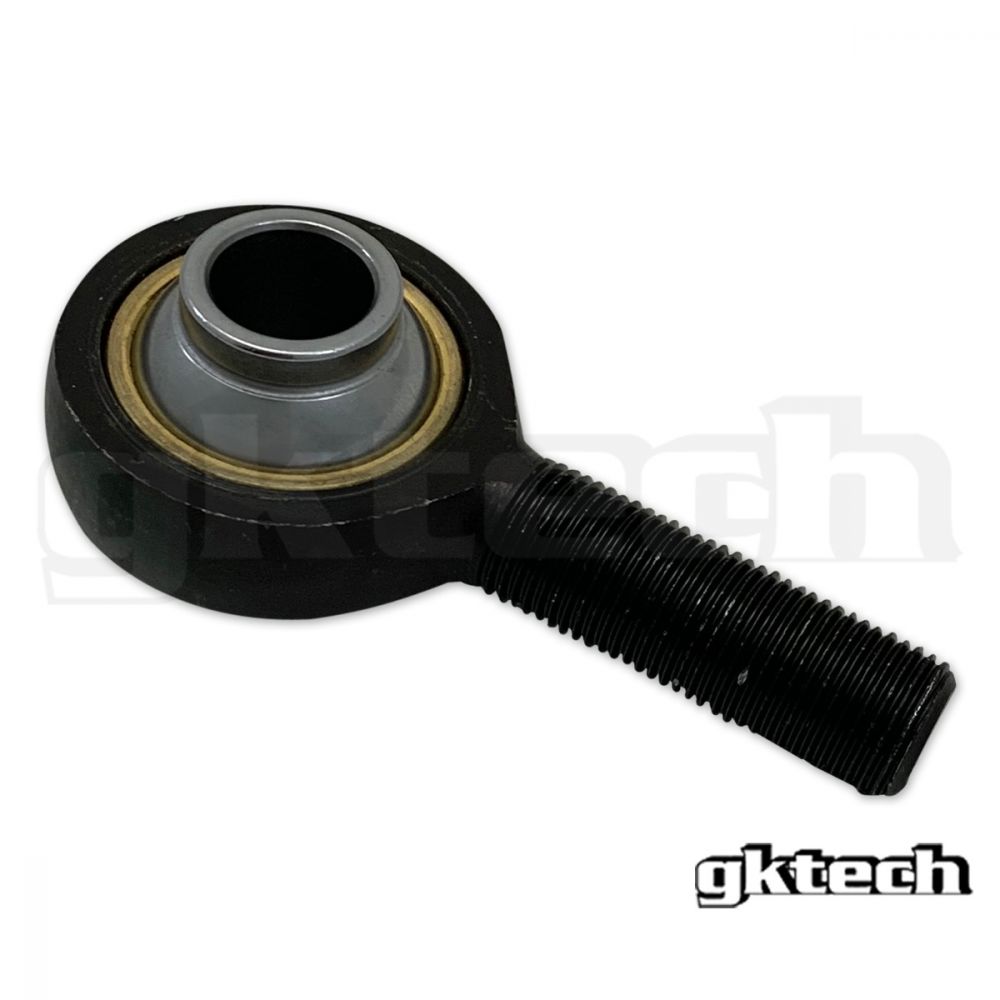

Replacement PCYML10TS tie rod end heim Used in the following GKTECH products:

M12/M14 tie rod ends (SKU = M125-TROD, M145-TROD, Z33X-SSTR, Z34X-SSTR, Z33X-TROD, GTRX-TROD)



Sold individually

PCYML10TS

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.6250 in 15.8750 mm
ROD END BALL WIDTH ROD END BALL WIDTH
1.3750 in 34.9250 mm
THREAD LENGTH THREAD LENGTH
2.0000 in 50.8000 mm
THREAD SIZE THREAD SIZE
5/8 - 18 UNF LH 5/8 - 18 UNF LH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
2.0000 in 50.8000 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
64 degrees 64 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined

VEHICLE COMPATIBILITY

NISSAN

R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
Z32 300ZX
Z33 350Z
Z34 370Z

INFINITI

G35
G37

SCION

FR-S ZN6

TOYOTA

GT86 ZN6
