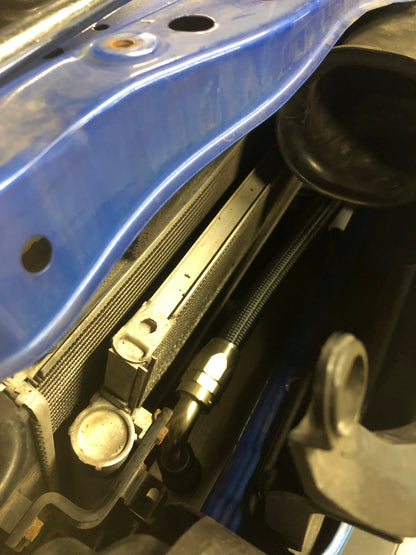

Grassroots Performance - FRS/BRZ/GT86 DIRECT-FIT 19-ROW OIL COOLER KIT

GRASSROOTS PERFORMANCE OIL COOLER KIT FOR FRS/BRZ/GT86

NEW RELEASE!

ALL FRS/BRZ/GT86 KITS NOW COME EQUIPPED WITH A DIRECT FIT MOUNTING  BRACKET. THIS BRACKET ALLOWS YOU TO MATE THE COOLER TO YOUR EXISTING FACTORY BOLT HOLES ON YOUR CHASSIS.  NO CUTTING, NO DRILLING, NO HASSLE!

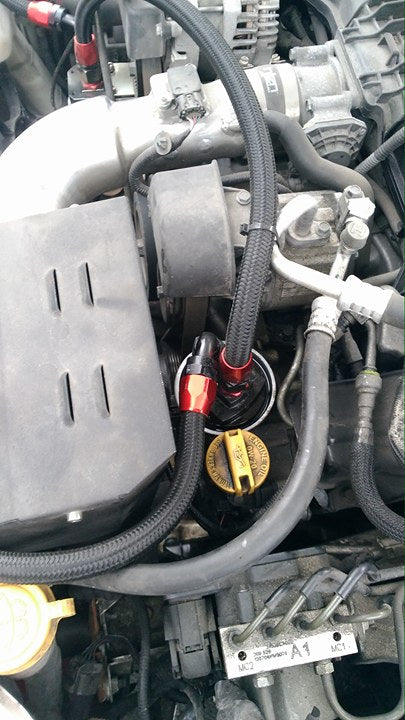

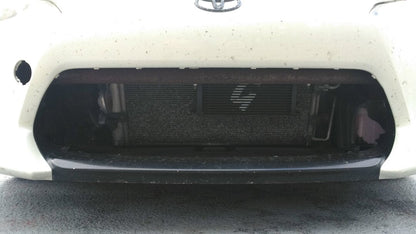

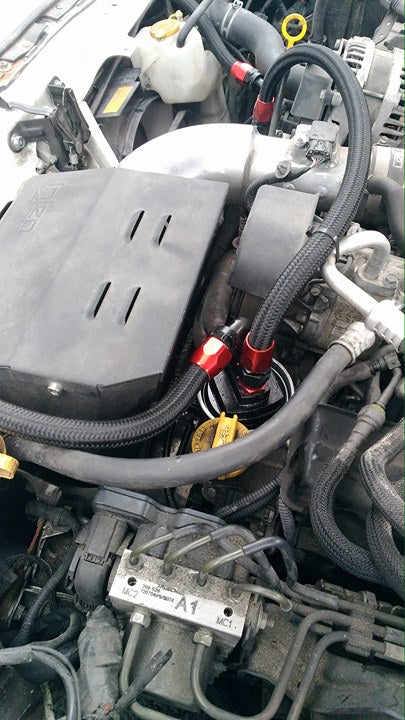

Grassroots Performance has tested the quality and fitment of our Standard and filter relocation 19-row oil cooler kits on the Scion FRS, Subaru BRZ, and Toyota GT86. Using the provided hardware and fitting this is a bolt-on application for these models. Keep it simple and use our Grassroots direct fit filter plate, or relocate the filter to the center of the engine, mounting the cooler upfront. The kit included brackets + hardware and has everything needed to make this kit easy to install.

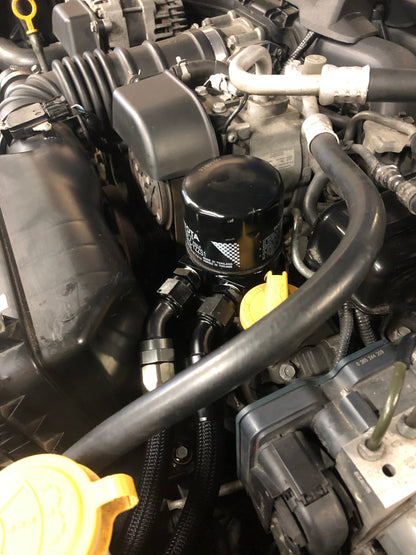

A vital upgrade to any performance/track builds for added cooling and engine bay space. The oil leaves the block and travels through our adjustable length high temperature/high-pressure fuel line hoses. Classic design and proven engineering, this 2" thick dual pass oil cooler kit allows your oil to maintain peak performance temperature, also aiding the engine cooling system from being overworked. The oil filter relocation kit gives you the ability to place the filter at any location and the option of having ports for oil feed or oil sensor placement. Simple design and simple installation are both key functions of this bolt-on kit.

• Core Size: 11.5" x 5.5" x 2.00"
• Overall Size: 13" x 6.6" x 2.00"
• High-Quality T-6061 Aluminum
• Working load tested up to 150 psi
• .38L increased oil capacity
• -10AN In/Out

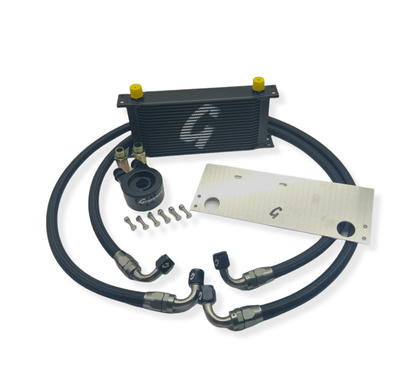

Standard Kit

[1] 19 Row Oil Cooler
[2] -10AN 90-Degree Swivel Fittings  Installed on Lines (Adjustable Length)
[1] Direct-Fit Oil Cooler Adapter Plate

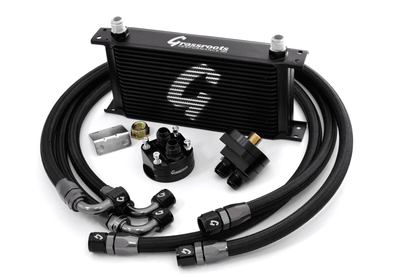

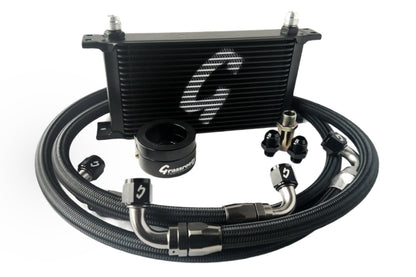

Filter Relocation Kit

[1] 19 Row Oil Cooler
[3] -10AN 90-Degree Swivel Fittings  Installed on Lines (Adjustable Length)
[1] Direct-Fit Oil Cooler Adapter Plate
[1] Filter Relocation Block
[1] Oil Filter Block Bracket
