Improved Racing - CCS oil catch can vent to atmosphere filter

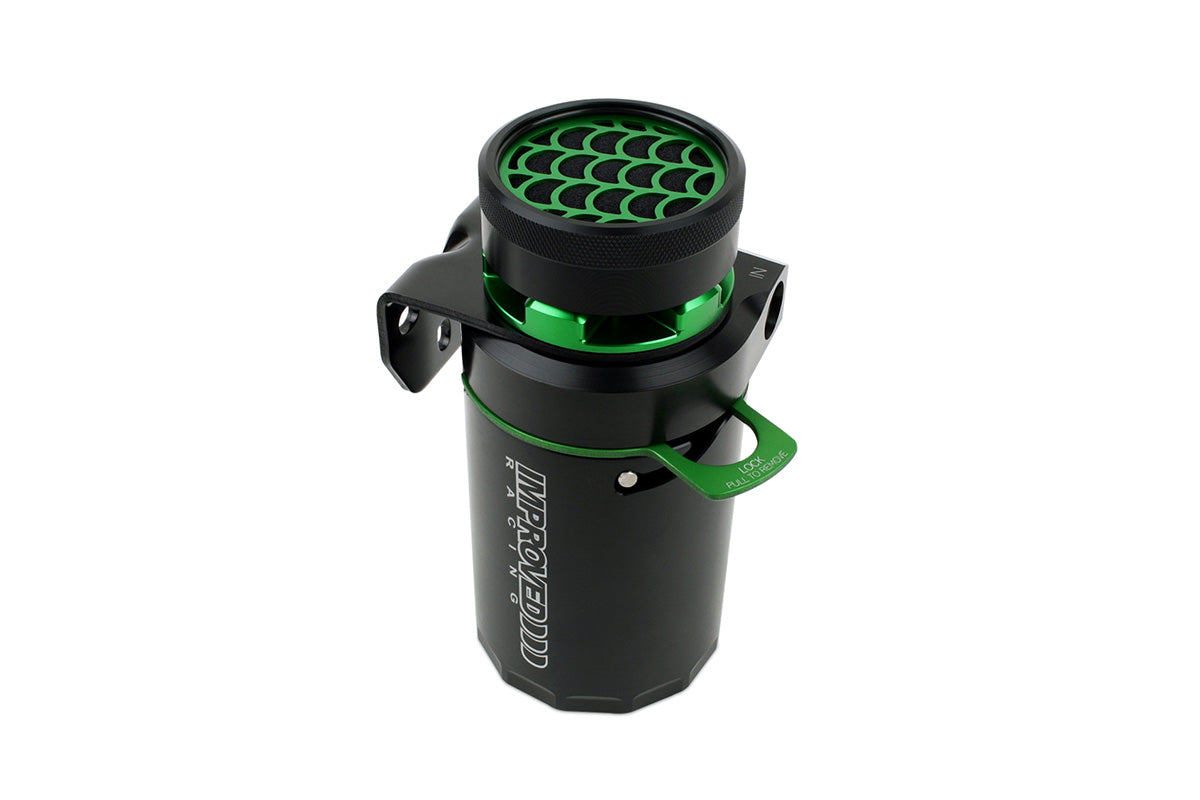

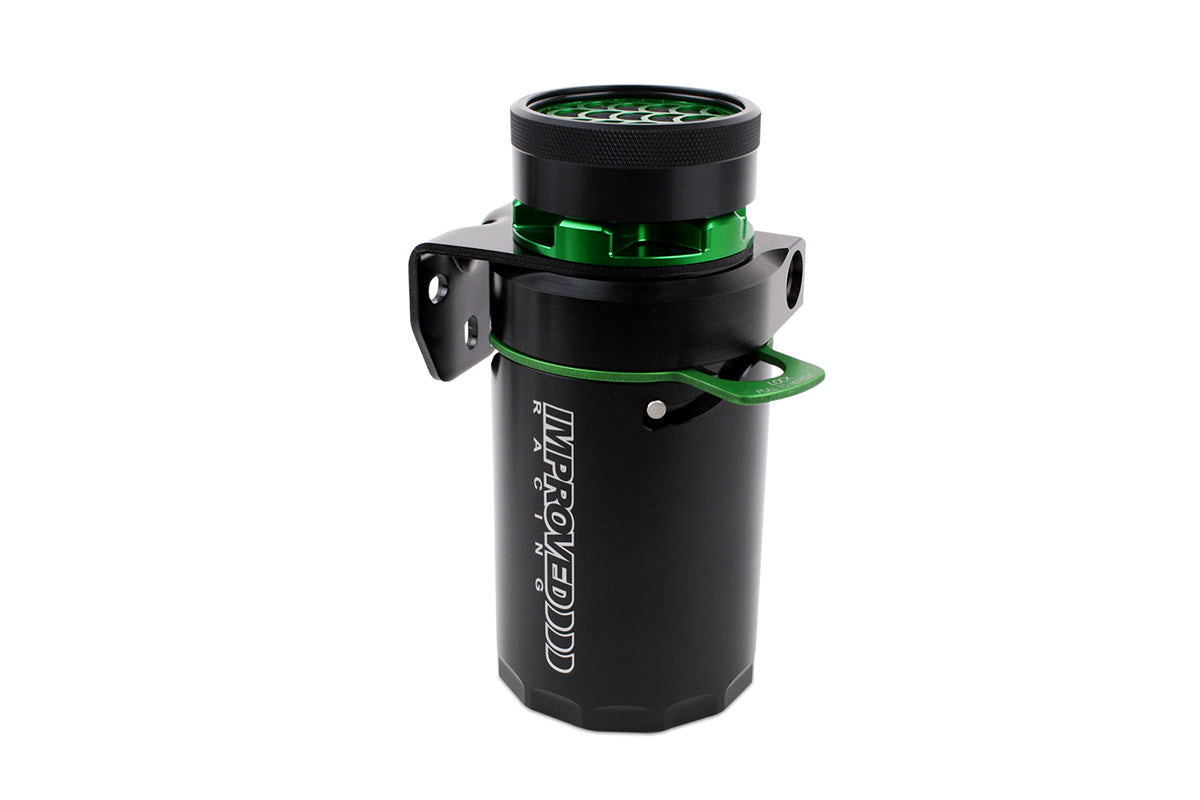

Vent your Improved Racing CCS oil catch can to atmosphere with this low-profile filter that screws directly to the top of the can. This filter features a very low restriction, washable polyester foam filter. We chose to use foam filters because they were found to be more effective than pleated gauze filters in this application and allowed for a low profile design.

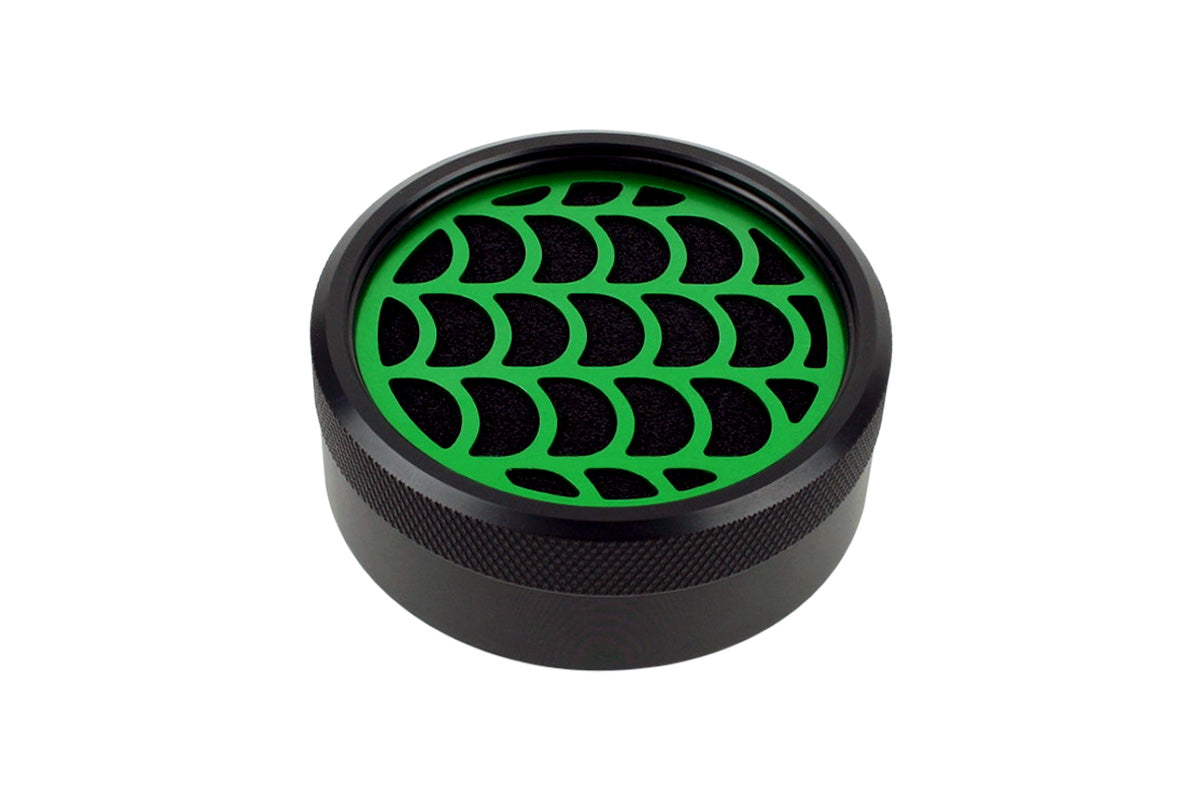

The filter housing incorporates a unique dispersion baffle plate to help distribute air flow evenly across the filter. The internal profile is CNC machined on a lathe with smooth edges to promote efficient air flow.

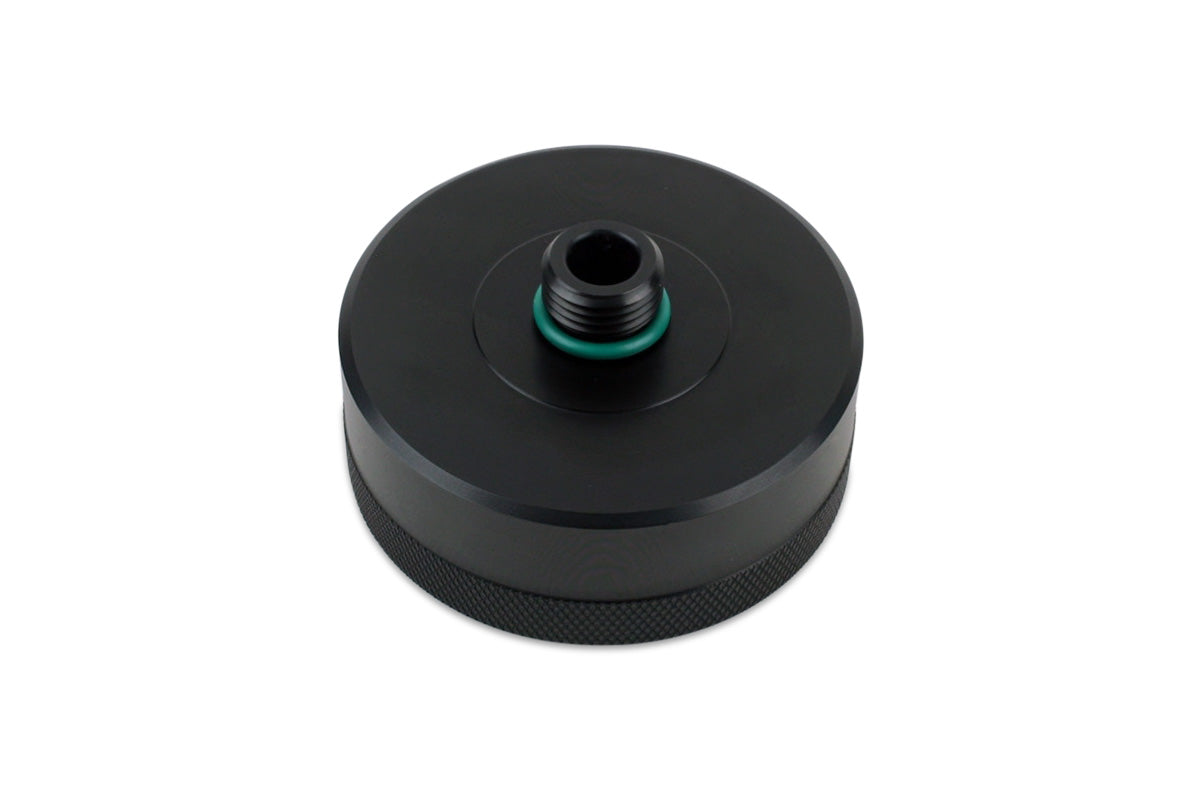

The housing features a male -6 O-ring boss thread on the bottom that attaches directly to the top exit port of CCS series oil catch cans.

Easy Maintenance

The housing is easy to disassemble for cleaning and servicing without special tools.

Parts Included

• 1 x CNC-machined aluminum filter housing for CSS oil catch can
• 1 x 100 ppi polyester foam filter
• 1 x Dispersion baffle plate, green anodized vent screen, and retaining ring

Applications

• Compatible with all CCS series oil catch cans.
• Compatible with any -6AN female O-ring boss port.
