Improved Racing - Oil sensor, accumulator, and turbo feed adapter, -8AN ORB and two 1/8" NPT ports, LS engines

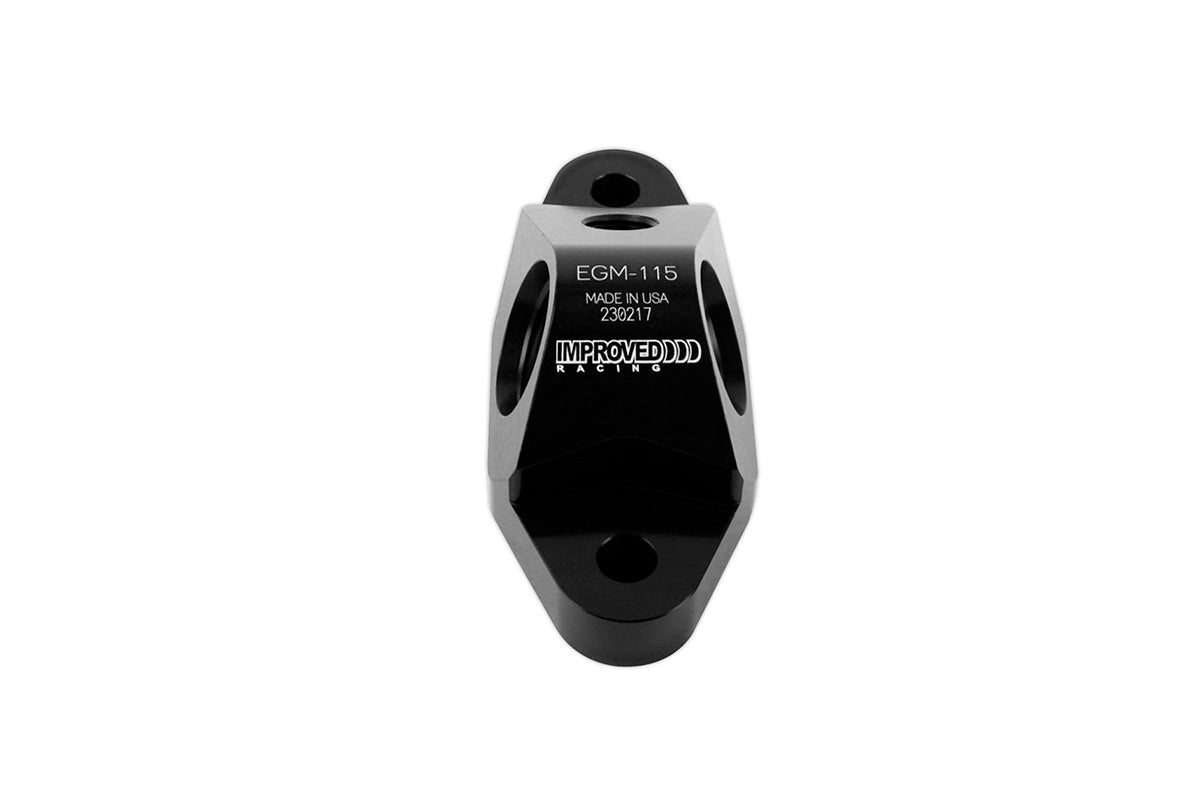

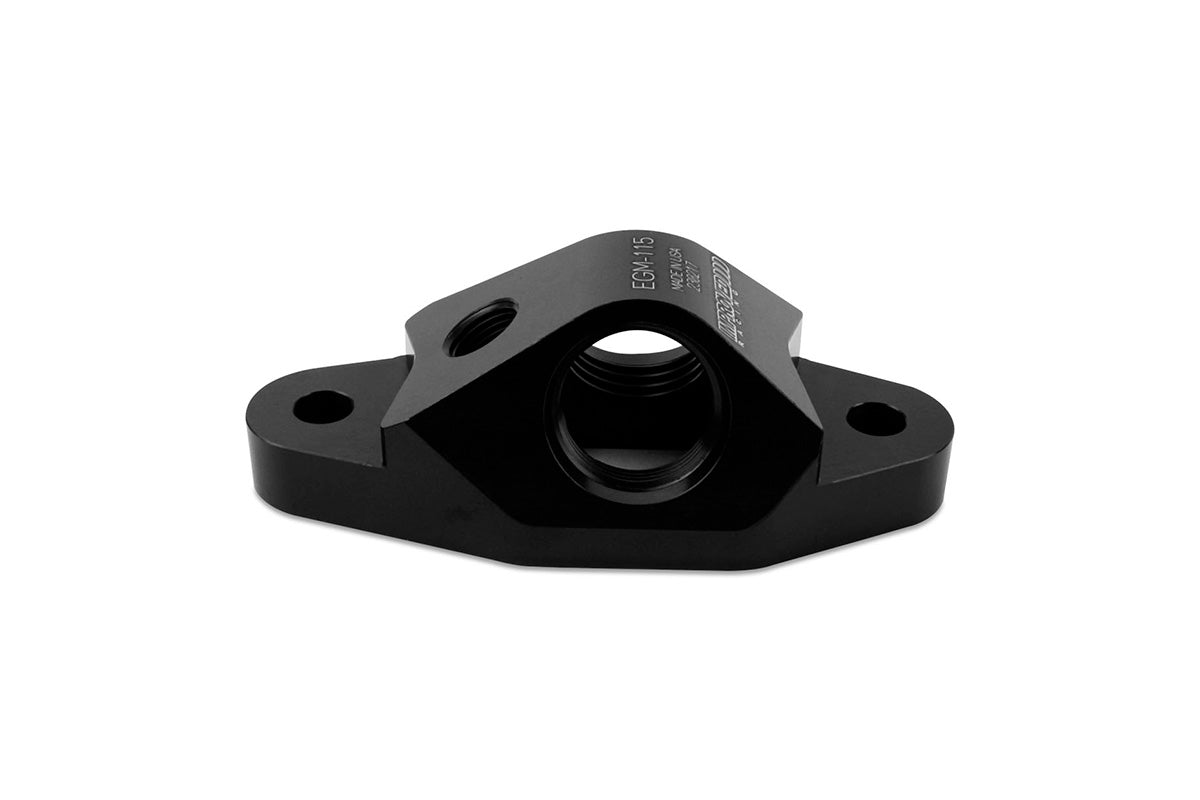

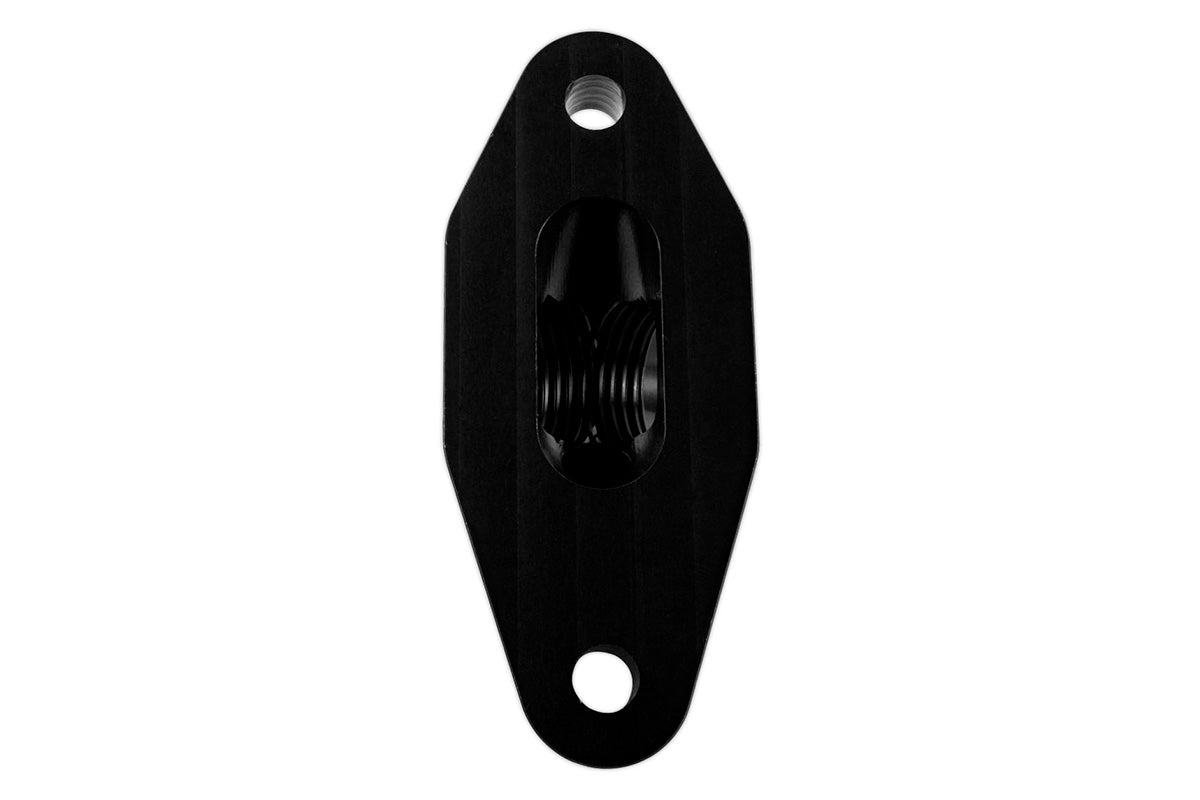

Improved Racing's EGM-115 oil cooler block-off cover plate installs over the oil cooler ports found on some GM Gen V small-block (LT series) oil pans.

This adapter has two -8 O-Ring boss ports plus one 1/8" NPT sensor port. The -8 ORB ports can be used with up to -12AN lines to feed an oil accumulator or turbos. Optional -8 ORB sensor adapter plugs are offered for both 1/8" NPT threads and M12 threads.

The bypass cover is CNC-machined from billet 6061-T6 aluminum and Type II anodized in black. It features a large ported internal cavity with smooth features to improve flow characteristics when compared to the factory diecast bypass cover. One -8 O-ring boss plug and one 1/8" NPT plug are both included for unused ports.

Features & Benefits

• Bypass cover is CNC-machined from 6061-T6 billet aluminum, Type II anodized in black, and laser marked.
• Improved flow characteristics over the factory diecast bypass cover.
• Features 2 x -8 ORB ports (one on top and bottom) and one 1/8" NPT port.
• Ports may be used for an oil accumulator, turbo feed, or for 1/8" NPT or M12 sensors.

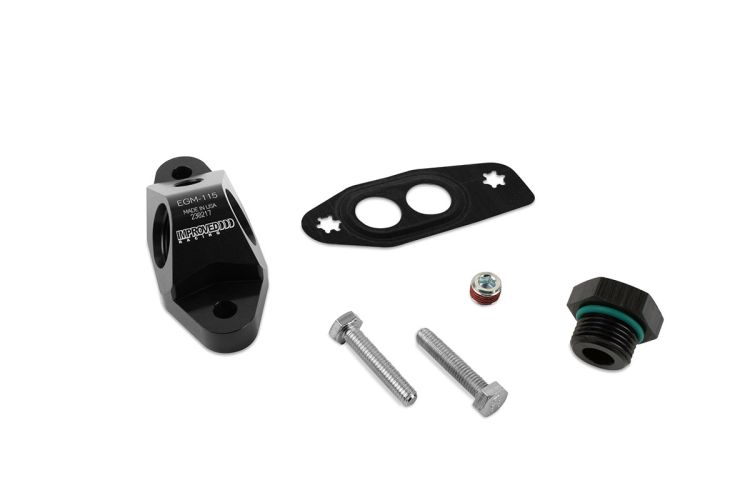

Includes

• Adapter cover
• Gasket
• Mounting screws
• 1 x -8 O-ring Boss plug
• 1 x 1/8" NPT sensor port plug

Applications

• 2014-2019 Chevrolet Corvette (C7), all models
  • Factory oil cooler delete is required. Use Improved Racing delete kit part # EC7-681.
  • Corvette oil pan part numbers:
    • 12684491
    • 12696685
    • 12696686
• 2014+ GM EcoTec3 V8 5.3L, 6.2L and 6.6L trucks, oil pan part numbers:
  • 12707243
  • 12684607
  • 12696280
  • 12684605
  • 12666995
• Holley Gen V LT Pans, part numbers:
  • 302-20
  • 302-20BK
  • 302-21
  • 302-22
• May fit GM trucks with Gen V Chevrolet small block V8 engines
• May fit other vehicles using the Gen V Chevrolet small block LT1, LT4, LT5, L86 and L83 engines
• Does not fit GM truck oil pan part # 12696280
• Does not fit 6th Gen Camaro SS and ZL1 oil pan
• Does not fit 2014-2019 Cadillac CTS-V oil pan
• Does not fit 2020+ Cadillac CT5 Blackwing oil pan

NOTE: This adapter cannot be used with two -8 ORB plugs, as the plugs will interfere with each other. It should only be used with our compatible adapter fittings or one plug plus an adapter fitting.
