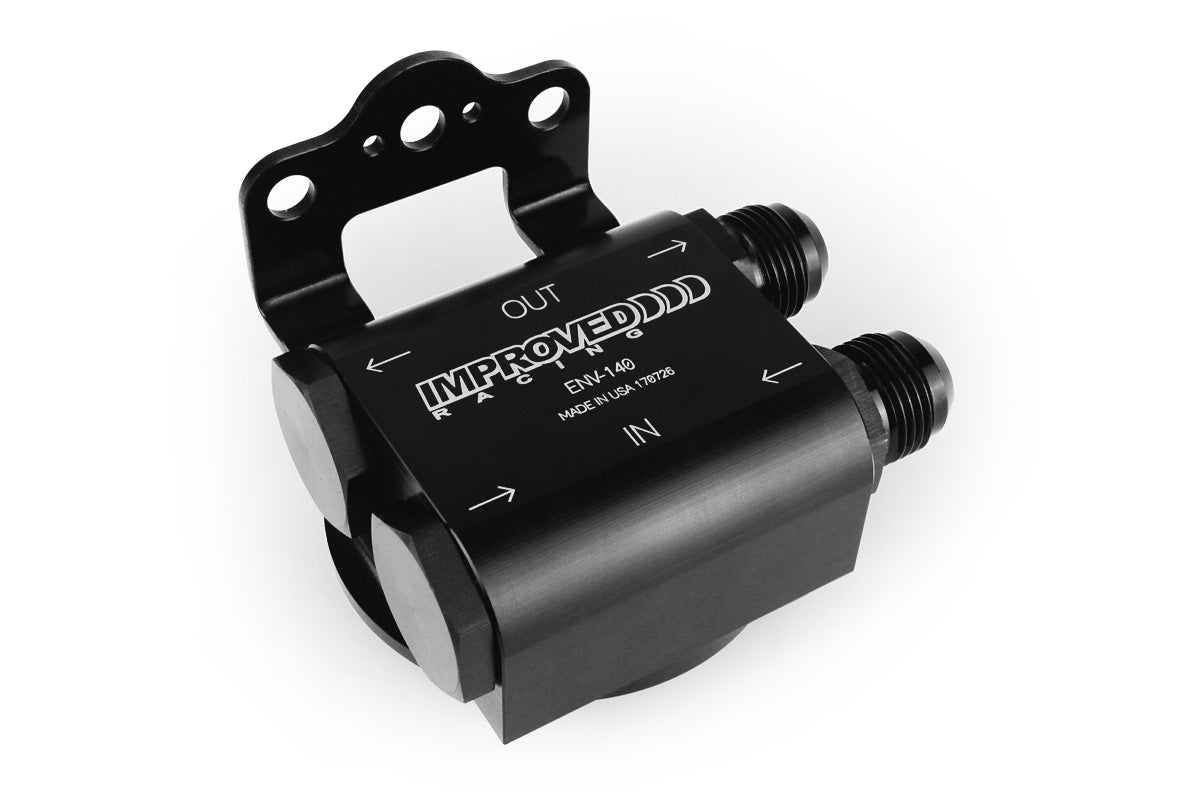

Improved Racing - Remote oil filter mount, -10AN ORB ports, filter screw sold separately

Improved Racing's remote oil filter mount allows you to relocate your oil filter to a more accessible location. It's multiple flow orientations allow for an easy and tidy install in any engine bay.

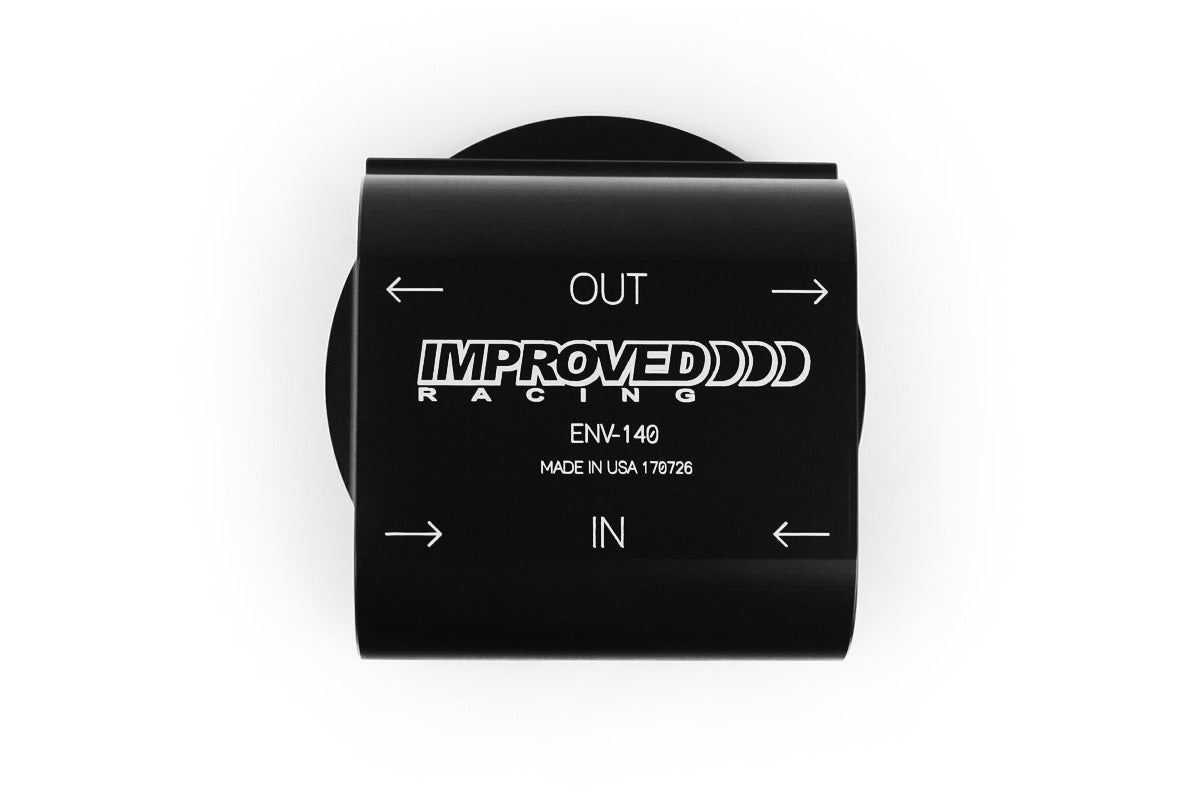

This remote filter head features four female -10AN O-ring boss threads. Fittings are available to accommodate -6AN, -8AN, -10AN and -12AN lines, or 3/8" and 1/2" hose. The two extra ports can be used for sensors, turbo feeds, oil accumulators, etc. Two -10AN plugs are supplied for these ports.

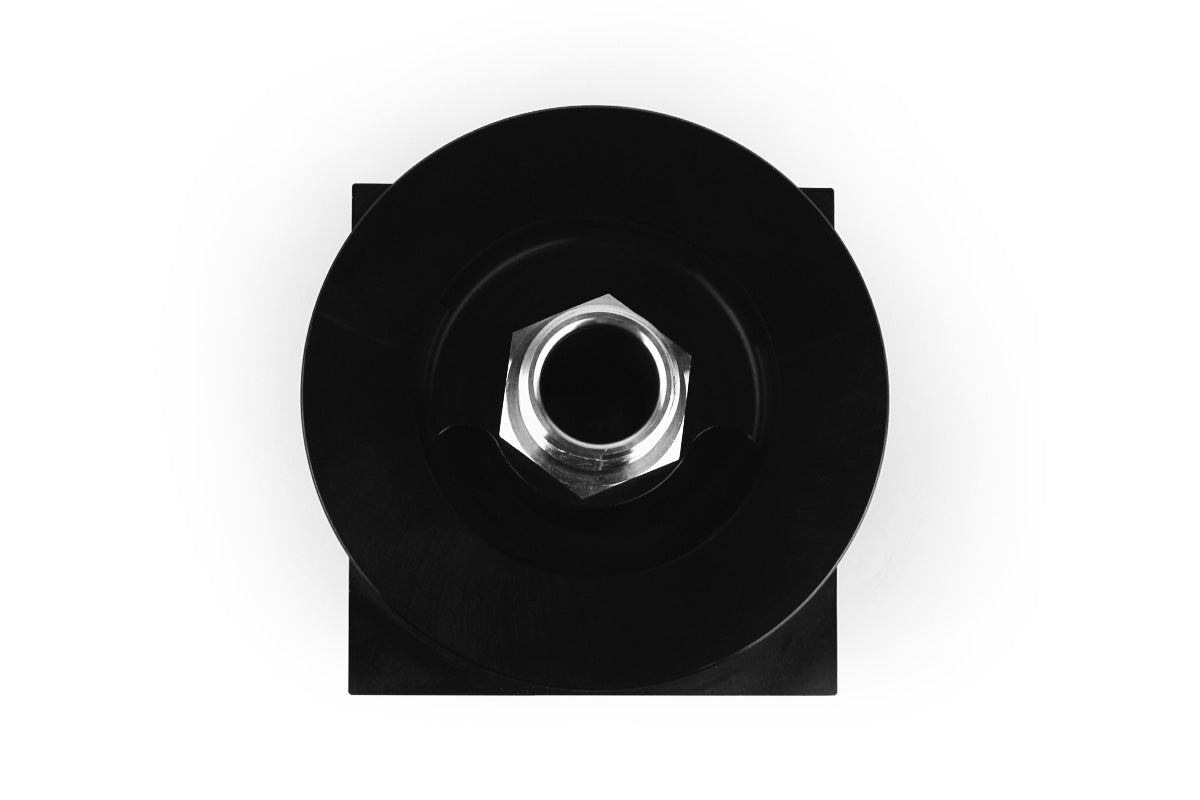

This unit is available with either an M20x1.50, M22x1.50, 13/16"-16, or 3/4"-16 filter screw. The filter screw is machined from hardened 410 stainless steel, which is stronger and more durable than other grades such as 304 and 316. The mounting bracket offers four different mounting options, is made from lightweight aluminum, and is Type II anodized for durability.

Features and Benefits

• Large M20x1.50, M22x1.50, 13/16"-16, or 3/4"-16 filter thread bung is compatible with a wide range of filters.
• The maximum supported oil filter gasket OD is 3.44" and the minimum supported oil filter gasket ID is 1.91".
• Quad port setup for versatile line routing and two extra ports for sensors.
• Filter screw is machined from hardened 410 stainless steel for excellent durability.
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish.

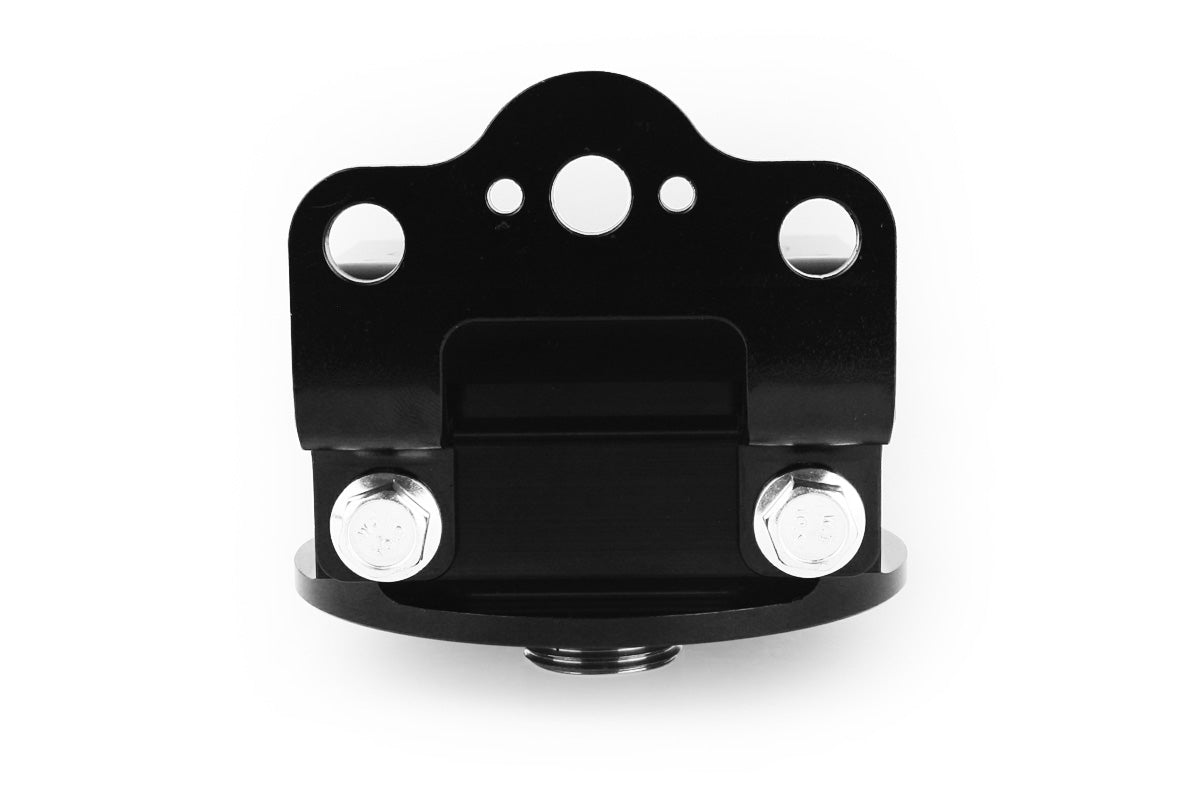

• Lightweight black anodized aluminum mounting bracket with 2 different mounting options.

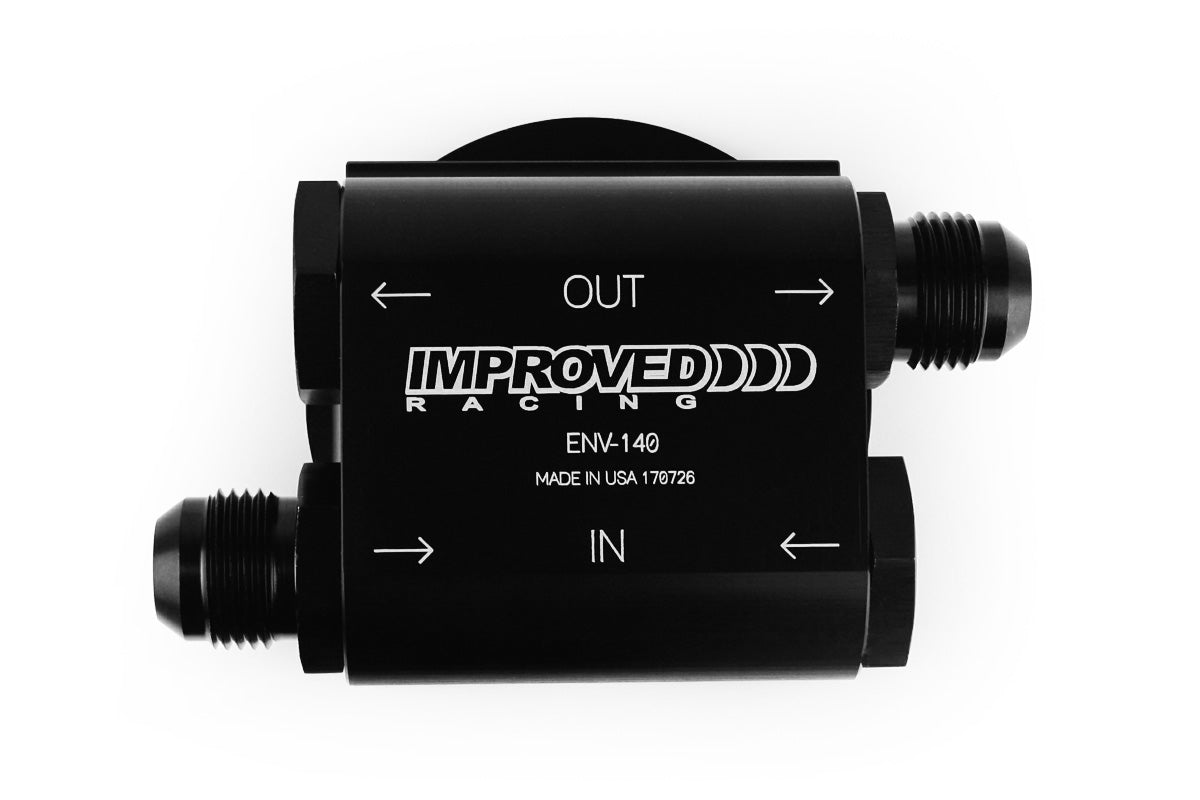

• Four possible flow configurations for a tidy install in any engine bay.
• Female -10AN O-ring boss ports.
• Made in USA.
• Lifetime Warranty.

6 Fitting Sizes Available

Available with 3/8" or 1/2'' hose barb, -6AN, -8AN, -10AN, or -12AN (-10AN is recommended for engine oil)

Applications

• For use in remote oil and transmission filter applications. Can be used with or without an oil cooler.

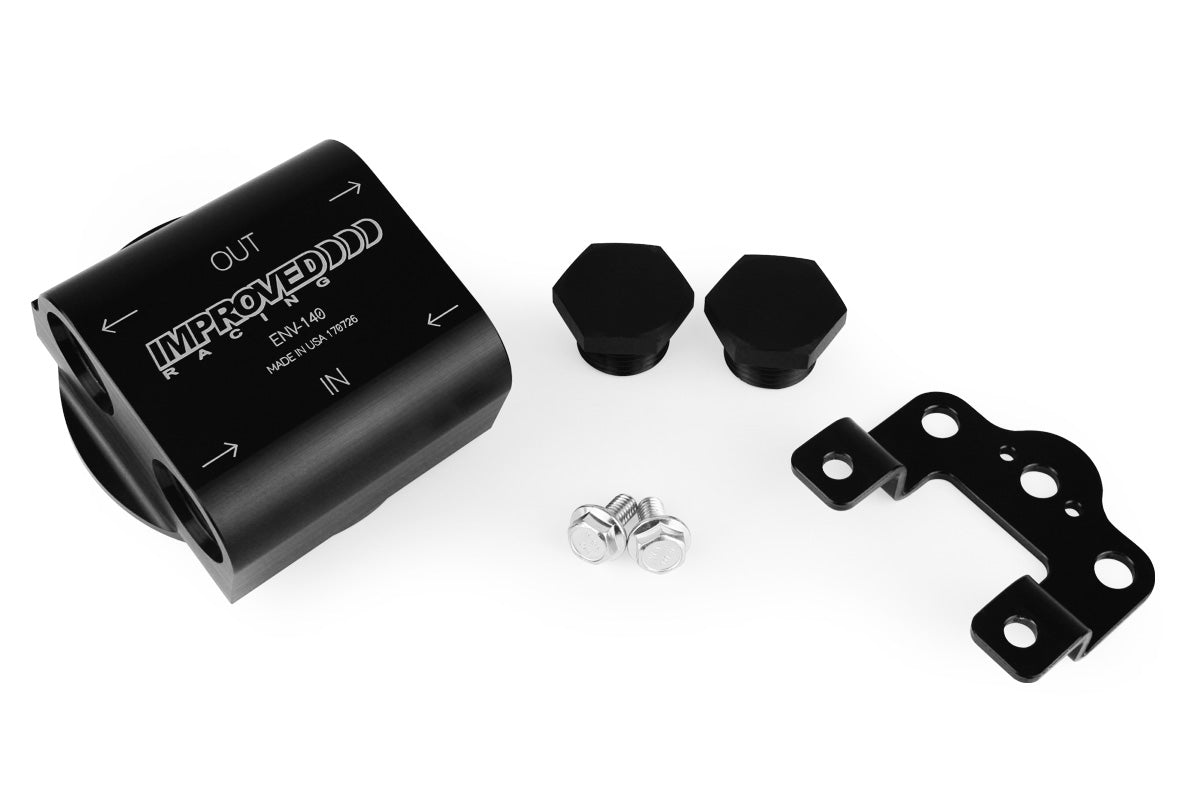

Includes

• 1x Remote oil filter mount
• 1x 410 stainless steel M22x1.50, 13/16"-16, or 3/4"-16 filter thread bung
• 1x Anodized aluminum mounting bracket and screws
• 2x -10AN O-ring boss plugs

Recommended Oil Filter Part Numbers

13/16"-16 filter thread:

• Wix 51794R
• Wix 51060R
• Wix 51061R
• Wix 51069R
• Wix 51042XP
• Fram HP4

M22x1.50 filter thread:

• Wix WL7421
• Wix WL10058
• Fram PH3616
• AC-Delco PF2156
• Purolator L30248
• Royal Purple 20-820
• K&N HP-2010
• Fram PH2
• Purolator L24651
• microGreen MG421-8
• Fram HP19
• AC-Delco PF26
• Wix 51372
• Wix 57899
• Mobil 1 M1-210
• Mobil 1 M1-212
• Royal Purple 20-500
• Wix WL7421
• Bosch 3502
• Purolator L22500
• Fram PH10575
• Mobil 1 M1-113
• Royal Purple 10-48
• Wix 57502
• Fram HP18

See the filter reference chart in the Documentations tab for more.
