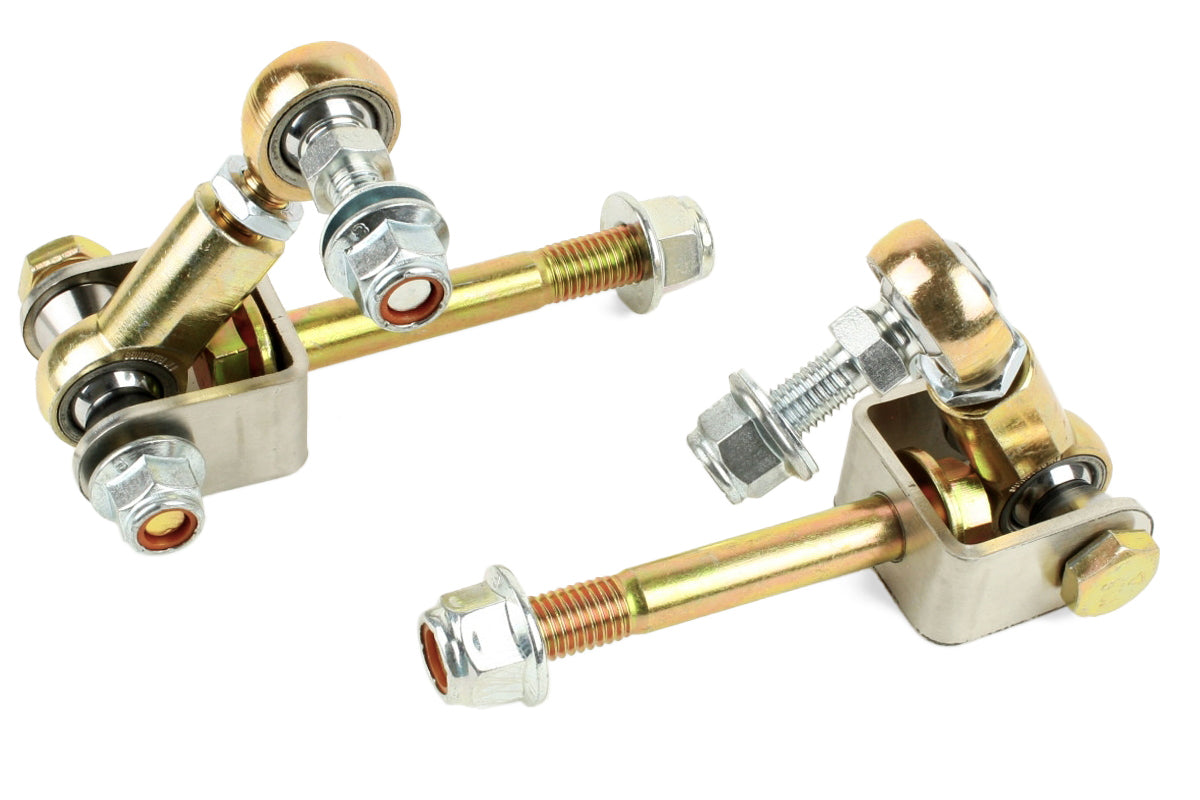

Improved Racing - Sway bar end links, REAR, 1993-2002 Mazda Rx-7 (FD3S)

Improved Racing offers a high-strength, adjustable rear sway bar end link kit to replace the factory plastic components on the 3rd generation Mazda RX-7.

Lowering a vehicle's ride height or corner weighting the chassis often induces unwanted preload on the sway bar. This can negatively affect handling by creating an imbalance in the suspension. These adjustable links allow the user to neutralize this preload, ensuring the sway bar operates correctly for balanced, predictable handling.

The kit is built around premium, 3-piece, PTFE-lined spherical rod ends from FK Rod Ends. These are paired with custom-machined conical spacers to provide maximum misalignment angle and prevent the bearing from binding. A key feature is our innovative U-bracket lower mount. This design allows the end link to pivot along the bearing's natural axis, further ensuring bind-free operation. This also facilitates the use of the included Class 10.9 extra-long lower bolt, ensuring compatibility with aftermarket coilovers that may have wider mounting yokes.

Features & Benefits

• Adjustable length from 2.8" to 3.3" allows for the complete elimination of sway bar preload.

• Features motorsports-grade, USA-made FK Rod Ends with self-lubricating PTFE liners for long life and bind-free operation.

• Custom conical spacers are included to maximize spherical bearing misalignment and prevent binding.

• Innovative U-bracket lower mount provides unrestricted, bind-free articulation.

• Includes Class 10.9 hardware with an extra-long lower mounting bolt to accommodate a wide range of aftermarket coilovers.

• Compatible with both original equipment and aftermarket sway bars.

• Proudly designed and manufactured in the USA.

Applications

• 1993-2002 Mazda RX-7 (FD3S)
